Zip-Shield® (DVH) Cable Bundling with EMI Shielding

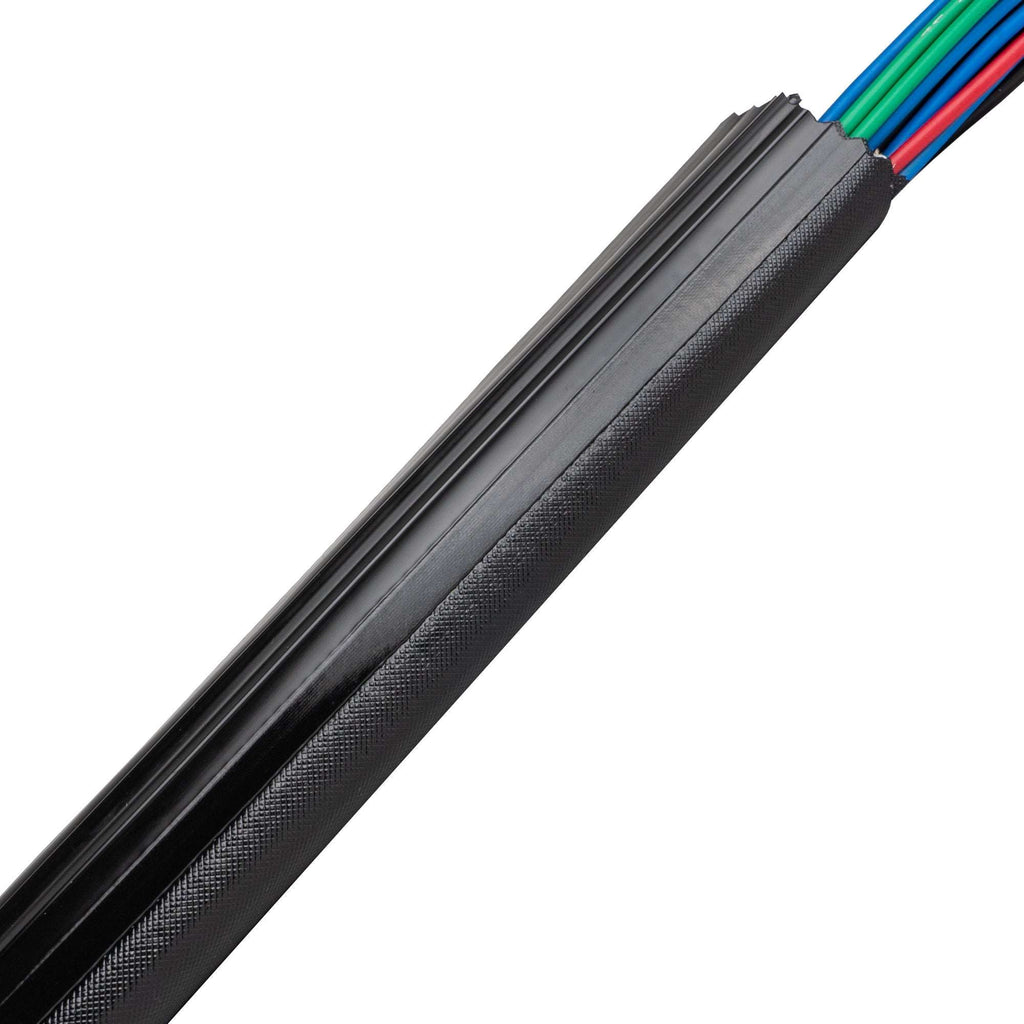

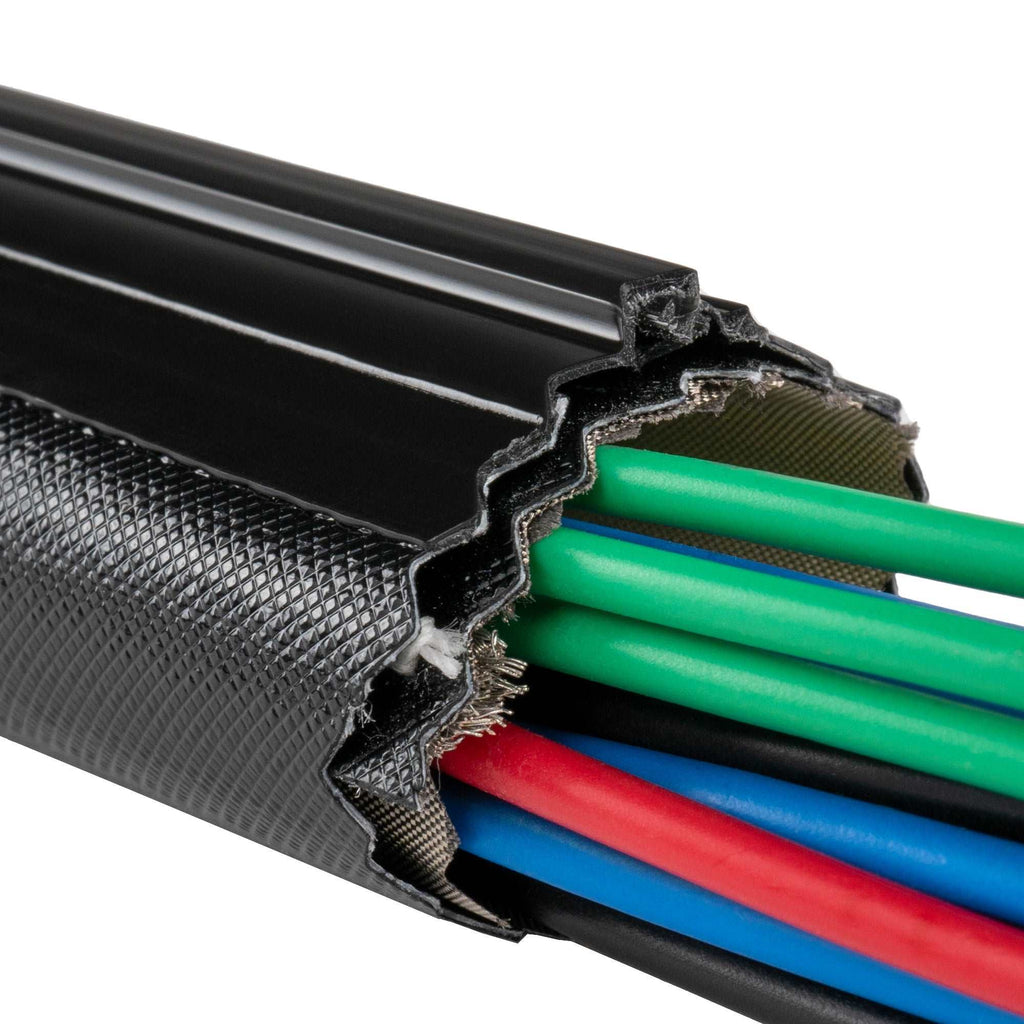

A protective, wrap-around PVC-coated polyester jacket with a sewn-in EMI-shielding cloth, mesh or foil that features a pressure track closure.

Drawing Number(s): ZT97-17-161, ZT97-17-164

Zip-Shield® (DVH) Cable Bundling with EMI Shielding
RoHS Military Grade

Select product options

*Zippertubing recommends adding 0.125 inches (1/8 inch) to your bundle diameter for all track products.
Please fill in at least one field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Selected Part Number:ZT97-17-161-0.375-B-B
Get A Quote
WARNING: Cancer and Reproductive Harm | www.P65Warnings.ca.gov

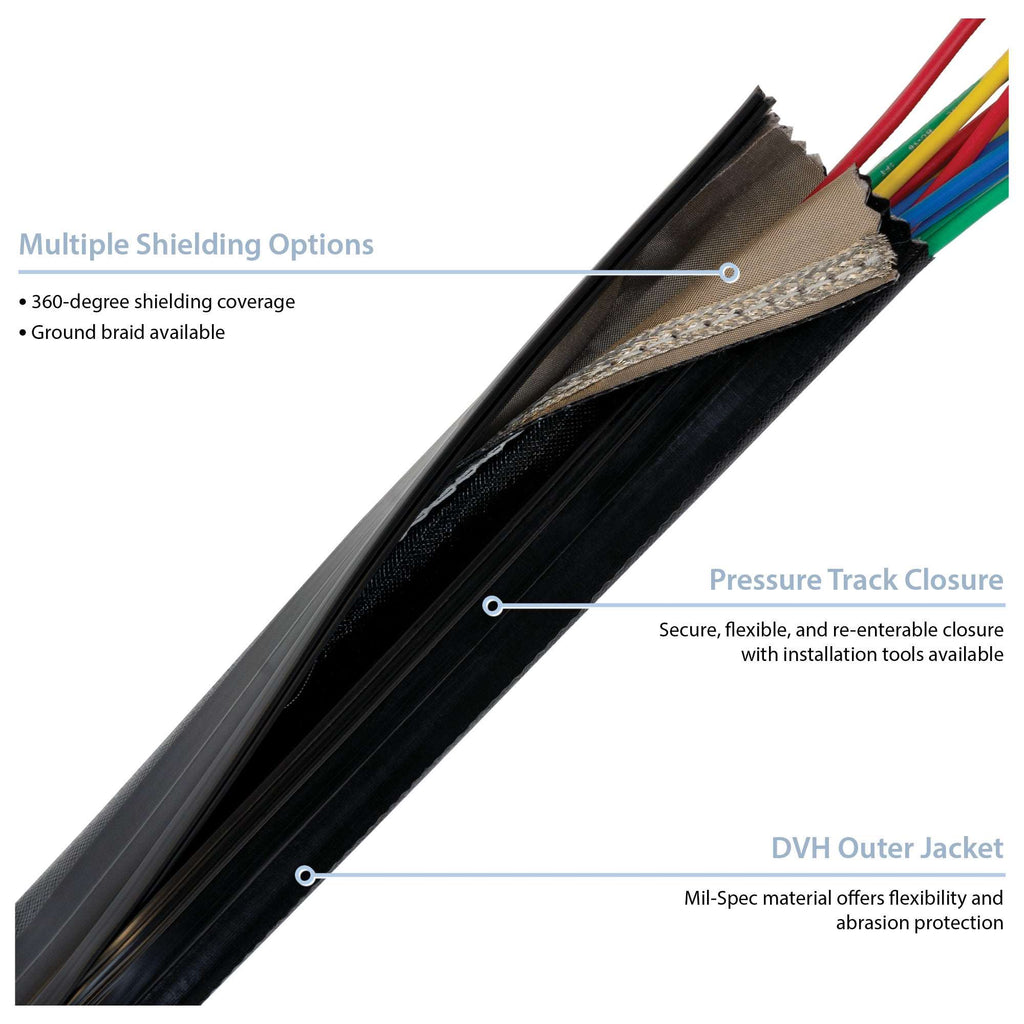

Zip-Shield (DVH) Infographic
  • General purpose or heavy duty DVH jacketing options
  • Pressure track closure system for a secure seal
  • EMI-shielding cloth is lightweight and corrosion resistant

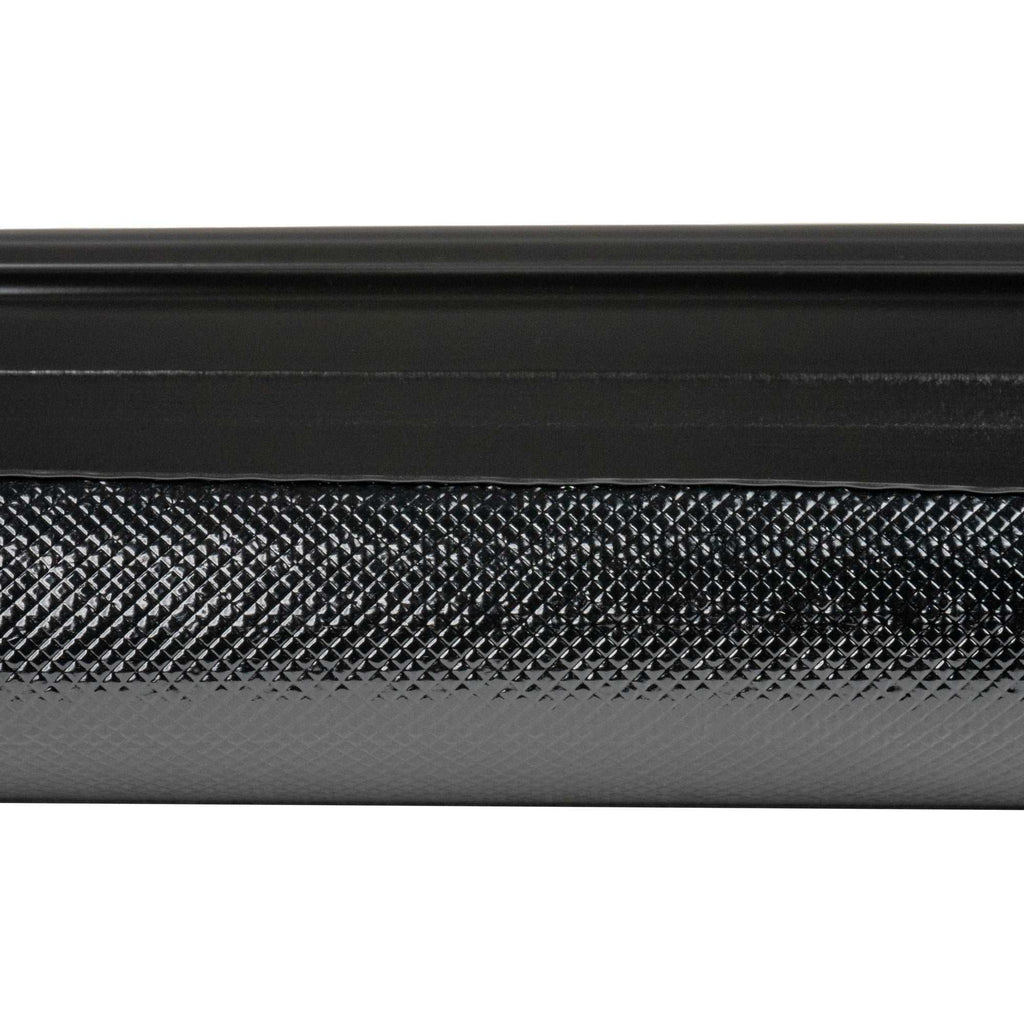

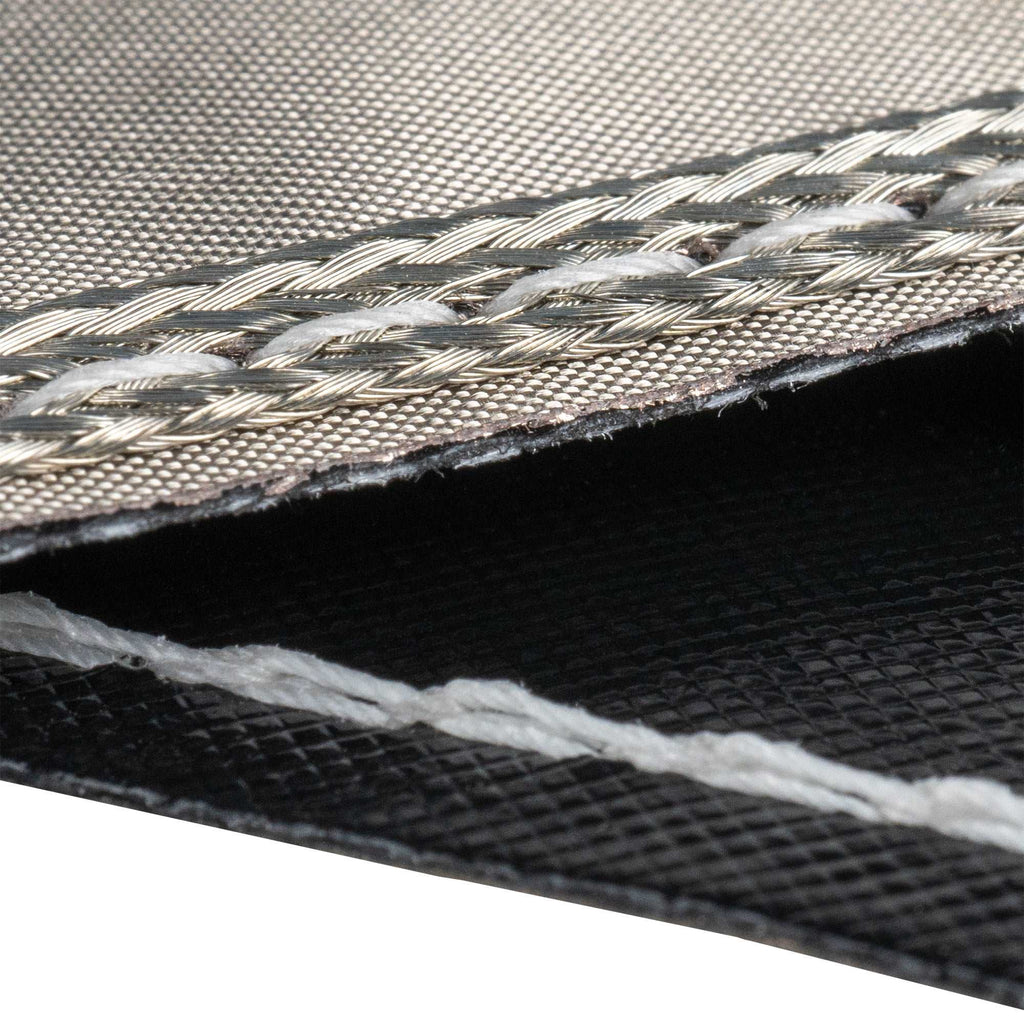

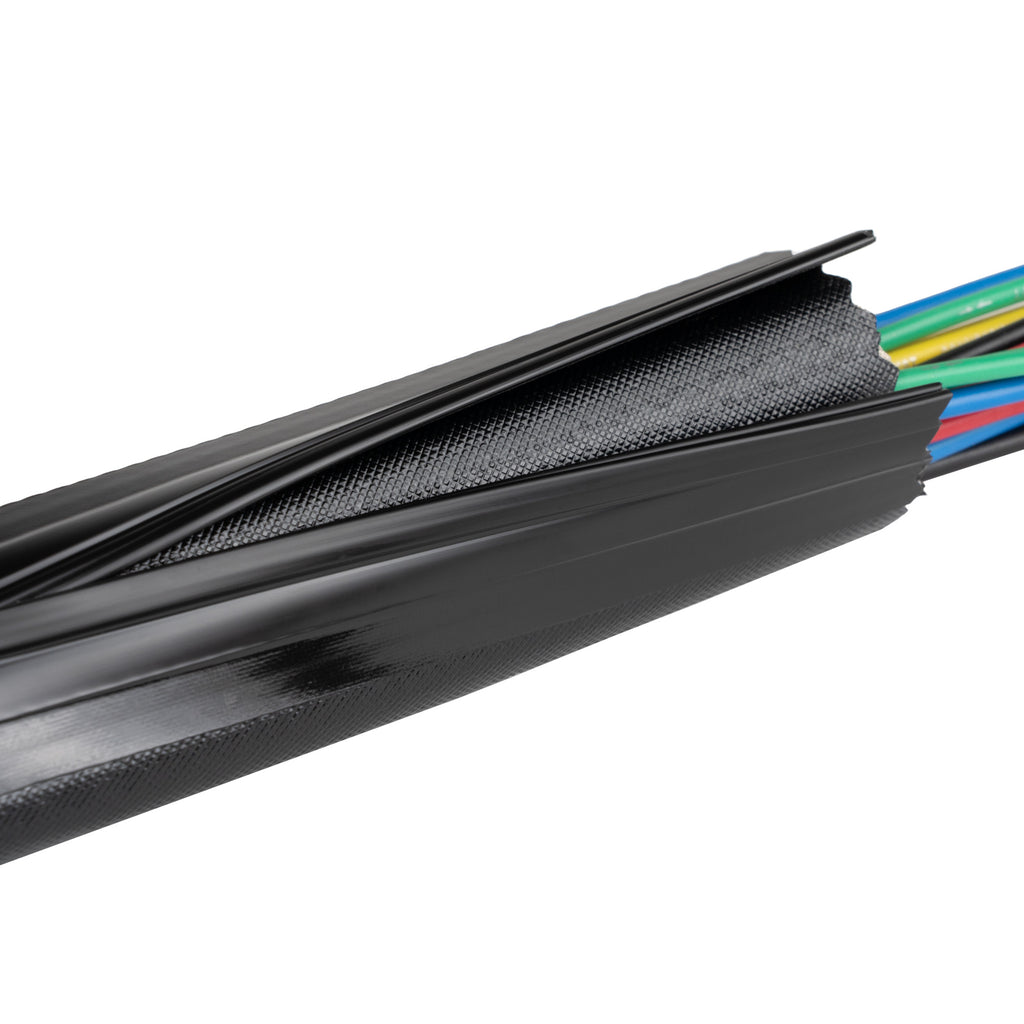

Zip-Shield® (DVH) is an EMI-shielding solution consisting of a protective jacket made from woven, PVC-coated polyester fabric with a sewn-in shielding cloth, mesh or foil and a pressure track. Jacketing choices include either a general purpose 20-mil thick fabric (DVH-20) or a heavy duty 40-mil thick fabric (DVH-40). Both options are military grade and provide abrasion protection — ideal for outdoor use or harsh environments. The 3250 EMI-shielding cloth offers protection from EMI, RFI, and EMF, so you can be confident that your components will not be compromised by these damaging interferences.

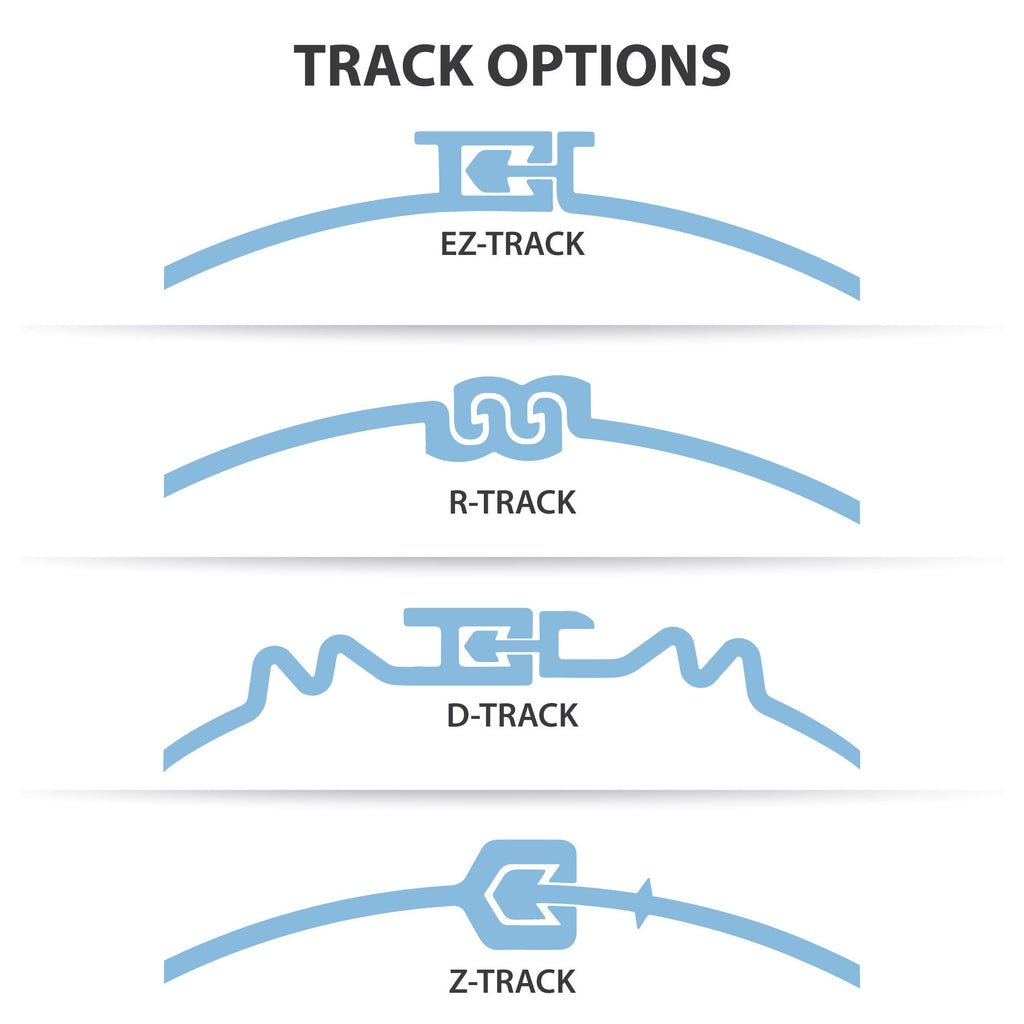

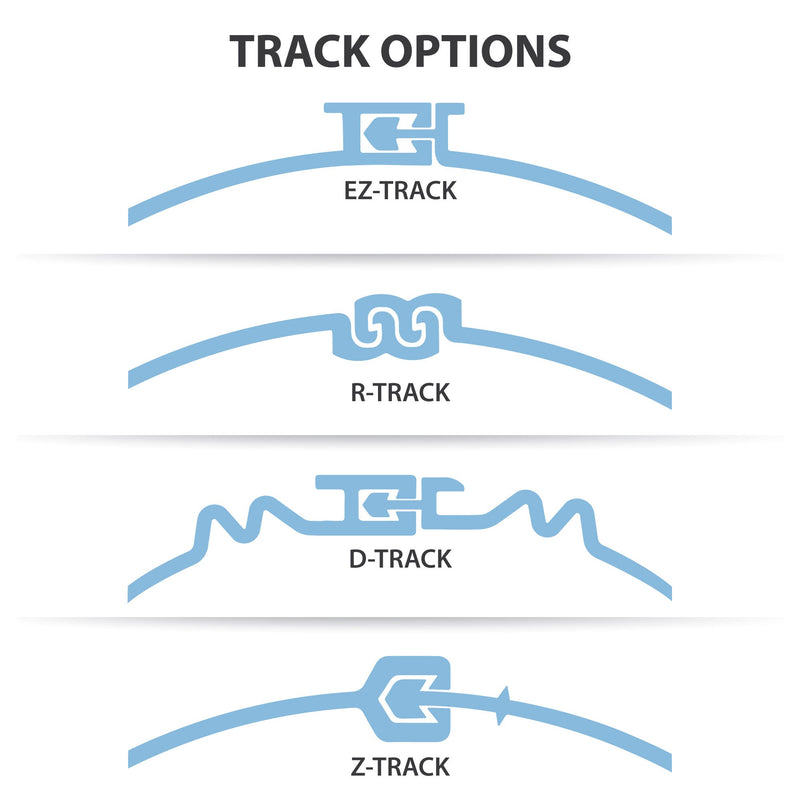

Zip-Shield® (DVH) is typically paired with the R-Track or the Z-Track. Either pressure track system will be easy to seal and offer a long-lasting closure. If re-entry is required, you can easily break out components. The R-Track is a light duty pressure track closure and is similar to a zip-lock closure. The R-Track can be sealed manually with a thumb or with an SLR slider tool. The Z-Track is a medium duty pressure track closure with an arrowhead and channel interlock system, and it is the most versatile pressure track option. The Z-Track can be sealed with our ZTZ-SP plier tool. Zippertubing® can also manufacture Zip-Shield® (DVH) with our other pressure track closures upon request.

Jacketing options for Zip-Shield® (DVH) include:

DVH-20: Durable polyester fabric with a PVC coating that is flame retardant, abrasion resistant, and ideal for applications in which components may be exposed to harsh outdoor conditions.

DVH-40: Heavy duty polyester fabric that has a PVC coating and is extremely tough for rugged conditions, such as industrial applications in which abrasion and tear resistance are required.

Q:  What is the difference between the track closure styles?

A:  Each interlocking track profile has unique benefits and trade-offs.  To learn about them you can review our Track Comparison.

Q:  How do I close the jacketing?

A:  Some tracks can be closed by hand, but we also offer closure tools to assist with installation.  For more information on closing the specific tracks you can view our helpful videos or installation guides:

Q:  Can I cut the tubing?

A:  Yes.  Standard scissors are suitable for cutting through most Zip-On jackets and tracks.

Q:  What lengths of material are available?

A:  Typical spool lengths for most sizes are 100 feet, but will depend on total order footage.  Custom lengths can be provided, just make sure to ask when ordering or include details on the PO for the lengths required.

Q:  Will the track keep out water and is it water-tight?

A:  Our different track closures are rated between IP54 and IP55. This means they are not water tight but will provide significant protection against moisture and fluid ingress.
Some users will apply tape or a sealant to the track, after closing, to provide additional protection.

Q:  What diameter of jacketing do I need?  Is it recommended to oversize?

A:  We will often suggest oversizing the sleeve diameter by 1/8” to allow for ease of install
when using a closure tool.  If the application requires significant bending or flexing we will suggest even more extra room.  For assistance with sizing you can also contact one of our design engineers.

Q:  What is the minimum bend radius of the tubing?

A:  There is no minimum bend radius for our Zip-On products. The flexible jacketing material allows for extreme amounts of bending and flexing.  The bend radius of the installed tubing is typically dictated by the harness it is covering.

show more >>

Overall Performance

  • Diameter: 0.375" (3/8)
  • Closure: R-Track (PVC)
  • Material: DVH-20
  • Maximum Operating Temperature: 185°F
  • Minimum Operating Temperature: -4°F
  • RoHS: RoHS-10
  • Shelf-Life: 60 months
  • Shielding: Z-3250
  • Shielding Material: Nickel Plated Copper

DVH-20

  • Mil-Spec: Mil-C-43006, Type I, Class 1
  • Durability: Better
  • Coating: Polyvinylchloride
  • REACH: Compliant
  • Flame Retardant: Fed-Std-191A Method 5903 - 2 sec. max
  • Thickness: 0.020"
  • Material: Woven Polyester impregnated with PVC
  • Maximum Operating Temperature: 185°F
  • Minimum Operating Temperature: -30°F
  • RoHS: RoHS-10
  • Shelf Life: 36 Months
  • Tensile Strength: 200 lbs/min (Warp); 190 lbs/min (Fill)

DVH-40

  • Mil-Spec: Mil-C-43006, Type I, Class 1
  • REACH: Compliant
  • Fungicide: No Growth
  • Thickness: 0.040"
  • Material: Woven Polyester impregnated with PVC
  • Maximum Operating Temperature: 180°F
  • Minimum Operating Temperature: -40°F
  • RoHS: RoHS-10
  • Shelf Life: 36 Months
  • Tear Strength: 90 lbs/min (Warp); 125 lbs/min (Fill)
  • Tensile Strength: 385 Warp; 125 Fill

R-Track (PVC)

    Z-Track (PVC)

      Z-3250

        SHX-4 (SnCuFe)

          Nylon Thread

            15 AWG Braided Ground Straps

              Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
              Shrink-N-Shield® (2:1) EMI Shielded Heat Shrink Tubing  Flex-Shield (HP) Braided EMI Shielding Sleeve  Shrink-N-Shield® (3:1) EMI Shielded Heat Shrink Tubing
              NAME SHRINK-N-SHIELD® (2:1) EMI SHIELDED HEAT SHRINK TUBING  FLEX-SHIELD (HP) BRAIDED EMI SHIELDING SLEEVE  SHRINK-N-SHIELD® (3:1) EMI SHIELDED HEAT SHRINK TUBING
              DESCRIPTION Shrink-N-Shield® (2:1) is a MIL-SPEC, heat-shrink tubing with a 2:1 shrink ratio that provides exceptional shielding from EMI, RFI and EMF.  A braided, expandable EMI, RFI and EMF shielding sleeve that is lightweight and flexible—an ideal solution for the aerospace industry.  A heat-shrink tubing that provides exceptional shielding from EMI, RFI and EMF.
              Closure
              RoHS RoHS-10  RoHS-10  RoHS-10
              Abrasion Resistance Best    Best
              Installation Type Pull-Through  Pull-Through  Pull-Through
              Purpose EMI Shielding  Sleeve  Small Diameters
              Min Temperature Extreme  Moderate  Extreme
              Minimum Operating Temperature -40°F  -40°F  -67°F
              Max Temperature Moderate  Moderate  Moderate
              Maximum Operating Temperature 275°F  302°F  275°F
              Flexibility
              View  View  View
              Zippertubing
              Zip-Shield (DVH) Infographic

              Zip-Shield® (DVH) Cable Bundling with EMI Shielding

              A protective, wrap-around PVC-coated polyester jacket with a sewn-in EMI-shielding cloth, mesh or foil that features a pressure track closure.

              Drawing Number(s): ZT97-17-161, ZT97-17-164

              Selected Part Number: ZT97-17-161-0.375-B-B

            • General purpose or heavy duty DVH jacketing options
            • Pressure track closure system for a secure seal
            • EMI-shielding cloth is lightweight and corrosion resistant
            • Military
              Zip-Shield (DVH)
              Zip-Shield (DVH) Electromagnetic Interference Shielding
              Zip-Shield® (DVH) Shielding Options
              Zip-Shield® (DVH) Closure

              Features

            • Engineered for diameters ranging from 0.375” to 4”, with custom sizes available upon request

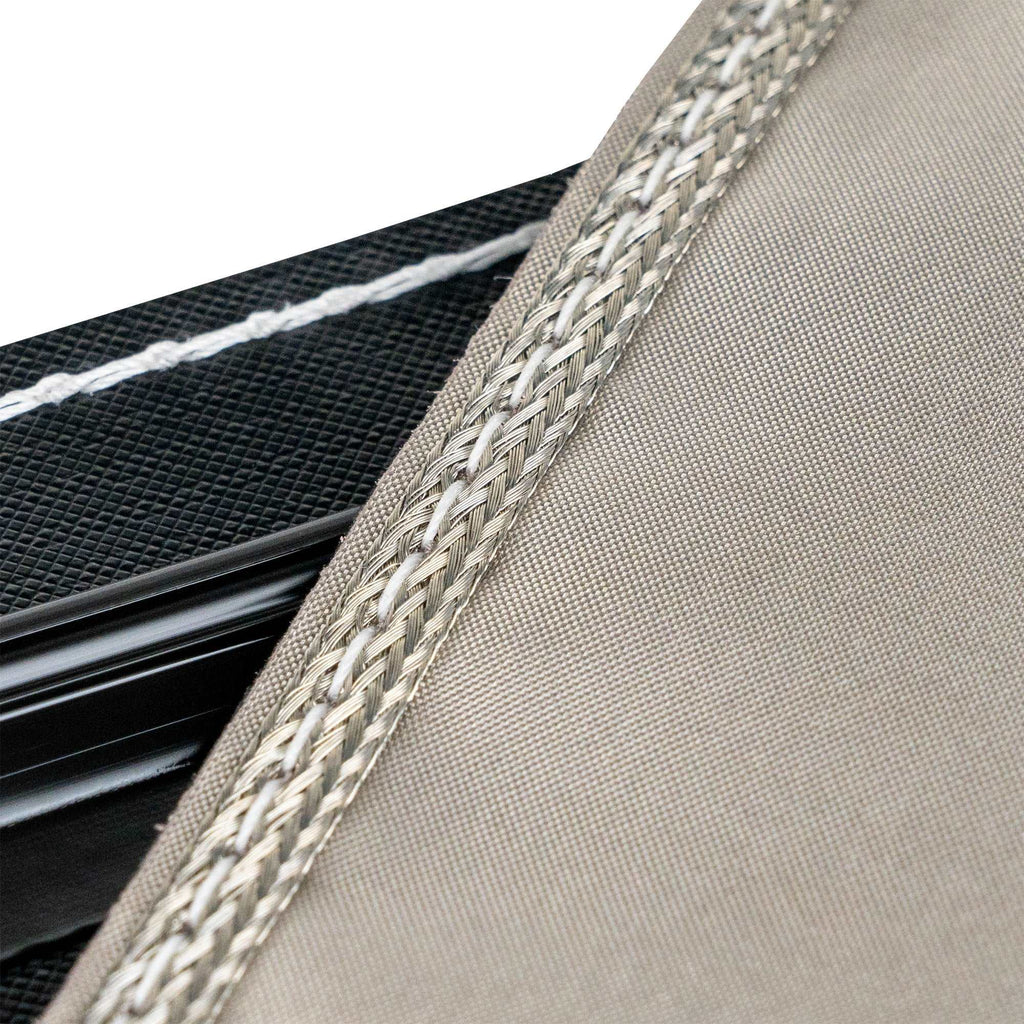

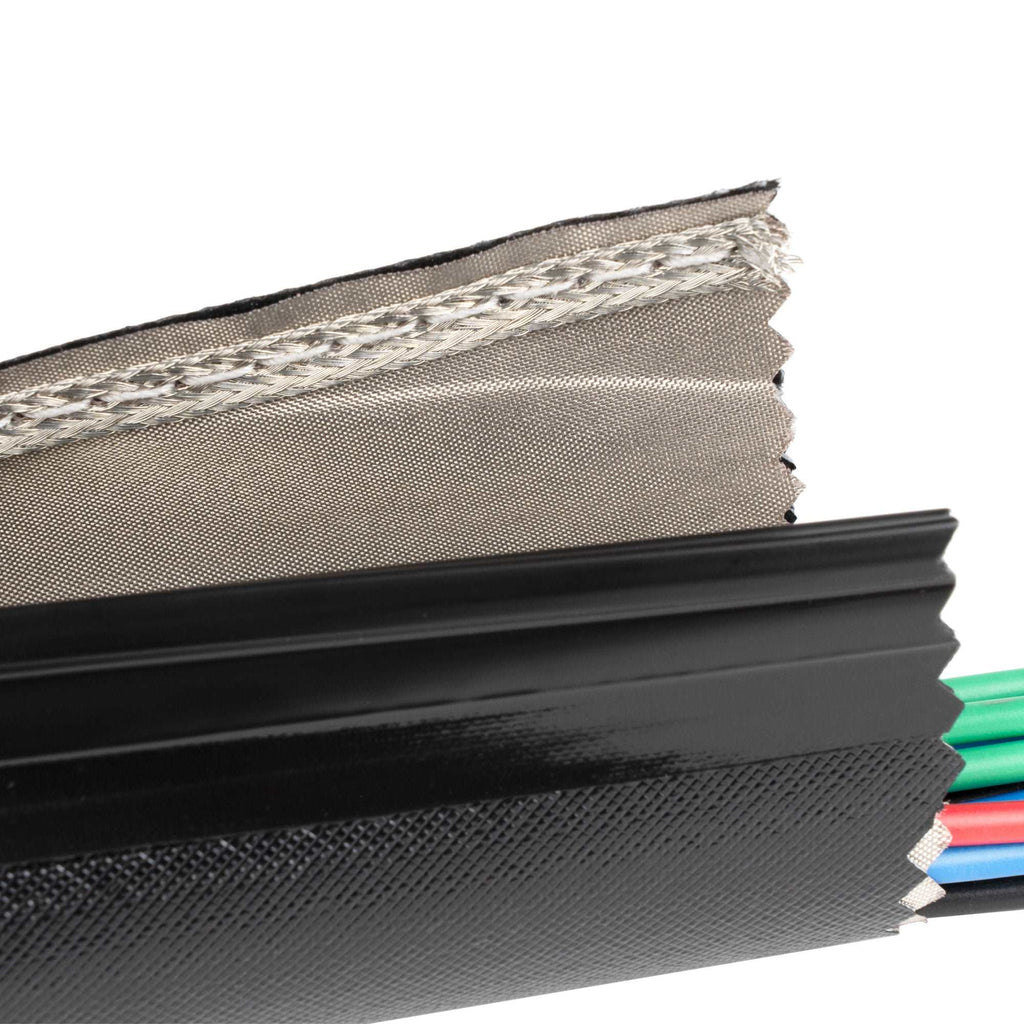

            • Provides 360-degree protection of components with inner overlap of EMI-shielding cloth
            • Pressure track is heat sealed to jacketing for a strong bond
            • Benefits

            • Secure pressure track seal with ability to re-enter as needed
            • EMI shielding for protection against EMI, RFI, and EMF
            • Jacketing options to fit a wide range of applications or conditions
            • Zip-Shield® (DVH) Cable Bundling with EMI Shielding

              Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.

              SHIELDING EFFECTIVENESS - Z-3250, SHX-4 (SnCuFe)

              ATTENUATION DATA WAS OBTAINED USING MIL-DTL-83528H (MODIFIED). TESTING WAS PERFORMED BY ACCREDITED, THIRD-PARTY EMI LABORATORIES.

              Zip-Shield® (DVH) Cable Bundling with EMI Shielding

              MATERIAL SPECIFICATIONS
