Connector-Cover - Protection for In-Line Connections

A cover for interconnected components that pairs the military-grade 63-20 jacketing with the R-Track pressure track.

Drawing Number(s): ZT94-06-017

Connector-Cover - Protection for In-Line Connections
RoHS

Select product options

*Zippertubing recommends adding 0.125 inches (1/8 inch) to your bundle diameter for all track products.
Please fill in at least one field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Selected Part Number:ZT94-06-017-01-B-B
Get A Quote
WARNING: Cancer and Reproductive Harm | www.P65Warnings.ca.gov

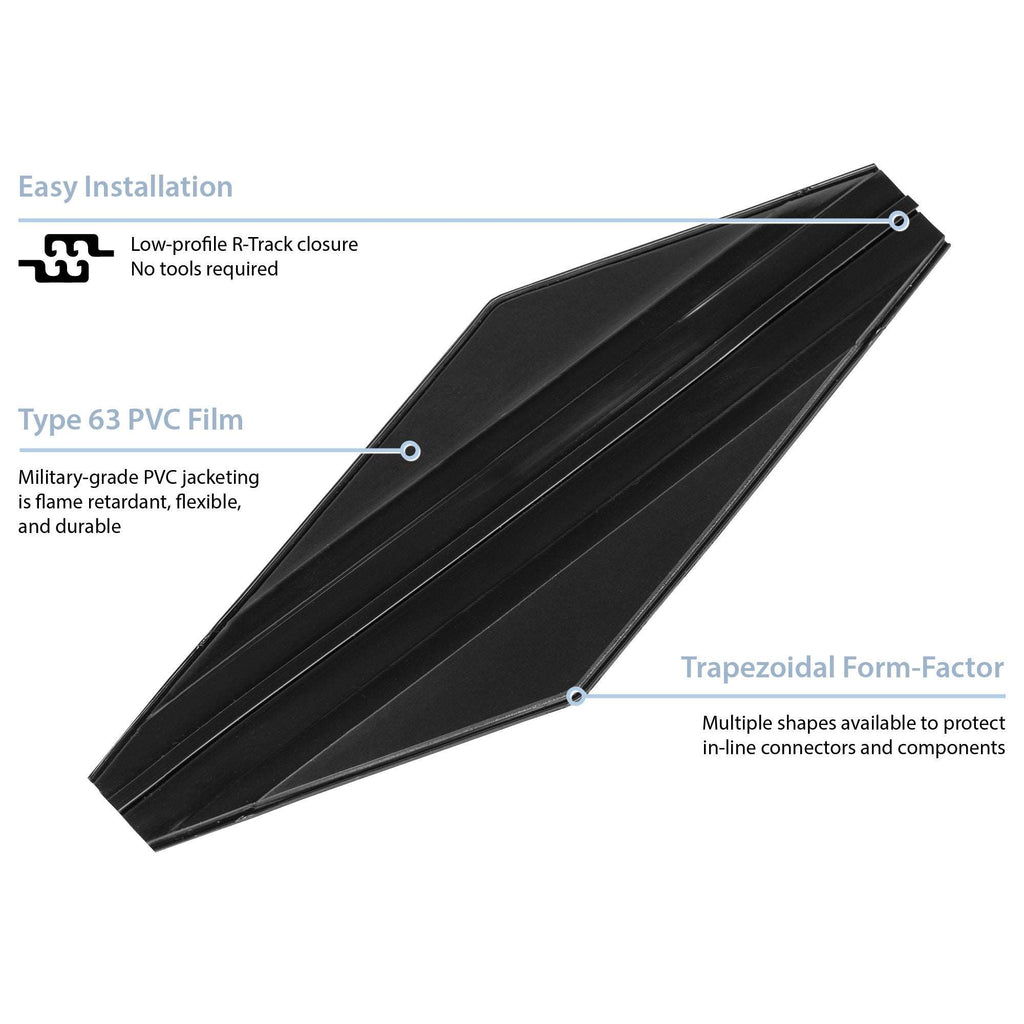

Connector-Cover Infographic
  • Pressure track closure allows for quick installation and accessibility to components inside
  • Jacketing is abrasion resistant, corrosion resistant, fluid resistant, and contains anti-fungicide
  • R-Track is installed by using thumb pressure; SLR Slider is also available

Connector-Cover™ (R-Track) is a trapezoidal cover for interconnected components that need protection from the elements. The 63-20 jacketing is RoHS compliant and military grade, meeting MIL-I-631D, Type F, Form S, as well as MIL-I-631, Grade C, Class I, Category 1. The jacketing is abrasion resistant, corrosion resistant, fluid resistant, and contains anti-fungicide. The 63-20 material is heat sealed to the R-Track pressure track closure. This PVC pressure track is similar to a zip-lock seal, and can be closed with thumb pressure or utilizing the SLR Slider. The R-Track closure allows for easy installation, as well as the ability to access interconnected components quickly. Connector-Cover™ (R-Track) can also manufactured to be cut to form a tapered cone shape for connector mated to a bulkhead or panel.

Connector-Cover™ can be customized in any size or shape desired. The operational temperature range is -4°F to 221°F (-20°C to 105°C).

Overall Performance

  • Closure: R-Track (PVC)
  • Material: 63-20
  • Maximum Operating Temperature: 221°F
  • Minimum Operating Temperature: -4°F
  • RoHS: RoHS-10
  • Shelf-Life: 36 Months
  • Trapezoid Size: 3.5" x 9.0" (#01)

63-20

  • Mil-Spec: MIL-I-631D, Type F, Form S, Class I
  • REACH: Compliant
  • Copper Corrosion: Meets Mil-I-631D
  • Dielectric Volts/Mil: 700 volt/mil (0.020" thk.)
  • Elongation: 200% min., 450% max
  • Volume Resistivity: 1010 ohms/cm.
  • Flame Retardant: MIL-I-631
  • Fungicide: Does Not Support Growth
  • Color: Black
  • Thickness: 0.020"
  • Material: PVC Extruded Film
  • Maximum Operating Temperature: 221°F
  • Minimum Operating Temperature: -4°F
  • RoHS: RoHS-10
  • Shelf Life: 36 Months
  • Tensile Strength: 1,800 psi/min

R-Track (PVC)

    Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
    Zip-On® (63) Military-Grade Cable Bundling  Zip-On® (PFR) Polyurethane Cable Bundling  Z-Coil Self-Closing Cable Jacketing
    NAME ZIP-ON® (63) MILITARY-GRADE CABLE BUNDLING  ZIP-ON® (PFR) POLYURETHANE CABLE BUNDLING  Z-COIL SELF-CLOSING CABLE JACKETING
    DESCRIPTION A wrap-around cable bundling and protection solution that has a PVC, military-grade jacket that is abrasion and fluid resistant, with a pressure track.  A wrap-around cable protection solution that is flexible, resistant to abrasion and fluids, and has a pressure track closure.  A self-closing wire bundling and protection sleeve made from a durable, flame-retardant, woven PET material
    Closure Z-Track (PVC), R-Track (PVC), D-Track (PVC), EZ-Track (PVC)  Z-Track (PFR)  Self-Closing
    RoHS RoHS-10  RoHS-10  RoHS-10
    Abrasion Resistance Best  Best  Better
    Installation Type Wrap-Around  Wrap-Around  Wrap-Around
    Purpose Sleeve  Sleeve  Sleeve
    Min Temperature Low  Moderate  Extreme
    Minimum Operating Temperature -4°F  -67°F  -58°F
    Max Temperature Moderate  Low  Moderate
    Maximum Operating Temperature 221°F  225°F  302°F
    Flexibility Better  Best  Best
    View  View  View
    Zippertubing
    Connector-Cover Infographic

    Connector-Cover - Protection for In-Line Connections

    A cover for interconnected components that pairs the military-grade 63-20 jacketing with the R-Track pressure track.

    Drawing Number(s): ZT94-06-017

    Selected Part Number: ZT94-06-017-01-B-B

  • Pressure track closure allows for quick installation and accessibility to components inside
  • Jacketing is abrasion resistant, corrosion resistant, fluid resistant, and contains anti-fungicide
  • R-Track is installed by using thumb pressure; SLR Slider is also available
  • Military

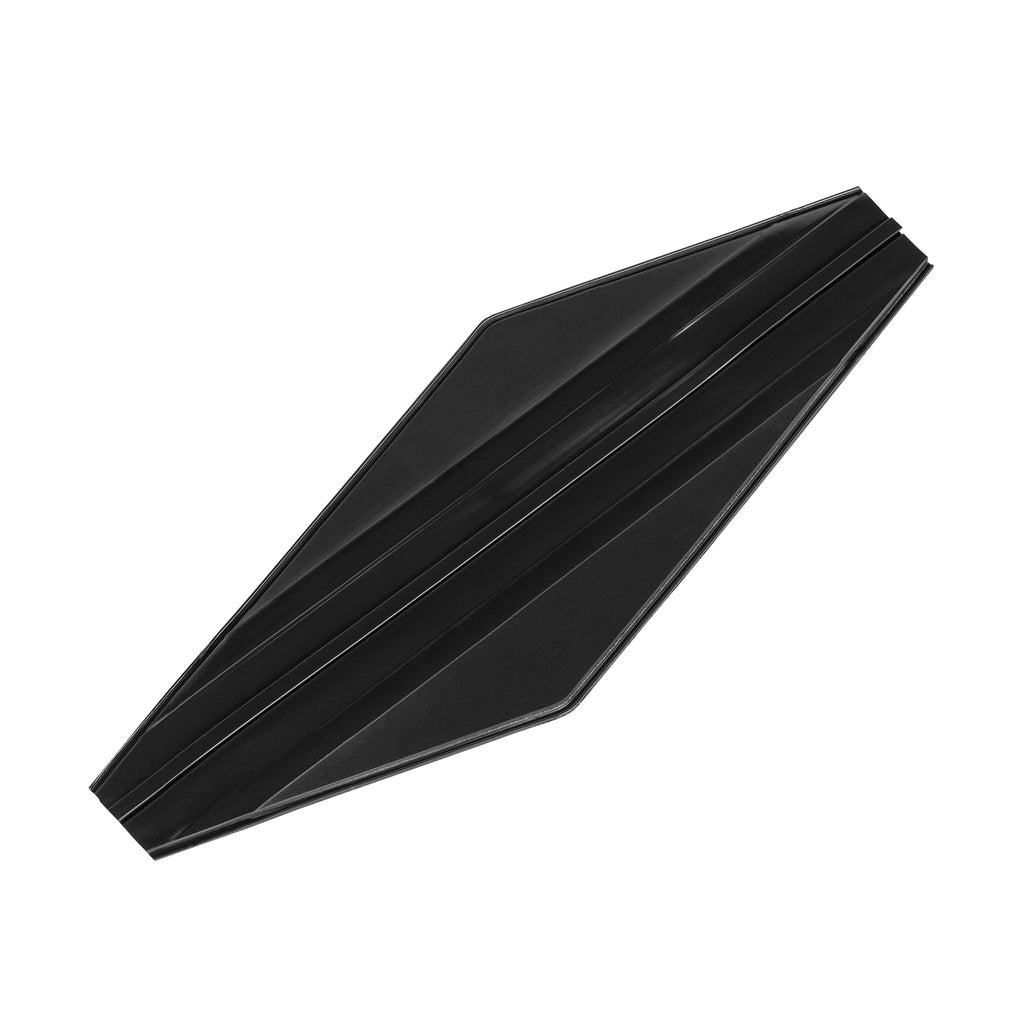

    Connector-Cover

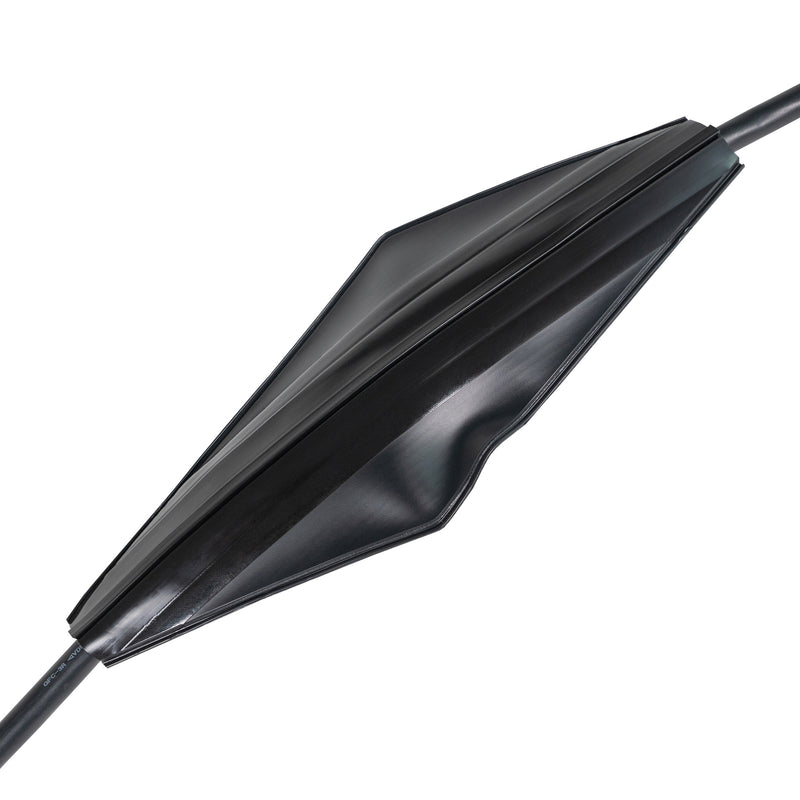

    Connector-Cover electrical enclosure

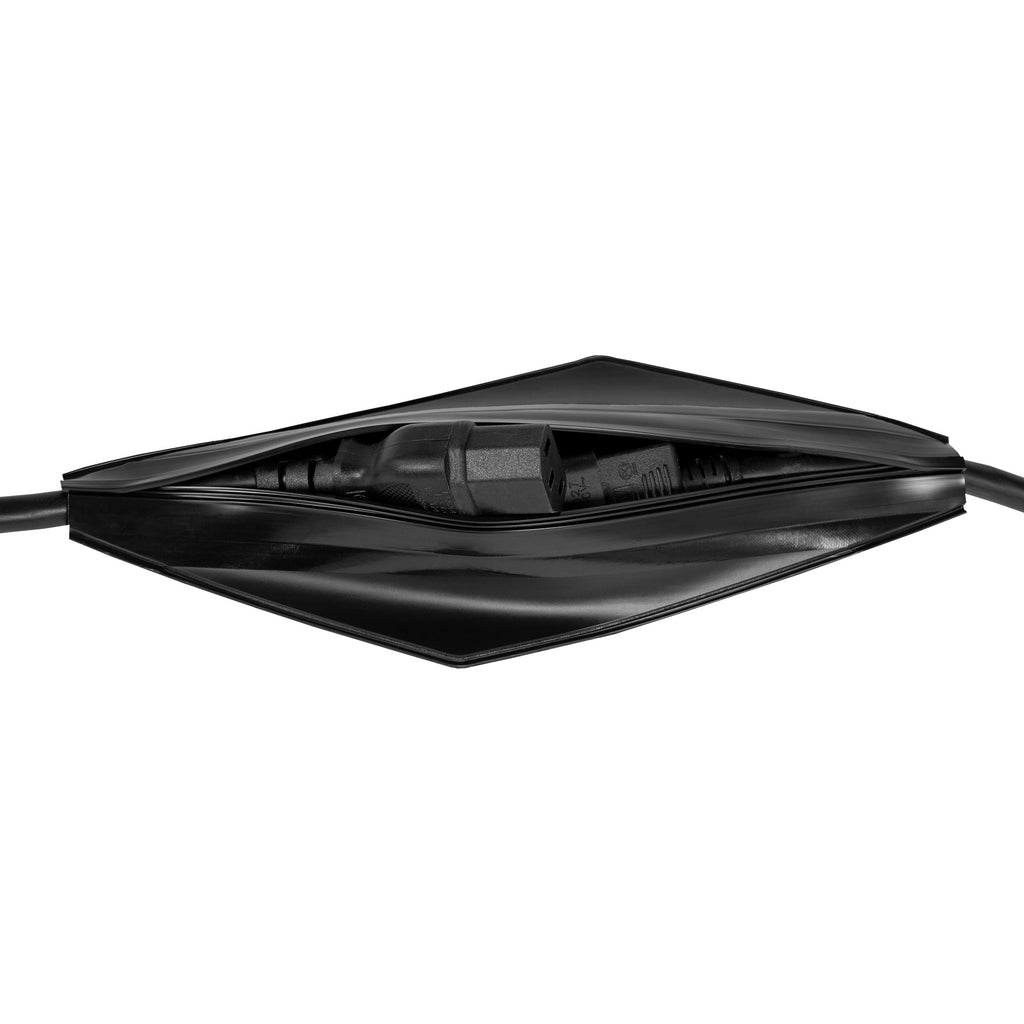

    Connector-Cover connector housing

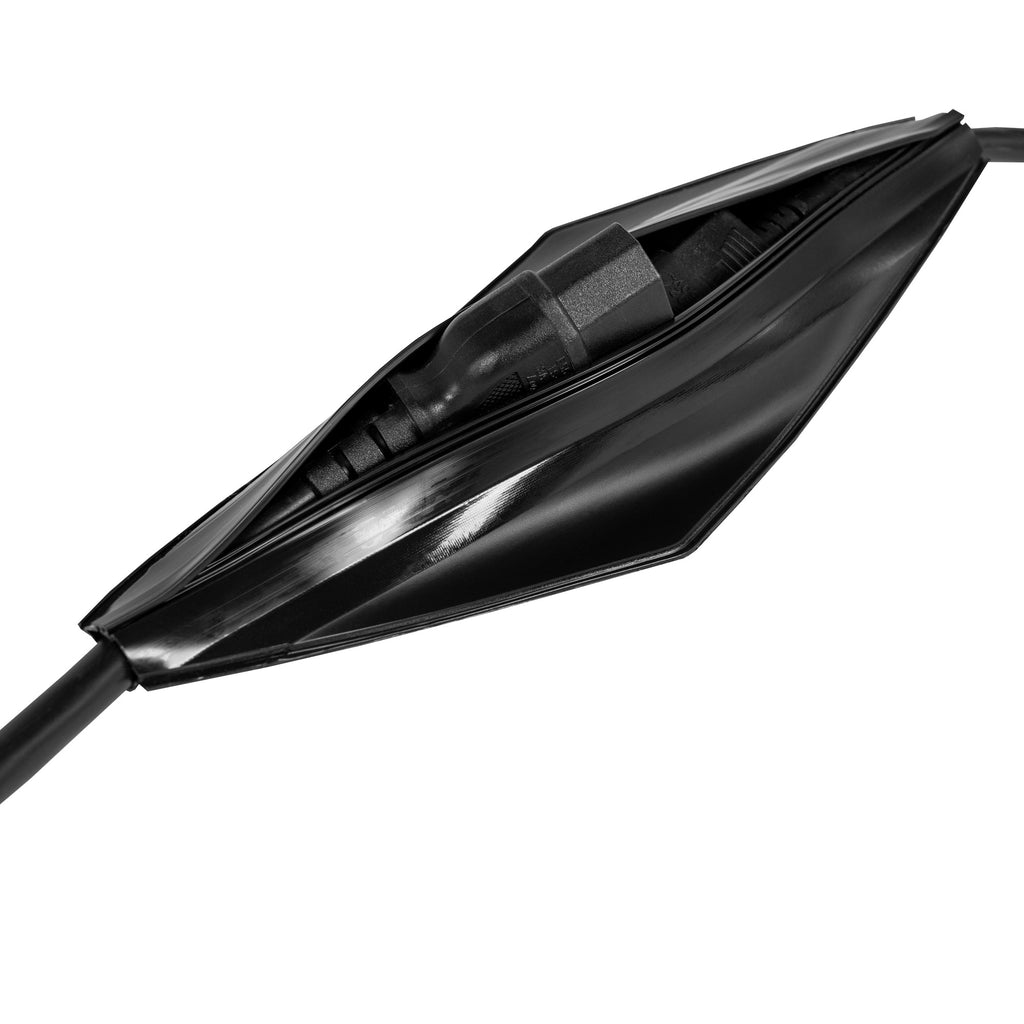

    Connector-Cover cable management cover

    Features

  • Creates a fully enclosed cover around interconnected components
  • Can be customized in any size or shape desired
  • Operational temperature range is -4°F to 221°F (-20°C to 105°C)
  • Benefits

  • Access wires or cables easily with light-duty pressure track closure
  • Military-grade and RoHS jacketing
  • No tools required for installation; SLR Slider tool is available
  • Connector-Cover - Protection for In-Line Connections

    Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.

    Connector-Cover - Protection for In-Line Connections
