Shrink-N-Shield® (3:1)

A heat-shrink tubing that provides exceptional shielding from EMI, RFI and EMF.

Drawing Number(s): ZT01-18-001, ZT18-18-001, ZT16-18-003

Shrink-N-Shield® (3:1)
RoHS Military Grade

Select product options

+ Please fill in at least one field.
Selected Part Number:ZT01-18-001-0.25-B-X48.0
Get A Quote
WARNING: Cancer and Reproductive Harm | www.P65Warnings.ca.gov

Overview

Shrink-N-Shield® (3:1)

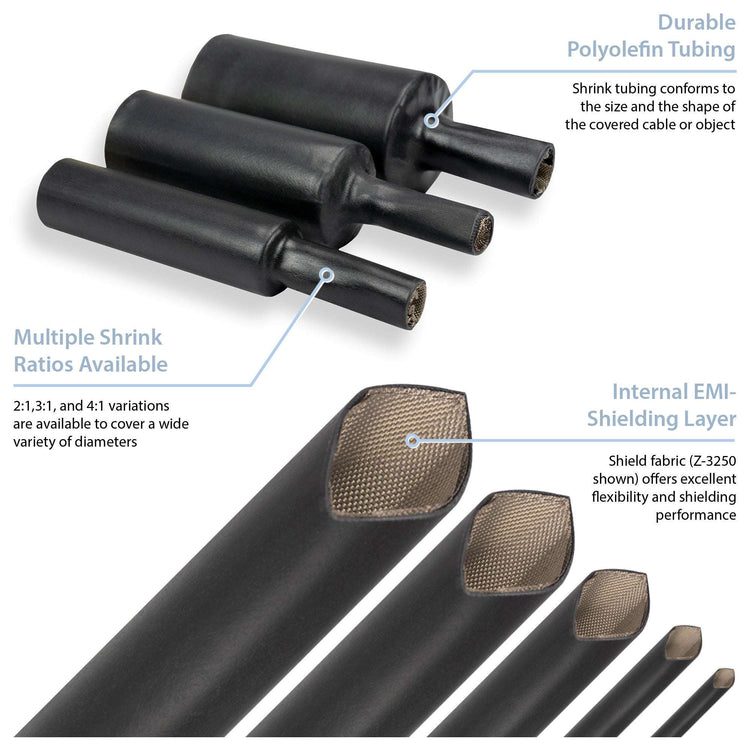

    Shrink-N-Shield® (3:1) is an EMI shielding heat-shrink tubing that has a 3:1 shrink ratio and can be cut to length. The flexible, flame-retardant and self-extinguishing polyolefin sleeve can withstand temperatures up to 275°F (135°C). Additionally, the jacketing has excellent abrasion, chemical, fluid and fungus resistance.

    There are two standard shielding cloths available for Shrink-N-Shield® (3:1): Z-3250 and Z-7200. However, other EMI-shielding cloths are available upon request.

    The Z-3250 shielding cloth is made of a taffeta fabric that is plated with copper and then nickel for excellent corrosion protection. The lightweight, flexible shielding cloth will not flake or deteriorate over time, so you can be confident your components will have long-lasting protection against EMI, RFI, and EMF.

    The Z-7200 shielding cloth is made of a copper-plated nylon ripstop fabric and a proprietary corrosion and fray-resistant coating. The halogen-free, nickel-free, and hypoallergenic cloth is ideal for applications that have such requirements. The 7200 cloth is the perfect choice for applications dealing with sensitive magnetic instrumentation.

    Shrink-N-Shield® (3:1) is offered in diameters from 0.375” to 2” with custom sizes available upon request, and has an operational temperature range of -40°F to 275°F (-40°C to 121°C).

    If you require a 2:1 or 4:1 shrink ratio, Zippertubing® offers Shrink-N-Shield® (2:1) and Shrink-N-Shield® (4:1), and if you have components with diameters as small as 0.015”, Shrink-N-Shield® (Nano) is also available for your EMI shielding heat-shrink needs.

    If your application is more suited to a wrap-around heat-shrink tubing for ease of installation, PRT® (S-3250) and PRT® (S-7200) are the solutions. Both standard products offer EMI shielding and can easily wrap around your wires or cables, rather than having to pull them through. If required, other EMI-shielding fabrics are available for PRT® upon request.

    *Class III polyolefin heat-shrink tubing is available upon request.

    ATTENUATION DATA WAS OBTAINED USING MIL-DTL-83528H (MODIFIED). TESTING WAS PERFORMED BY ACCREDITED, THIRD-PARTY EMI LABORATORIES.

    Specifications

    Overall Performance

    • Diameter - Before Shrink: 0.5" (1/2)
    • Material: Polyolefin
    • Heat Shrink Material: Cross-Linked Polyolefin
    • Maximum Operating Temperature: 275°F
    • Minimum Operating Temperature: -67°F
    • RoHS: RoHS-10
    • Shelf-Life: 60 months
    • Shield Bonding: Nitrile Adhesive
    • Shielding: Z-3250
    • Shielding Material: Nickel Plated Copper
    • Shrink Ratio: 3:1

    Polyolefin

    • Mil-Spec: SAE-AMS-DTL-23053/5
    • REACH: Compliant
    • Dielectric Strength: 500 volt/mil
    • Elongation: 200% (after shrink)
    • Flammability: UL224, VW-1, Self-extinguishing
    • Fungicide: No Growth
    • Longitudinal Shrinkage: +/-5% (after heat recovery)
    • Thickness: 0.035" - 0.055"
    • Maximum Operating Temperature: 275°F
    • Minimum Operating Temperature: -67°F
    • RoHS: RoHS-10
    • Shelf Life: 60 Months
    • Shrink Ratio: 2:1, 3:1 or 4:1
    • Tensile Strength: 1500 psi. (after shrink)
    • Specific Gravity: 1.35 (max.)
    • Outgasssing (%TML): Min 0.2 | Max 0.93%
    • Outgassing (%CVCM): Min 0.02 | Max 0.13%
    • Outgassing (%WVR): Min 0.01 | Max 0.16%

    Z-3250

    • Base Fabric: Polyester Taffeta Fabric
    • Surface Resistivity: <0.1 ohms/sq
    • REACH: Compliant
    • Elongation: 27%
    • Material: Cloth
    • Thickness: 0.004"
    • Maximum Operating Temperature: 250°F
    • Minimum Operating Temperature: -40°F
    • RoHS: RoHS-10
    • Shelf Life: 60 Months
    • Shielding: Z-3250
    • Tensile Strength: 74-79 lbs/in
    • Outgasssing (%TML): Min 0.21 | Max 0.21%
    • Outgassing (%CVCM): Min 0 | Max 0%
    • Outgassing (%WVR): Min 0.16 | Max 0.16%

    Z-7200

    • Ratings: Commercial
    • Coating: Copper Plated
    • Break Strength: 25 x 50 lbs/in
    • REACH: Compliant
    • Chemical Resistance: Good
    • Dielectric Volts/Mil: Conductive <0.1 ohm/sq
    • Material: Cloth
    • Thickness: 0.005"
    • Material: Copper-Plated Nylon Rip-Stop
    • Maximum Operating Temperature: 302°F
    • Minimum Operating Temperature: -40°F
    • RoHS: RoHS-10
    • Shelf Life: 60 Months
    • Shielding: Z-7200
    Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
