HeatReflect® (ALP) Heat Shielding Tape

A medium-weight, aluminum-coated fiberglass heat shielding tape to protect from temperatures up to 300°F.

Drawing Number(s): ZT15-03-002

HeatReflect® (ALP) Heat Shielding Tape
RoHS Military Grade

Select product options

Please fill in at least one field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Selected Part Number:ZT15-03-002-1.0-X300.0
Get A Quote
Tape Calculator Tape Calculator

Tape Wrapping Calculator i

Tape Calculator Diameter
Close
*50% overlap recommended
  • Demand:
  • 0 inches / 0 feet
Disclaimer: Please note that the calculations provided by this tape wrapping calculator are for estimation purposes only. While we strive for accuracy, actual requirements may vary based on factors such as tape stretch, application technique, and surface conditions. Always exercise caution and verify measurements manually for critical applications.

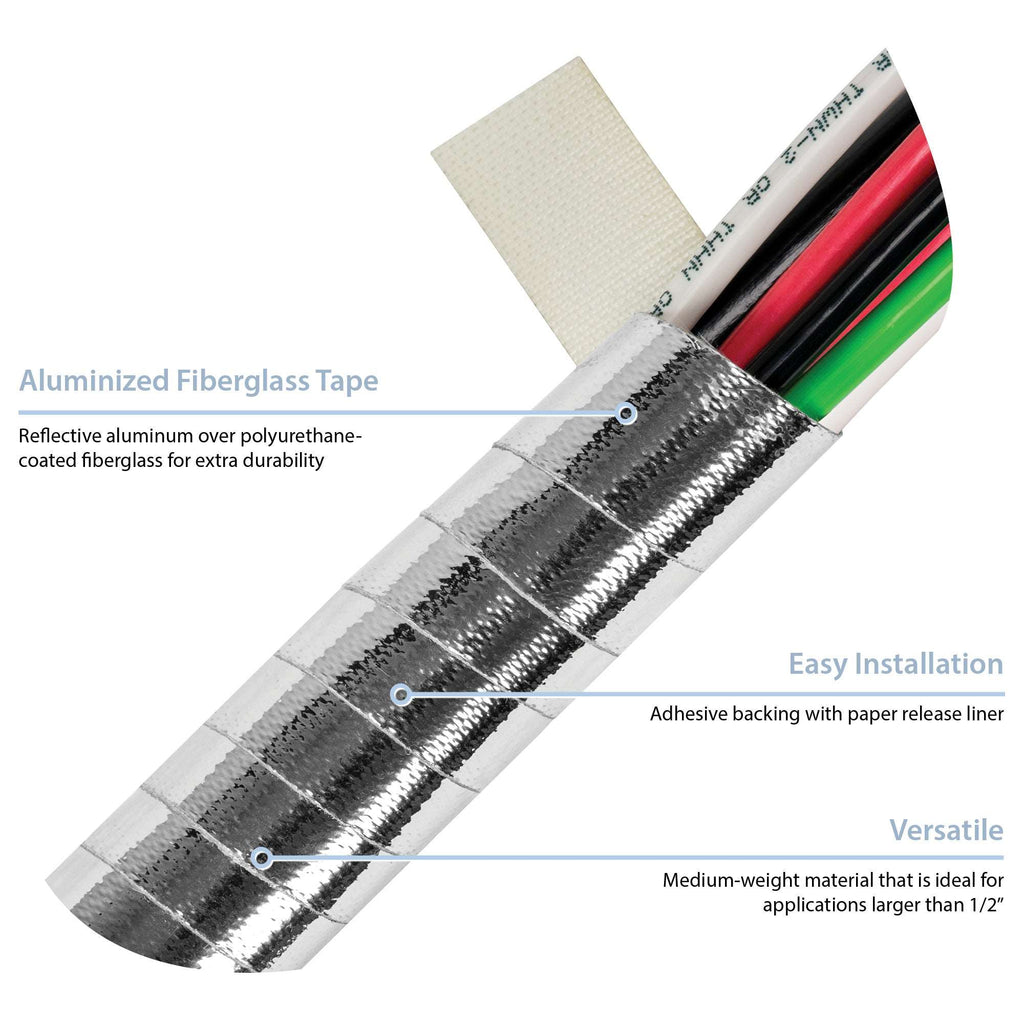

HeatReflect (ALP) Infographic

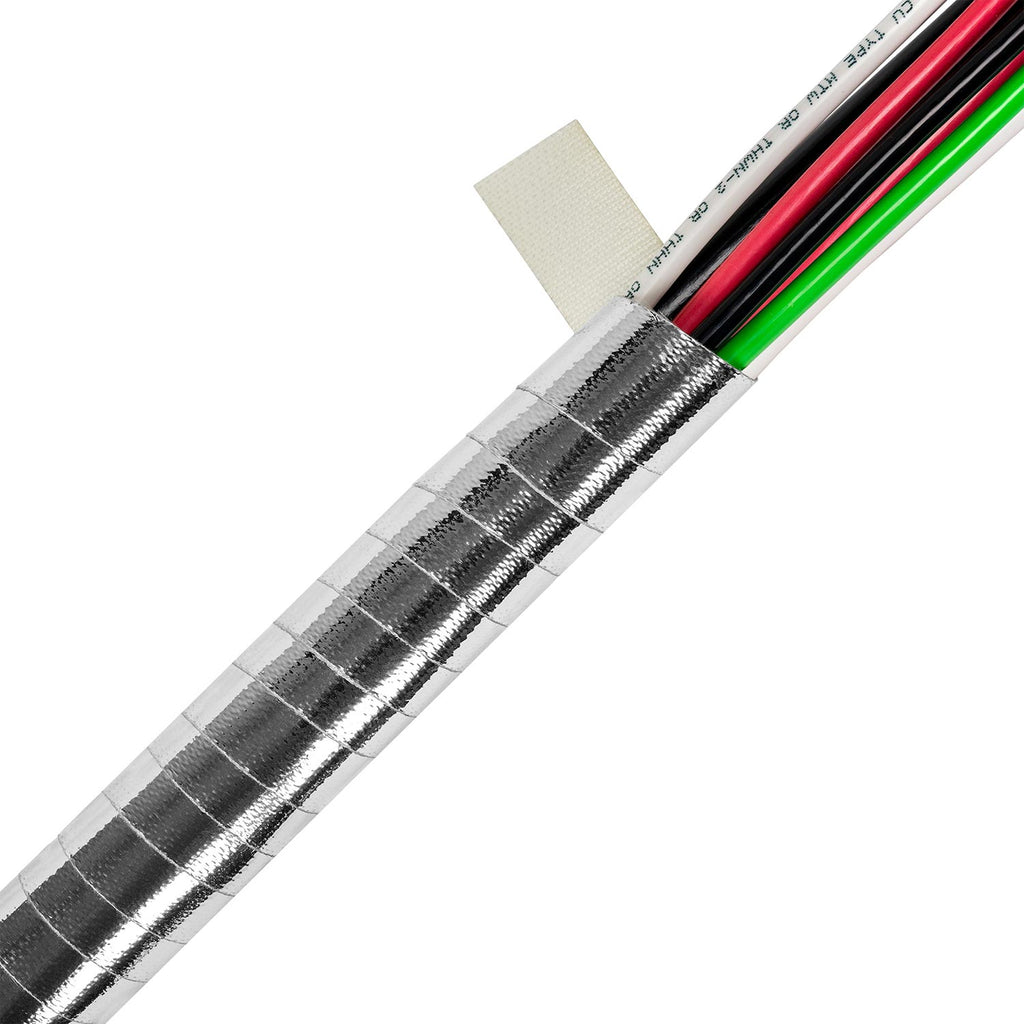

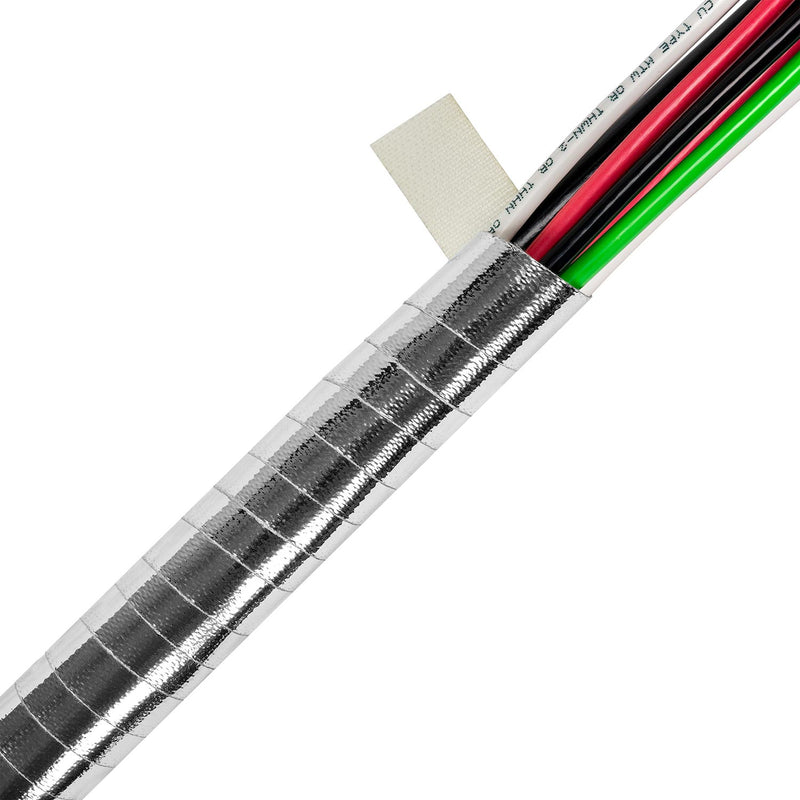

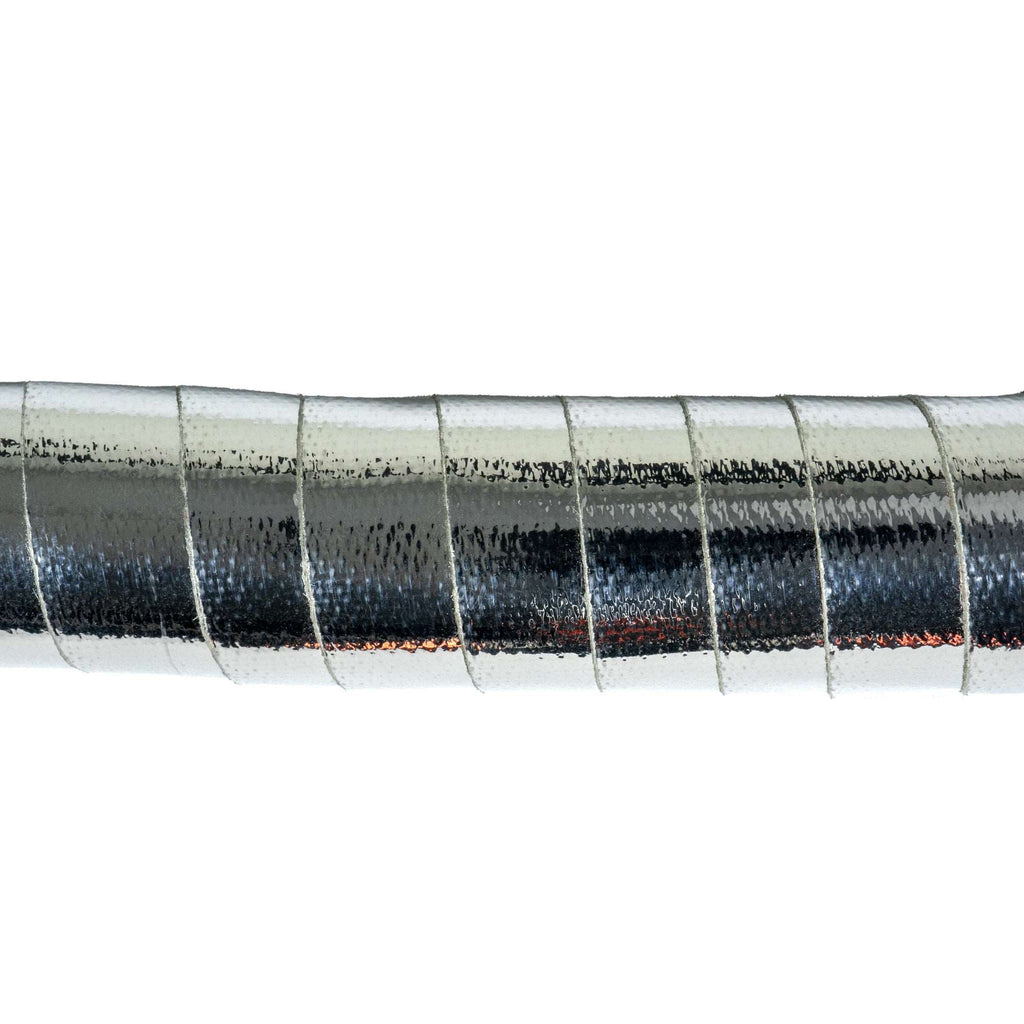

  • Fiberglass cloth coated with polyurethane on one side and reflective aluminum on the other
  • High-temperature acrylic adhesive closure for long-lasting seal
  • Ideal for wires or cables larger than 0.5" in diameter

HeatReflect® (ALP) is a heat shielding tape that can withstand temperatures of up to 300°F. The ALP-500 is a polymer-coated fiberglass fabric with a reflective aluminum heat barrier. The self-extinguishing, fire-retardant material meets SAE J2302 for thermal effectiveness, making this heat shielding tape the perfect choice for the automotive industry. The clear, acrylic-based, high-temperature transfer adhesive provides a secure seal to ensure longevity of protection.

HeatReflect® (ALP) requires no disassembly of wires and is easy to install – just remove the paper liner and wrap around. HeatReflect® (ALP) is offered in a standard 1” wide 25-foot roll, with custom widths and larger roll lengths available upon request. HeatReflect® (ALP) has an operational temperature range of -58°F to 300°F (-50°C to 149°C).

If you require a heat shielding tape that is thinner for smaller diameters, HeatReflect® (ALS) is the perfect solution.

Overall Performance

  • Closure: Tape (High Temperature)
  • Material: ALP-500
  • Flammability: Self-extinguishing
  • Thickness: 0.021"
  • Maximum Operating Temperature: 300°F
  • Minimum Operating Temperature: -40°F
  • RoHS: RoHS-10
  • Shelf-Life: 12 months
  • Width: 1.0" Wide

ALP-500

  • REACH: Compliant
  • Flammability: Self-extinguishing
  • Thickness: 0.017"
  • Thickness Variance: +/- 15%
  • Maximum Operating Temperature: 350°F
  • Minimum Operating Temperature: -58°F
  • RoHS: RoHS-11
  • Shelf Life: 60 Months
  • Tear Strength: >350 daN/50 mm (warp) | >250 daN/50 mm (fill)
  • Emissivity: 0.062 (Foil Side) | 0.9 (Cloth Side)

Tape (High Temperature)

    Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
    Heat-Wrap® (ALS-5) Flexible Thermal Reflective Wrap  HeatReflect® (AFA) Adhesive-Backed Heat Shielding  Heat-Wrap® (ALP-500) Heat Resistant Wrap
    NAME HEAT-WRAP® (ALS-5) FLEXIBLE THERMAL REFLECTIVE WRAP  HEATREFLECT® (AFA) ADHESIVE-BACKED HEAT SHIELDING  HEAT-WRAP® (ALP-500) HEAT RESISTANT WRAP
    DESCRIPTION A lightweight, heat-shielding, wrap-around, adhesive-sealed solution that can be exposed to temperatures up to 300°F.  HeatReflect® (AFA) is a completely customizable heat shielding solution – the shapes and sizes for applications are endless.  A durable, heat-shielding, wrap-around, adhesive-sealed solution that can be exposed to temperatures up to 300°F.
    Closure Tape (High Temperature)  Adhesive  Tape (High Temperature)
    RoHS    RoHS-10
    Abrasion Resistance Good    Best
    Installation Type Wrap-Around    Wrap-Around
    Purpose Sleeve    Sleeve
    Min Temperature Extreme    Extreme
    Minimum Operating Temperature -40°F  -40°F  -40°F
    Max Temperature Moderate    Moderate
    Maximum Operating Temperature 300°F  356°F  300°F
    Flexibility
    View  View  View
    Zippertubing
    HeatReflect (ALP) Infographic

    HeatReflect® (ALP) Heat Shielding Tape

    A medium-weight, aluminum-coated fiberglass heat shielding tape to protect from temperatures up to 300°F.

    Drawing Number(s): ZT15-03-002

    Selected Part Number: ZT15-03-002-1.0-X300.0

  • Fiberglass cloth coated with polyurethane on one side and reflective aluminum on the other
  • High-temperature acrylic adhesive closure for long-lasting seal
  • Ideal for wires or cables larger than 0.5" in diameter
  • Military
    HeatReflect (ALP)
    HeatReflect (ALP) heat shield products
    HeatReflect (ALP) Infographic

    Features

  • Ideal for the automotive industry due to its thermal properties
  • Paper release liner makes for quick and clean application
  • Operational temperature range of -40°F to 300°F (-40°C to 149°C)
  • Benefits

  • No tools or disassembly is required for installation
  • Perfect for cable splices, branch-outs, and transitions
  • Thicker jacketing makes this solution perfect for larger diameters
  • HeatReflect® (ALP) Heat Shielding Tape

    Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.

    HeatReflect® (ALP) Heat Shielding Tape

    MATERIAL SPECIFICATIONS
