PRT® MIL-SPEC Wrap-Around Heat Shrink Tubing

A wrap-around heat shrink made from MIL-SPEC tubing that repairs electrical systems and assembled components and is resistant to abrasion and chemicals.

Drawing Number(s): ZT98-04-016

PRT® MIL-SPEC Wrap-Around Heat Shrink Tubing
UL Recognized RoHS Military Grade

Select product options

Please fill in at least one field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Selected Part Number:ZT98-04-016-0-B-X600.0
Get A Quote
WARNING: Cancer and Reproductive Harm | www.P65Warnings.ca.gov
PRT Infographic
  • Never disconnect or pull through another wire or cable again
  • Excellent anti abrasive, environmental, chemical, and electrical properties with resistance to most oils and fluids, mild acids, and alkalis
  • Many PRT® sizing variations also offer National Stock Numbers (NSN)

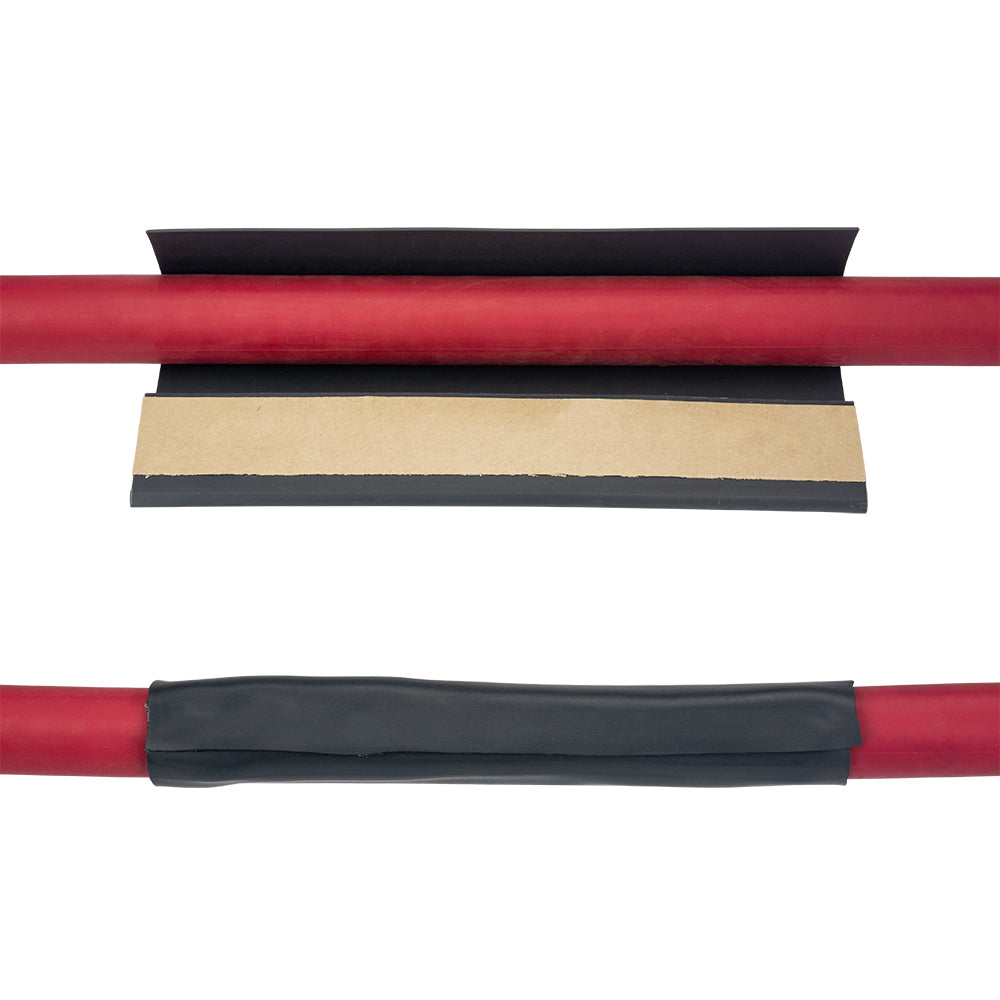

PRT® is a wrap-around heat shrink that is engineered for the most rugged of conditions. Made of MIL-SPEC tubing that is flame-retardant, abrasion-resistant, chemical-resistant, and fluid-resistant, PRT® is the perfect choice for repairing or re-jacketing components that have been damaged and can’t be easily removed for replacement. PRT® eliminates the hassle of downtime and can be wrapped around and heat-sealed on the spot. PRT® can be cut to any desired length, is ideal for indoor or outdoor environments, and is RoHS compliant and UL-rated.

PRT® has passed all short-term submersion tests and holds up against the harshest fluids, including jet fuels, Skydrol and many others.

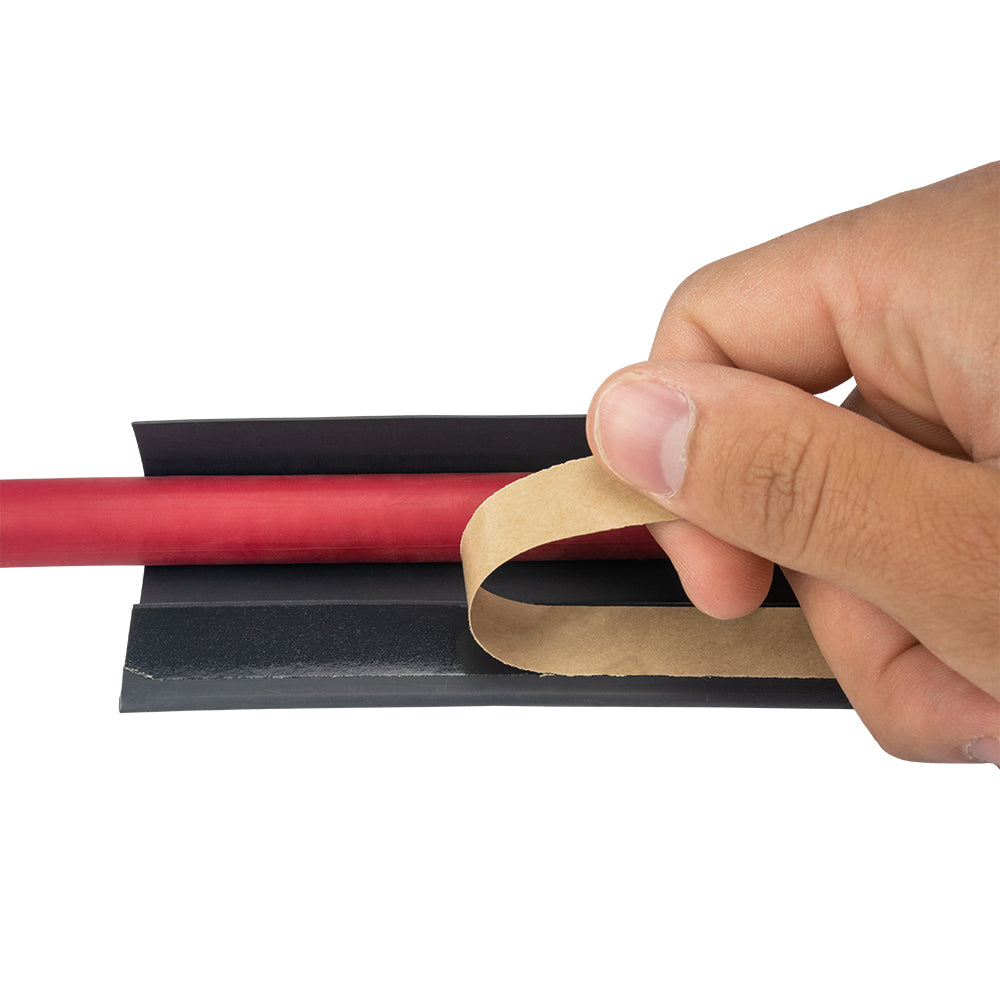

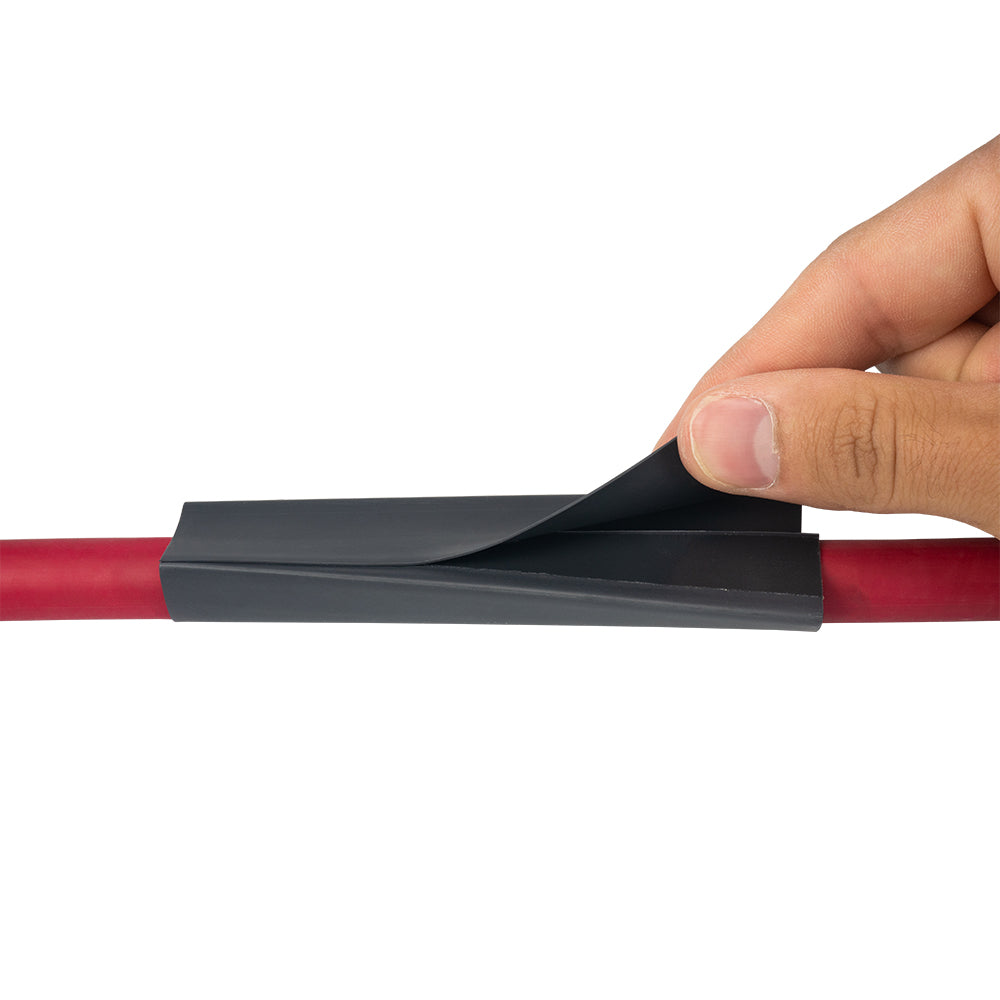

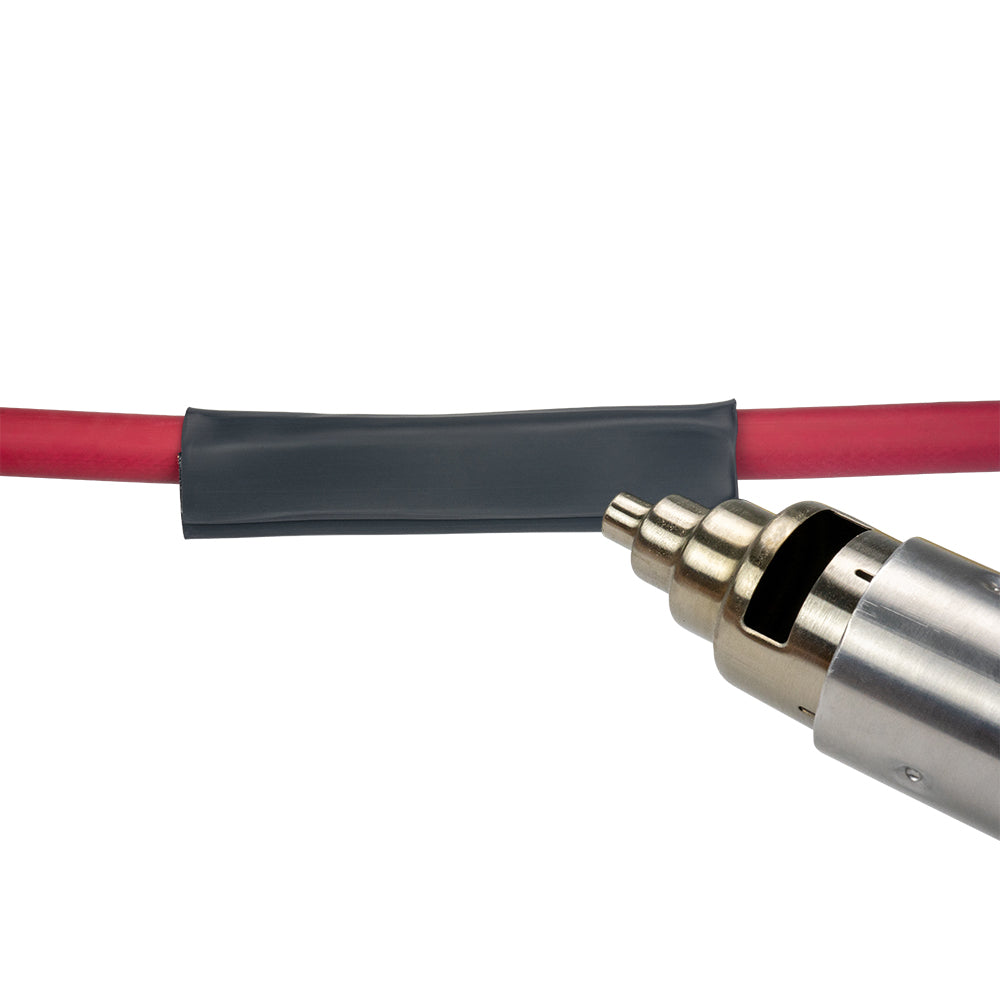

PRT® is being utilized in the automotive and aerospace industries and has been used by the military since 1998. Fit for all industries, from commercial to industrial, PRT® can be applied like a traditional non-split heat shrink and requires only a heat gun for installation.

PRT® is offered in size ranges for diameters from 0.09” to 1.87” and has an operational temperature range of -67°F to 275°F (-55°C to 135°C).

PRT is available with National Stock Numbers (NSN). This designation ensures that PRT meets the stringent standards required by military and government agencies, facilitating easy procurement and inventory management. The availability of PRT with NSNs underscores Zippertubing's commitment to quality and reliability in providing essential components for critical operations.

Overall Performance

  • Cable Diameter After Shrinkage: 0.090" - 0.124" (#0)
  • Closure: Tape (Specialty Surface)
  • Material: Polyolefin
  • Flammability: UL224, VW-1, Self-extinguishing
  • Heat Shrink Material: Cross-Linked Polyolefin
  • Maximum Operating Temperature: 275°F
  • Minimum Operating Temperature: -67°F
  • RoHS: RoHS-10
  • Shelf-Life: 24 months
  • Shrink Ratio: 2:1

Polyolefin

  • Mil-Spec: SAE-AMS-DTL-23053/5
  • REACH: Compliant
  • Dielectric Strength: 500 volt/mil
  • Elongation: 200% (after shrink)
  • Flammability: UL224, VW-1, Self-extinguishing
  • Fungicide: No Growth
  • Longitudinal Shrinkage: +/-5% (after heat recovery)
  • Material: Cross-linked Polyolefin
  • Thickness: 0.035" - 0.055"
  • Maximum Operating Temperature: 275°F
  • Minimum Operating Temperature: -67°F
  • RoHS: RoHS-10
  • Shelf Life: 60 Months
  • Shrink Ratio: 2:1, 3:1 or 4:1
  • Tensile Strength: 1500 psi. (after shrink)
  • Specific Gravity: 1.35
  • Outgasssing (%TML): Min 0.2 | Max 0.93%
  • Outgassing (%CVCM): Min 0.02 | Max 0.13%
  • Outgassing (%WVR): Min 0.01 | Max 0.16%

Tape (Specialty Surface)

    Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
    Shrink-N-Repair® (M) Wrap-Around Heat Shrink  PRT® (ES-135) Water-Blocking Wrap-Around Heat Shrink
    NAME SHRINK-N-REPAIR® (M) WRAP-AROUND HEAT SHRINK  PRT® (ES-135) WATER-BLOCKING WRAP-AROUND HEAT SHRINK
    DESCRIPTION A wrap-around, abrasion-resistant, fluid-resistant heat shrink that repairs wires or cables with diameters up to 0.5”.  A wrap-around, military-grade heat shrink paired with a high-temperature water blocking, hot-melt adhesive that protects against harsh environmental conditions.
    Closure Tape (Specialty Surface)  Tape (Specialty Surface)
    RoHS RoHS-10  RoHS-10
    Abrasion Resistance Best  Best
    Installation Type Wrap-Around  Wrap-Around
    Purpose Wire Repair  Water Blocking
    Min Temperature Moderate  Extreme
    Minimum Operating Temperature -67°F  -67°F
    Max Temperature Low  Moderate
    Maximum Operating Temperature 275°F  275°F
    Flexibility
    View  View
    Zippertubing
    PRT Infographic

    PRT® MIL-SPEC Wrap-Around Heat Shrink Tubing

    A wrap-around heat shrink made from MIL-SPEC tubing that repairs electrical systems and assembled components and is resistant to abrasion and chemicals.

    Drawing Number(s): ZT98-04-016

    Selected Part Number: ZT98-04-016-0-B-X600.0

  • Never disconnect or pull through another wire or cable again
  • Excellent anti abrasive, environmental, chemical, and electrical properties with resistance to most oils and fluids, mild acids, and alkalis
  • Many PRT® sizing variations also offer National Stock Numbers (NSN)
  • Military
    PRT
    PRT adhesive lined heat shrink
    PRT Industrial Heat Shrink Tubing
    PRT Wrap Around Heat Shrink Tubing

    Features

  • Handles up to 17,500 volts and is resistant to harsh fluids
  • Repair and re-jacket components without disassembly
  • Operational temperature range of -67°F to 275°F (-55°C to 135°C)
  • Benefits

  • Made from MIL-SPEC tubing that is flame-retardant
  • Available in six color options and 16 diameter range sizes
  • Built for rugged environmental conditions where traditional heat shrink won’t last
  • PRT® MIL-SPEC Wrap-Around Heat Shrink Tubing

    Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
