Hook-It® (TPU) Halogen-free Cable Sleeving

A wrap-around cable management solution pairing a flame-retardant thermoplastic jacketing with a Velcro-style hook-and-loop closure.

Drawing Number(s): ZT17-13-012

Hook-It® (TPU) Halogen-free Cable Sleeving
RoHS

Select product options

Please fill in at least one field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Selected Part Number:ZT17-13-012-0.5-W-W
Get A Quote

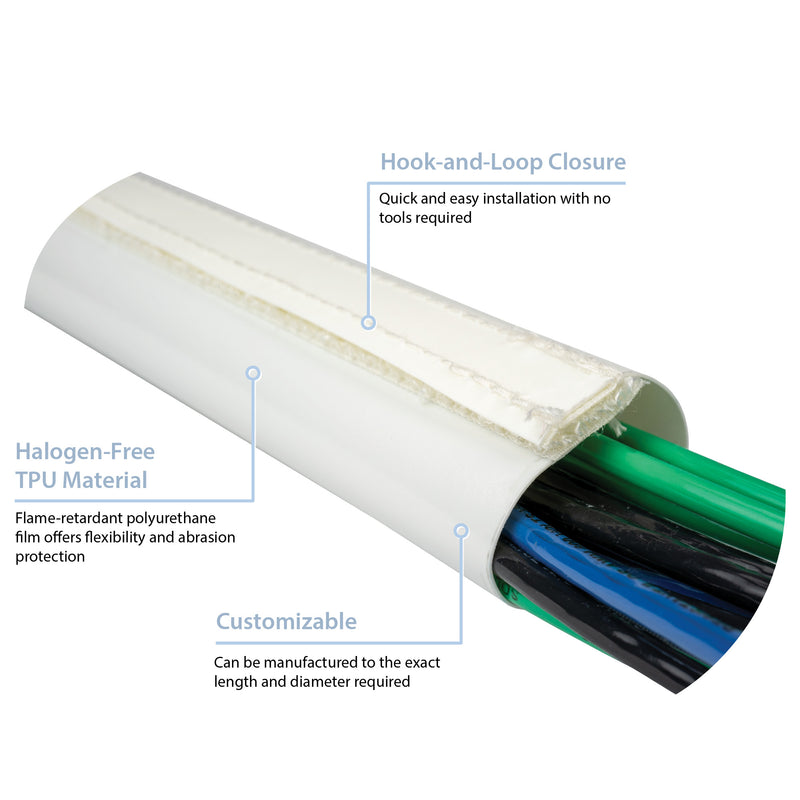

Hook-It (TPU) infographic
  • Abrasion-resistant jacketing
  • Velcro-style closure for easy installation
  • UL-rated for flammability, meeting UL94 V-0

Hook-It® (TPU) is ideal for applications that need durable cable bundling and quick and easy access to components. Hook-It® (TPU) combines thermoplastic polyurethane jacketing with a Velcro-style hook-and-loop closure made of Aramid and nylon. The TPU material is a halogen free, flame retardant extruded film that provides the best in protection from abrasion. This jacketing also contains no PVC compounds and has a high resistance to microorganisms, as well as resistance to ozone (VDE 0472). Because of these properties, and the white sheen of the material, the TPU film could be utilized for clean room and medical field environments*.

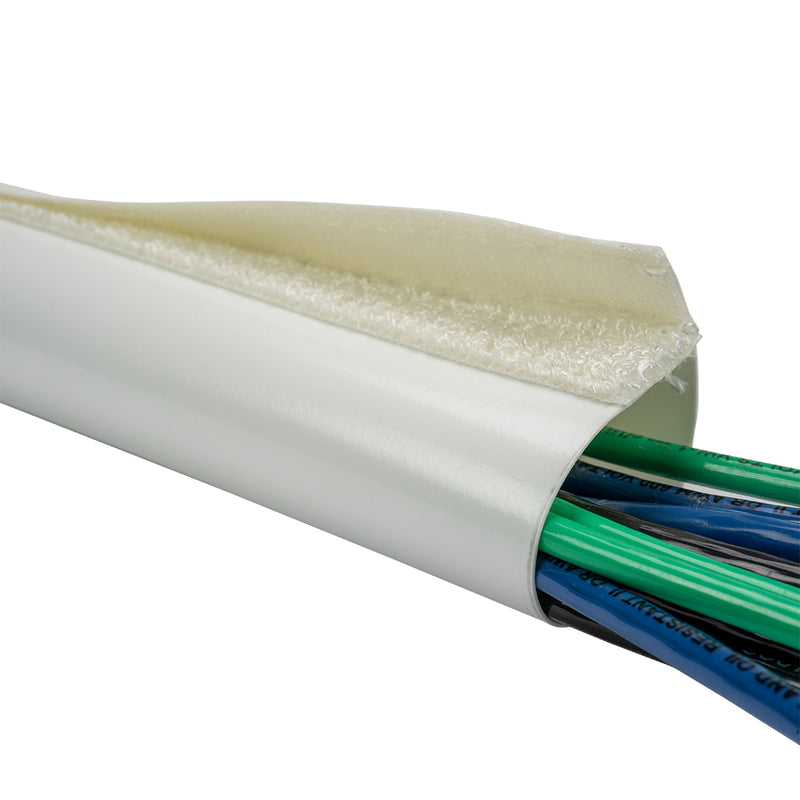

The hook-and-loop closure is perfect for applications needing the ability to re-enter wires or cables effortlessly. The high-temperature closure system allows for a no-tools-required installation; just wrap Hook-It® (TPU) around components, and fasten the hook-and-loop strips together. Hook-It® (TPU) can be cut to any desired length.

Hook-It® (TPU) diameter options range from 0.5” to 8”, with custom shapes and sizes available upon request. The operational temperature range is -40°F to 257°F (-40°C to 125°C).

*Hook-It® (TPU) is not specifically manufactured using a clean room in sterile conditions, but with the right procedures, it could be used in the medical field, including in hospitals, operating rooms, trauma centers, and emergency rooms.

Q:  What lengths of hook & loop jacketing are available?

A:  Our hook & loop closed sleeves can be ordered in lengths as short as a few inches to lengths of 100 feet or more.  When quoting or ordering, make sure to clearly state the length of each sleeve in inches, which is typically referenced at the end of the part number (-X120.0 for example).

Q:  What diameter of jacketing do I need?  Is it recommended to oversize?

A:  We will often suggest oversizing the sleeve diameter by 1/8” to allow for ease of installation.  If the application requires significant bending or flexing we will suggest even more extra room.  For assistance with sizing you can also contact one of our design engineers.

Q:  Can I cut the Jacketing?

A:  Yes*.  *We recommend ordering hook & loop closed
jacketing to the exact length required, but you absolutely can trim down a spool of Hook-It jacketing using standard scissors.   When cutting lengths of Hook-It jacketing, keep in mind the newly trimmed edges will not have the back-stitching found on
the factory edges and the stitching may come loose over time. For more details on cutting or size recommendations please contact one of our design
engineers.

Q:  What is the minimum bend radius of the tubing?

A:  There is no minimum bend radius for our Hook-It products.  The flexible jacketing material allows for extreme amounts of bending and flexing.  The bend radius of the installed tubing is typically dictated by the harness it is covering.

Q:  What is the difference between Hook & Loop and Velcro?

A:  “Hook & Loop” refers to the family of closures that utilize small loops of fiber and tiny hooks to interlock and hold material together. Velcro is the name of the company that originally created the hook-and-loop fastening system.  Here at ZT we use Velcro brand fasteners as well as fasteners from other brands.

show more >>

Overall Performance

  • Diameter: 0.5" (1/2)
  • Closure: Hook-and-Loop (Aramid)
  • Material: TPU-20
  • Hook and Loop: 5/8" Hook and Loop (Aramid) White
  • Maximum Operating Temperature: 257°F
  • Minimum Operating Temperature: -40°F
  • RoHS: RoHS-10

TPU-20

  • Durability: Better
  • REACH: Compliant
  • Elongation: 350%
  • Flammability: Self-extinguishing
  • Color: White
  • Thickness: 0.020"
  • Thickness Variance: +/- 0.001"
  • Material: Thermoplastic polyurethane
  • Maximum Operating Temperature: 257°F
  • Minimum Operating Temperature: -40°F
  • RoHS: RoHS-10
  • Tensile Strength: 4,300 psi.
  • Ozone Resistance: Stage 0, "Crack Free"

Hook-and-Loop (Aramid)

    Nomex Thread

      Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
      Zip-On® (63) Military-Grade Cable Bundling  Zip-On® (PFR) Polyurethane Cable Bundling  Z-Coil Self-Closing Cable Jacketing
      NAME ZIP-ON® (63) MILITARY-GRADE CABLE BUNDLING  ZIP-ON® (PFR) POLYURETHANE CABLE BUNDLING  Z-COIL SELF-CLOSING CABLE JACKETING
      DESCRIPTION A wrap-around cable bundling and protection solution that has a PVC, military-grade jacket that is abrasion and fluid resistant, with a pressure track.  A wrap-around cable protection solution that is flexible, resistant to abrasion and fluids, and has a pressure track closure.  A self-closing wire bundling and protection sleeve made from self-extinguishing PET material—ideal for high-volume requirements.
      Closure Z-Track (PVC), R-Track (PVC), D-Track (PVC), EZ-Track (PVC)  Z-Track (PFR)  Self-Closing
      RoHS RoHS-10  RoHS-10  RoHS-10
      Abrasion Resistance Best  Best  Better
      Installation Type Wrap-Around  Wrap-Around  Wrap-Around
      Purpose Sleeve  Sleeve  Sleeve
      Min Temperature Low  Moderate  Extreme
      Minimum Operating Temperature -4°F  -67°F  -58°F
      Max Temperature Moderate  Low  Moderate
      Maximum Operating Temperature 221°F  225°F  302°F
      Flexibility Better  Best  Best
      View  View  View
      Zippertubing
      Hook-It (TPU) infographic

      Hook-It® (TPU) Halogen-free Cable Sleeving

      A wrap-around cable management solution pairing a flame-retardant thermoplastic jacketing with a Velcro-style hook-and-loop closure.

      Drawing Number(s): ZT17-13-012

      Selected Part Number: ZT17-13-012-0.5-W-W

    • Abrasion-resistant jacketing
    • Velcro-style closure for easy installation
    • UL-rated for flammability, meeting UL94 V-0
    • Military

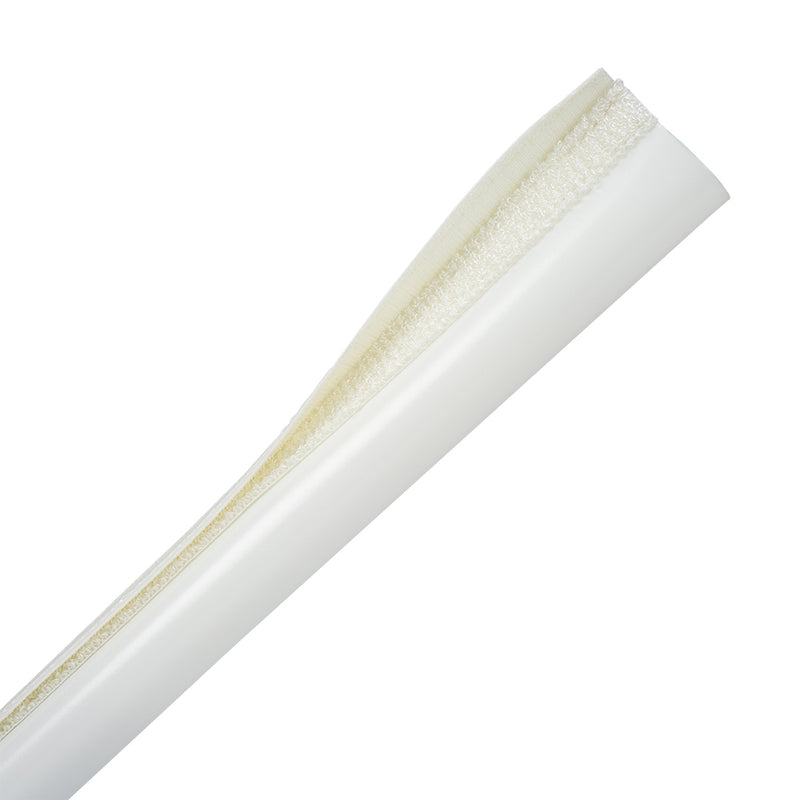

      Hook-It (TPU)

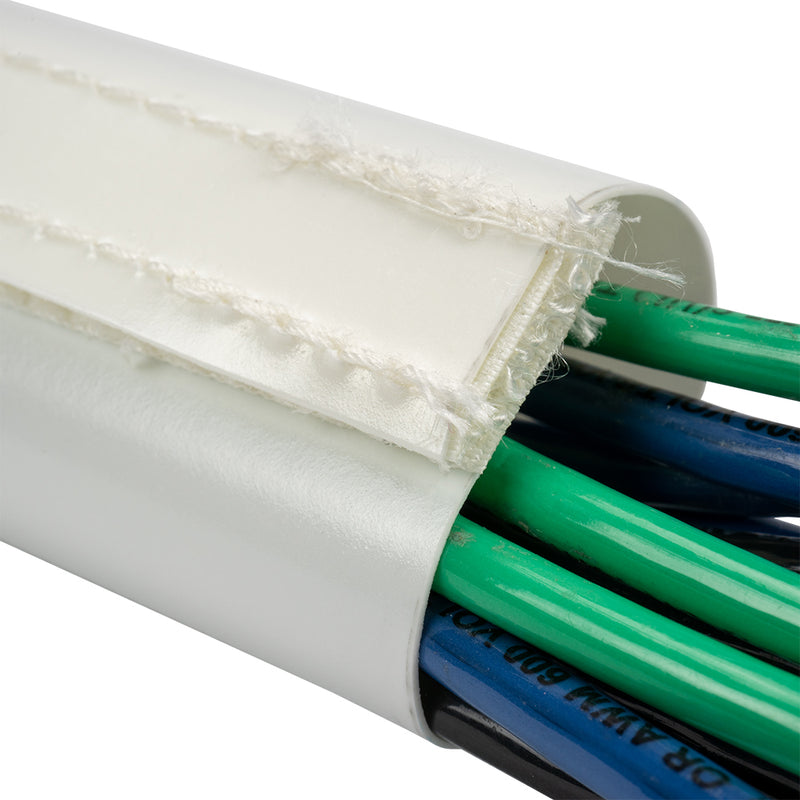

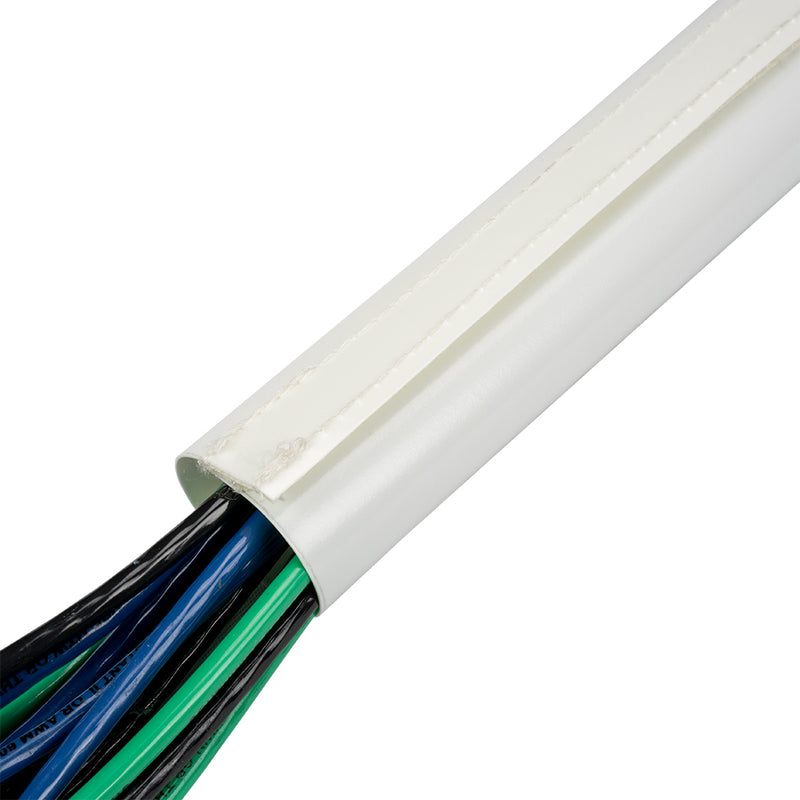

      Hook-It (TPU) wire harnessing

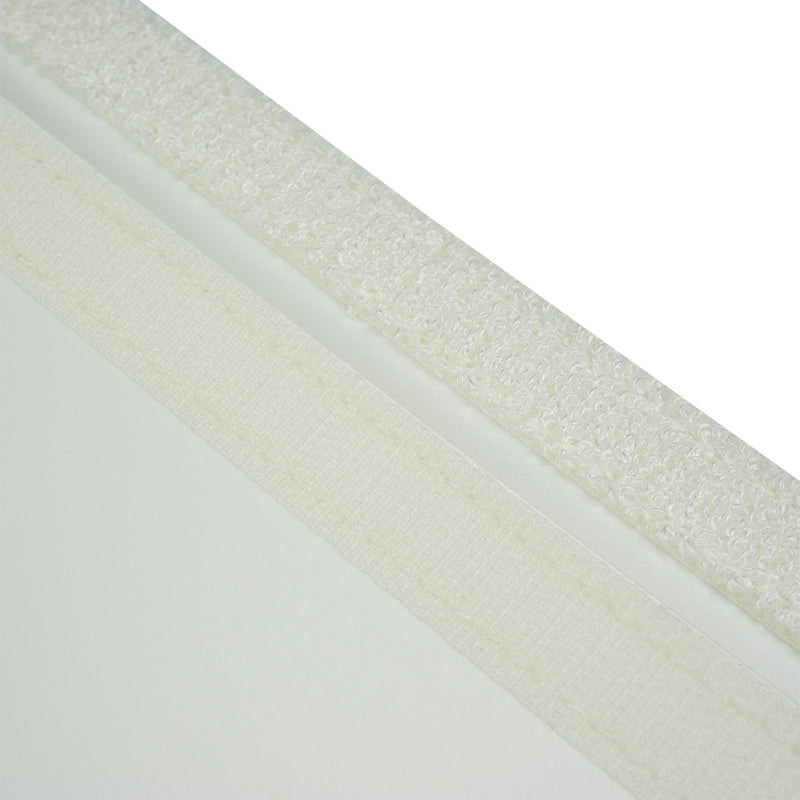

      Hook-It (TPU) tpu material

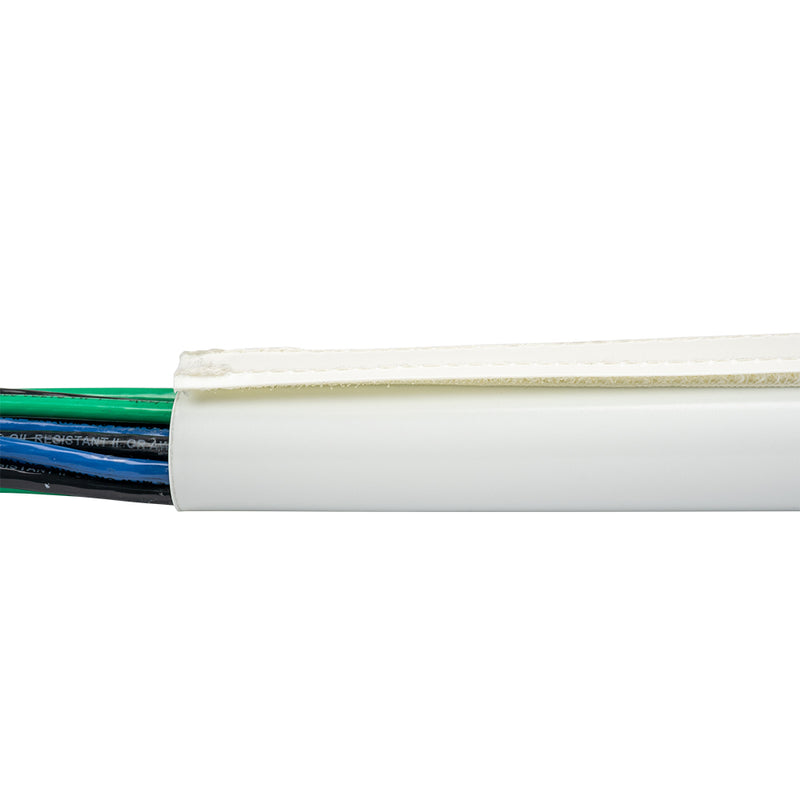

      Hook-It (TPU) tpu tubing

      Features

    • Thermoplastic polyurethane jacketing contains no PVC material
    • All-white solution could be used for transportation applications
    • Operational temperature range of -40°F to 257°F (-40°C to 125°C)
    • Benefits

    • Jacketing has a resistance to abrasion, microorganisms and ozone
    • Hook-and-loop closure requires no additional tools for installation
    • Can be cut to any desired length for versatility in uses**
    • Hook-It® (TPU) Halogen-free Cable Sleeving
