Shrink-N-Shield® (2:1)

Shrink-N-Shield® (2:1) is a MIL-SPEC, heat-shrink tubing with a 2:1 shrink ratio that provides exceptional shielding from EMI, RFI and EMF.

Drawing Number(s): ZT99-18-006, ZT15-18-001

Shrink-N-Shield® (2:1)
RoHS Military Grade

Select product options

+ Please fill in at least one field.
Selected Part Number:ZT99-18-006-0.1875-B-X48.0
Get A Quote
WARNING: Cancer and Reproductive Harm | www.P65Warnings.ca.gov

Overview

Shrink-N-Shield® (2:1)
  • EMI shielding solution for smaller wire or cable diameters
  • MIL-SPEC tubing offers excellent fluid and fungus resistance
  • Comes in two standard shielding cloths: Z-3250 and Z-7200

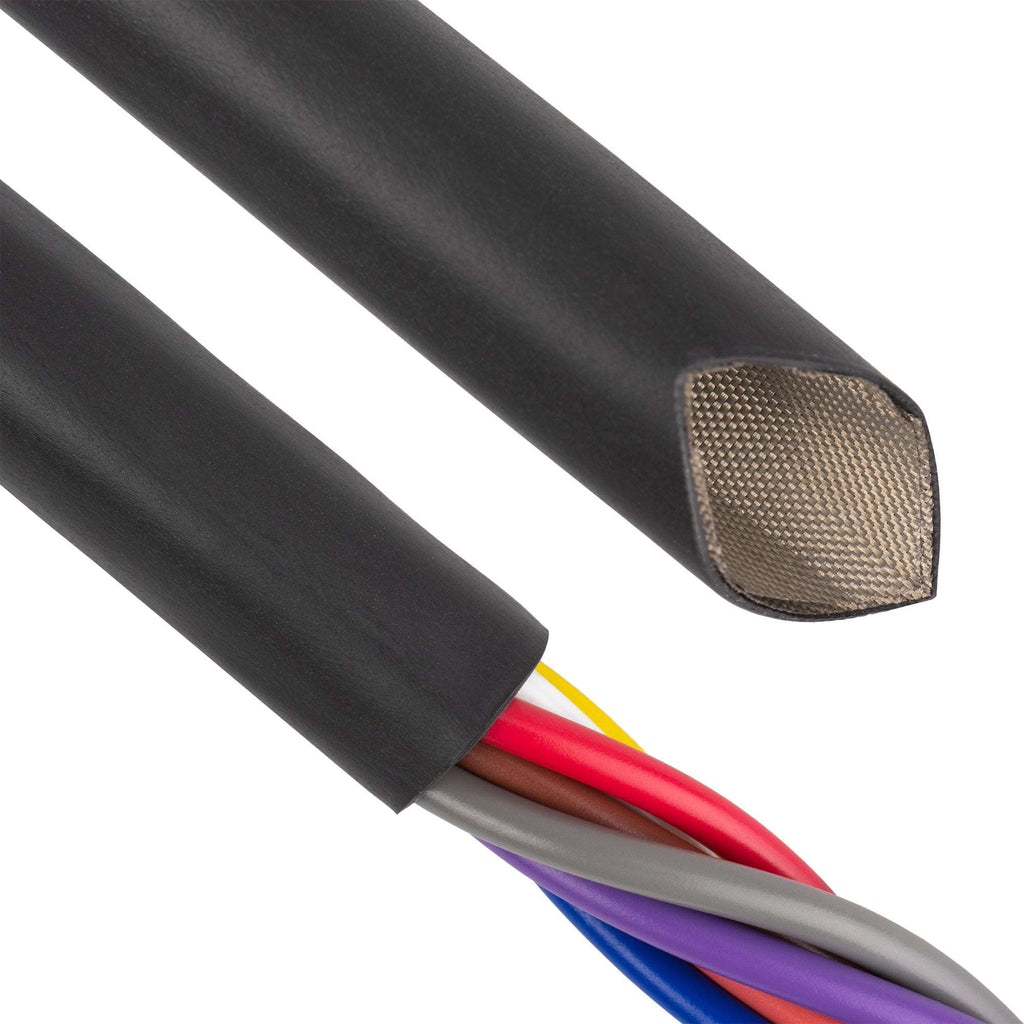

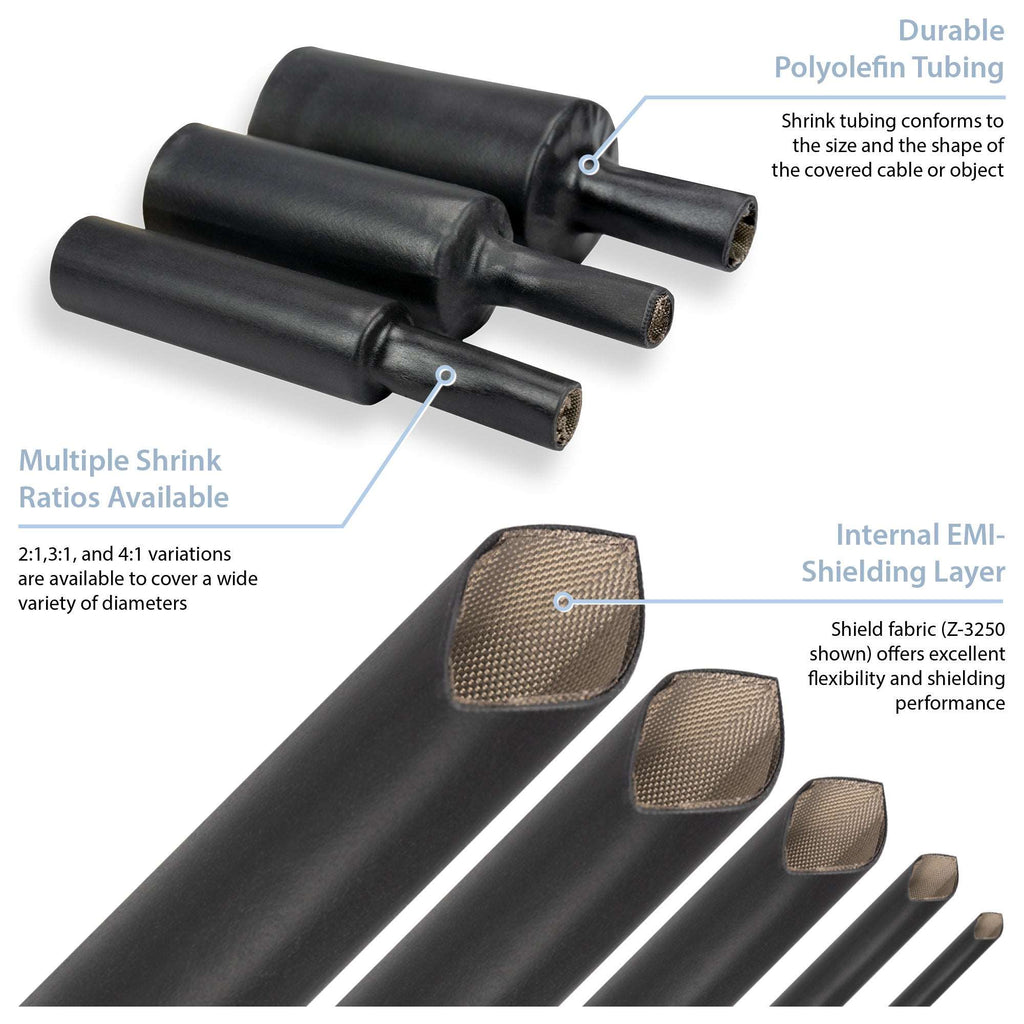

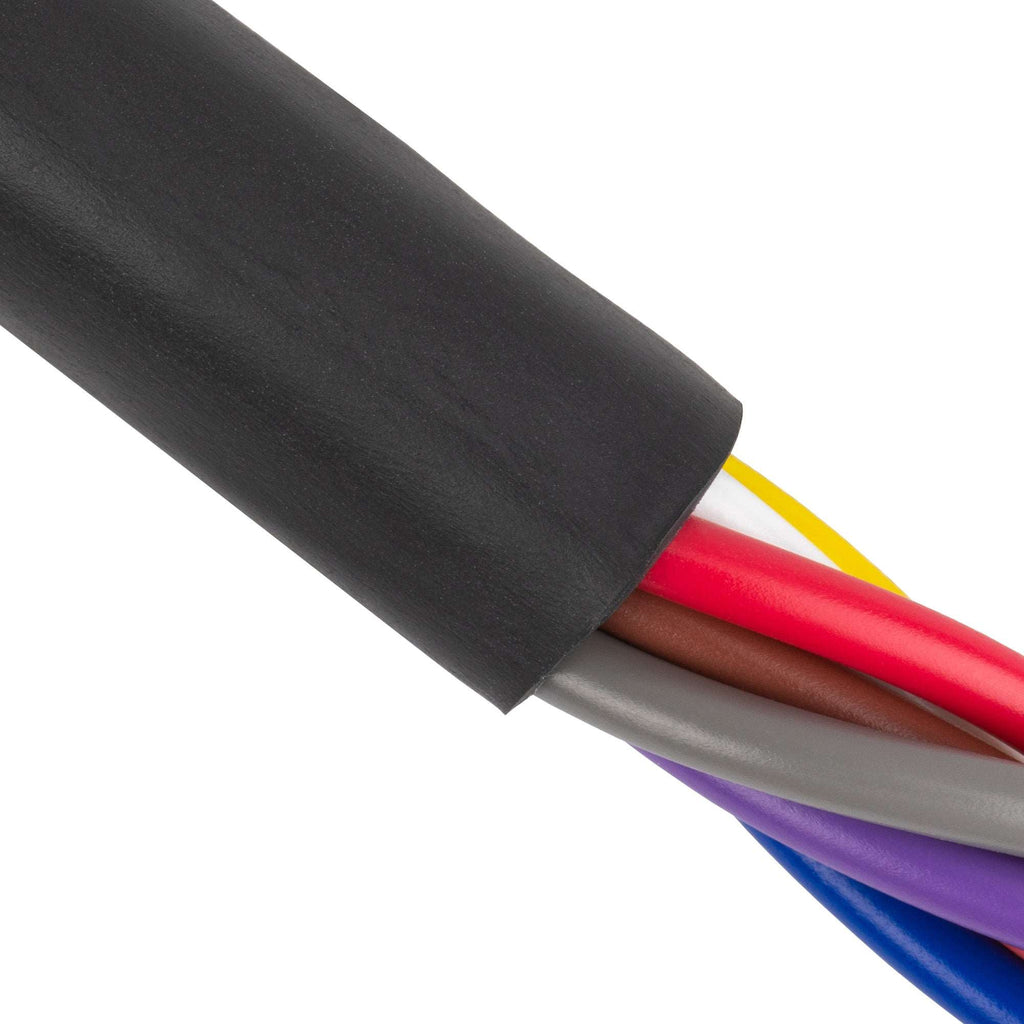

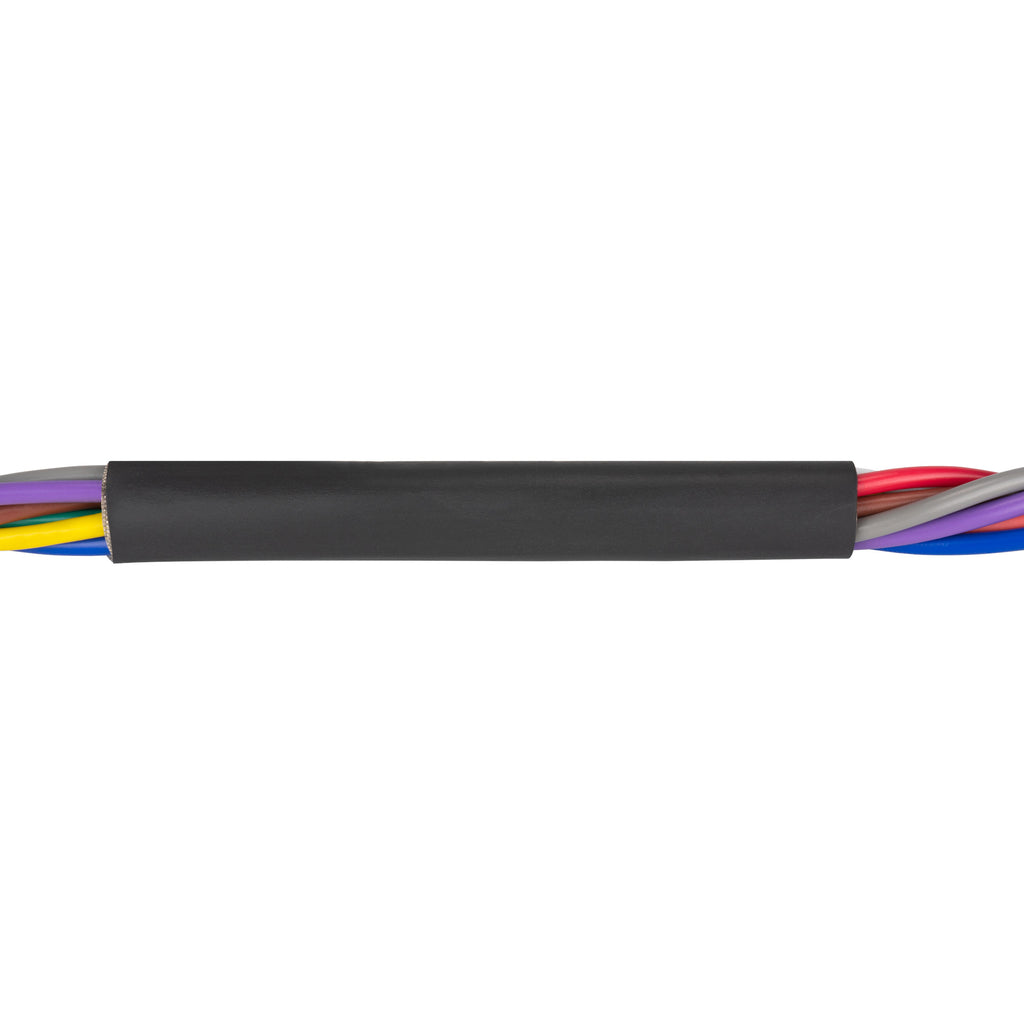

Shrink-N-Shield® (2:1) is an EMI-shielding, MIL-SPEC heat-shrink tubing that has a 2:1 shrink ratio and can be cut to length. The flexible, flame-retardant and self-extinguishing polyolefin sleeve can withstand temperatures up to 275°F (135°C). Additionally, the jacketing has excellent fluid and fungus resistance. The polyolefin tubing also meets MIL-DTL-23053/5C specifications for applications with such requirements.

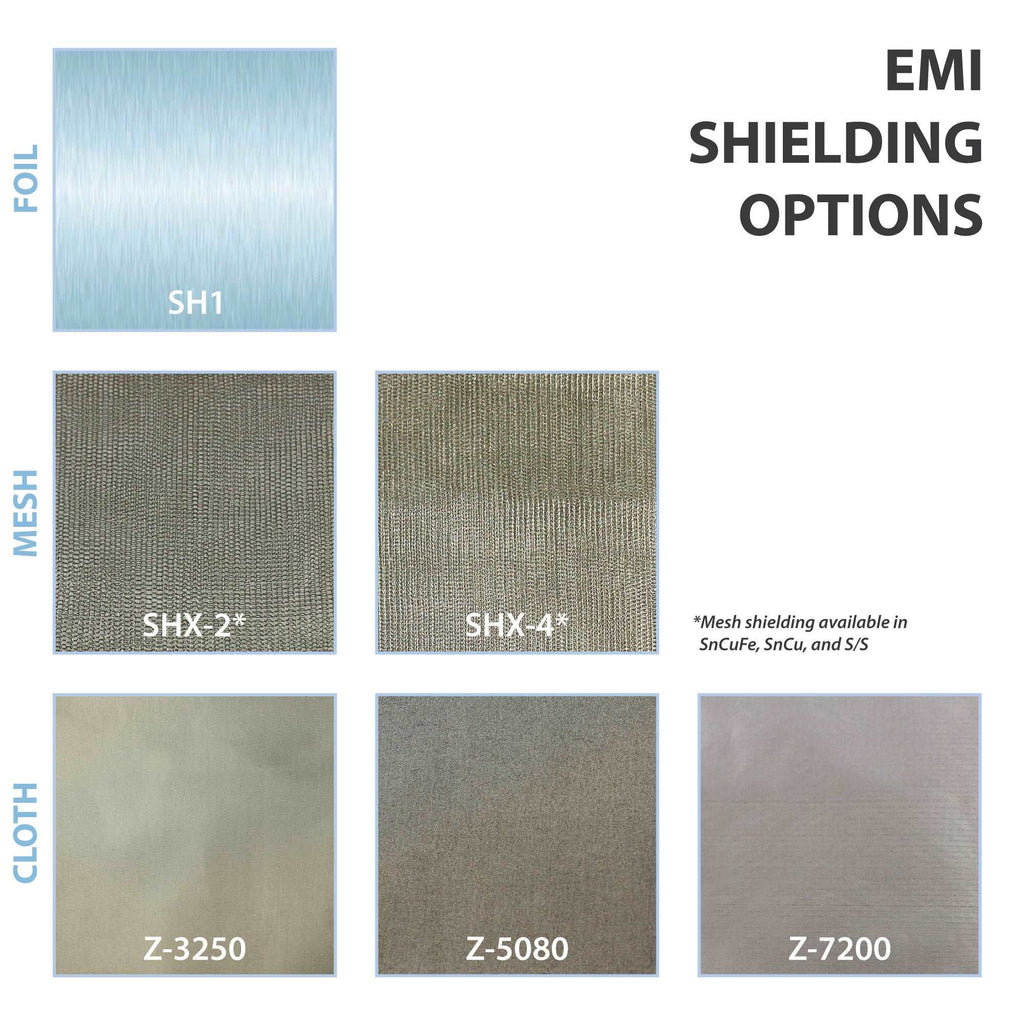

There are two standard shielding cloths available for Shrink-N-Shield® (2:1): Z-3250 and Z-7200. However, other EMI-shielding cloths are available upon request.

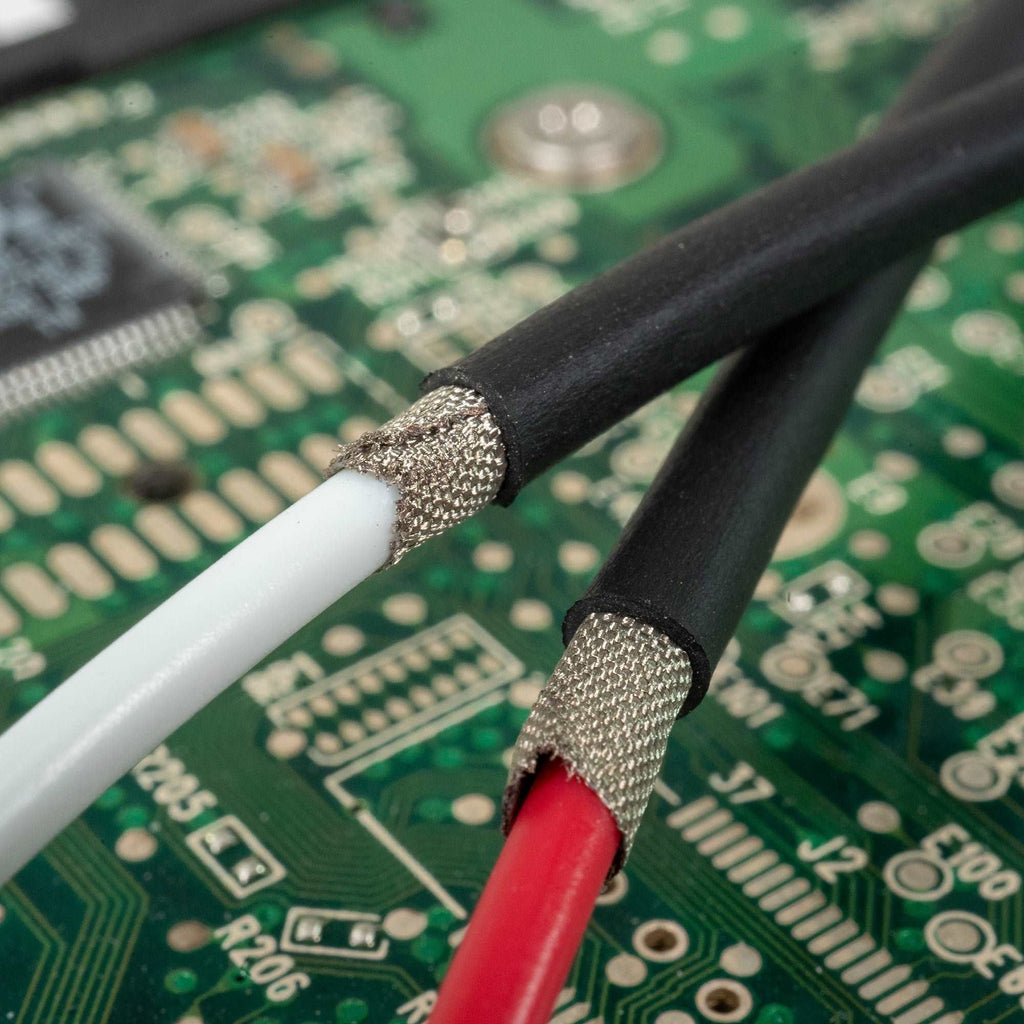

The Z-3250 shielding cloth is made of a taffeta fabric that is plated with copper and then nickel for excellent corrosion protection. The lightweight, flexible shielding cloth will not flake or deteriorate over time, so you can be confident your components will have long-lasting protection against EMI, RFI and EMF.

The Z-7200 shielding cloth is made of a copper-plated nylon ripstop fabric and a proprietary corrosion- and fray-resistant coating. The halogen-free, nickel-free, and hypoallergenic cloth is ideal for applications that have such requirements. The Z-7200 cloth is the perfect choice for applications dealing with sensitive magnetic instrumentation.

Shrink-N-Shield® (2:1) is offered in diameters from 0.1875” to 1.5,” with custom sizes available upon request. Shrink-N-Shield® (2:1) has an operational temperature range of -40°F to 275°F (-40°C to 135°C).

If you require a 3:1 or 4:1 shrink ratio, Zippertubing® offers Shrink-N-Shield® (3:1) and Shrink-N-Shield® (4:1). If you have components with diameters as small as 0.015”, Shrink-N-Shield® (Nano) is also available for your EMI-shielding heat-shrink needs.

If your application is more suited to a wrap-around heat shrink for ease of installation, PRT® (S-3250) and PRT® (S-7200) are the solutions. Both standard products offer EMI shielding and can easily wrap around your wires or cables, rather than having to pull them through. If required, other EMI-shielding fabrics are available for PRT® upon request.

Class III polyolefin heat-shrink tubing is available upon request.

ATTENUATION DATA WAS OBTAINED USING MIL-DTL-83528H (MODIFIED). TESTING WAS PERFORMED BY ACCREDITED, THIRD-PARTY EMI LABORATORIES.

Specifications

Overall Performance

  • Diameter - Before Shrink: 0.125" (1/8)
  • Material: Polyolefin
  • Flammability: UL224 (VW-1), All Tubing
  • Heat Shrink Material: Polyolefin Heat Shrink
  • Maximum Operating Temperature: 275°F
  • Minimum Operating Temperature: -40°F
  • RoHS: RoHS-10
  • Shelf-Life: 60 months
  • Shield Bonding: Nitrile Adhesive
  • Shielding: Z-3250
  • Shielding Material: Copper Plated
  • Shrink Ratio: 2:1

Polyolefin

  • Mil-Spec: SAE-AMS-DTL-23053/5
  • REACH: Compliant
  • Dielectric Strength: 500 volt/mil
  • Elongation: 200% (after shrink)
  • Flammability: UL224, VW-1, Self-extinguishing
  • Fungicide: No Growth
  • Longitudinal Shrinkage: +/-5% (after heat recovery)
  • Thickness: 0.035" - 0.055"
  • Maximum Operating Temperature: 275°F
  • Minimum Operating Temperature: -67°F
  • RoHS: RoHS-10
  • Shelf Life: 60 Months
  • Shrink Ratio: 2:1, 3:1 or 4:1
  • Tensile Strength: 1500 psi. (after shrink)
  • Specific Gravity: 1.35 (max.)
  • Outgasssing (%TML): Min 0.2 | Max 0.93%
  • Outgassing (%CVCM): Min 0.02 | Max 0.13%
  • Outgassing (%WVR): Min 0.01 | Max 0.16%

Z-3250

  • Base Fabric: Polyester Taffeta Fabric
  • Surface Resistivity: <0.1 ohms/sq
  • REACH: Compliant
  • Elongation: 27%
  • Material: Cloth
  • Thickness: 0.004"
  • Maximum Operating Temperature: 250°F
  • Minimum Operating Temperature: -40°F
  • RoHS: RoHS-10
  • Shelf Life: 60 Months
  • Shielding: Z-3250
  • Tensile Strength: 74-79 lbs/in
  • Outgasssing (%TML): Min 0.21 | Max 0.21%
  • Outgassing (%CVCM): Min 0 | Max 0%
  • Outgassing (%WVR): Min 0.16 | Max 0.16%

Z-7200

  • Ratings: Commercial
  • Coating: Copper Plated
  • Break Strength: 25 x 50 lbs/in
  • REACH: Compliant
  • Chemical Resistance: Good
  • Dielectric Volts/Mil: Conductive <0.1 ohm/sq
  • Material: Cloth
  • Thickness: 0.005"
  • Material: Copper-Plated Nylon Rip-Stop
  • Maximum Operating Temperature: 302°F
  • Minimum Operating Temperature: -40°F
  • RoHS: RoHS-10
  • Shelf Life: 60 Months
  • Shielding: Z-7200
Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.

Similar products

PRT® (1553-135) Shrink-N-Shield® (3:1) Shrink-N-Shield® (Nano)
NAME PRT® (1553-135) SHRINK-N-SHIELD® (3:1) SHRINK-N-SHIELD® (NANO)
DESCRIPTION A wrap-around, MIL-SPEC heat shrink paired with a high-temperature, water-blocking adhesive that comes equipped with the Z-3250-Tape™ for shielding against EMI. A heat-shrink tubing that provides exceptional shielding from EMI, RFI and EMF. An EMI shielding heat shrink that is engineered for wires as small as 0.015” in diameter.
Closure Tape (Specialty Surface)
RoHS RoHS-10 RoHS-10 RoHS-10
Abrasion Resistance Best Best Best
Installation Type Wrap-Around Pull-Through Pull-Through
Purpose Water Blocking Small Diameters Small Diameters
Min Temperature Extreme Extreme Extreme
Minimum Operating Temperature -67°F -67°F -40°F
Max Temperature Moderate Moderate Moderate
Maximum Operating Temperature 275°F 275°F 250°F
Flexibility
View View View

Shrink-N-Shield® (2:1)

Shrink-N-Shield® (2:1) is a MIL-SPEC, heat-shrink tubing with a 2:1 shrink ratio that provides exceptional shielding from EMI, RFI and EMF.

Drawing Number(s): ZT99-18-006, ZT15-18-001

Selected Part Number: ZT99-18-006-0.1875-B-X48.0

  • EMI shielding solution for smaller wire or cable diameters
  • MIL-SPEC tubing offers excellent fluid and fungus resistance
  • Comes in two standard shielding cloths: Z-3250 and Z-7200
  • Features

  • 2:1 shrink ratio for versatile application requirements
  • Flame-retardant and self-extinguishing MIL-SPEC jacketing
  • Operational temperature range of -40°F to 275°F (-40°C to 135°C)
  • Benefits

  • One-step installation for less downtime and total installation costs
  • Excellent high-frequency EMI shielding for components
  • Can be used as secondary jacketing for protection of wires or cables
  • Shrink-N-Shield® (2:1)

    SHIELDING EFFECTIVENESS - Z-3250, Z-7200

    ATTENUATION DATA WAS OBTAINED USING MIL-DTL-83528H (MODIFIED). TESTING WAS PERFORMED BY ACCREDITED, THIRD-PARTY EMI LABORATORIES.

    Shrink-N-Shield® (2:1)

    MATERIAL SPECIFICATIONS
