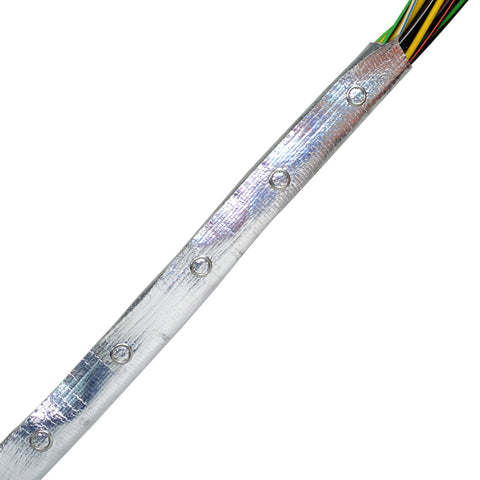

ZTT® (ALR-550) High Temp Pull-Through Cable Bundling

A pull-through, flexible heat shielding sleeve that protects components from continuous temperatures as high as 1,022°F.

Drawing Number(s):

ZTT® (ALR-550) High Temp Pull-Through Cable Bundling

Select product options

Please fill in at least one field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Selected Part Number:ZT06-09-003-0.25
Get A Quote

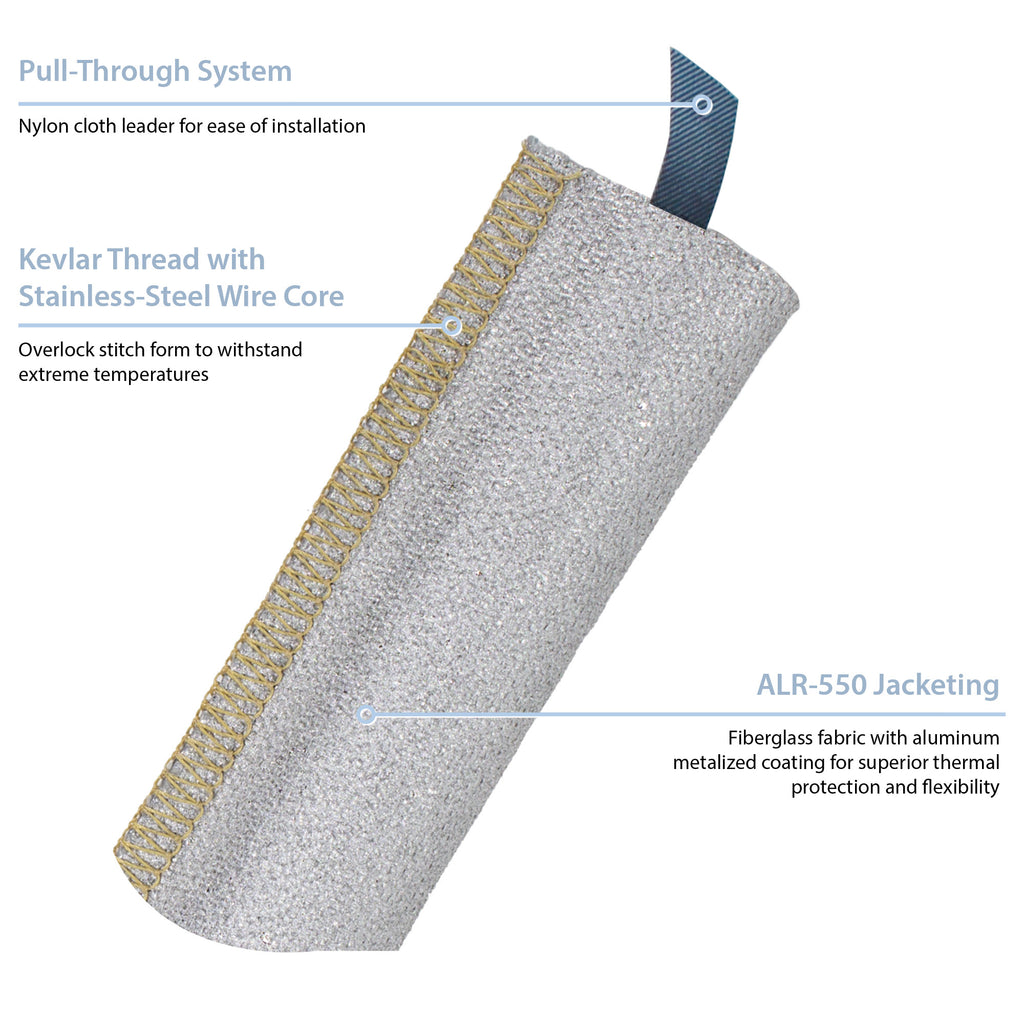

ZTT (ALR-550) Infographic

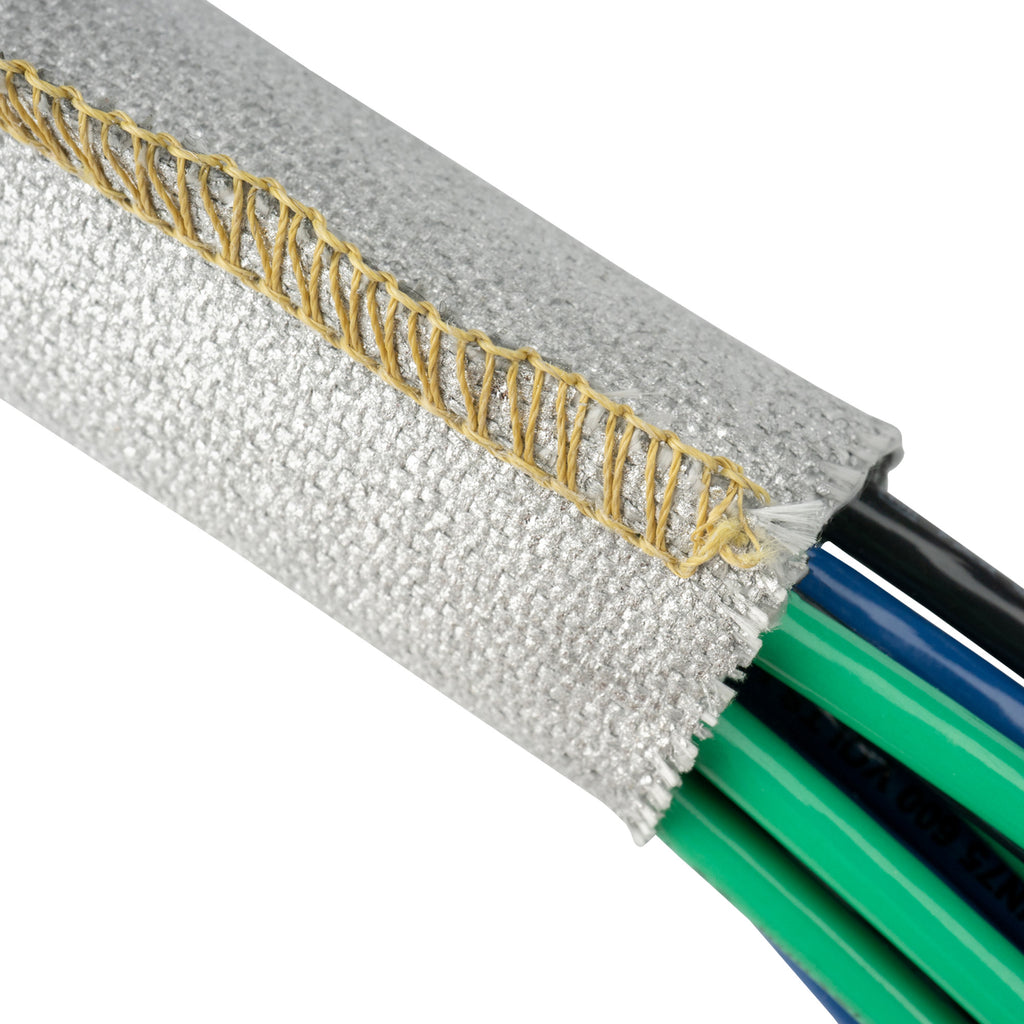

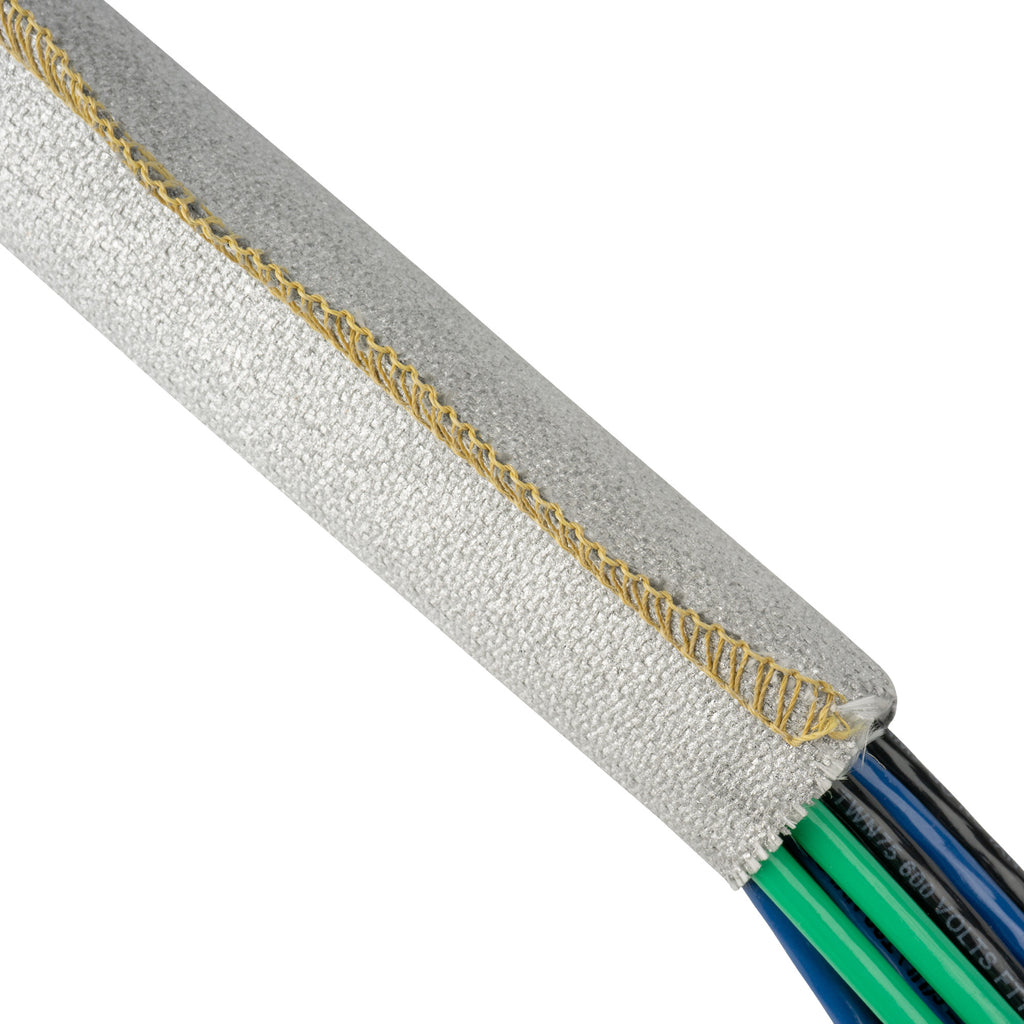

  • This product provides a complete 360° heat-reflective barrier that can be sewn using an inside, or outside seam

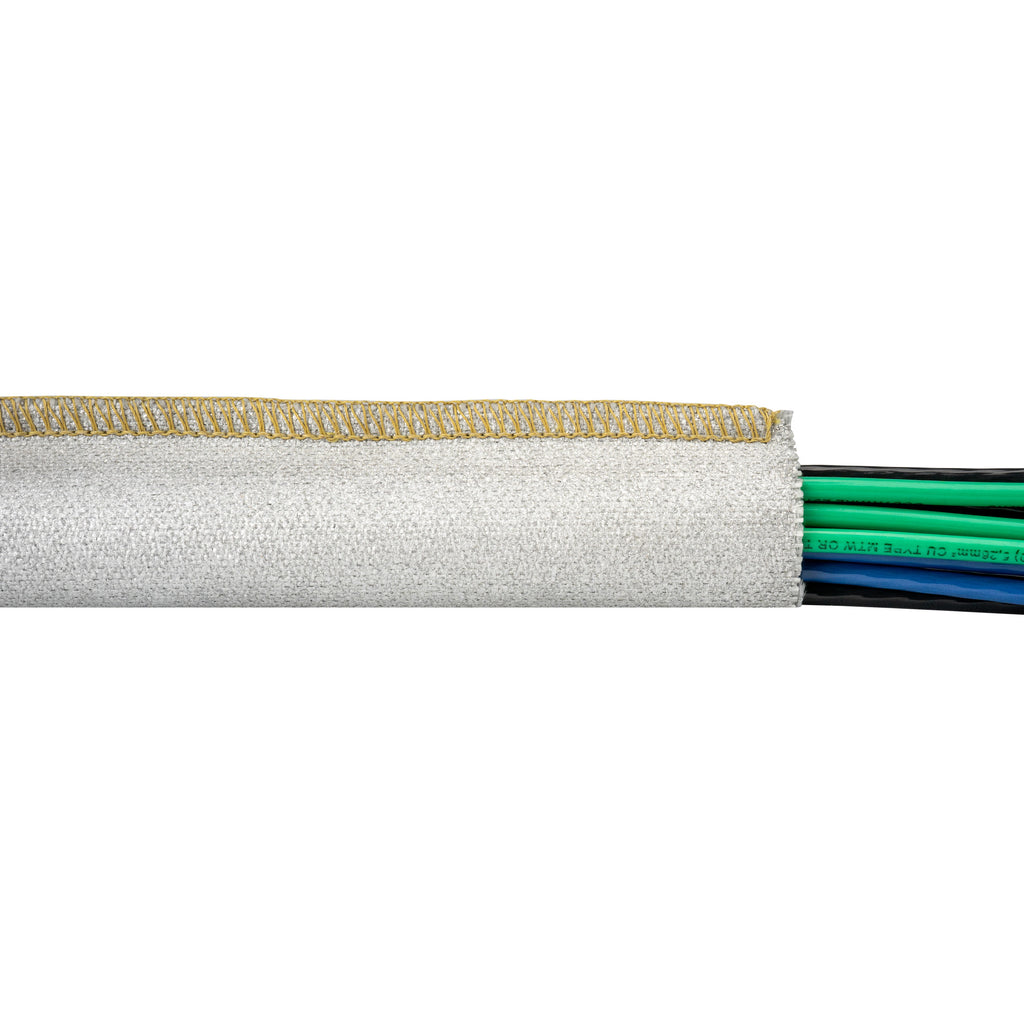

  • ZTT® thermal protective sleeves are installed by pulling through your wires, or cables and are great for high-temperature applications

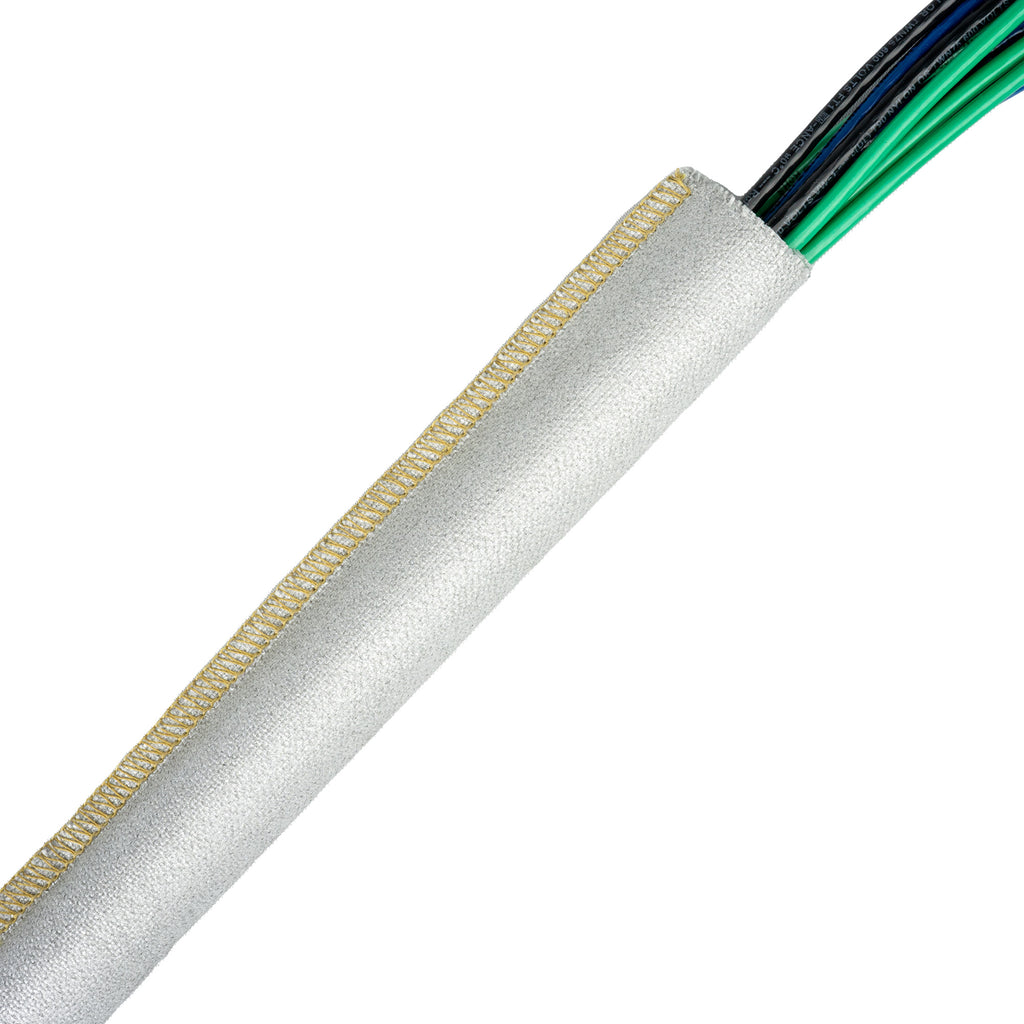

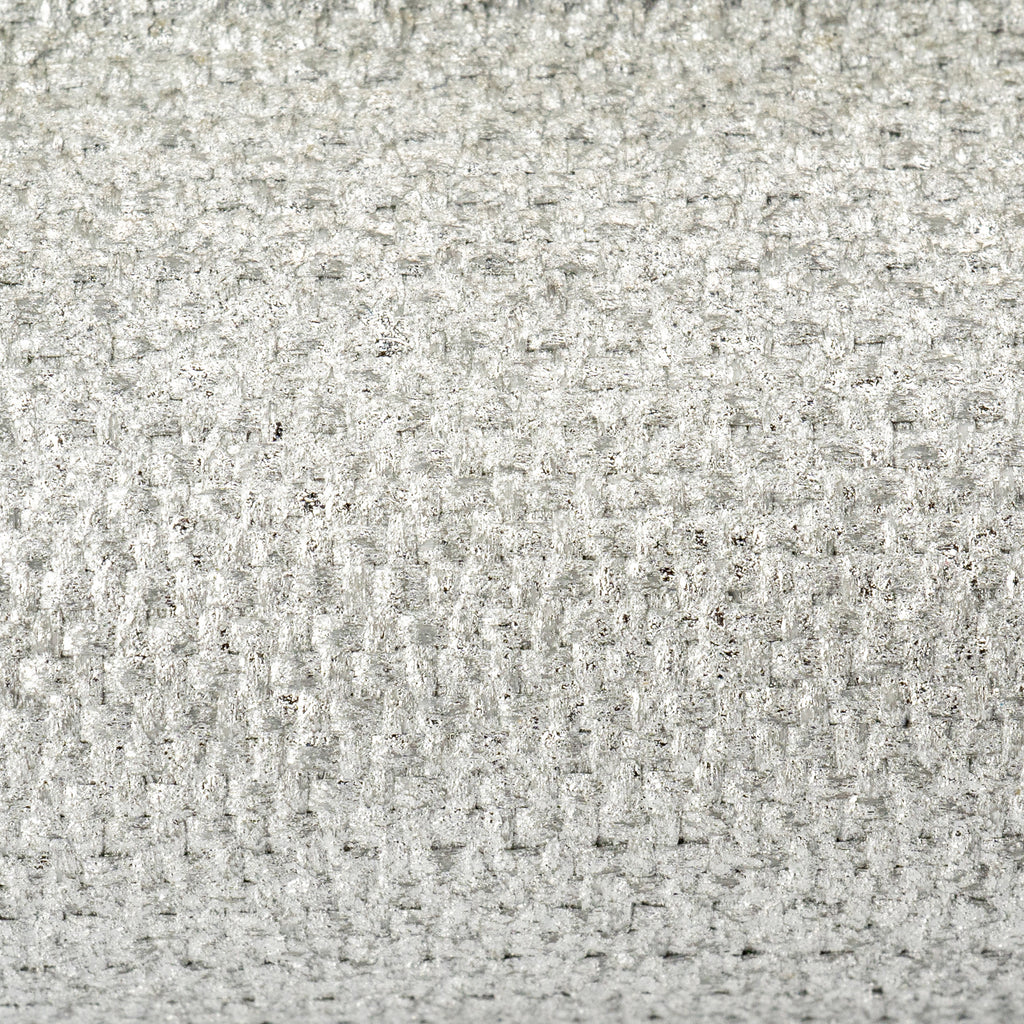

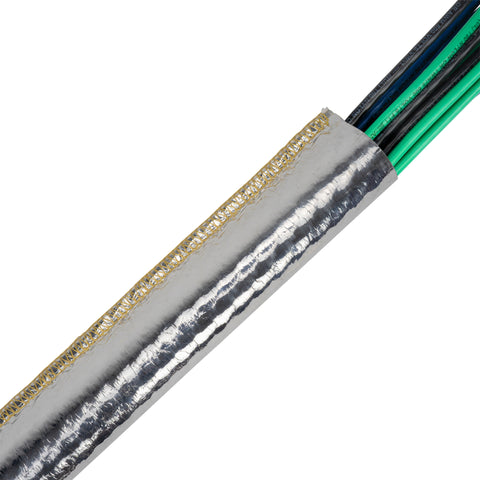

ZTT® (ALR-550) is a pull-through sleeve that creates a complete heat barrier around wires or cables. The ALR-550 jacketing is made with a fiberglass fabric that has an aluminum metalized coating for superior thermal protection. The ALR-550 material is non-combustible, so you will feel confident your wires and cables inside will stay protected from extremely high temperature exposure. The jacketing is sewn together with a stainless-steel Kevlar thread, which provides a strong seal. The thread is sewn using an “over-lock” stitch that reinforces the secure bond.

ZTT® (ALR-550) does not require any additional tools for installation – simply pull wires or cables through. ZTT® (ALR-550) is offered for diameters ranging from 0.25” to 3”, with custom sizes available upon request. The operational temperature range is -58°F to 1,022°F (-50°C to 550°C).

Overall Performance

  • Diameter: 0.25" (1/4)
  • Closure: Stainless Steel Reinforced Kevlar Thread
  • Material: ALR-550
  • Maximum Operating Temperature: 1022°F
  • Minimum Operating Temperature: -58°F

ALR-550

  • REACH: Compliant
  • Thickness: 0.024"
  • Maximum Operating Temperature: 1022°F
  • Minimum Operating Temperature: -50°F
  • RoHS: RoHS-10
  • Shelf Life: 60 Months
  • Tensile Strength: 4,400 N/5cm (warp) | 2,700 N/5cm (fill)
  • Emissivity: 0.372 (Either Side)

Stainless Steel Reinforced Kevlar Thread
