ZTT® (ALHTG) Heat Shielded Pull-Through Cable Sleeve

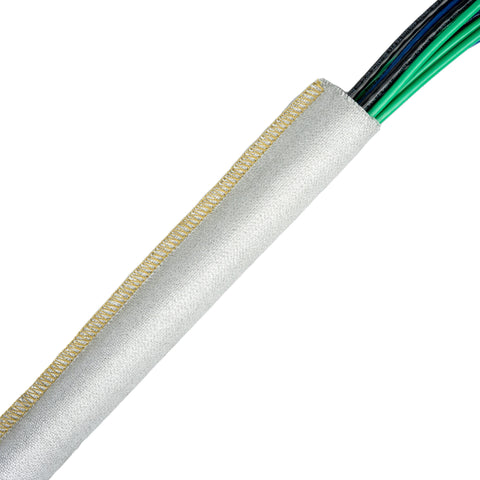

A heat shielding sleeve that offers complete protection from temperatures up to 1,202°F and is equipped with a cloth leader for easy pull-through installation.

Drawing Number(s): ZT18-09-001

ZTT® (ALHTG) Heat Shielded Pull-Through Cable Sleeve

Select product options

Please fill in at least one field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Selected Part Number:ZT18-09-001-0.5
Get A Quote

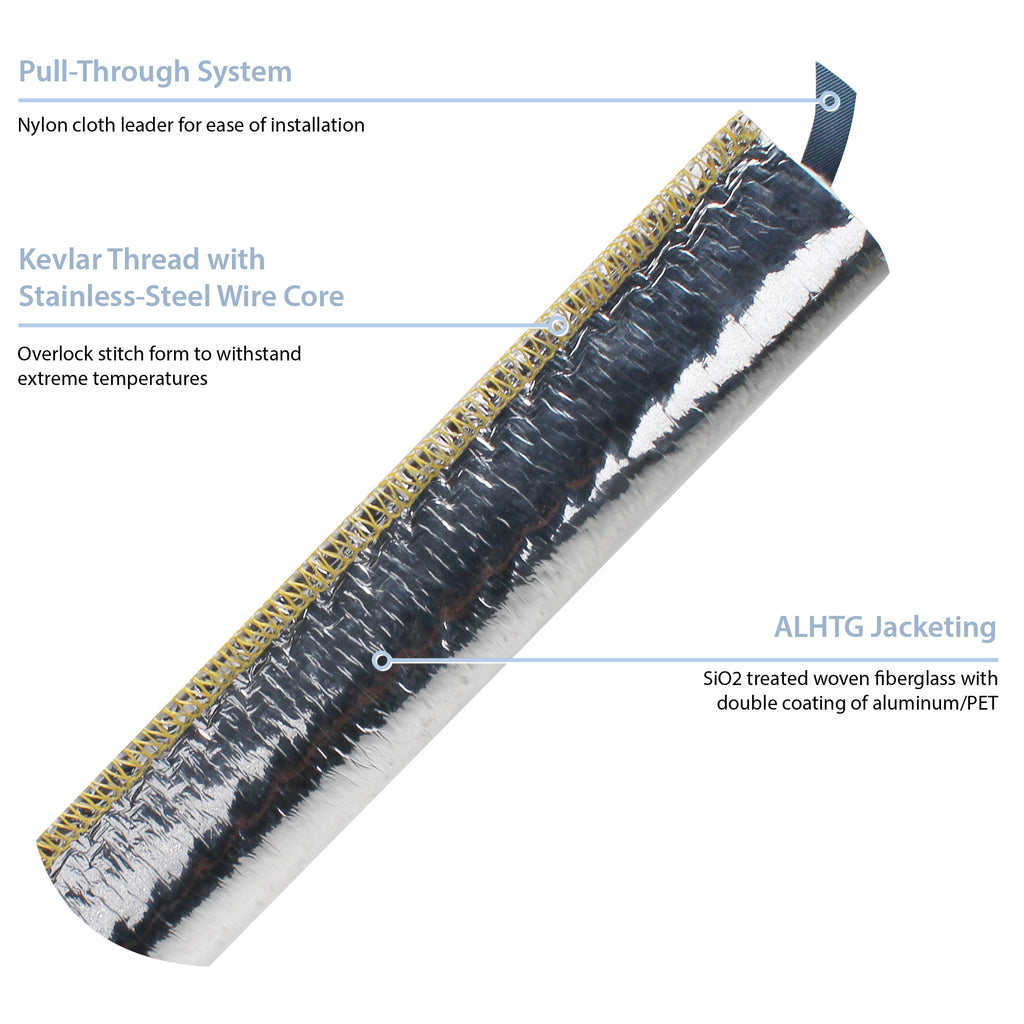

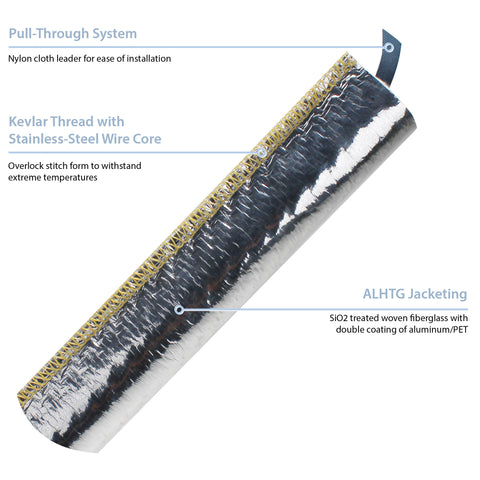

ZTT (ALHTG) Infographic
  • ALHTG thermal jacketing offers a superior barrier from high temperatures
  • Stainless-steel core thread covered with Kevlar provides a strong, lasting closure

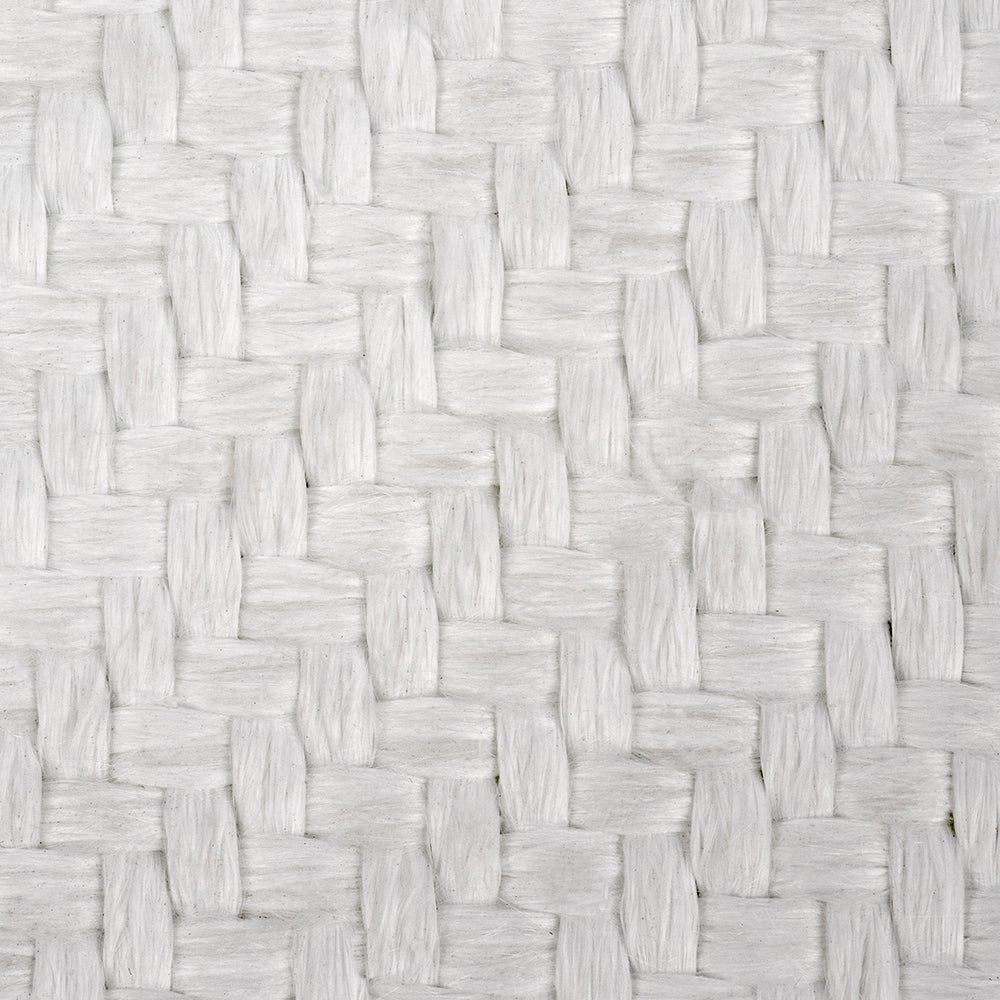

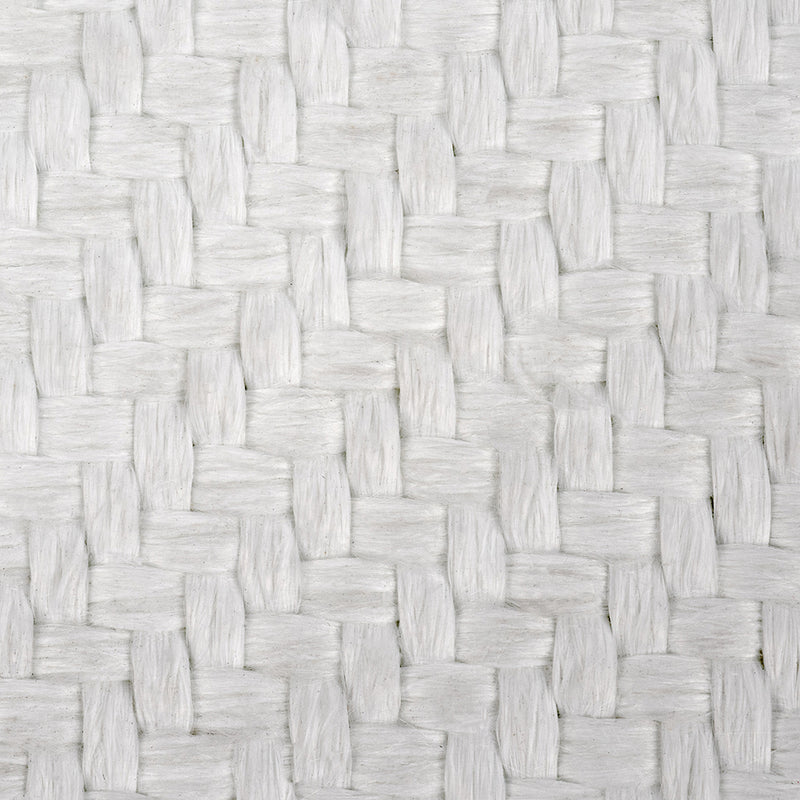

  • Woven fiberglass is treated with SiO2 for improved heat reflection

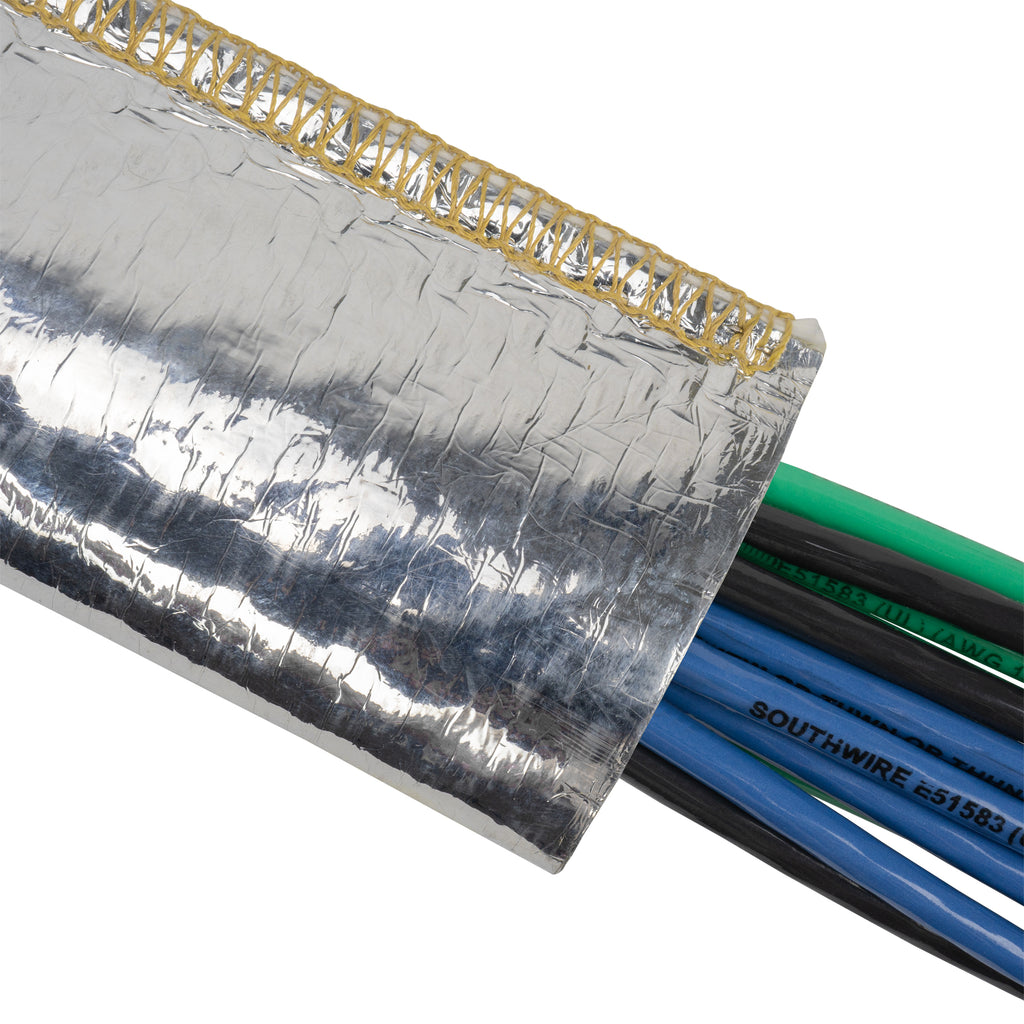

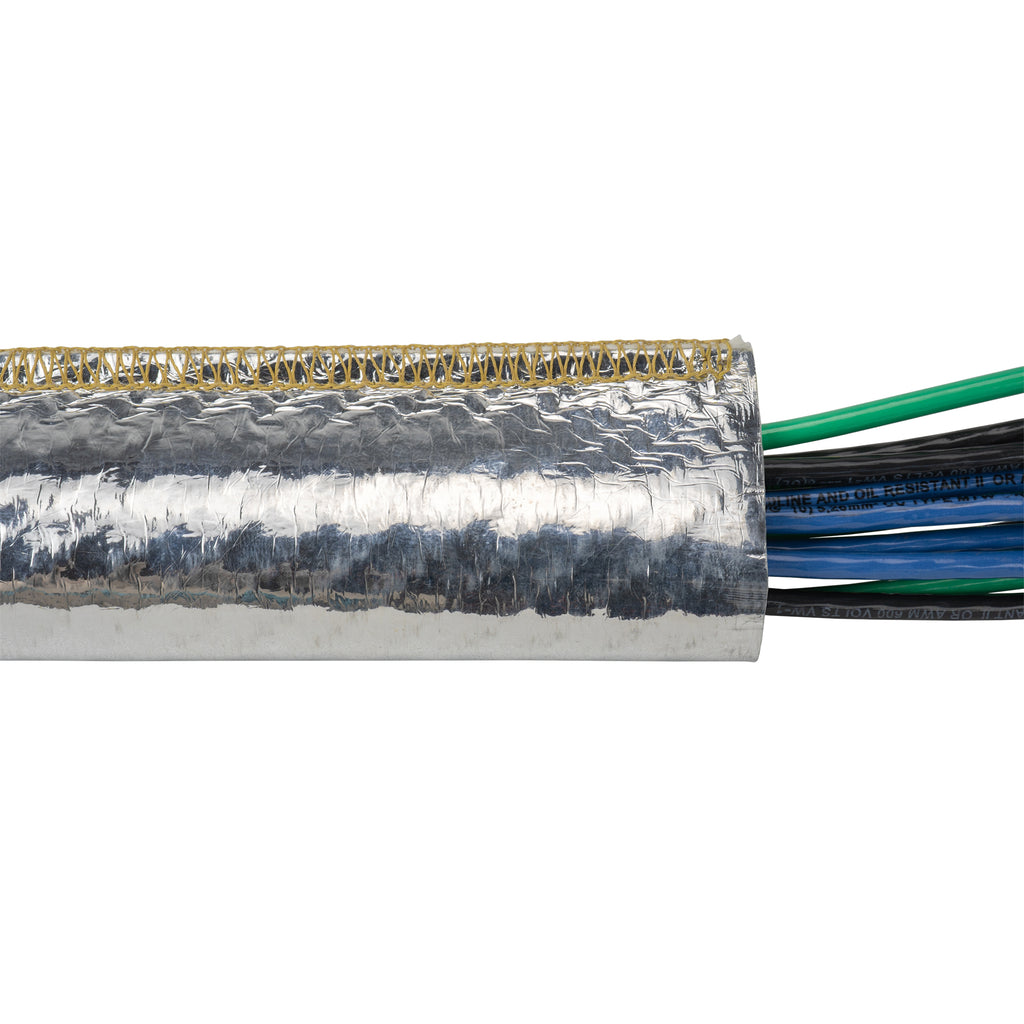

ZTT® (ALHTG) is a thermal reflection sleeve engineered for applications that have components exposed to extreme temperatures. The ALHTG jacketing is a woven fiberglass that has a double coating on one side of aluminum/PET film bonded with a silicone adhesive. The fiberglass weave is treated with SiO2 for superior heat reflection. The ALHTG shields from temperatures up to 1,202°F (650°C), making this jacketing ideal for components exposed to extreme heat. The ALHTG jacketing material is also RoHS compliant and flame retardant per FED-STD-191 Method 5903.

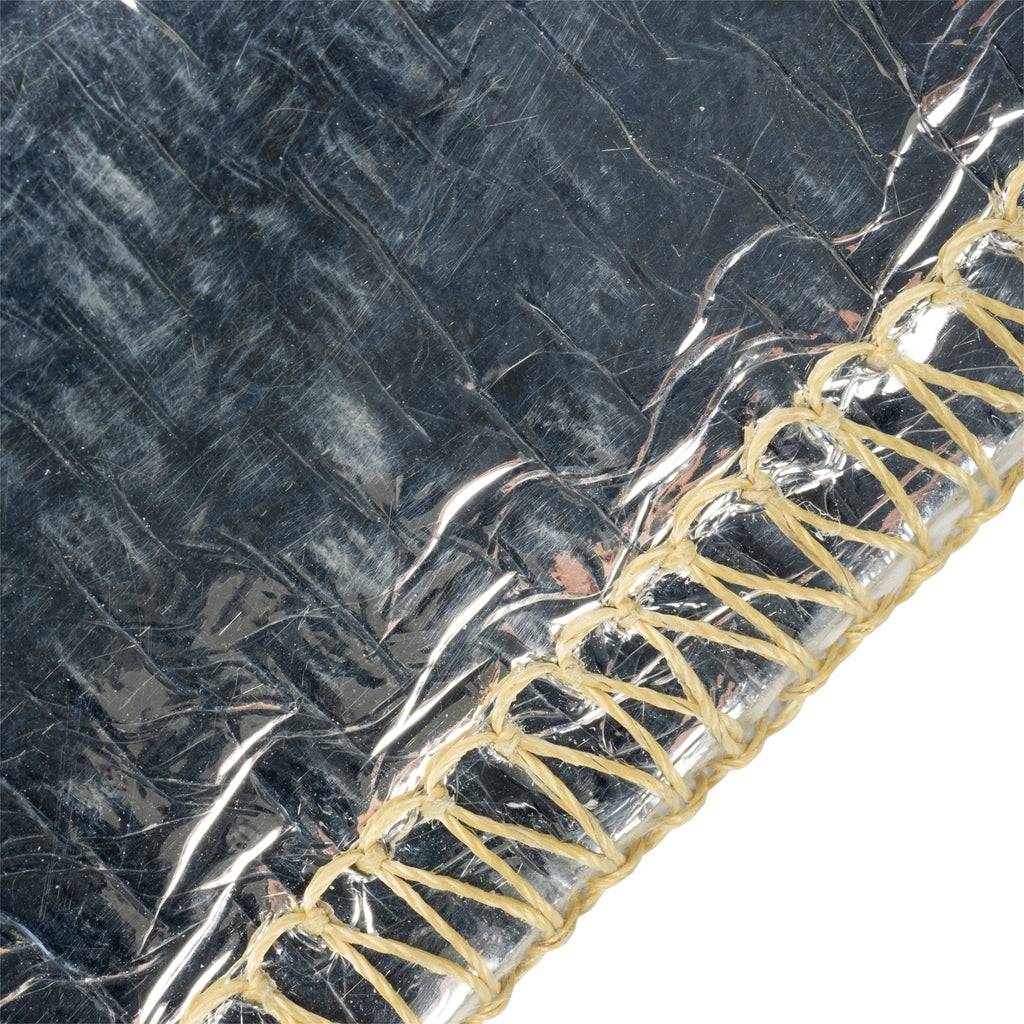

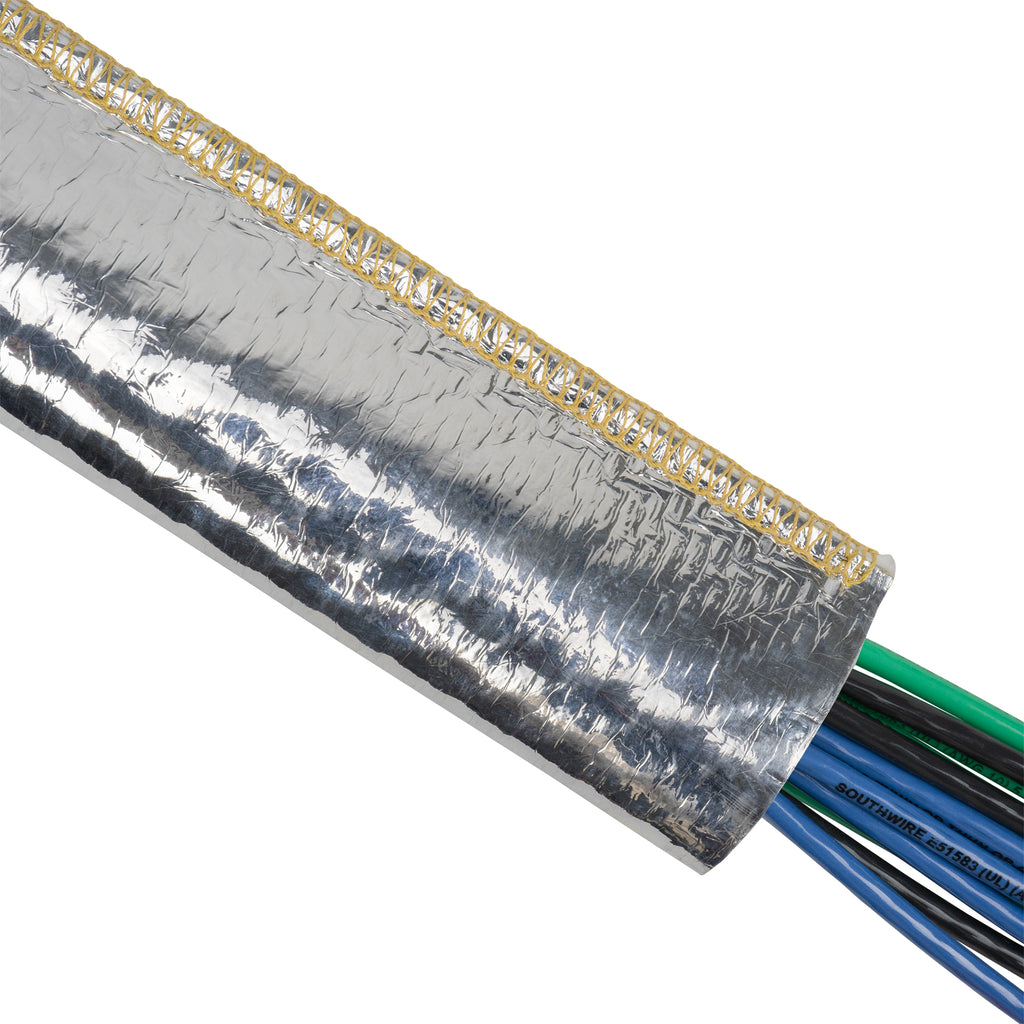

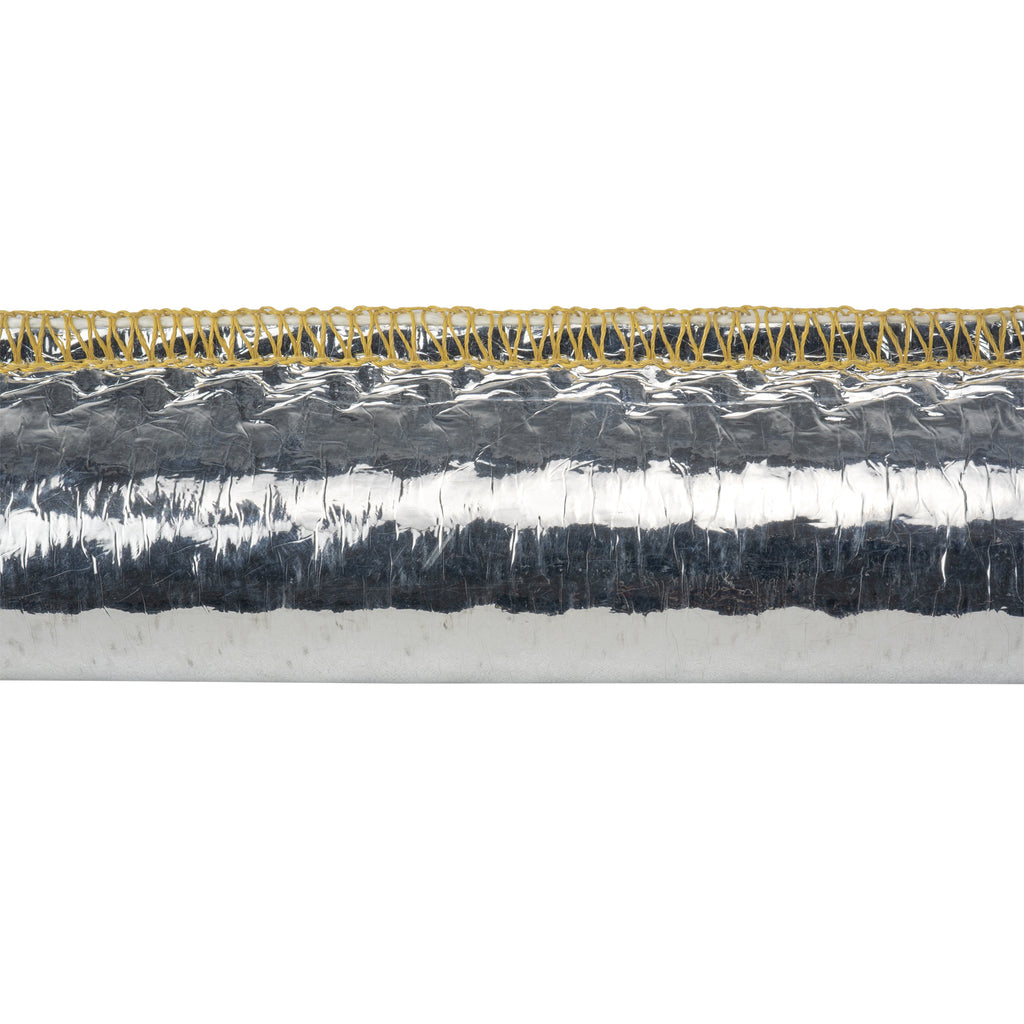

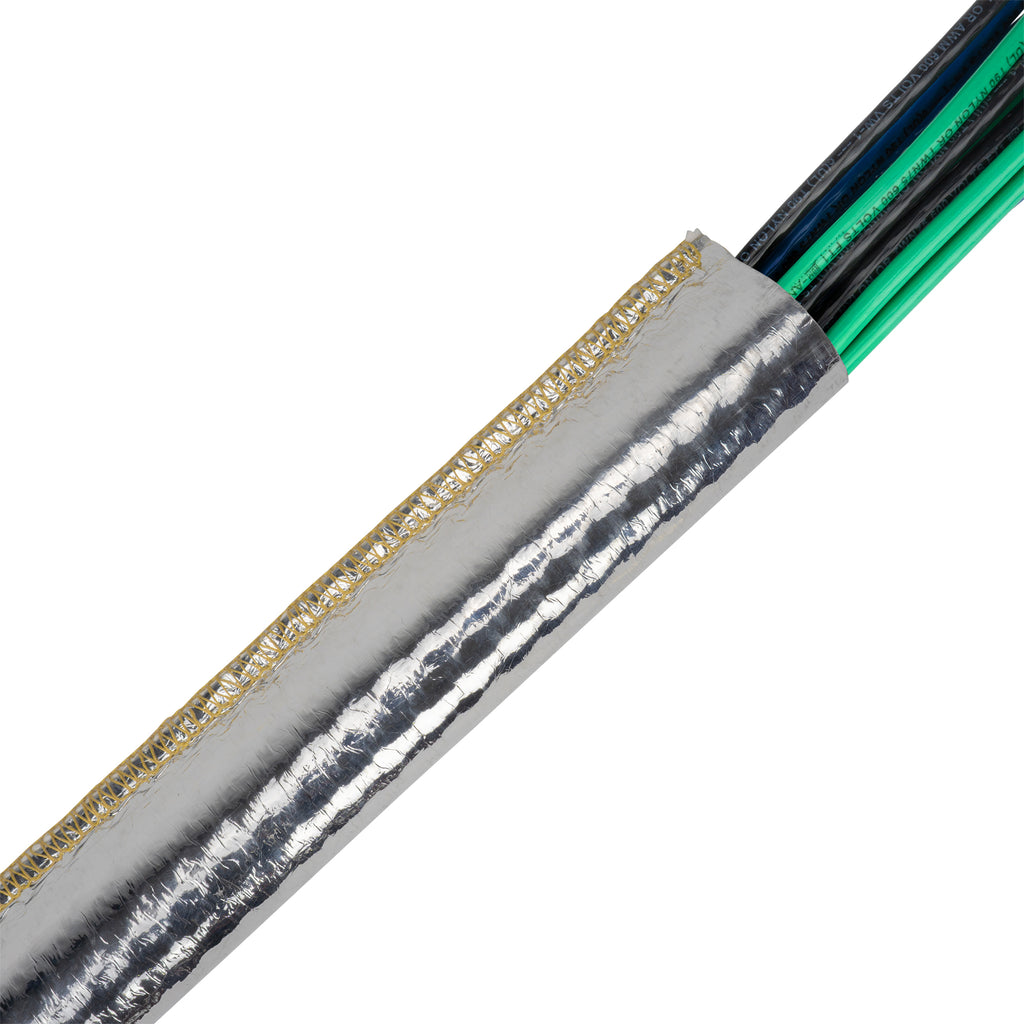

ZTT® (ALHTG) is a teardrop shape solution that utilizes a Kevlar thread that has a stainless-steel wire core, sewn in an overlock stitch form. This resilient thread can also withstand extreme temperatures, and provides a lasting closure of the jacketing. ZTT® (ALHTG) is terminated with stainless-steel zipper stops to reinforce the strength and to ensure no fraying of the ends occur. ZTT® (ALHTG) is equipped with a nylon cloth leader that provides an easy way to pull your wires or cables through without requiring disconnection.

ZTT® (ALHTG) is offered for diameters ranging from 0.5” to 7.875”, with custom shapes and sizes available upon request. The operational temperature range is -32°F to 1,202°F (-36°C to 650°C).

Overall Performance

  • Diameter: 0.5" (1/2)
  • Closure: Stainless Steel Reinforced Kevlar Thread
  • Material: ALHTG-65
  • Maximum Operating Temperature: 1202°F
  • Minimum Operating Temperature: -32°F

ALHTG-65

  • REACH: Compliant
  • Flame Retardant: FED-STD-191 Method 5903
  • Thickness: 0.065"
  • Thickness Variance: +/- 0.002"
  • Maximum Operating Temperature: 1202°F
  • Minimum Operating Temperature: -32°F
  • RoHS: RoHS-10
  • Shelf Life: 60 Months
  • Tear Strength: 627 lbs/in. (warp) / 571 lbs.in (fill)
  • Tensile Strength: 10.16/in. (warp) / 8.64/cm (fill)

Stainless Steel Reinforced Kevlar Thread
