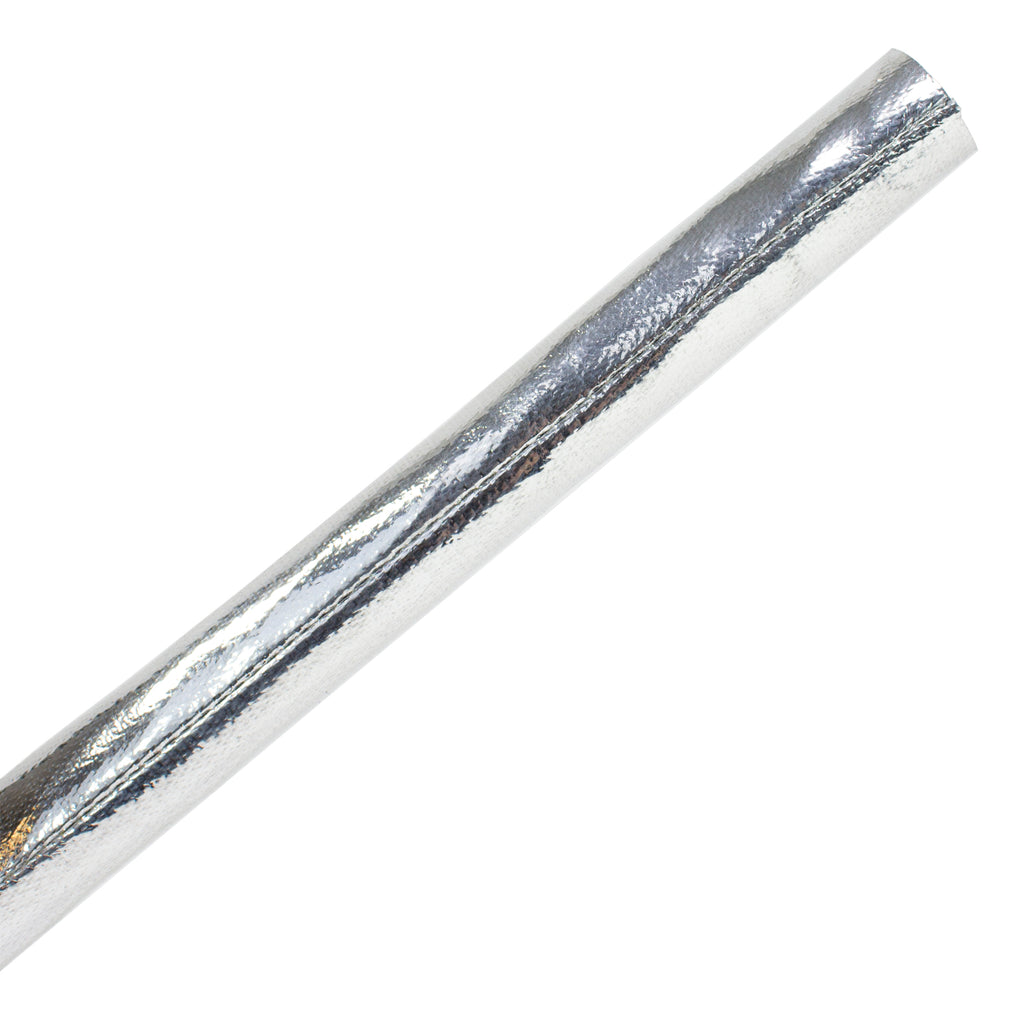

ZTT® (ALP-500) High Temp Pull-Through Cable Bundling

A strong, pull-through thermal barrier sleeve that protects components from continuous temperatures up to 350°F, and radiant temperatures up to 1,200°F.

Drawing Number(s): ZT17-09-005

ZTT® (ALP-500) High Temp Pull-Through Cable Bundling
RoHS

Select product options

Please fill in at least one field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Selected Part Number:ZT17-09-005-1.0
Get A Quote
ZTT (ALP-500) Infographic

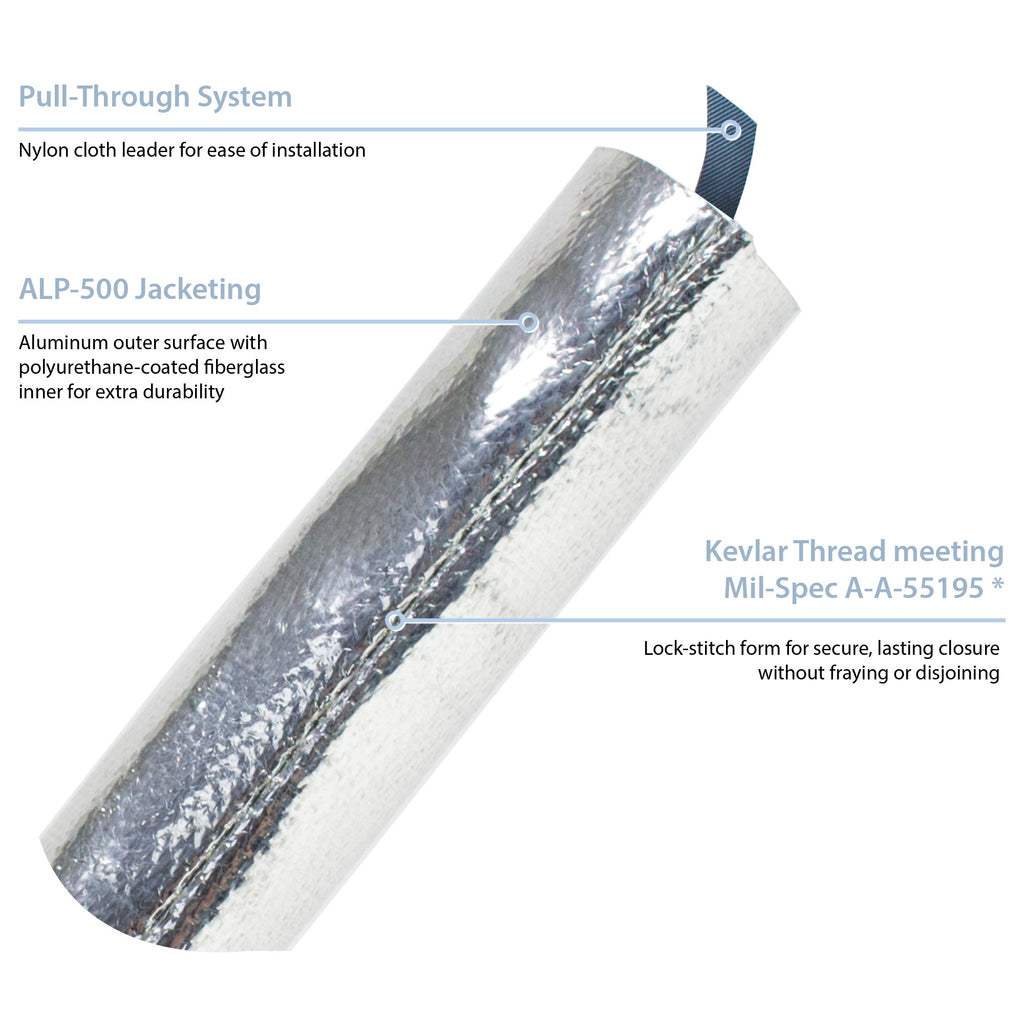

  • Pull-through sleeve provides 360-degree protection
  • ALP-500 heat-reflective material is strong and durable
  • Lock-stitched Kevlar thread provides secure, lasting closure

Pull-through heat-shielding solution ZTT® (ALP-500) provides 360-degree component protection and offers better flexibility. The ALP-500 thermal material is a fiberglass cloth that is coated on one side with polyurethane, and, on the other side, a reflective aluminum. Although ZTT® (ALP-500) is only 0.017” thick, it can shield from radiant temperatures up to 1,200°F. The heat shielding material is non-flammable and best in abrasion resistance.

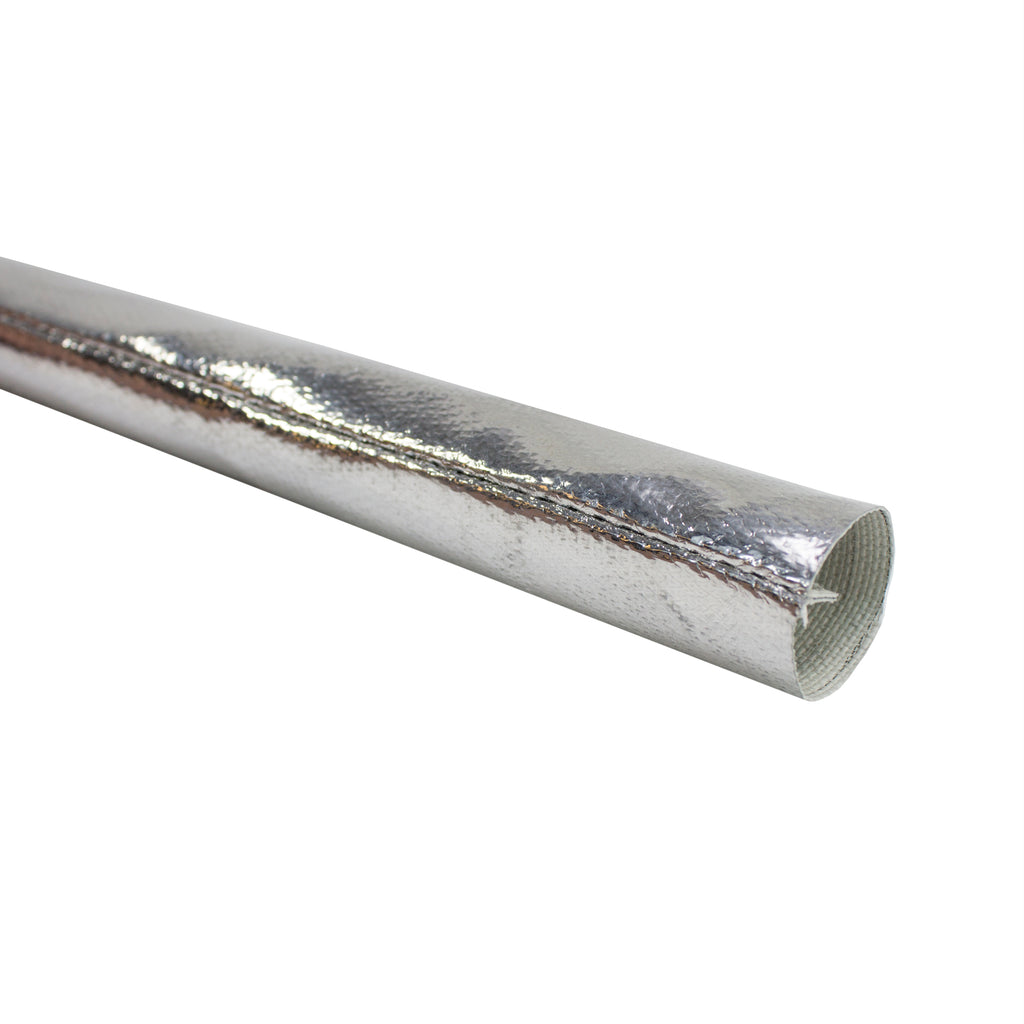

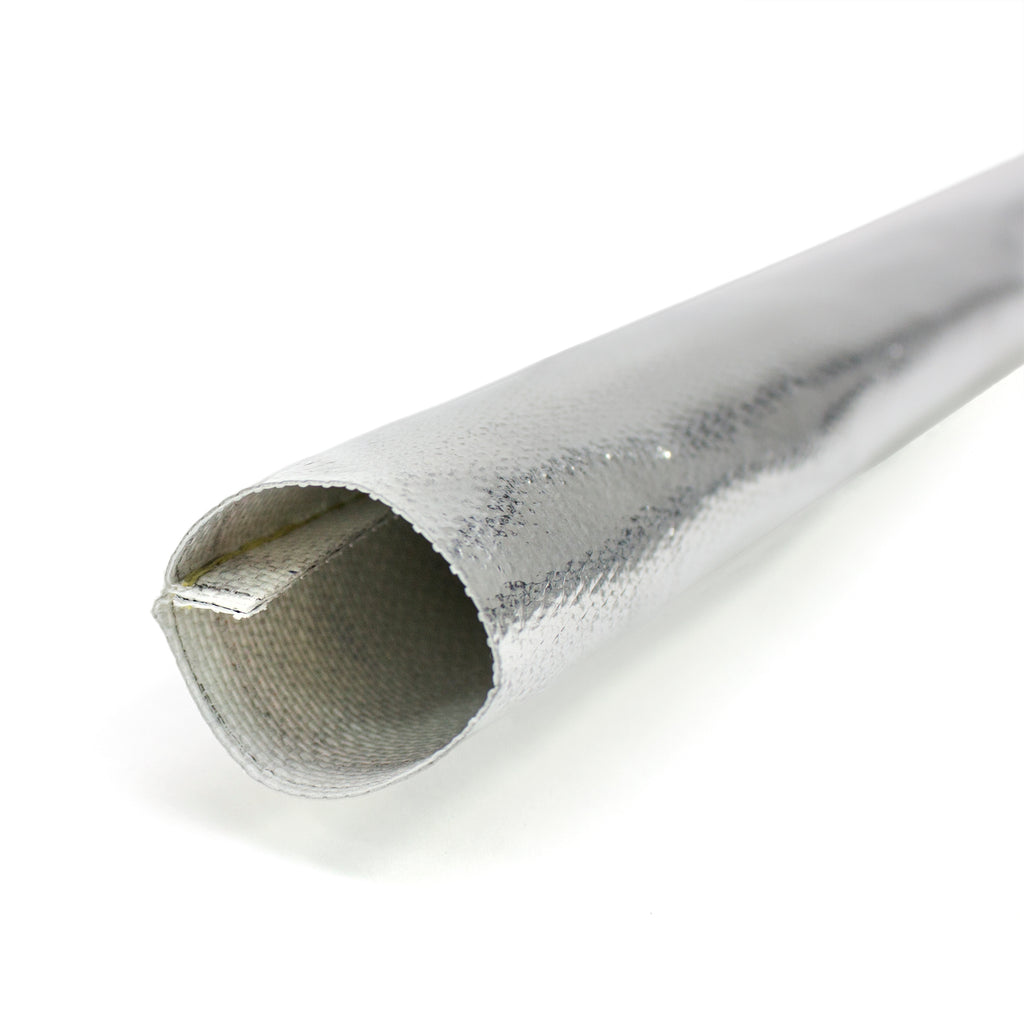

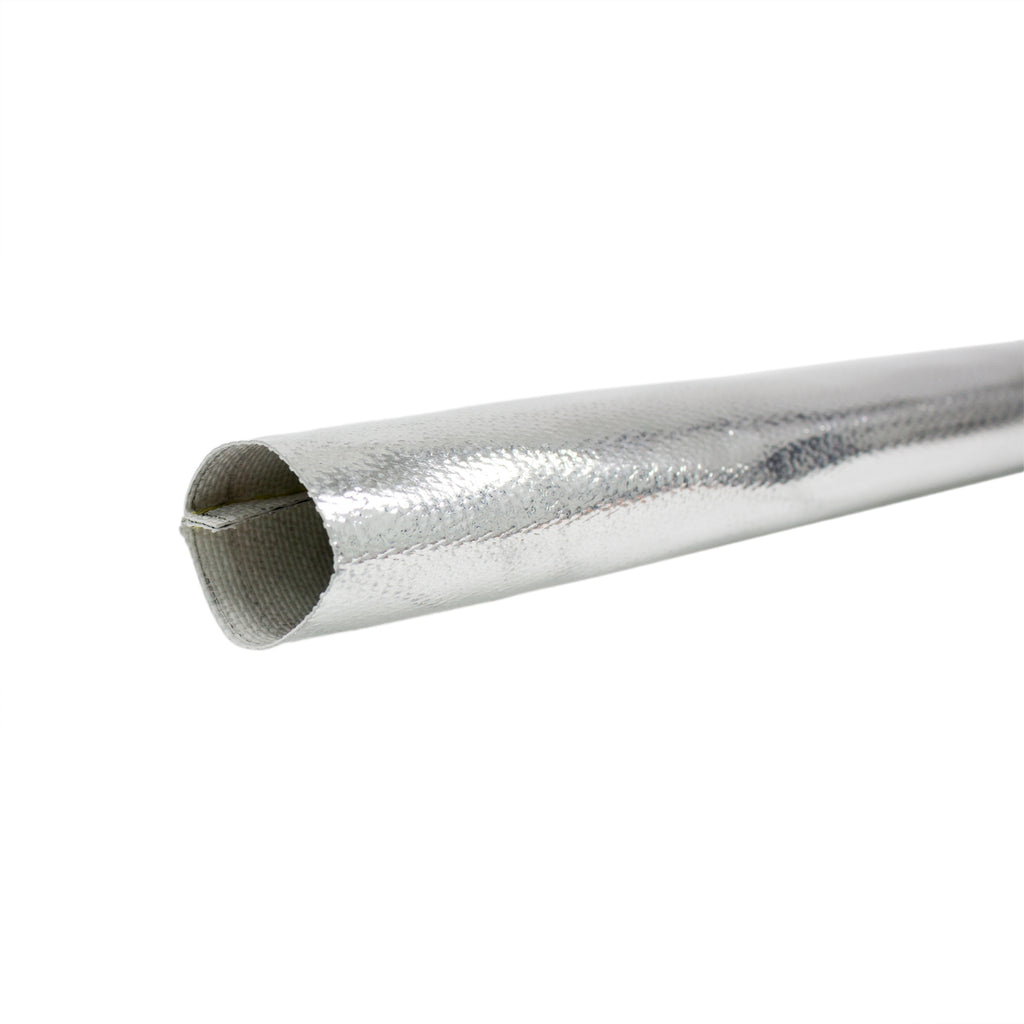

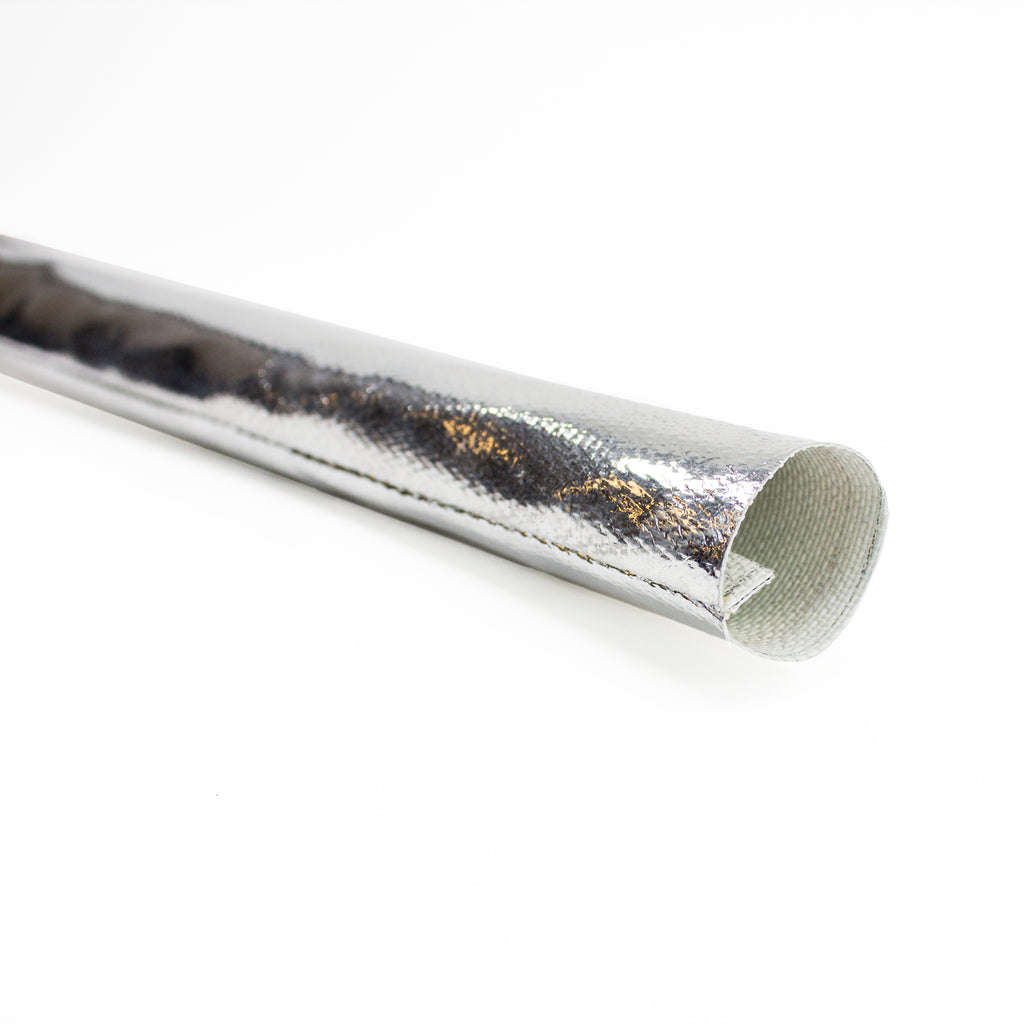

ZTT® (ALP-500) utilizes Kevlar thread, which is sewn in lock-stich form for a secure, lasting closure without fraying or disjoining. Kevlar thread is military grade and meets A-A-55195, Type I (formerly MIL-T-44100) specifications, and it is also resistant to bacteria, mildew, abrasion and aging. The solution is inversely sewn into a teardrop shape to provide a clean appearance and reduce abrasion damage during installation. ZTT® (ALP-500) can also be sewn in a traditional teardrop style upon request.

We offer ZTT® (ALP-500) in diameters ranging from 1.0” to 3”, with custom shapes and sizes available upon request. The continuous operational temperature range is -58°F to 350°F (-50°C to 177°C), with a radiant temperature range of up to 1,200°F.

Overall Performance

  • Diameter: 1.0"
  • Closure: Kevlar Thread
  • Material: ALP-500
  • Maximum Operating Temperature: 350°F
  • Minimum Operating Temperature: -50°F
  • RoHS: RoHS-10
  • Shelf-Life: 60 months

ALP-500

  • REACH: Compliant
  • Flammability: Self-extinguishing
  • Thickness: 0.017"
  • Thickness Variance: +/- 15%
  • Maximum Operating Temperature: 350°F
  • Minimum Operating Temperature: -58°F
  • RoHS: RoHS-11
  • Shelf Life: 60 Months
  • Tear Strength: >350 daN/50 mm (warp) | >250 daN/50 mm (fill)
  • Emissivity: 0.062 (Foil Side) | 0.9 (Cloth Side)

Kevlar Thread

    Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
    ZTT® (ALR-550) High Temp Pull-Through Cable Bundling  Zipper-Mesh (ALHTG-65) EMI & Heat Shielded Jacketing  Snap-Grip® (SAM-1000) Heat Shielded Cable Bundling
    NAME ZTT® (ALR-550) HIGH TEMP PULL-THROUGH CABLE BUNDLING  ZIPPER-MESH (ALHTG-65) EMI & HEAT SHIELDED JACKETING  SNAP-GRIP® (SAM-1000) HEAT SHIELDED CABLE BUNDLING
    DESCRIPTION A pull-through, flexible heat shielding sleeve that protects components from continuous temperatures as high as 1,022°F.  An all-in-one, wrap-around solution combining the heat shielding of the ALHTG-65 with the EMI shielding of the knitted SHX-4 mesh and a brass zipper.  A heat shielding solution featuring a silicone, polymer-coated fiberglass jacket with stainless-steel snaps that protects components from temperatures up to 464°F.
    Closure Stainless Steel Reinforced Kevlar Thread  Toothed Zipper (High-Temp Brass)  Stainless Steel Snaps
    RoHS    RoHS-10
    Abrasion Resistance Good  Good
    Installation Type Pull-Through  Wrap-Around
    Purpose Sleeve  EMI Shielding
    Min Temperature Extreme  Moderate  Extreme
    Minimum Operating Temperature -58°F  -32°F  -58°F
    Max Temperature Extreme    Moderate
    Maximum Operating Temperature 1022°F  399°F  464°F
    Flexibility Better
    View  View  View

    ZTT® (ALP-500) High Temp Pull-Through Cable Bundling

    A strong, pull-through thermal barrier sleeve that protects components from continuous temperatures up to 350°F, and radiant temperatures up to 1,200°F.

    Drawing Number(s): ZT17-09-005

    Selected Part Number: ZT17-09-005-1.0

  • Pull-through sleeve provides 360-degree protection
  • ALP-500 heat-reflective material is strong and durable
  • Lock-stitched Kevlar thread provides secure, lasting closure
  • Features

  • Heat-reflective material handles moderate to high temperatures
  • Nylon cloth leader allows for a toolless installation
  • Non-flammable jacketing
  • Benefits

  • Inverse teardrop design provides clean appearance and reduces snagging
  • Jacketing offers the best abrasion resistance
  • Lock-stitch form ensures no fraying or disjoining of seam
  • ZTT® (ALP-500) High Temp Pull-Through Cable Bundling
