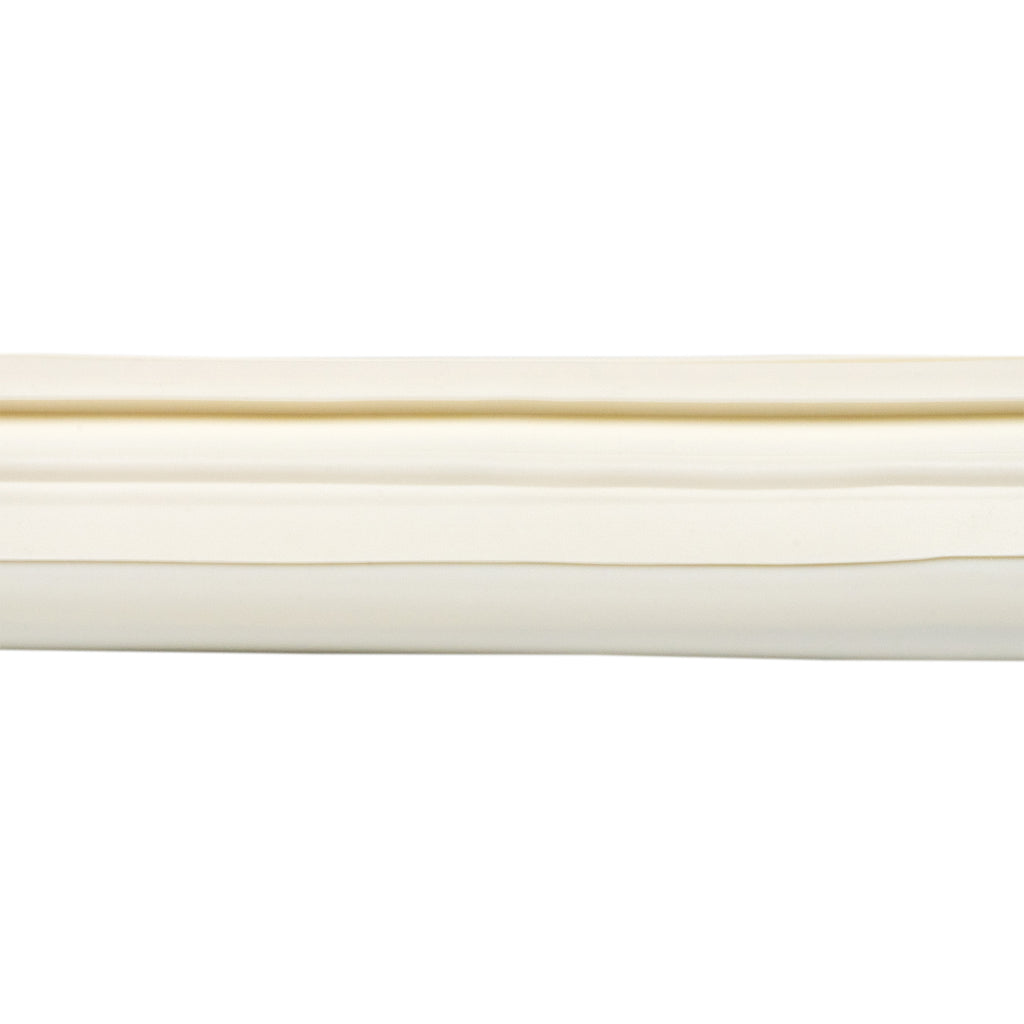

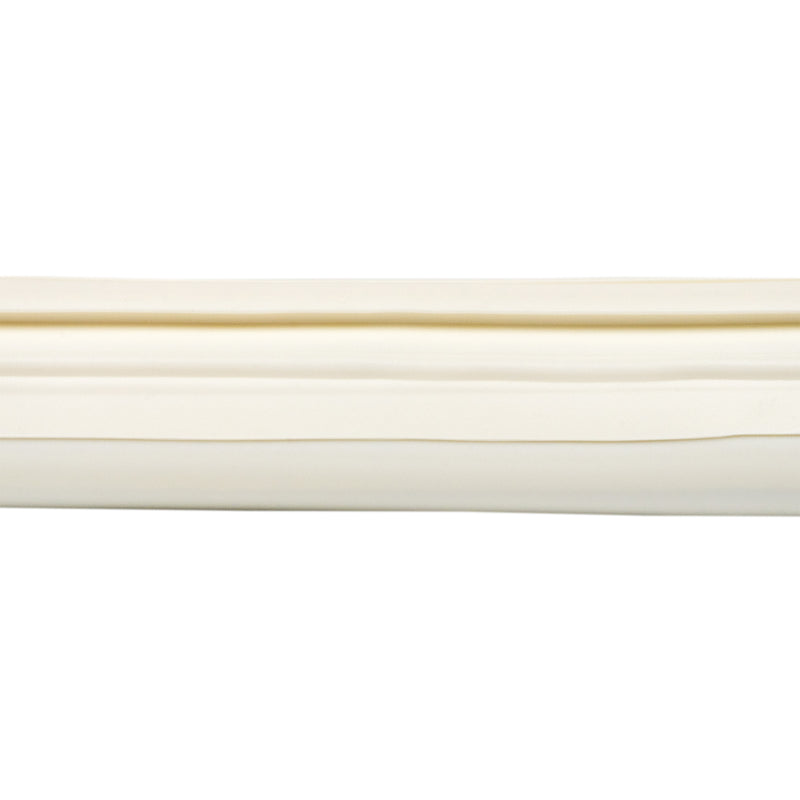

Zip-Shield® (TPU) Cable Bundling with EMI Shielding

A wrap-around solution featuring a sewn-in EMI-shielding cloth, mesh or foil and an abrasion-resistant thermoplastic polyurethane (TPU) jacketing and pressure track combination.

Drawing Number(s): ZT17-17-001

Zip-Shield® (TPU) Cable Bundling with EMI Shielding
RoHS

Select product options

Please fill in at least one field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Selected Part Number:ZT17-17-001-0.5-W-W
Get A Quote

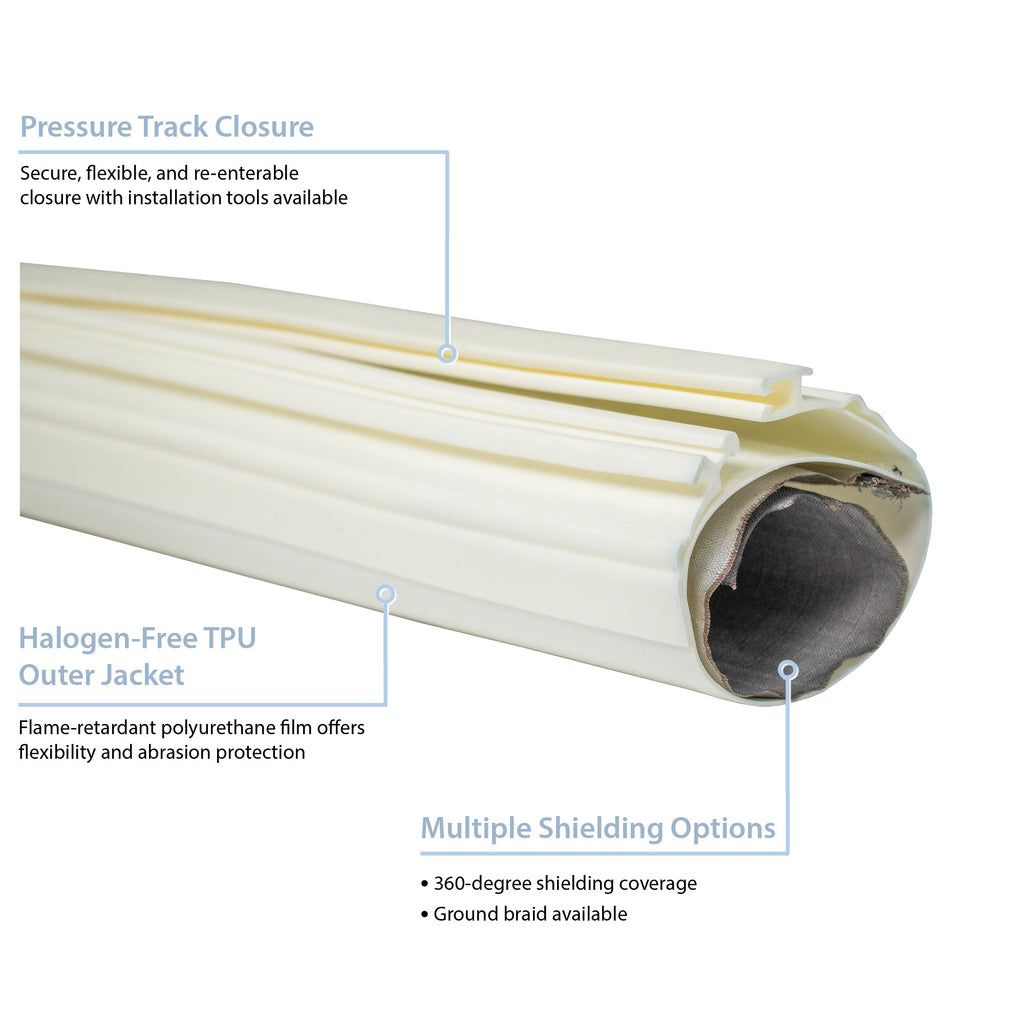

Zip-Shield (TPU) Infographic
  • EMI-shielding fabric is non-magnetic, making this solution ideal for applications with sensitive magnetic instrumentation
  • TPU jacketing is UL-rated for flammability, meeting UL 94, V-0
  • Pressure track closure allows for re-entry to components as needed

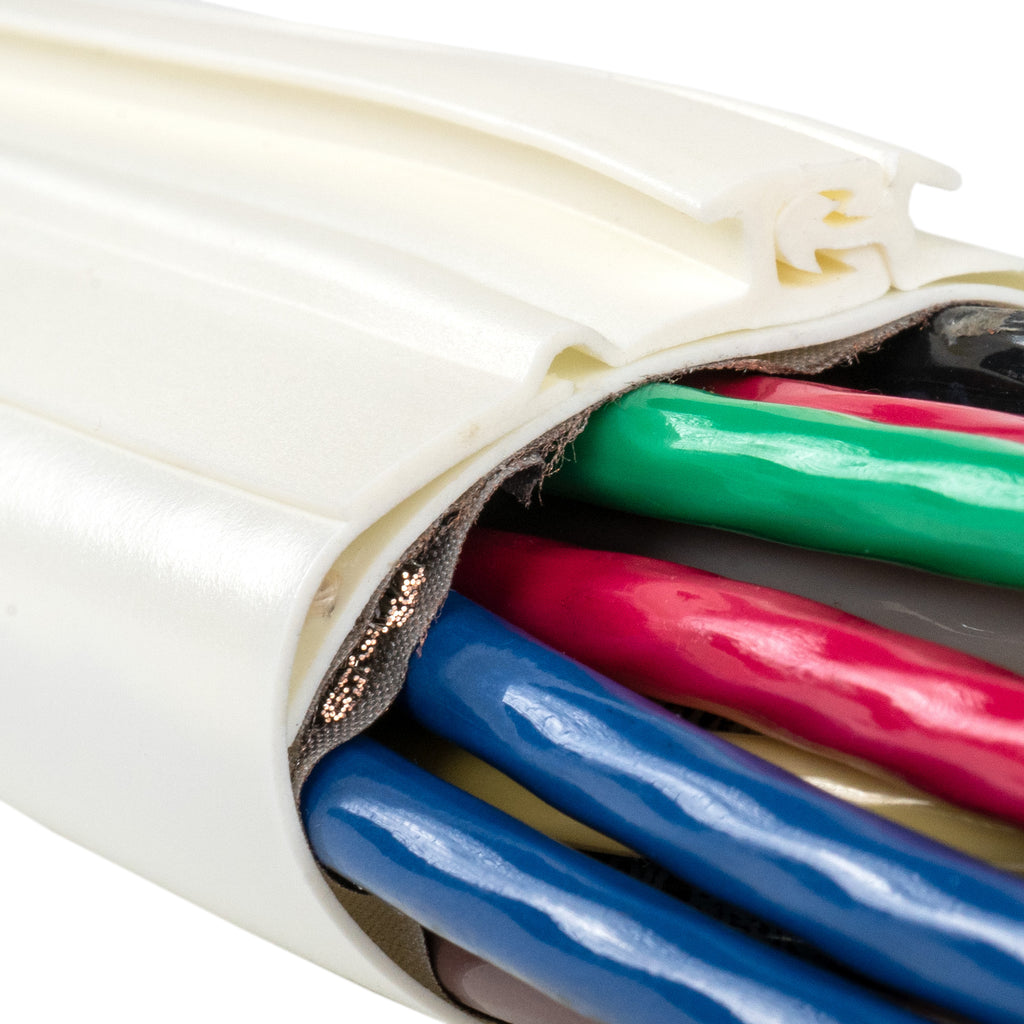

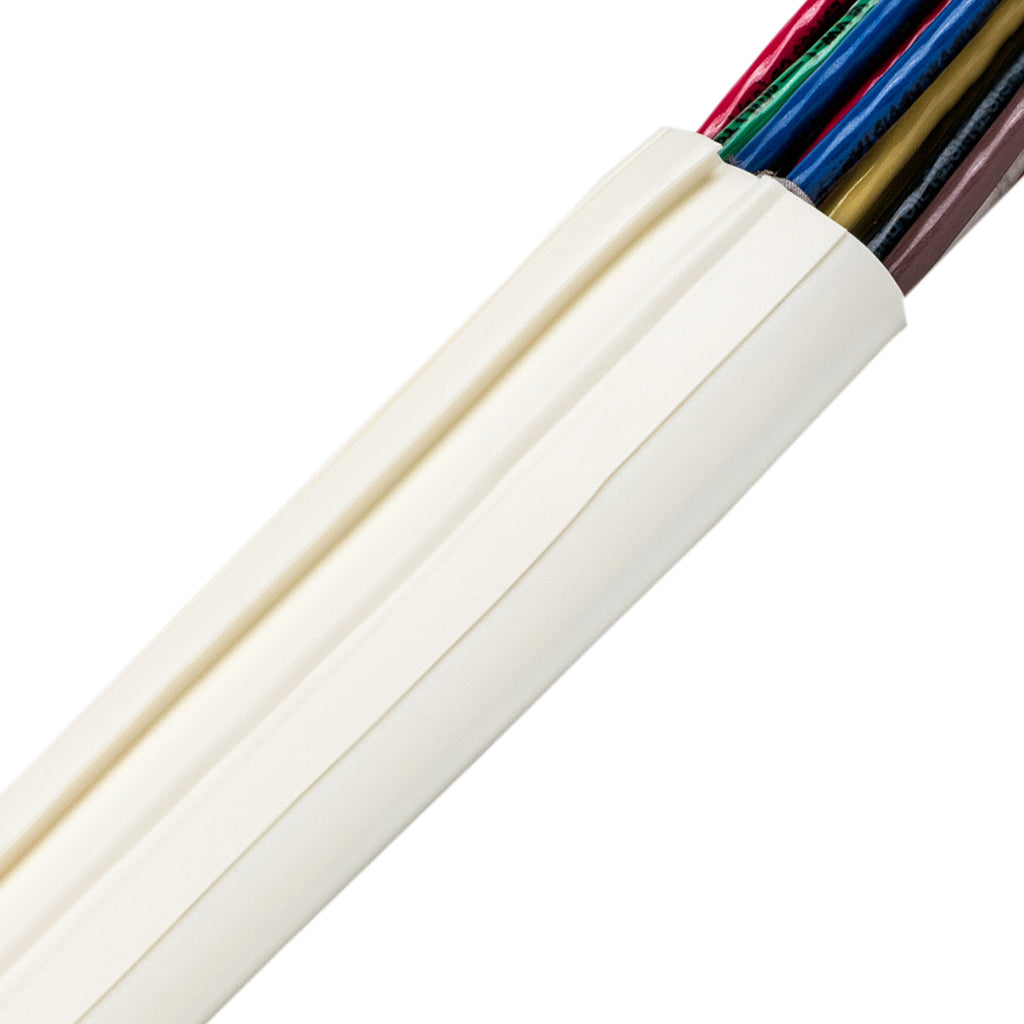

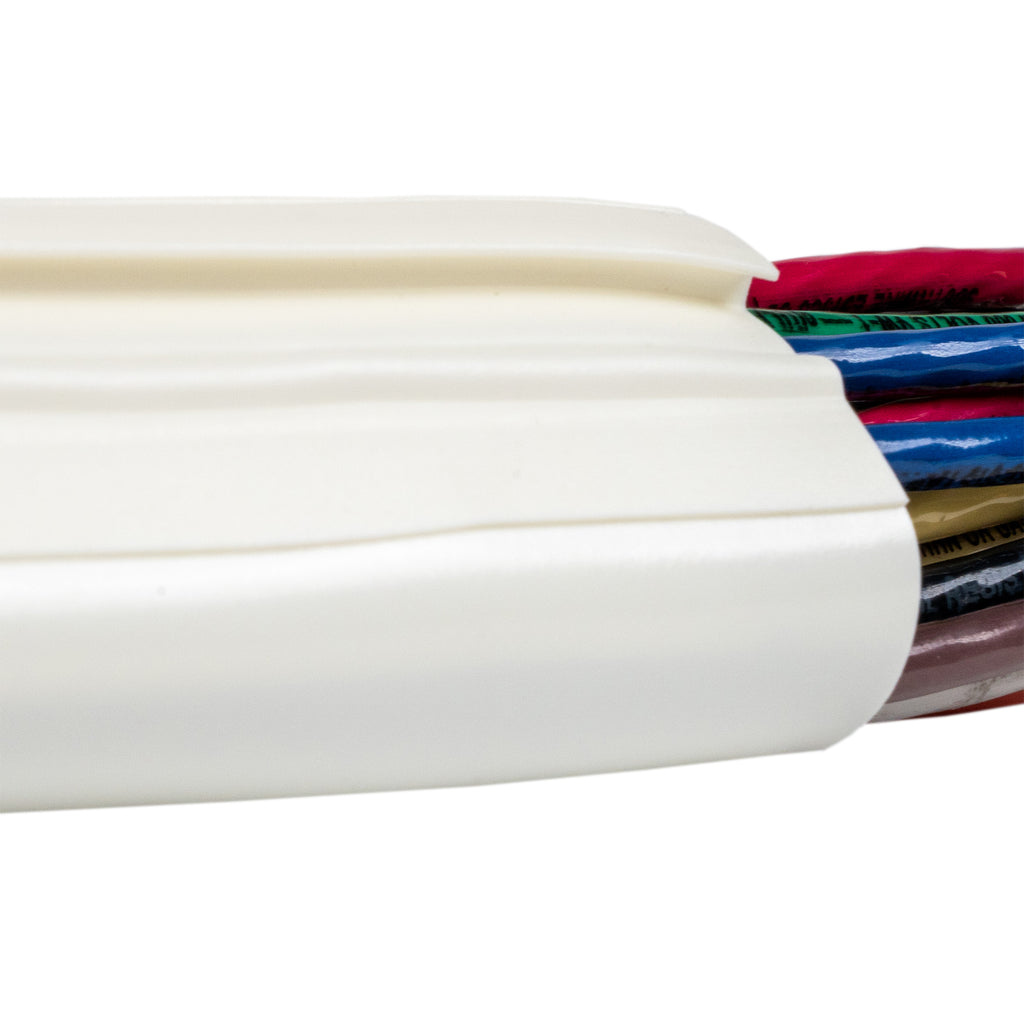

Zip-Shield® (TPU) combines a TPU jacketing with a sewn-in EMI-shielding cloth, mesh or foil and pressure track together for an all-white EMI shielding solution. The thermoplastic polyurethane material utilized for both the jacketing and pressure track is UL-rated for flammability with meeting UL 94 V-0, as well as being ozone resistant (Stage 0, “Crack Free” VDE) and microorganism resistant. The TPU is also offers the best abrasion resistance, is halogen free and hypoallergenic, making this material the ideal choice for medical and clean room environments.

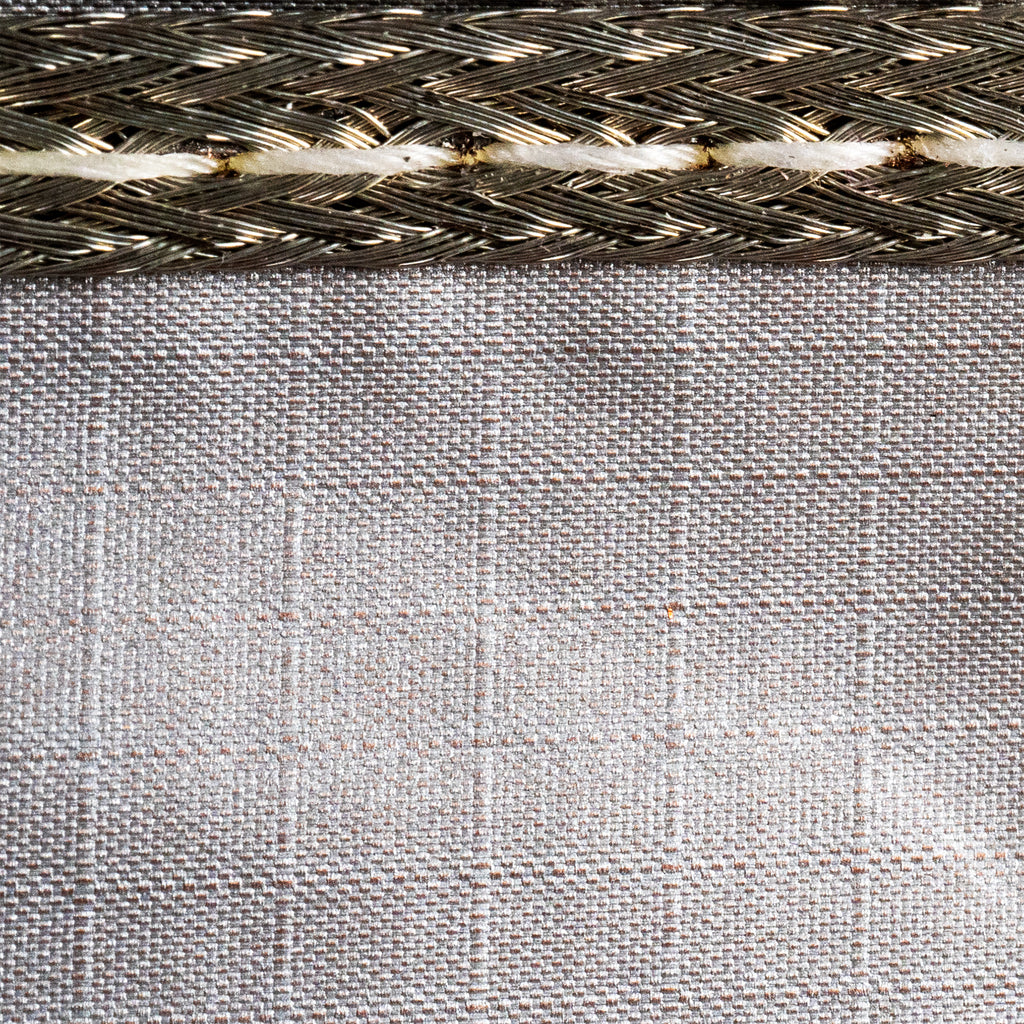

The Z-7200 shielding cloth is a nylon rip-stop fabric, plated with copper and a proprietary corrosion and fray-resistant coating. The cloth is nickel free, halogen free, and hypoallergenic, perfect for medical industry applications. The 7200 shielding cloth also has the unique quality of being non-magnetic, making Zip-Shield® (TPU) the perfect solution for applications dealing with sensitive magnetic instrumentation. The 7200 shielding cloth will not flake or rub off overtime. Zip-Shield® (TPU) can also be equipped with a braided and flattened tin-plated copper ground wire.

The EZ-Track™ (TPU) pressure track is an arrowhead and channel interlocking system that provides a secure closure. This pressure track can be closed with the SL-EZ Slider tool for shorter runs, and the ZTEZ-SP Plier tool for longer runs.

Zip-Shield® (TPU) is offered for diameters ranging from 0.5” to 4”, with custom shapes and sizes available upon request. The operational temperature range is -40°F to 257°F (-40°C to 125°C).

*Zip-Shield® (TPU) is not manufactured using a clean room in sterile conditions, but with the right procedures, it could be used in the medical field, including in hospitals, operating rooms, trauma centers, and emergency rooms.

Q:  What is the difference between the track closure styles?

A:  Each interlocking track profile has unique benefits and trade-offs.  To learn about them you can review our Track Comparison.

Q:  How do I close the jacketing?

A:  Some tracks can be closed by hand, but we also offer closure tools to assist with installation.  For more information on closing the specific tracks you can view our helpful videos or installation guides:

Q:  Can I cut the tubing?

A:  Yes.  Standard scissors are suitable for cutting through most Zip-On jackets and tracks.

Q:  What lengths of material are available?

A:  Typical spool lengths for most sizes are 100 feet, but will depend on total order footage.  Custom lengths can be provided, just make sure to ask when ordering or include details on the PO for the lengths required.

Q:  Will the track keep out water and is it water-tight?

A:  Our different track closures are rated between IP54 and IP55. This means they are not water tight but will provide significant protection against moisture and fluid ingress.
Some users will apply tape or a sealant to the track, after closing, to provide additional protection.

Q:  What diameter of jacketing do I need?  Is it recommended to oversize?

A:  We will often suggest oversizing the sleeve diameter by 1/8” to allow for ease of install
when using a closure tool.  If the application requires significant bending or flexing we will suggest even more extra room.  For assistance with sizing you can also contact one of our design engineers.

Q:  What is the minimum bend radius of the tubing?

A:  There is no minimum bend radius for our Zip-On products. The flexible jacketing material allows for extreme amounts of bending and flexing.  The bend radius of the installed tubing is typically dictated by the harness it is covering.

show more >>

Overall Performance

  • Diameter: 0.5" (1/2)
  • Closure: EZ-Track (TPU)
  • Material: TPU-20
  • Maximum Operating Temperature: 257°F
  • Minimum Operating Temperature: -40°F
  • RoHS: RoHS-10
  • Shielding: Z-7200
  • Shielding Material: Copper Plated

TPU-20

  • Durability: Better
  • REACH: Compliant
  • Elongation: 350%
  • Flammability: Self-extinguishing
  • Color: White
  • Thickness: 0.020"
  • Thickness Variance: +/- 0.001"
  • Material: Thermoplastic polyurethane
  • Maximum Operating Temperature: 257°F
  • Minimum Operating Temperature: -40°F
  • RoHS: RoHS-10
  • Tensile Strength: 4,300 psi.
  • Ozone Resistance: Stage 0, "Crack Free"

EZ-Track (TPU)

    Z-7200

      Nomex Thread

        15 AWG Braided Ground Straps

          Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
          Shrink-N-Shield® (2:1) EMI Shielded Heat Shrink Tubing  Flex-Shield (HP) Braided EMI Shielding Sleeve
          NAME SHRINK-N-SHIELD® (2:1) EMI SHIELDED HEAT SHRINK TUBING  FLEX-SHIELD (HP) BRAIDED EMI SHIELDING SLEEVE
          DESCRIPTION Shrink-N-Shield® (2:1) is a MIL-SPEC, heat-shrink tubing with a 2:1 shrink ratio that provides exceptional shielding from EMI, RFI and EMF.  A braided, expandable EMI, RFI and EMF shielding sleeve that is lightweight and flexible—an ideal solution for the aerospace industry.
          Closure
          RoHS RoHS-10  RoHS-10
          Abrasion Resistance Best
          Installation Type Pull-Through  Pull-Through
          Purpose EMI Shielding  Sleeve
          Min Temperature Extreme  Moderate
          Minimum Operating Temperature -40°F  -40°F
          Max Temperature Moderate  Moderate
          Maximum Operating Temperature 275°F  302°F
          Flexibility
          View
          Zippertubing
          Zip-Shield (TPU) Infographic

          Zip-Shield® (TPU) Cable Bundling with EMI Shielding

          A wrap-around solution featuring a sewn-in EMI-shielding cloth, mesh or foil and an abrasion-resistant thermoplastic polyurethane (TPU) jacketing and pressure track combination.

          Drawing Number(s): ZT17-17-001

          Selected Part Number: ZT17-17-001-0.5-W-W

        • EMI-shielding fabric is non-magnetic, making this solution ideal for applications with sensitive magnetic instrumentation
        • TPU jacketing is UL-rated for flammability, meeting UL 94, V-0
        • Pressure track closure allows for re-entry to components as needed
        • Military
          Zip-Shield (TPU)
          Zip-Shield (TPU) EMI RFI Shielding

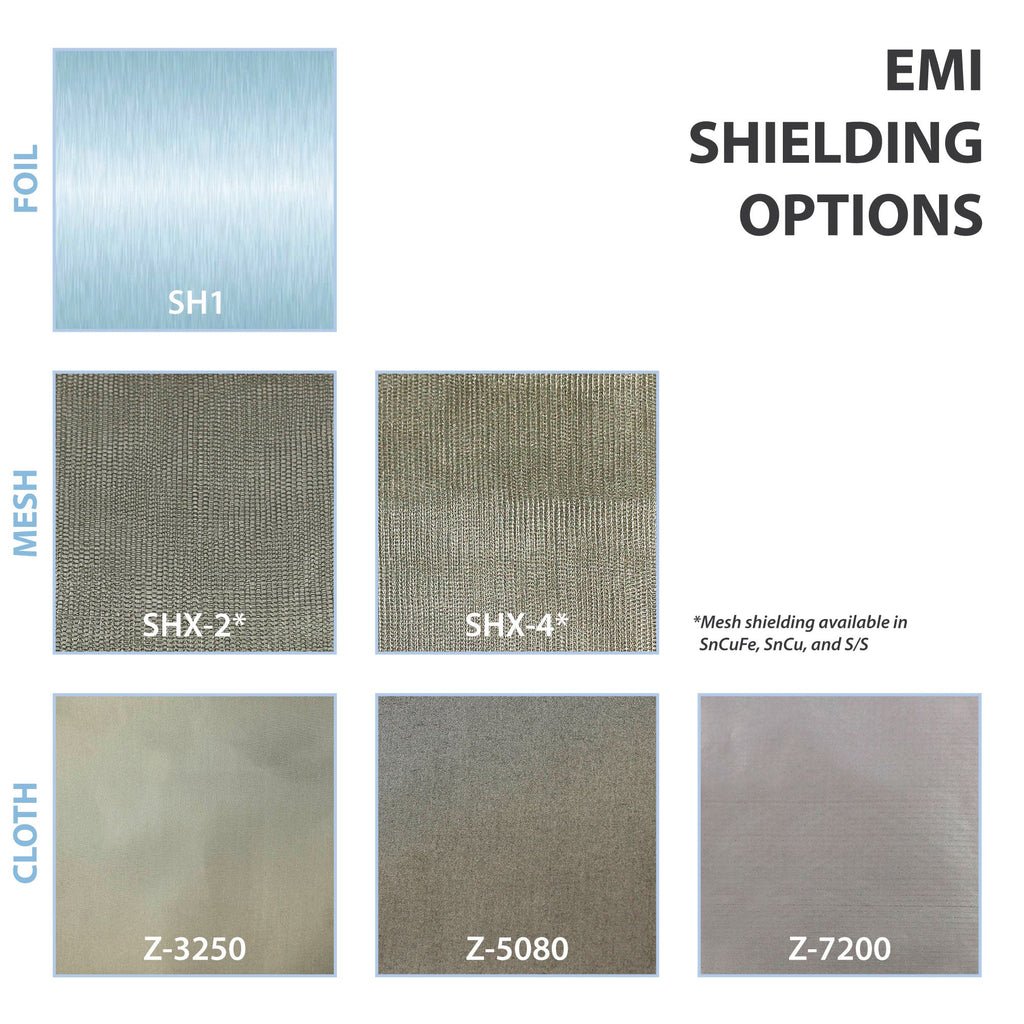

          Zip-Shield® TPU Shielding Options
          Zip-Shield (TPU) Industrial Cable Protection

          Features

        • hypoallergenic jacketing and pressure track combination
        • EMI-shielding Z-7200-C fabric is non-magnetic making this cloth perfect for applications with sensitive magnetic instrumentation
        • Operational temperature range of -40°F to 257°F (-40°C to 125°C)
        • Benefits

        • Wrap-around EMI-shielding solution can be installed without disconnection of components
        • All-white jacketing and pressure track offers clean appearance
        • TPU material is best in abrasion resistance for use in tough conditions
        • Zip-Shield® (TPU) Cable Bundling with EMI Shielding

          Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.

          SHIELDING EFFECTIVENESS - Z-7200

          ATTENUATION DATA WAS OBTAINED USING MIL-DTL-83528H (MODIFIED). TESTING WAS PERFORMED BY ACCREDITED, THIRD-PARTY EMI LABORATORIES.
