Zip-On® (RPU) Durable Polyurethane Cable Bundling

An all-white, tear resistant, flame-retardant, PVC-free jacket paired with a pressure track closure to provide superior cable bundling and protection.

Drawing Number(s): ZT10-16-001, ZT17-16-001

Zip-On® (RPU) Durable Polyurethane Cable Bundling
RoHS Military Grade

Select product options

Please fill in at least one field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Selected Part Number:ZT10-16-001-0.375-W-B
Get A Quote

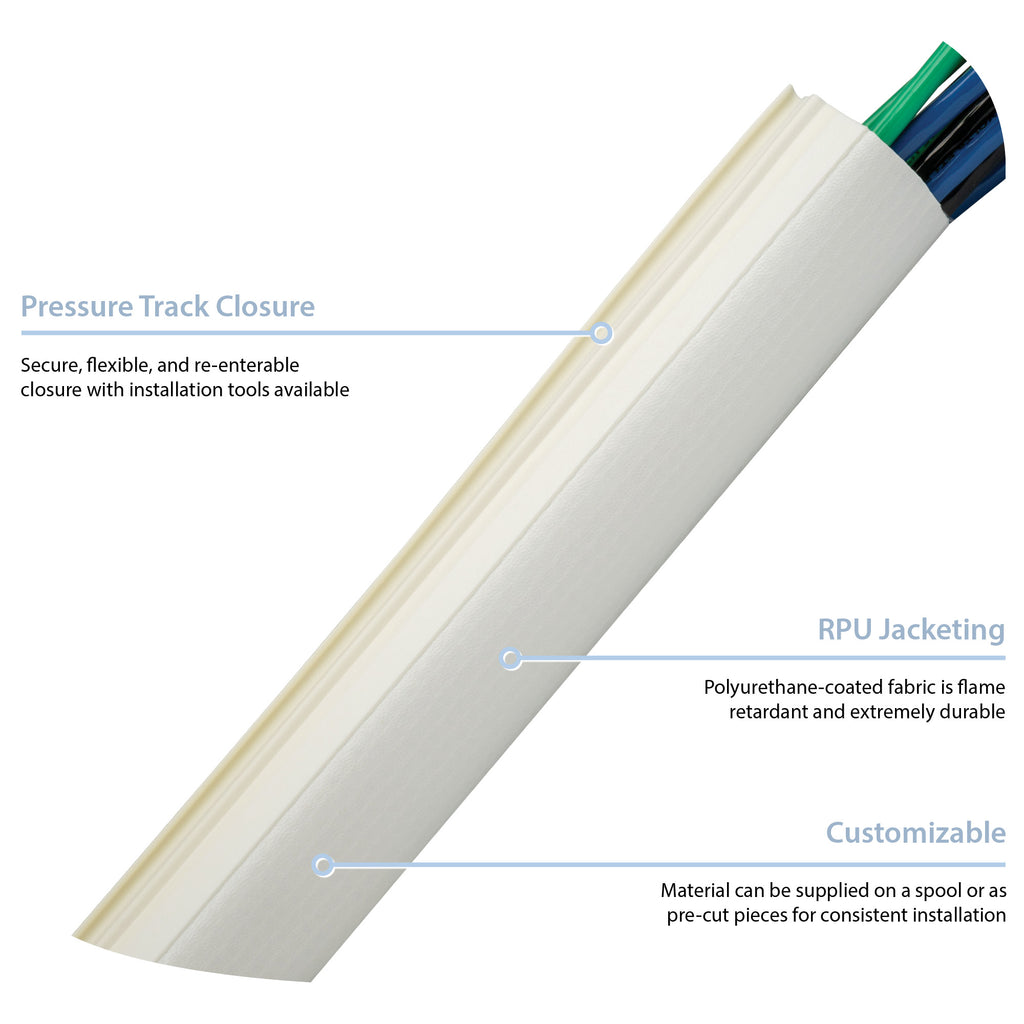

Zip-On (RPU) Infographic
  • Zip-On® (RPU) offers high tear resistance and good flexibility
  • The perfect environmentally friendly, non-pvc solution available to industries that require it
  • These products are available in a wide variety of materials, colors, shapes and sizes

Zip-On® (RPU) is made of a knitted polyester with an ether-based polyurethane coating. The RPU-17 jacketing is flexible and lightweight at only 0.017” thick, yet extremely tough. The jacketing is tear resistant and flame retardant, making it the ideal choice for applications that are exposed to rugged conditions. The RPU-17 is PVC-free, and utilized in environments that prohibit PVC material.

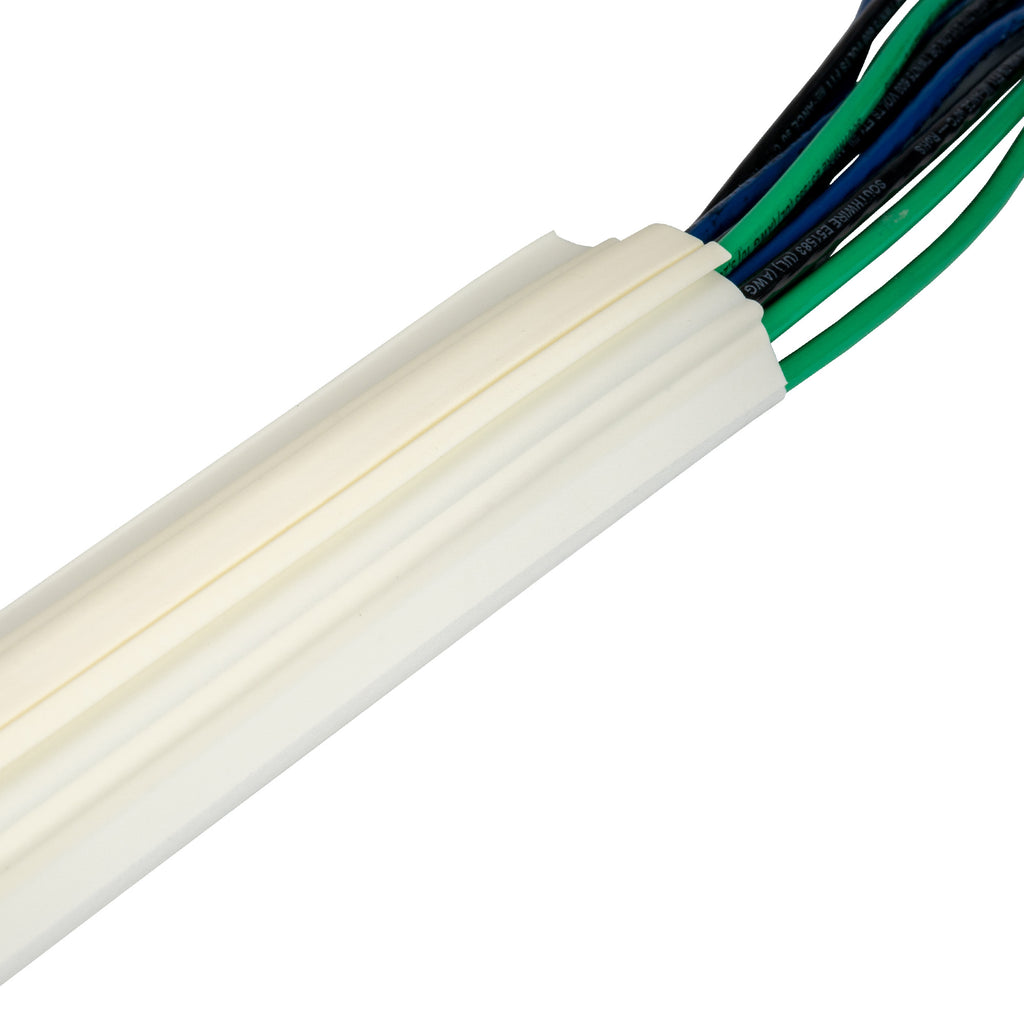

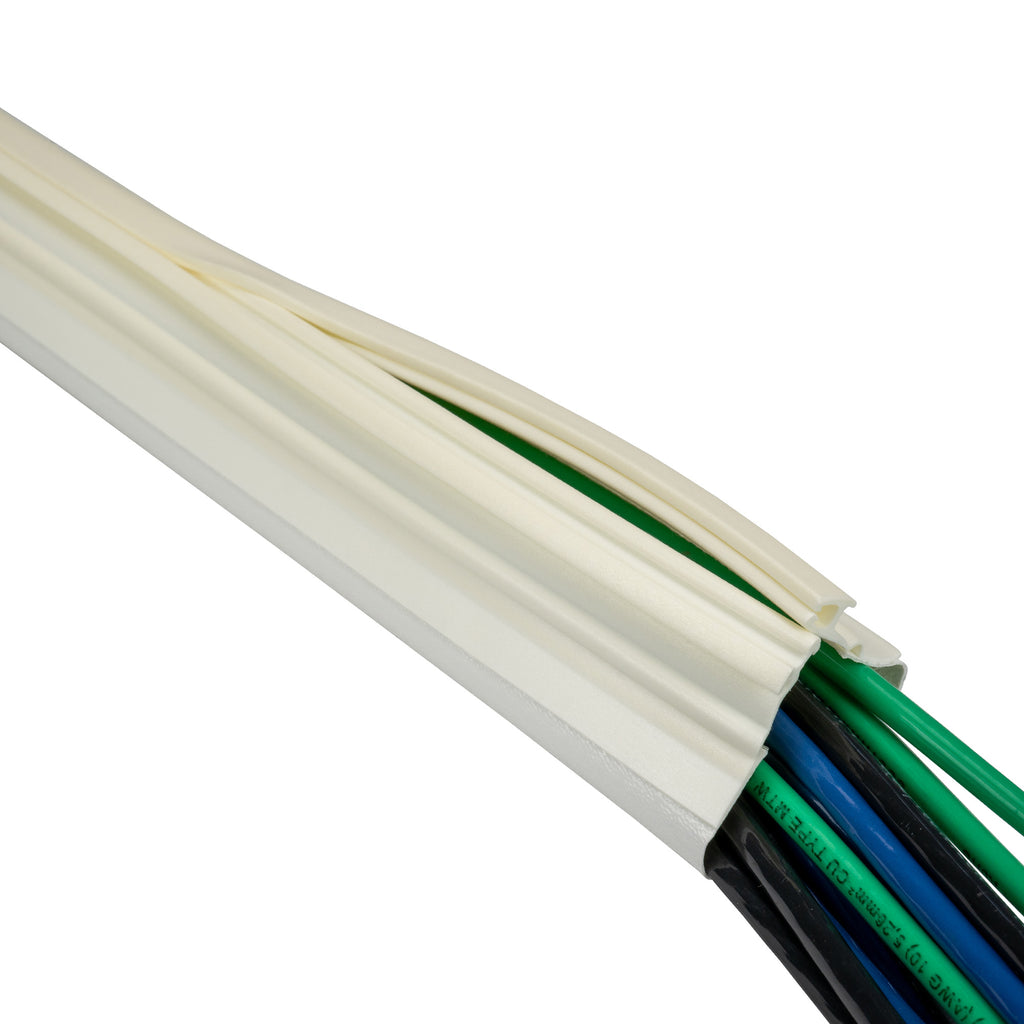

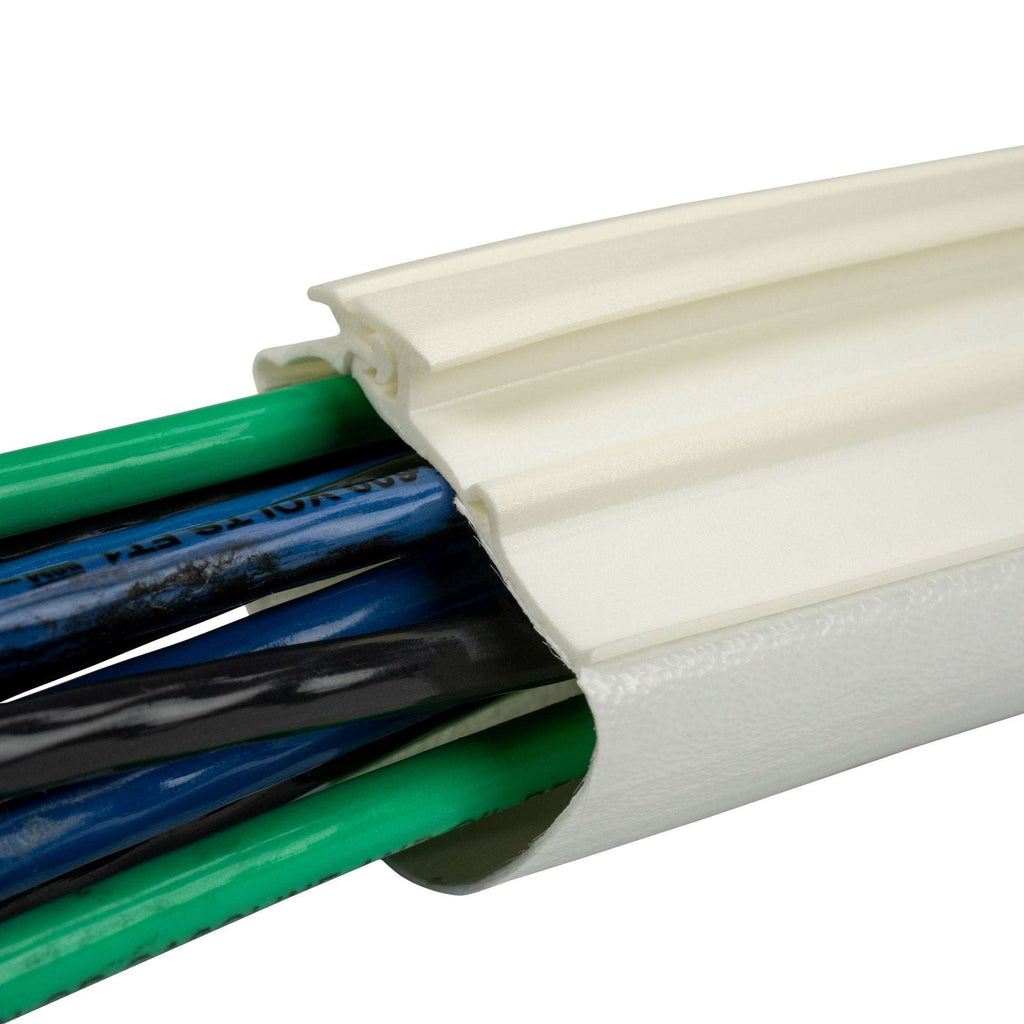

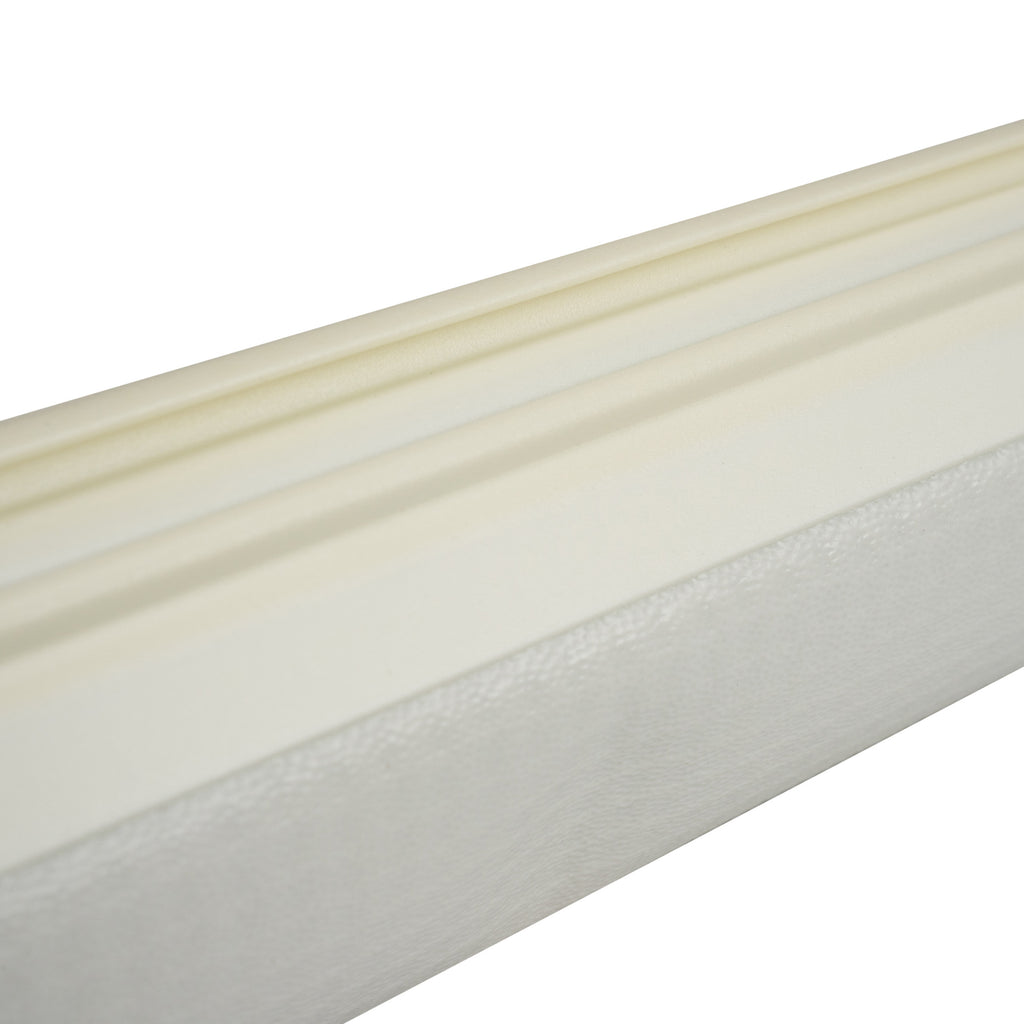

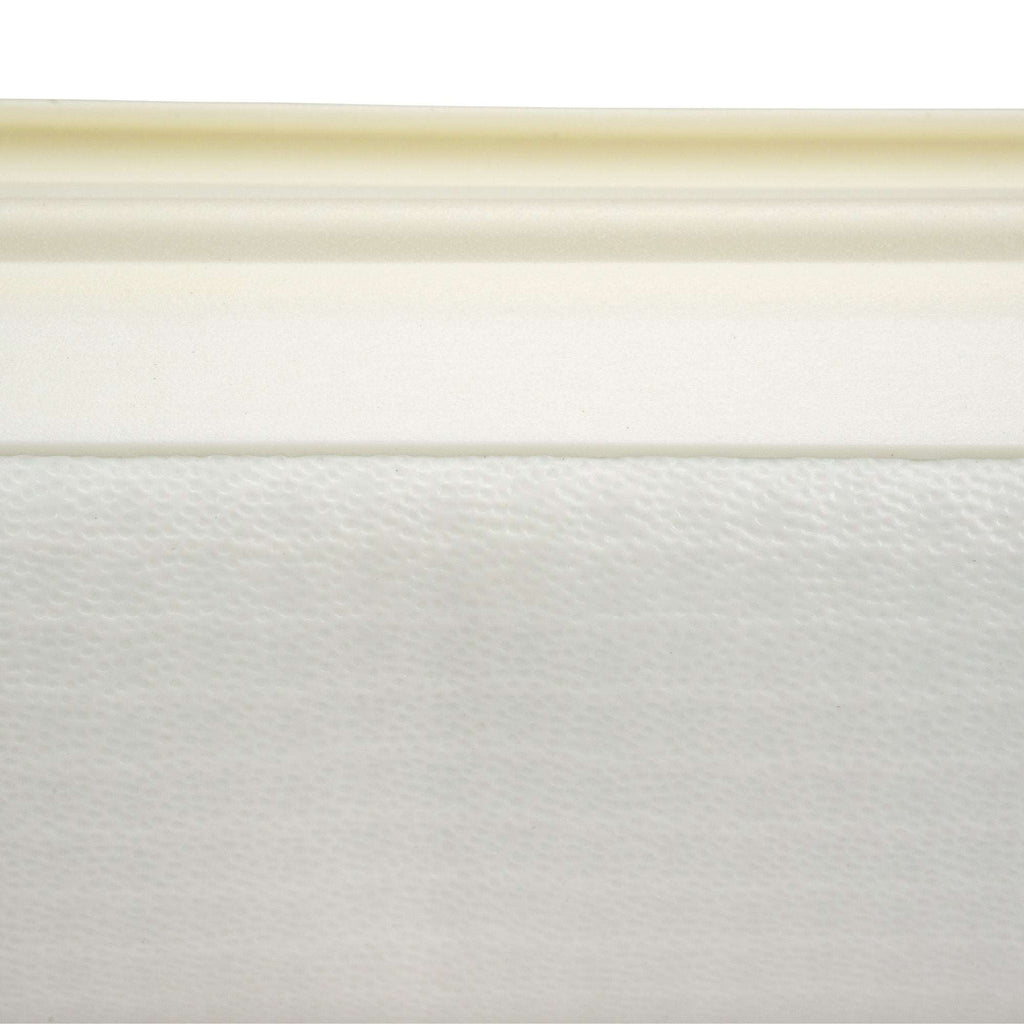

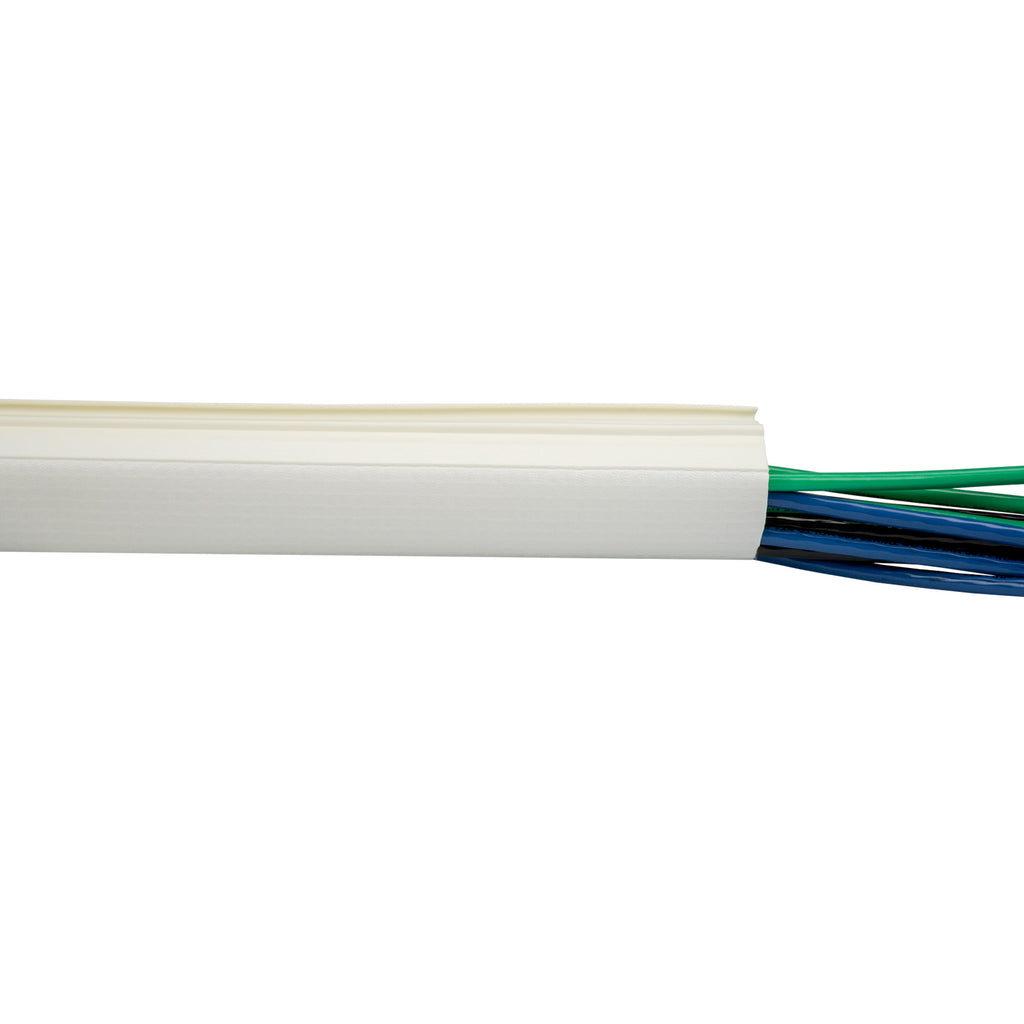

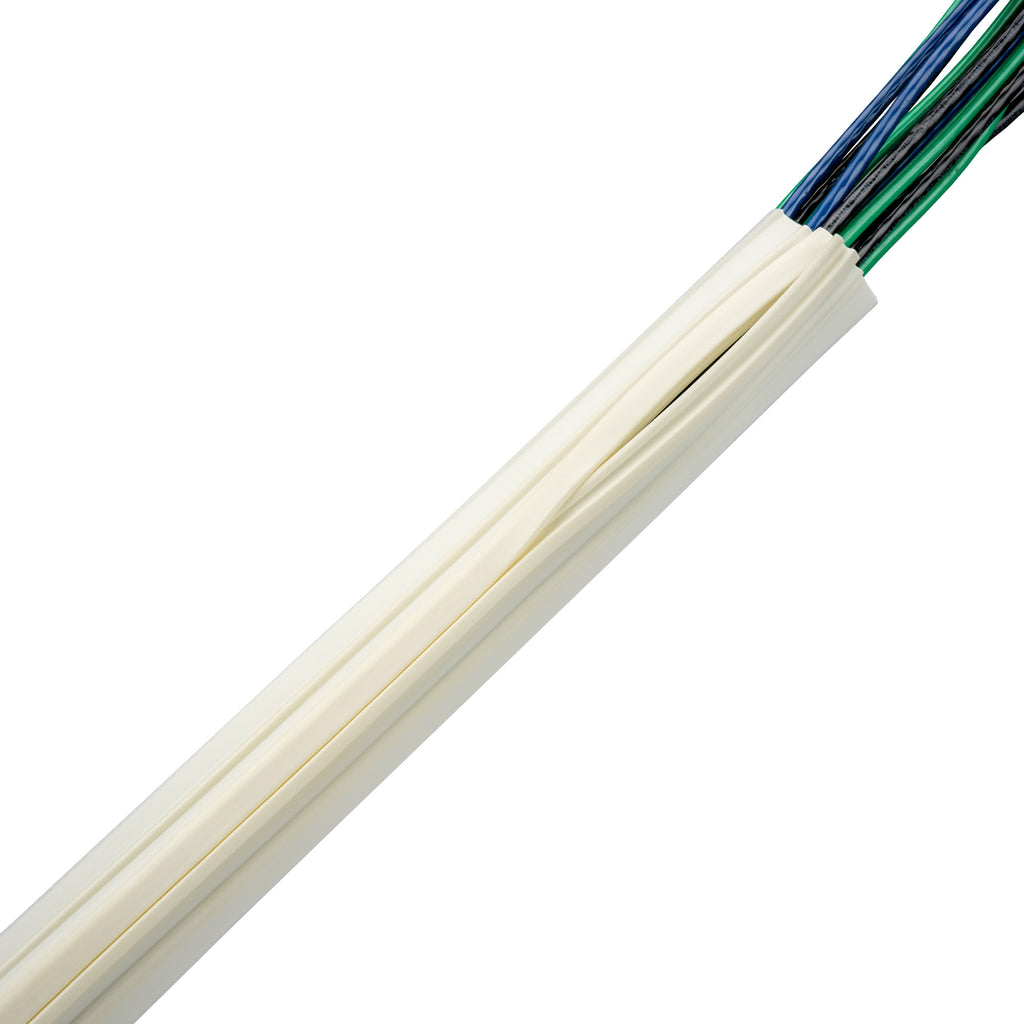

Zip-On® (RPU) pairs with the white EZ-Track™ (TPU) pressure track. The EZ-Track™ (TPU) track is a halogen-free, arrowhead and channel closure that provides a secure seal. The EZ-Track™ (TPU) combined with the RPU jacketing creates the all-white cable bundling and protection solution desired for clean room applications and the medical industry*. The EZ-Track™ can be installed with the SL-EZ Slider tool or ZTEZ-SP Plier tool. There is also the option of the black Z-Track (PFR) pressure track for applications that need a stronger closure system. The Z-Track (PFR) pressure track can be installed with our ZTZ-SP Plier tool. The plier tools are great for long cable runs, while the slider tools are better for shorter cable runs.

Zip-On® (RPU) is engineered for diameters ranging from 0.375” to 7”, with custom sizes available upon request. The operational temperature range is from -40°F to 159°F (-40°C to 71°C).



*Zip-On® (RPU) is not specifically manufactured using a clean room in sterile conditions, but with the right procedures, it could be used in the medical field, including in hospitals, operating rooms, trauma centers, and emergency rooms.

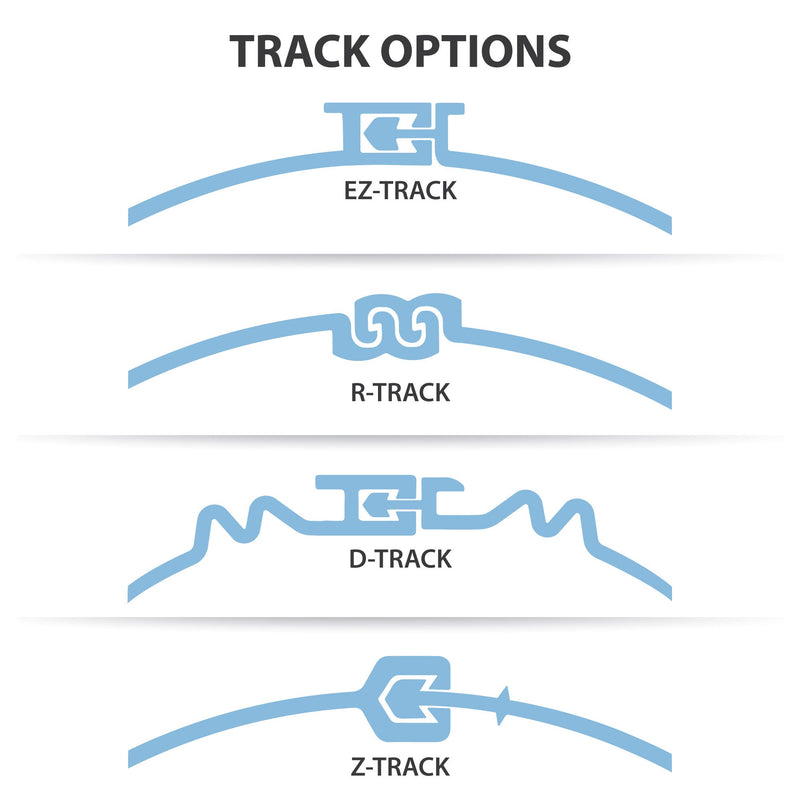

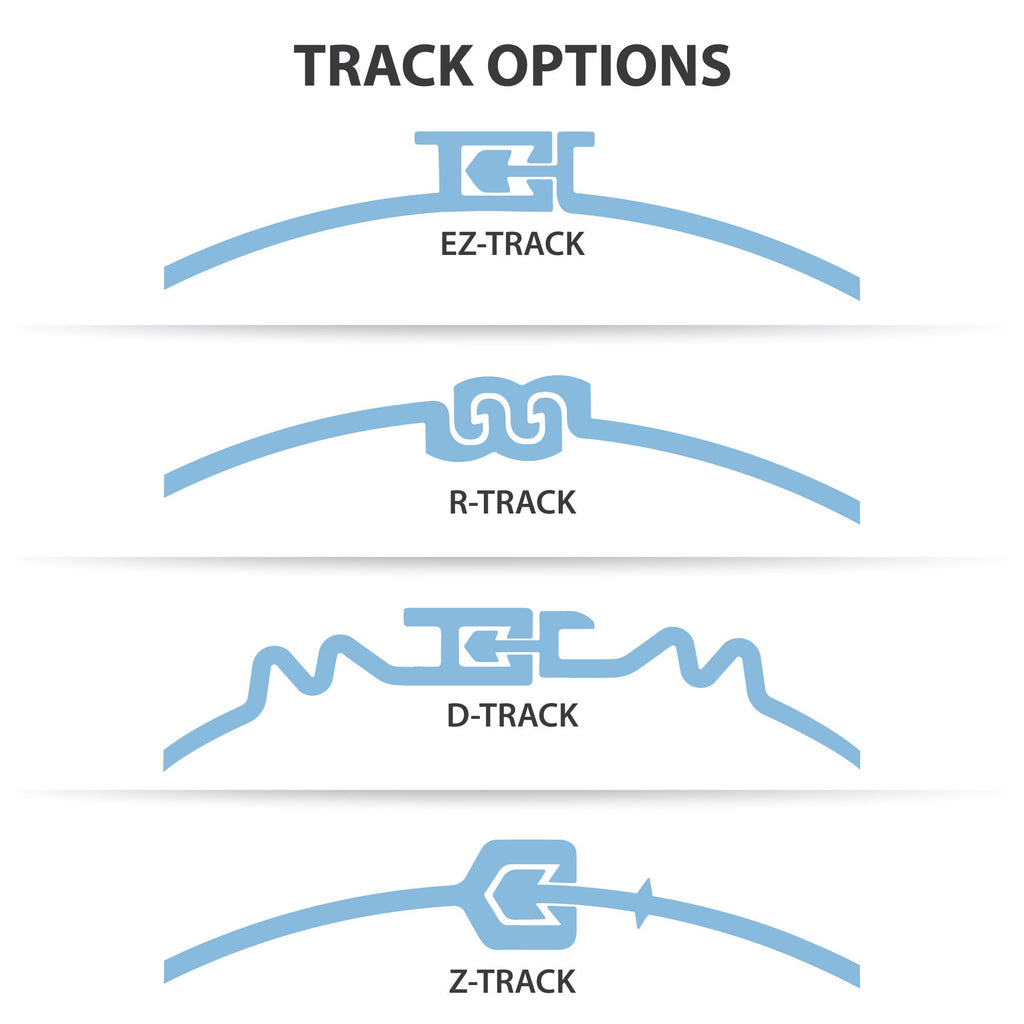

Q:  What is the difference between the track closure styles?

A:  Each interlocking track profile has unique benefits and trade-offs.  To learn about them you can review our Track Comparison.

Q:  How do I close the jacketing?

A:  Some tracks can be closed by hand, but we also offer closure tools to assist with installation.  For more information on closing the specific tracks you can view our helpful videos or installation guides:

Q:  Can I cut the tubing?

A:  Yes.  Standard scissors are suitable for cutting through most Zip-On jackets and tracks.

Q:  What lengths of material are available?

A:  Typical spool lengths for most sizes are 100 feet, but will depend on total order footage.  Custom lengths can be provided, just make sure to ask when ordering or include details on the PO for the lengths required.

Q:  Will the track keep out water and is it water-tight?

A:  Our different track closures are rated between IP54 and IP55. This means they are not water tight but will provide significant protection against moisture and fluid ingress.
Some users will apply tape or a sealant to the track, after closing, to provide additional protection.

Q:  What diameter of jacketing do I need?  Is it recommended to oversize?

A:  We will often suggest oversizing the sleeve diameter by 1/8” to allow for ease of install
when using a closure tool.  If the application requires significant bending or flexing we will suggest even more extra room.  For assistance with sizing you can also contact one of our design engineers.

Q:  What is the minimum bend radius of the tubing?

A:  There is no minimum bend radius for our Zip-On products. The flexible jacketing material allows for extreme amounts of bending and flexing.  The bend radius of the installed tubing is typically dictated by the harness it is covering.

show more >>

Overall Performance

  • Diameter: 0.375" (3/8)

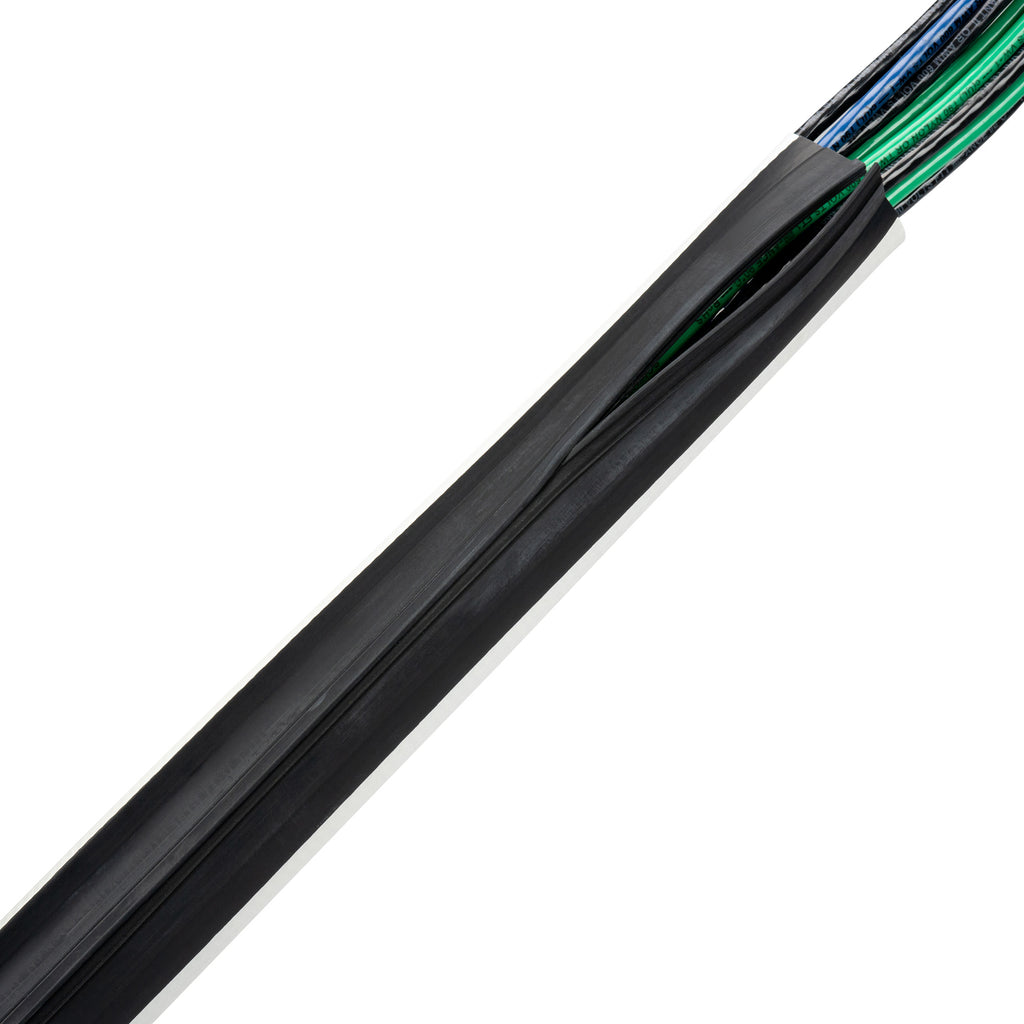

  • Closure: Z-Track (PFR)
  • Material: RPU-17
  • Maximum Operating Temperature: 159°F
  • Minimum Operating Temperature: -40°F
  • RoHS: RoHS-10
  • Shelf-Life: 60 months

RPU-17

  • Solvent Resistance: Very Good
  • REACH: Compliant
  • Flame Retardant: NFPA-701 (2 Sec.) and FAR-25.853a 12 sec. vertical
  • Thickness: 0.017"
  • Material: Polyether Urethane Impregnated PET
  • Maximum Operating Temperature: 160°F
  • Minimum Operating Temperature: -40°F
  • RoHS: RoHS-10
  • Shelf Life: 60 months
  • Tensile Strength: 170 x 150 lbs/min

Z-Track (PFR)

    EZ-Track (TPU)

      Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
      Zip-On® (63) Military-Grade Cable Bundling  Zip-On® (PFR) Polyurethane Cable Bundling  Z-Coil Self-Closing Cable Jacketing
      NAME ZIP-ON® (63) MILITARY-GRADE CABLE BUNDLING  ZIP-ON® (PFR) POLYURETHANE CABLE BUNDLING  Z-COIL SELF-CLOSING CABLE JACKETING
      DESCRIPTION A wrap-around cable bundling and protection solution that has a PVC, military-grade jacket that is abrasion and fluid resistant, with a pressure track.  A wrap-around cable protection solution that is flexible, resistant to abrasion and fluids, and has a pressure track closure.  A self-closing wire bundling and protection sleeve made from self-extinguishing PET material—ideal for high-volume requirements.
      Closure Z-Track (PVC), R-Track (PVC), D-Track (PVC), EZ-Track (PVC)  Z-Track (PFR)  Self-Closing
      RoHS RoHS-10  RoHS-10  RoHS-10
      Abrasion Resistance Best  Best  Better
      Installation Type Wrap-Around  Wrap-Around  Wrap-Around
      Purpose Sleeve  Sleeve  Sleeve
      Min Temperature Low  Moderate  Extreme
      Minimum Operating Temperature -4°F  -32.8°F  -58°F
      Max Temperature Moderate  Low  Moderate
      Maximum Operating Temperature 221°F  194°F  302°F
      Flexibility Better  Best  Best
      View  View  View

      Zip-On® (RPU) Durable Polyurethane Cable Bundling

      An all-white, tear resistant, flame-retardant, PVC-free jacket paired with a pressure track closure to provide superior cable bundling and protection.

      Drawing Number(s): ZT10-16-001, ZT17-16-001

      Selected Part Number: ZT10-16-001-0.375-W-B

    • Zip-On® (RPU) offers high tear resistance and good flexibility
    • The perfect environmentally friendly, non-pvc solution available to industries that require it
    • These products are available in a wide variety of materials, colors, shapes and sizes
    • Features

    • Installation tools are easy to use and allow for quick application
    • Can be cut to length as needed
    • Operational temperature range is from -40°F to 159°F (-40°C to 71°C)
    • Benefits

    • All-white solution, perfect for clean room applications and the medical industry
    • Tear resistant for long-lasting use in tough conditions
    • Contains no PVC material
    • Zip-On® (RPU) Durable Polyurethane Cable Bundling
