Snap-Grip® (ZIPFLECT)

A customizable, high-temperature, non-fiberglass, polyester cable bundling and thermal protection solution with snap-closure.

Drawing Number(s):

Snap-Grip®  (ZIPFLECT)
RoHS

Select product options

+ Please fill in at least one field.
Selected Part Number:
Get A Quote

Overview

Snap-Grip®  (ZIPFLECT)

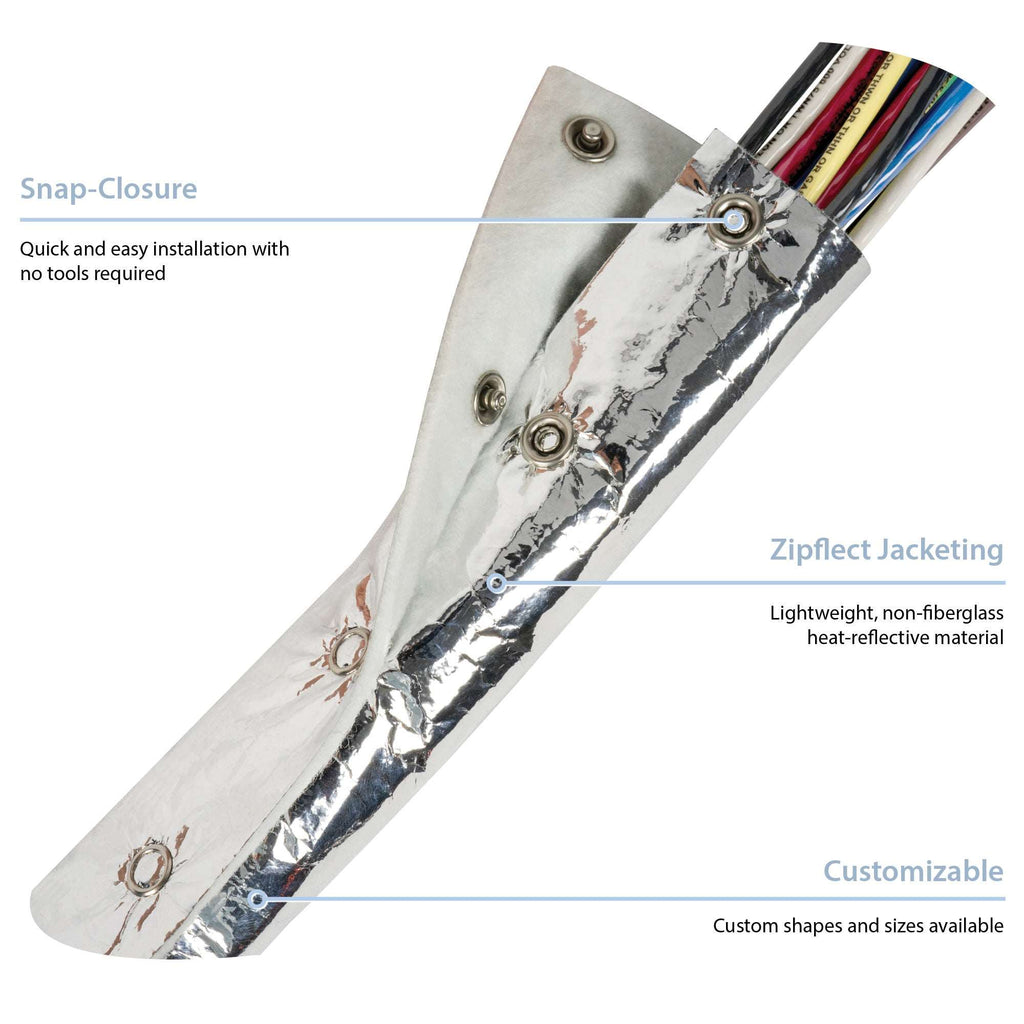

  • Easy-to-install, no tools required, cut-to-length snap-button closure
  • Wide operational temperature range of -58°F to 392°F (-50°C to 200°C)
  • Lightweight, non-fiberglass, polyester heat-reflective material with excellent thermal effectiveness

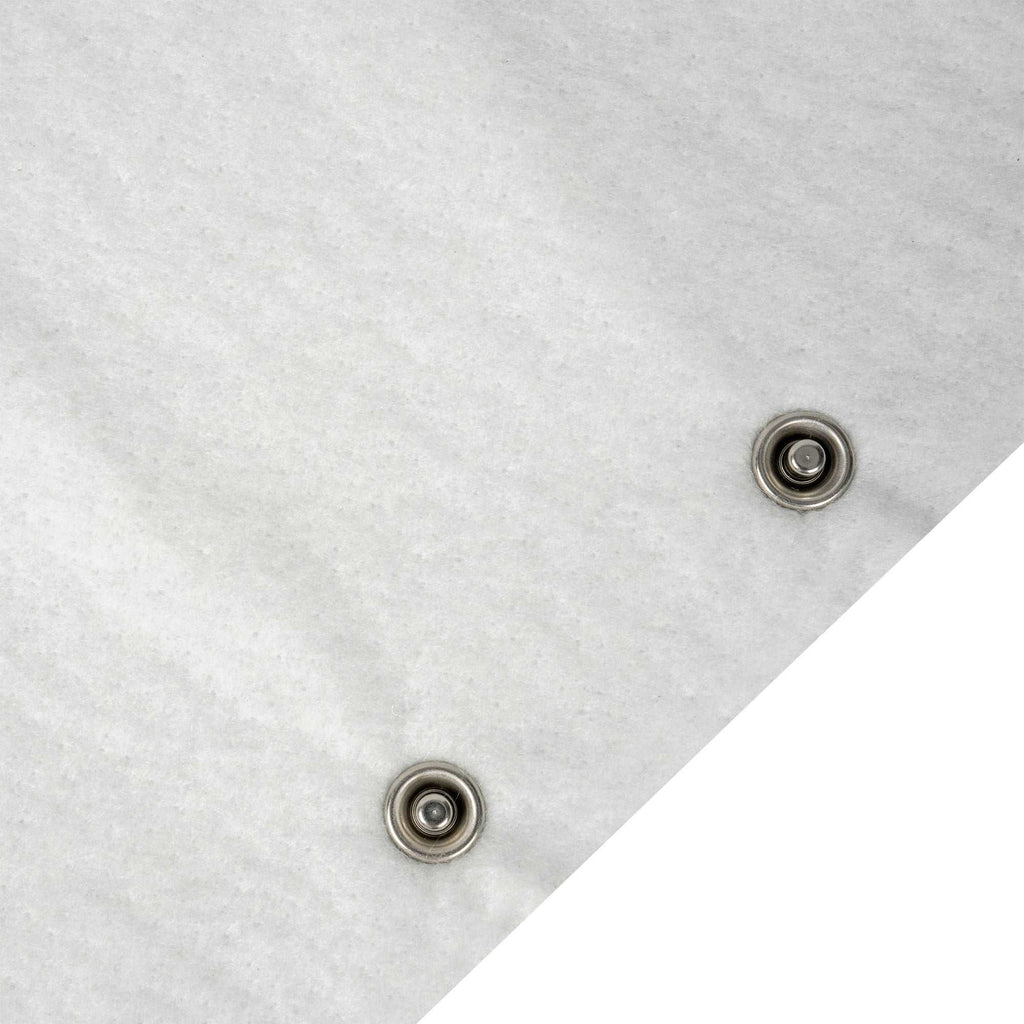

Perfect for the automotive industry, Snap-Grip® (ZIPFLECT) is a lightweight, heat-reflective cable management and component protection solution equipped with stainless steel snap buttons to enable a quick application. The jacketing is made from high-temperature, fire retardant, polyester felt cloth, which is laminated on one side to a reflective Aluminum surface. Snap-Grip® (ZIPFLECT) is used for heat-barrier protection applications.

Snap-Grip® (ZIPFLECT) organizes and bundles your components or cables quickly and easily while allowing continued access to the components inside. Standard diameter sizes for Snap-Grip® (ZIPFLECT) range from 0.375” to 6.0”, with custom shapes and sizes available upon request. The product has a wide operational temperature range of -58°F to 392°F (-50°C to 200°C).

Snap-Grip® (ZIPFLECT) requires no tools, allowing for fast, clean installation. Because of the spacing between snaps, it can easily be cut to any length required.

If this product has the materials you want, but not the size or shape you are after, our team of Engineers will work with you to develop a custom solution utilizing our stainless steel snaps and ZIPFLECT material. From there, our team of experienced production workers will use Zippertubing’s knife, laser or punch press to provide you with a highly effective non-fiberglass thermal protective solution specific to your needs.

Specifications

Overall Performance

  • Diameter: 0.375" (3/8)
  • Closure: Stainless Steel Snaps
  • Material: Zipflect
  • Maximum Operating Temperature: 392°F
  • Minimum Operating Temperature: -58°F
  • RoHS: RoHS-10

Zipflect

  • REACH: Compliant
  • Flammability: Fire Retardant
  • Maximum Operating Temperature: 392°F
  • Minimum Operating Temperature: -58°F
  • RoHS: RoHS-10

Stainless Steel Snaps

  • REACH: Compliant
  • Closure: Snap
  • Material: Stainless Steel
  • RoHS: RoHS-10
  • Shelf Life: 60 Months
Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
