PRT® (ES-100) Water-Blocking Wrap-Around Heat Shrink

A wrap-around, military-grade heat shrink paired with a water blocking, hot-melt adhesive for superior protection against harsh environmental conditions.

Drawing Number(s): ZT11-04-005

PRT® (ES-100) Water-Blocking Wrap-Around Heat Shrink
RoHS Military Grade

Select product options

Please fill in at least one field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Selected Part Number:ZT11-04-005-01-B-X600.0
Get A Quote
WARNING: Cancer and Reproductive Harm | www.P65Warnings.ca.gov

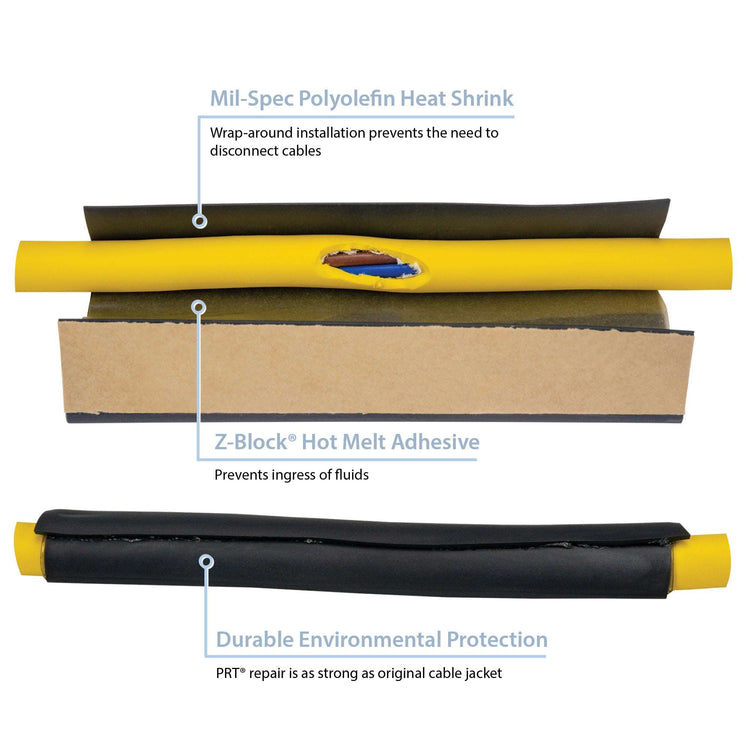

PRT (ES-100) Infographic
  • Available in six color options and PRT® (ES-135) provides a multitude of diameters with National Stock Numbers (NSN)
  • Never disconnect or pull through another wire or cable again and water block it
  • Excellent-anti abrasive, environmental, chemical, and electrical properties with resistance to most oils and fluids, mild acids, and alkalis

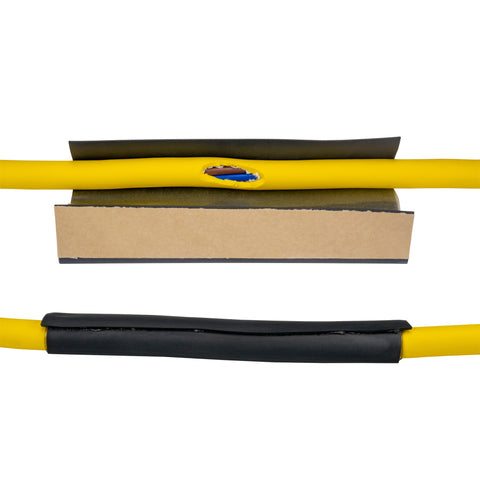

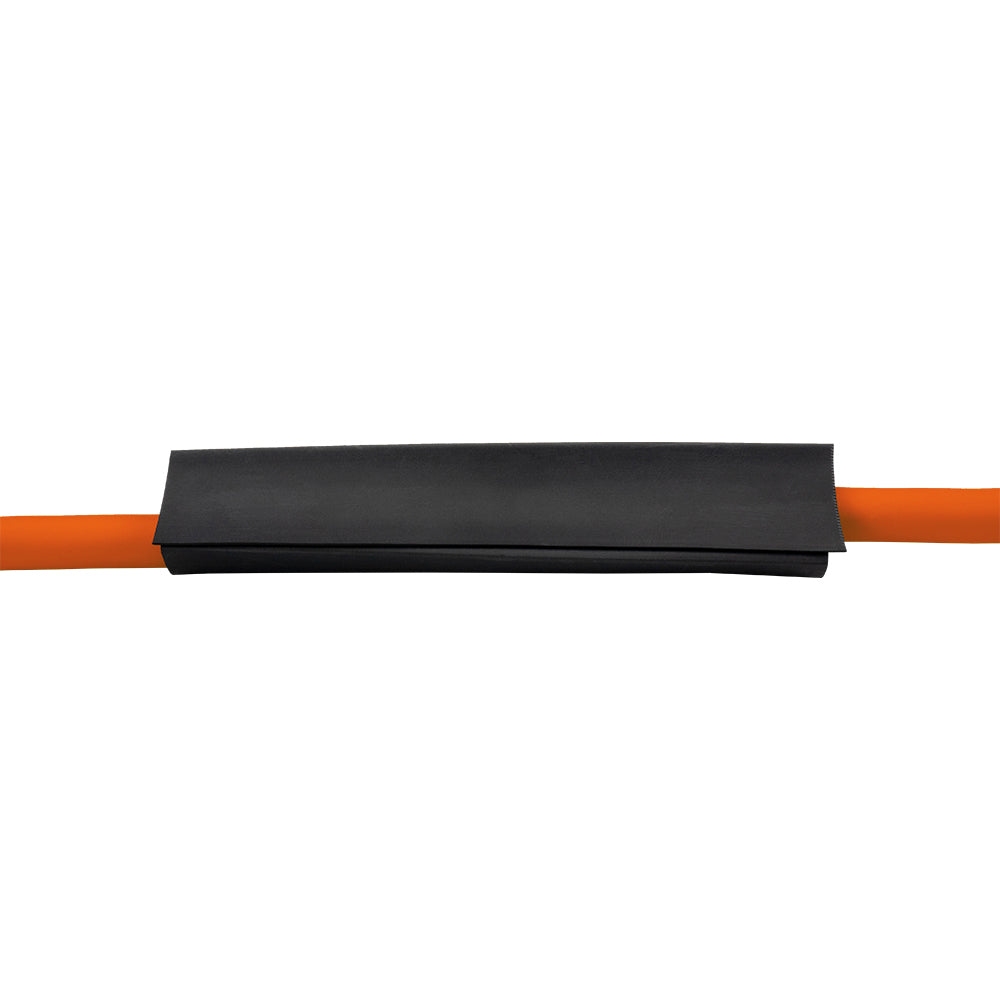

PRT® (ES-100) is our wrap-around, military-grade PRT® heat shrink, combined with our water blocking, hot-melt Z-Block™ (100). PRT® is a flame-retardant, abrasion-resistant, chemical-resistant, and fluid-resistant polyolefin heat shrink. PRT® is also RoHS compliant and UL-rated. PRT® repairs or re-jackets damaged components that cannot be disassembled.

Z-Block™ (100) is a hot-melt adhesive tape that blocks and seals wires from fluids, oils, and greases. Z-Block™ (100) creates an environmental seal that will prevent fluids from damaging or penetrating components. Z-Block™ (100) is also RoHS compliant.

Pairing PRT® with Z-Block™ (100) creates the perfect solution for wires or cables exposed to fluids, and need repair or a durable jacket to prevent damage from occurring. PRT® (ES-100) comes in a standard 50-foot roll that can be cut to any desired length, offering versatility for application. PRT® (ES-100) is engineered for diameters ranging from 0.04” to 0.25”, with custom sizes available upon request. PRT® (ES-100) can also be customized with having a range of color options available for applications that may need color-coding. The operational temperature range is -67°F to 212°F (-55°C to 100°C).

We also offer PRT® (ES-135), which has a higher temperature range of up to 275°F, as well as NSN’s for easy procurement.

Diameter - After Shrink
0.040" - 0.075" (#01)
0.076" - 0.125" (#03)
0.126" - 0.174" (#05)
0.175" - 0.250" (#07)

Overall Performance

  • Cable Diameter After Shrinkage: 0.040" - 0.075" (#01)
  • Closure: Tape (Specialty Surface)
  • Environmental Seal: Z-Block (100)
  • Material: Polyolefin
  • Heat Shrink Material: Cross-Linked Polyolefin
  • Maximum Operating Temperature: 212°F
  • Minimum Operating Temperature: -67°F
  • RoHS: RoHS-10
  • Shelf-Life: 24 months
  • Shielding Material: Nickel Plated Copper
  • Shrink Ratio: 2:1
  • Water Blocking Type: Polyamide Hot Melt (100)'

Polyolefin

  • Mil-Spec: SAE-AMS-DTL-23053/5
  • REACH: Compliant
  • Dielectric Strength: 500 volt/mil
  • Elongation: 200% (after shrink)
  • Flammability: UL224, VW-1, Self-extinguishing
  • Fungicide: No Growth
  • Longitudinal Shrinkage: +/-5% (after heat recovery)
  • Material: Cross-linked Polyolefin
  • Thickness: 0.035" - 0.055"
  • Maximum Operating Temperature: 275°F
  • Minimum Operating Temperature: -67°F
  • RoHS: RoHS-10
  • Shelf Life: 60 Months
  • Shrink Ratio: 2:1, 3:1 or 4:1
  • Tensile Strength: 1500 psi. (after shrink)
  • Specific Gravity: 1.35
  • Outgasssing (%TML): Min 0.2 | Max 0.93%
  • Outgassing (%CVCM): Min 0.02 | Max 0.13%
  • Outgassing (%WVR): Min 0.01 | Max 0.16%

Tape (Specialty Surface)

    Polyamide Hot Melt (100)

    • REACH: Compliant
    • Abrasion Resistance: Best
    • Elongation: 350%
    • Flexibility: Good
    • Material: Polyamide Polymer
    • Thickness: 0.012"
    • Maximum Operating Temperature: 212°F
    • Minimum Operating Temperature: -67°F
    • Water Absorption: 0.5% maximum
    • RoHS: RoHS-10
    • Shelf Life: 60 Months
    • Softening Temp: 212°F
    • Softening Temp Variance: +/- 9°F
    Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.

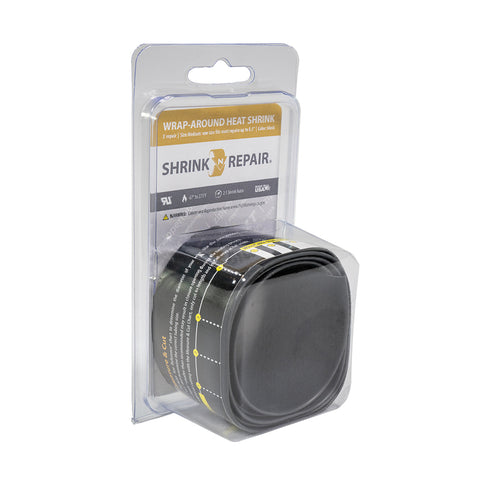

    PRT® MIL-SPEC Wrap-Around Heat Shrink Tubing  Shrink-N-Repair® (M) Wrap-Around Heat Shrink  PRT® (ES-135) Water-Blocking Wrap-Around Heat Shrink
    NAME PRT® MIL-SPEC WRAP-AROUND HEAT SHRINK TUBING  SHRINK-N-REPAIR® (M) WRAP-AROUND HEAT SHRINK  PRT® (ES-135) WATER-BLOCKING WRAP-AROUND HEAT SHRINK
    DESCRIPTION A wrap-around heat shrink made from MIL-SPEC tubing that repairs electrical systems and assembled components and is resistant to abrasion and chemicals.  A wrap-around, abrasion-resistant, fluid-resistant heat shrink that repairs wires or cables with diameters up to 0.5”.  A wrap-around, military-grade heat shrink paired with a high-temperature water blocking, hot-melt adhesive that protects against harsh environmental conditions.
    Closure Tape (Specialty Surface)  Tape (Specialty Surface)  Tape (Specialty Surface)
    RoHS RoHS-10  RoHS-10  RoHS-10
    Abrasion Resistance Best  Best  Best
    Installation Type Wrap-Around  Wrap-Around  Wrap-Around
    Purpose Wire Repair  Wire Repair  Water Blocking
    Min Temperature Extreme  Moderate  Extreme
    Minimum Operating Temperature -67°F  -67°F  -67°F
    Max Temperature Moderate  Low  Moderate
    Maximum Operating Temperature 275°F  275°F  275°F
    Flexibility
    View  View  View
    Zippertubing
    PRT (ES-100) Infographic

    PRT® (ES-100) Water-Blocking Wrap-Around Heat Shrink

    A wrap-around, military-grade heat shrink paired with a water blocking, hot-melt adhesive for superior protection against harsh environmental conditions.

    Drawing Number(s): ZT11-04-005

    Selected Part Number: ZT11-04-005-01-B-X600.0

  • Available in six color options and PRT® (ES-135) provides a multitude of diameters with National Stock Numbers (NSN)
  • Never disconnect or pull through another wire or cable again and water block it
  • Excellent-anti abrasive, environmental, chemical, and electrical properties with resistance to most oils and fluids, mild acids, and alkalis
  • Military
    PRT (ES-100)
    PRT (ES-100) Wrap Around Heat Shrink Tubing
    PRT (ES-100) Heat Shrink Technology
    PRT (ES-100) Wire Harness Repair

    Features

  • Comes in standard 50-foot roll that can be easily cut to any desired length
  • Ideal for applications exposed to rugged environmental conditions
  • Operational temperature range is -67°F to 212°F (-55°C to 100°C)
  • Benefits

  • Utilizes hot-melt adhesive tape to seal from fluids
  • Military-grade, wrap-around heat shrink
  • Available in custom sizes and colors upon request
  • PRT® (ES-100) Water-Blocking Wrap-Around Heat Shrink
