Connector-Cover™ (ALP-500)

A lightweight heat reflective shield with stainless-steel snap buttons to protect interconnected components from high temperatures.

Drawing Number(s): ZT17-08-003

Connector-Cover™ (ALP-500)
RoHS

Select product options

+ Please fill in at least one field.
Selected Part Number:ZT17-08-003-01
Get A Quote

Overview

Connector-Cover™ (ALP-500)
  • Engineered to provide heat shielding for interconnected wires and cables from temperatures up to 350°F

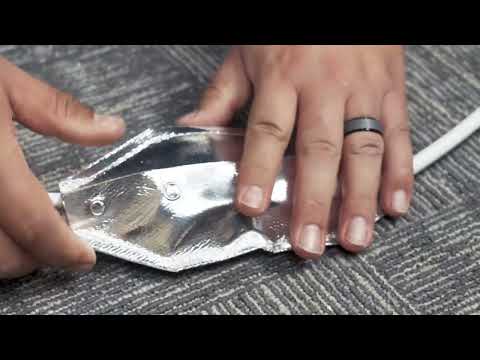

  • Snap button closure system allows for quick installation with no disassembly required
  • Easily access components inside whenever necessary

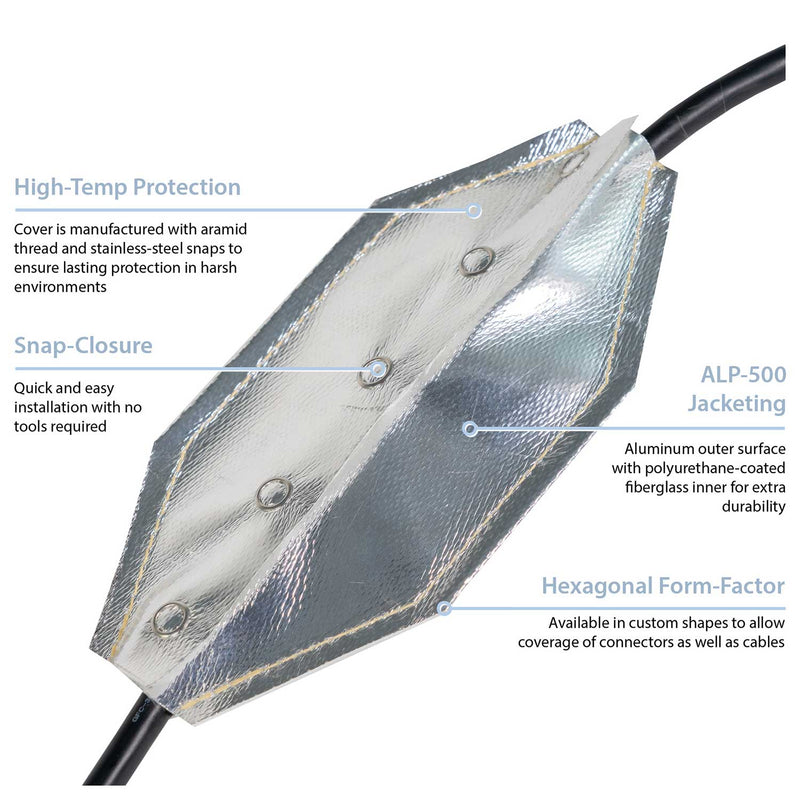

Connector-Cover® (ALP-500) is a heat shielding solution that combines the high-temperature ALP-500 jacketing with stainless-steel snap buttons. The ALP-500 material is a lightweight polymer-coated fiberglass with a reflective aluminum foil. The jacketing can withstand temperatures up to 350°F, is flame retardant and RoHS compliant. The two pieces ALP-500 material that make up Connector-Cover® (ALP-500) are securely sewn with a strong Kevlar thread. The stainless-steel snaps provide a quick and easy installation, as well as the ability to access wires or cables whenever needed.

Connector-Cover® (ALP-500) is offered in a 4” by 9” trapezoidal shape, with custom sizes and shapes available upon request. Connector-Cover® (ALP-500) has an operational temperature range of -58°F to 350°F (-50°C to 177°C).

Industries

  • Large Trucks, Buses, Semis & Tractors

Uses

  • Breakout Covers
  • Heat Shielding
  • Specialty Purpose
  • Wrap Around

Specifications

Overall Performance

  • Closure: Stainless Steel Snaps
  • Material: ALP-500
  • Flammability: Self-extinguishing
  • Maximum Operating Temperature: 350°F
  • Minimum Operating Temperature: -58°F
  • RoHS: RoHS-10

ALP-500

  • REACH: Compliant
  • Flammability: Self-extinguishing
  • Thickness: 0.017"
  • Thickness Variance: +/- 15%
  • Maximum Operating Temperature: 350°F
  • Minimum Operating Temperature: -58°F
  • RoHS: RoHS-11
  • Shelf Life: 60 Months
  • Tear Strength: >350 daN/50 mm (warp) | >250 daN/50 mm (fill)

Stainless Steel Snaps

    Kevlar Thread

      Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.

      Similar products

      ZTT® (ALR-550) Zipper-Mesh™ (ALHTG-65) Snap-Grip® (SAM-1000)
      NAME ZTT® (ALR-550) ZIPPER-MESH™ (ALHTG-65) SNAP-GRIP® (SAM-1000)
      DESCRIPTION A pull-through, flexible heat shielding sleeve that protects components from continuous temperatures as high as 1,022°F. An all-in-one, wrap-around solution combining the heat shielding of the ALHTG-65 with the EMI shielding of the knitted SHX-4 mesh and a brass zipper. A heat shielding solution featuring a silicone, polymer-coated fiberglass jacket with stainless-steel snaps that protects components from temperatures up to 464°F.
      Closure Stainless Steel Reinforced Kevlar Thread Toothed Zipper (High-Temp Brass) Stainless Steel Snaps
      RoHS RoHS-10
      Abrasion Resistance Good Good
      Installation Type Pull-Through Wrap-Around
      Purpose Sleeve EMI Shielding
      Min Temperature Extreme Moderate Extreme
      Minimum Operating Temperature -58°F -32°F -58°F
      Max Temperature Extreme Moderate
      Maximum Operating Temperature 1022°F 399°F 464°F
      Flexibility Better
      View View View

      Guides

      Connector-Cover™ (ALP-500)

      A lightweight heat reflective shield with stainless-steel snap buttons to protect interconnected components from high temperatures.

      Drawing Number(s): ZT17-08-003

      Selected Part Number: ZT17-08-003-01

    • Engineered to provide heat shielding for interconnected wires and cables from temperatures up to 350°F
    • Snap button closure system allows for quick installation with no disassembly required
    • Easily access components inside whenever necessary
    • Features

    • Jacketing is used in the automotive industry for its thermal effectiveness
    • Custom sizes and shapes available upon request
    • Operational temperature range of -58°F to 350°F (-50°C to 177°C)
    • Benefits

    • ALP-500 jacketing is flame retardant and RoHS compliant
    • Stainless-steel snap buttons allows for no tools required for installation
    • Versatile to use on different types of interconnected components
    • Connector-Cover™ (ALP-500)

      Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.

      Connector-Cover™ (ALP-500)

      MATERIAL SPECIFICATIONS
