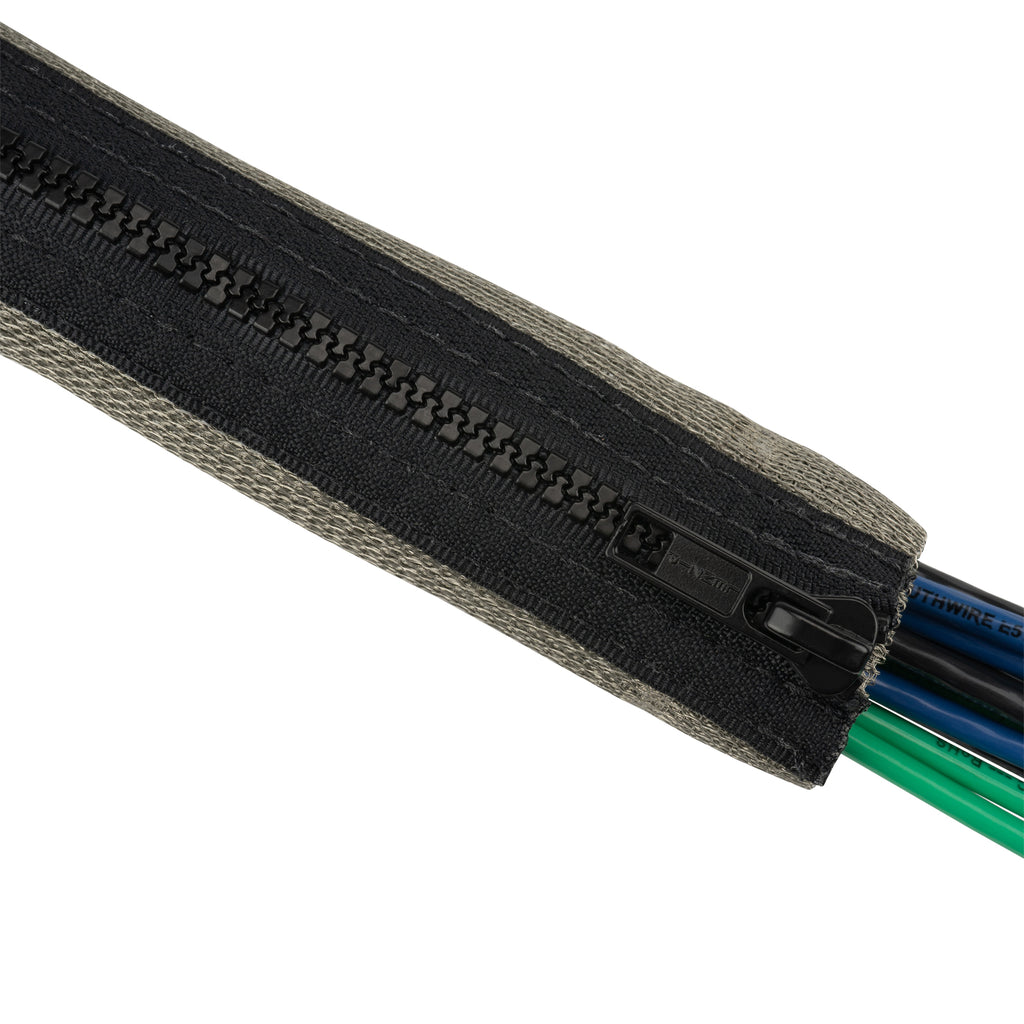

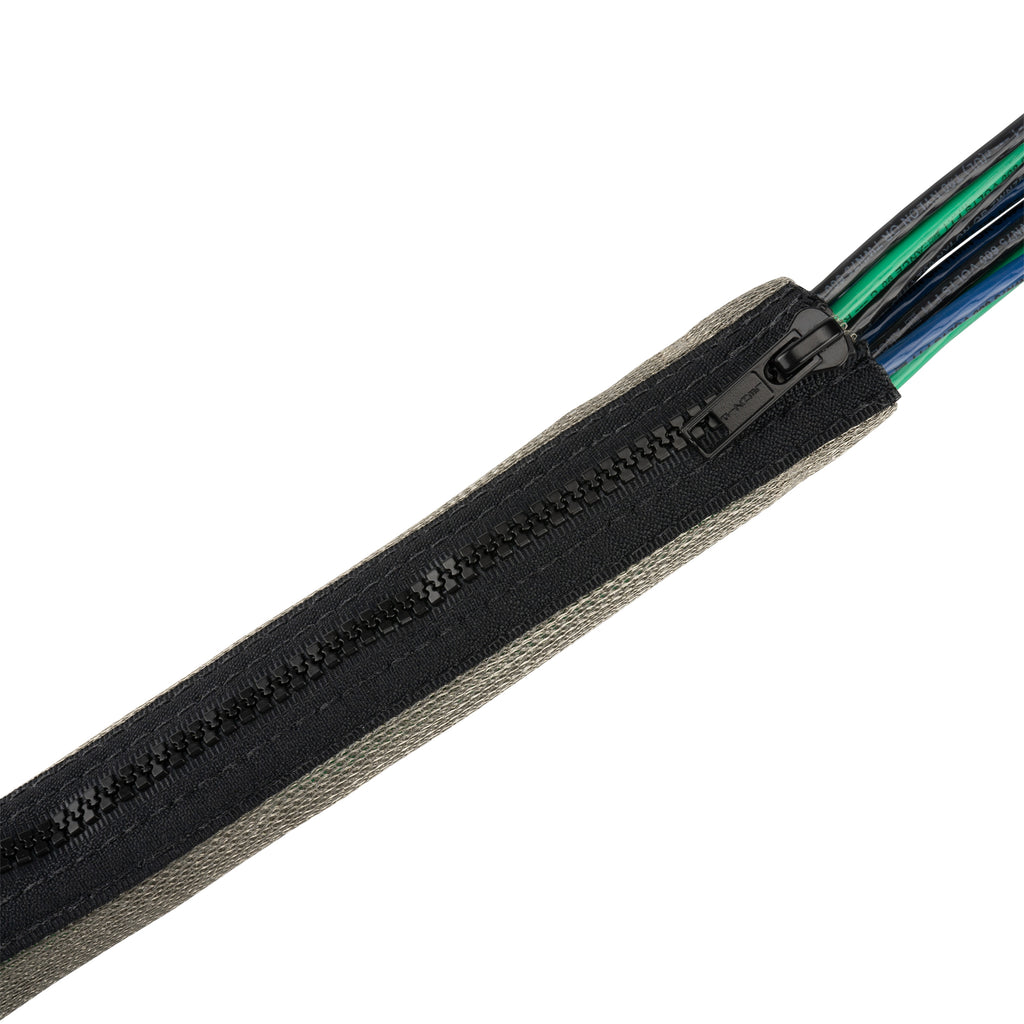

Zipper-Mesh (No Jacket) EMI Shielded Cable Bundling

Zipper-Mesh™ is an EMI-shielding solution made from either a two-ply or four-ply knitted shielding mesh—equipped with a zipper closure for quick and easy application.

Drawing Number: ZT23-07-001, ZT01-07-006

Zipper-Mesh (No Jacket) EMI Shielded Cable Bundling
RoHS

Select product options

Please fill in at least one field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Selected Part Number:ZT23-07-001-0.5-B
Get A Quote

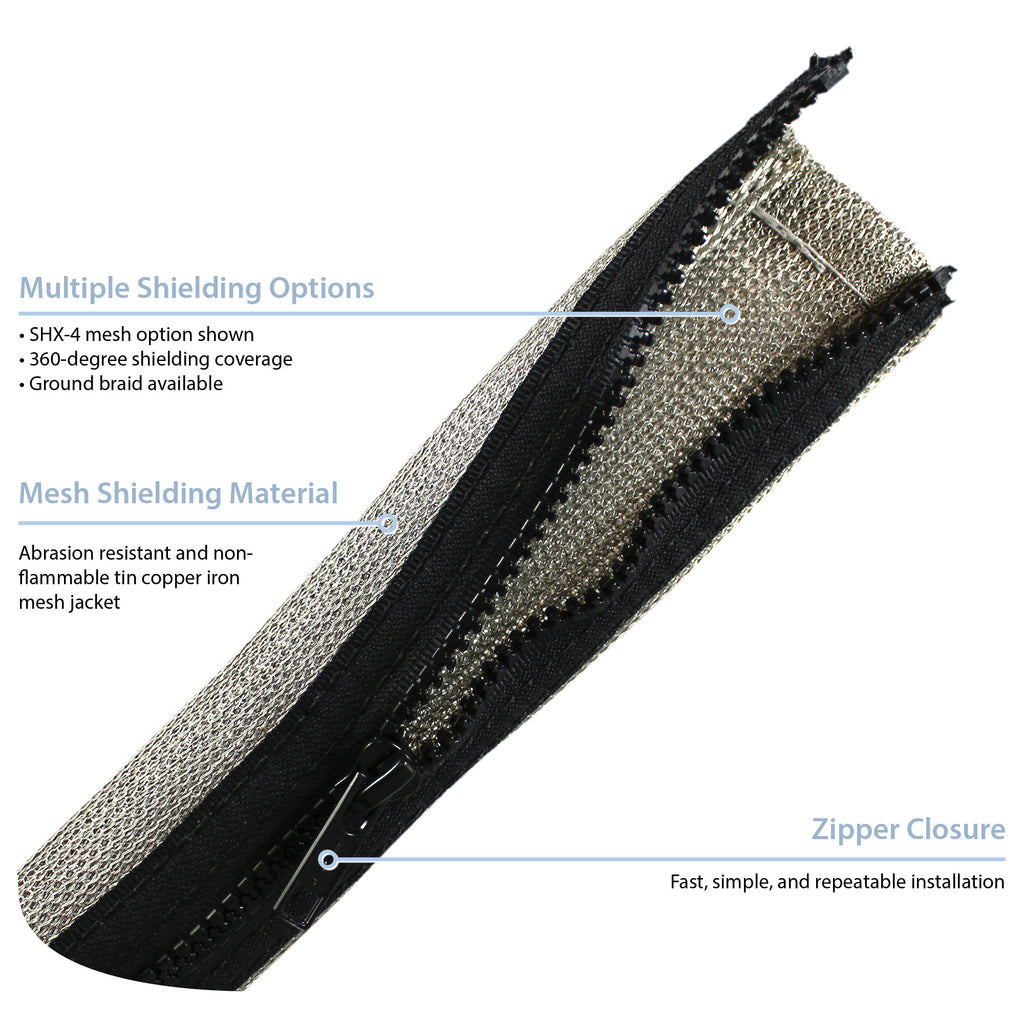

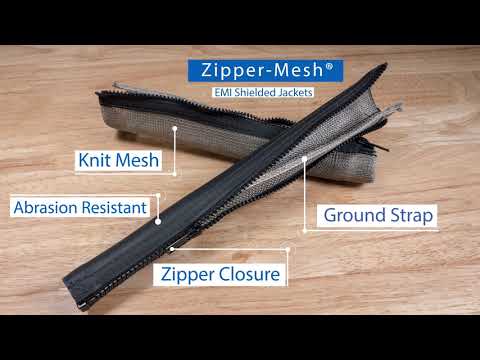

Zipper-Mesh  Infographic
  • Interior overlap to ensure 360° EMI shielding
  • Flexible and non-flammable shielding mesh

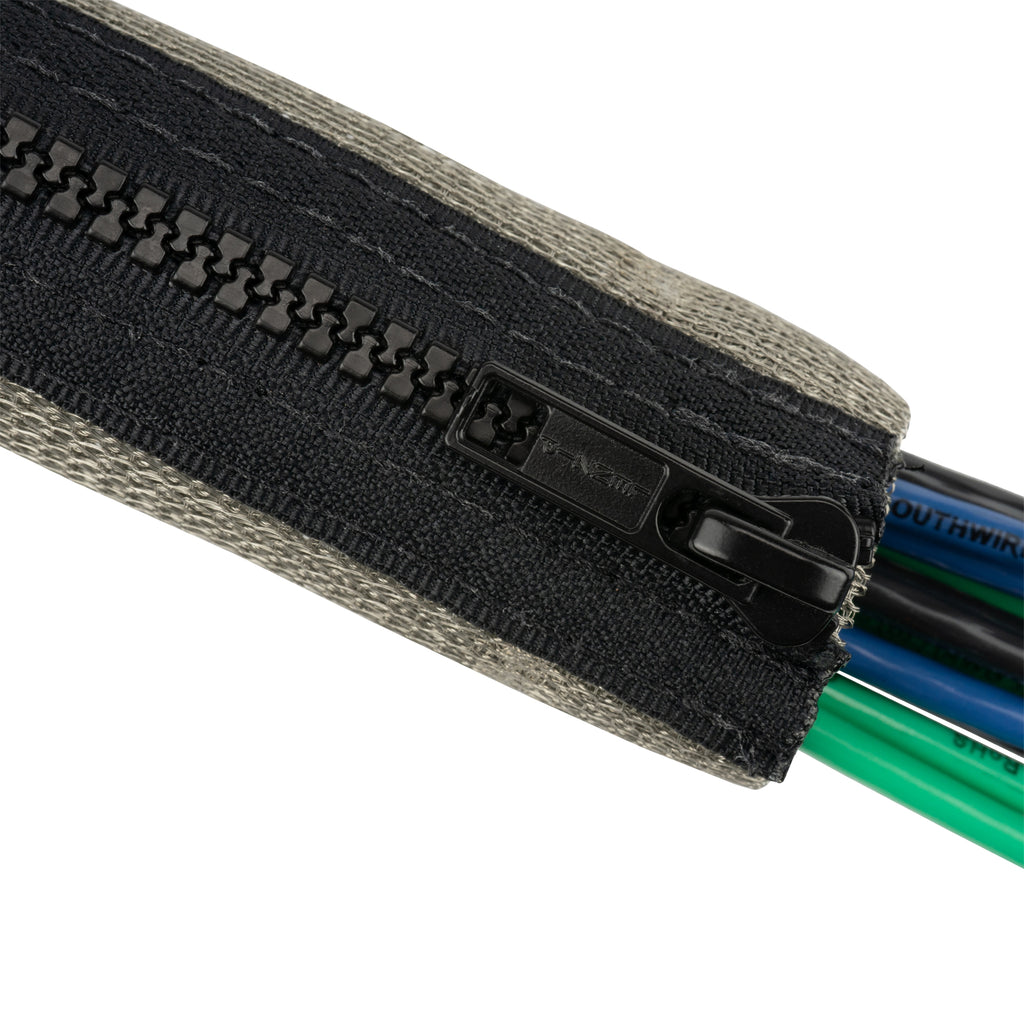

  • Zipper closure allows for toolless installation

Zipper-Mesh™ is an efficient and durable EMI, RFI and EMF shielding solution. Featuring a zipper closure, Zipper-Mesh™ is easy to install and requires no tools. Choose either SHX-2 (two-ply) or SHX-4 (four-ply) knitted shielding mesh to protect components from abrasion. SHX-4 is suited for higher frequencies of 13 megahertz or more.

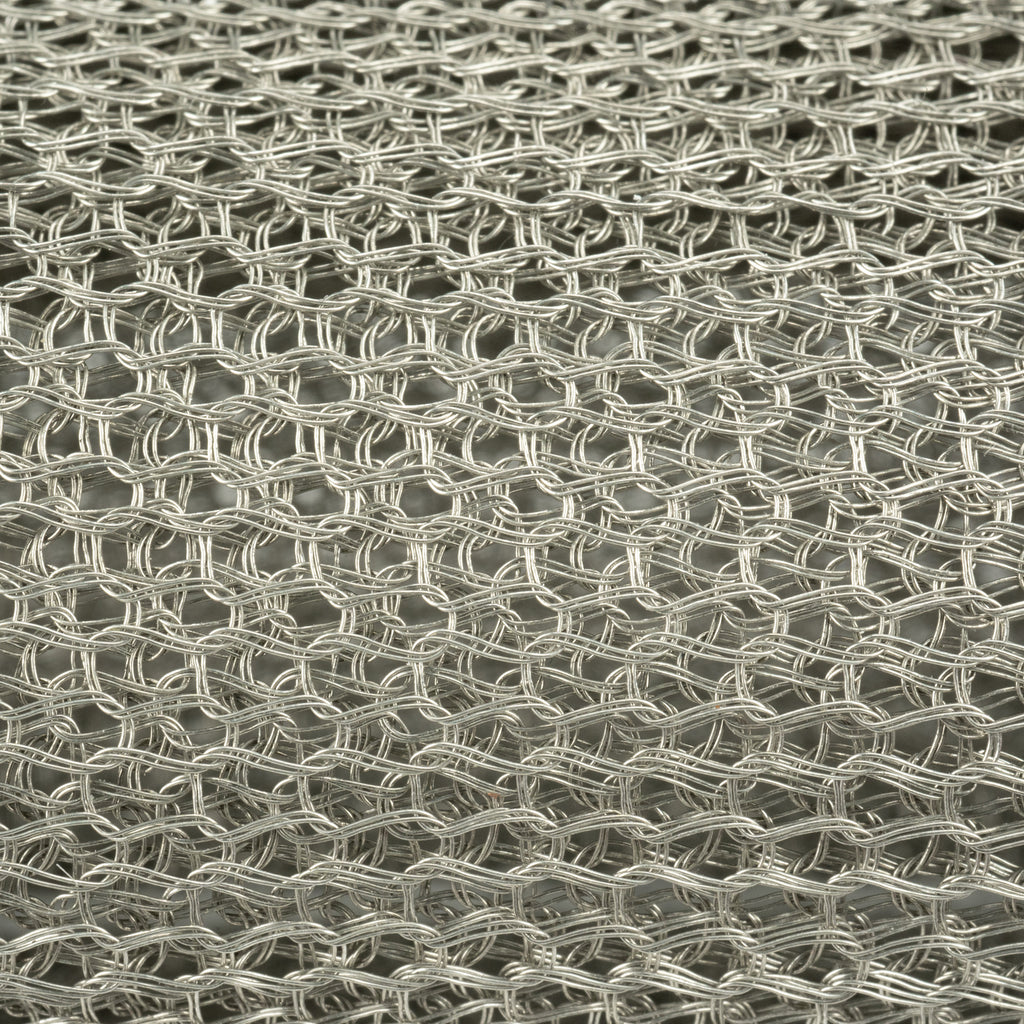

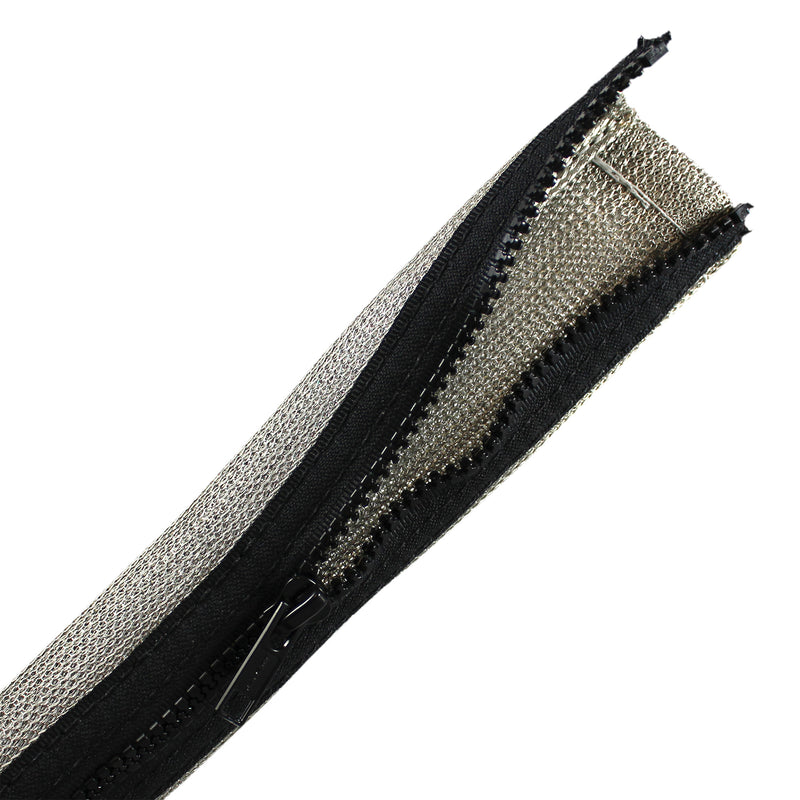

The knitted mesh is made from a tin-plated copper clad and steel wire. The mesh is extremely flexible, RoHS compliant, non-flammable and has no exterior jacketing, allowing for easy ground termination. Additionally, the mesh has an interior overlap to ensure 360-degree EMI shielding.

The plastic zipper closure glides effortlessly for quick application and re-entry. The braided grounding strap also enables grounding for applications with such requirements.

We offer Zipper-Mesh™ for diameters ranging from 0.5” to 15”, with custom diameters available upon request. Zipper-Mesh™ has an operational temperature range of -40°F to 248°F (-40°C to 120°C).

Q:  What lengths of Zipper-Mesh are available?

A:  Our zipper closed sleeves can be ordered in lengths as short as a few inches to lengths of 100 feet or more.  When quoting or ordering, make sure to clearly state the length of each sleeve in inches, which is typically referenced at the end of the part number (-X120.0 for example).

Q:  How does the knitted wire mesh compare to metal braided sleeving?

A:  Both are excellent shielding options utilizing conductive metal wires.  However, the knitted wire mesh can be formed into large and custom sizes & shapes that are not possible with standard metal braid.  Additionally, the physical structure of the mesh tends to keep its orientation better under flexing conditions where a braid may open up around bends.  Read our comparison article for more: Mesh vs. Braid

Q:  Can I solder to the mesh to add a ground or attachment point?

A:  Yes.  There are several ways to attach grounding leads, including soldering.  Other good options for grounding include crimping or requesting pre-installed ground extensions.  Reference our Shielding Termination Guide or contact a design engineer for more information.

Q:  What diameter of jacketing do I need?  Is it recommended to oversize?

A:  We will often suggest oversizing the sleeve diameter by 1/8” to allow for ease of installation.  If the application requires significant bending or flexing we will suggest even more extra room.  For assistance with sizing you can also contact one of our design engineers.

Q:  Can I cut the Jacketing?

A:  Yes*.  *Although you can cut the jacketing, we recommend ordering zipper-closed jackets to the exact length required.  If you need to trim down your jacketing, make sure you do it from the end opposite the zipper pin/box end and reinstall top zipper stops at the point where you trimmed the jacketing.  For more details
on cutting or size recommendations please contact one of our design engineers.

Q:  Will the zipper keep out water and is it water-tight?

A:  No.  Our standard zippers do a great job at keeping big debris and dirt out of the jacketing but are not water tight.  Our molded tooth zippers are rated at IP4X, which means they will keep out most dirt and dust but water splashing can enter the jacket.  If you need more protection, you may consider a track closure or adhesive closure option.



show more >>

Overall Performance

  • Diameter: 1.0"
  • Closure: Zipper (Nylon)
  • Maximum Operating Temperature: 399.2°F
  • Minimum Operating Temperature: -67°F
  • RoHS: RoHS-6
  • Shelf-Life: 60 months
  • Shielding: SHX-2 (SnCuFe)
  • Shielding Material: Tin-Plated Copper
  • Zipper Color: Black

Zipper (Nylon)

    SHX-2 (SnCuFe)

      SHX-4 (SnCuFe)

        Nylon Thread

          15 AWG Braided Ground Straps

            Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
            Shrink-N-Shield® (2:1) EMI Shielded Heat Shrink Tubing  Flex-Shield (HP) Braided EMI Shielding Sleeve
            NAME SHRINK-N-SHIELD® (2:1) EMI SHIELDED HEAT SHRINK TUBING  FLEX-SHIELD (HP) BRAIDED EMI SHIELDING SLEEVE
            DESCRIPTION Shrink-N-Shield® (2:1) is a MIL-SPEC, heat-shrink tubing with a 2:1 shrink ratio that provides exceptional shielding from EMI, RFI and EMF.  A braided, expandable EMI, RFI and EMF shielding sleeve that is lightweight and flexible—an ideal solution for the aerospace industry.
            Closure
            RoHS RoHS-10  RoHS-10
            Abrasion Resistance Best
            Installation Type Pull-Through  Pull-Through
            Purpose EMI Shielding  Sleeve
            Min Temperature Extreme  Moderate
            Minimum Operating Temperature -67°F  -40°F
            Max Temperature Moderate  Moderate
            Maximum Operating Temperature 275°F  302°F
            Flexibility
            View  View
            Zippertubing
            Zipper-Mesh  Infographic

            Zipper-Mesh (No Jacket) EMI Shielded Cable Bundling

            Zipper-Mesh™ is an EMI-shielding solution made from either a two-ply or four-ply knitted shielding mesh—equipped with a zipper closure for quick and easy application.

            Drawing Number(s): ZT23-07-001, ZT01-07-006

            Selected Part Number: ZT23-07-001-0.5-B

          • Interior overlap to ensure 360° EMI shielding
          • Flexible and non-flammable shielding mesh
          • Zipper closure allows for toolless installation
          • Zipper-Mesh (No Jacket) Cable Organizer
            Zipper-Mesh (No Jacket) EMI Shielding
            Zipper-Mesh (No Jacket) Braided Cable Sleeve
            Zipper-Mesh (No Jacket) Cable Wraps

            Features

          • RoHS compliant and non-flammable two-ply or four-ply knitted mesh
          • Zipper closure for a no tools required installation
          • Operational temperature range of -40°F to 248°F (-40°C to 120°C)
          • Benefits

          • Knitted shielding mesh protects components from abrasion
          • Zipper closure saves installation time
          • Grounding drain wire for applications with such requirements
          • Zipper-Mesh (No Jacket) EMI Shielded Cable Bundling

            Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.

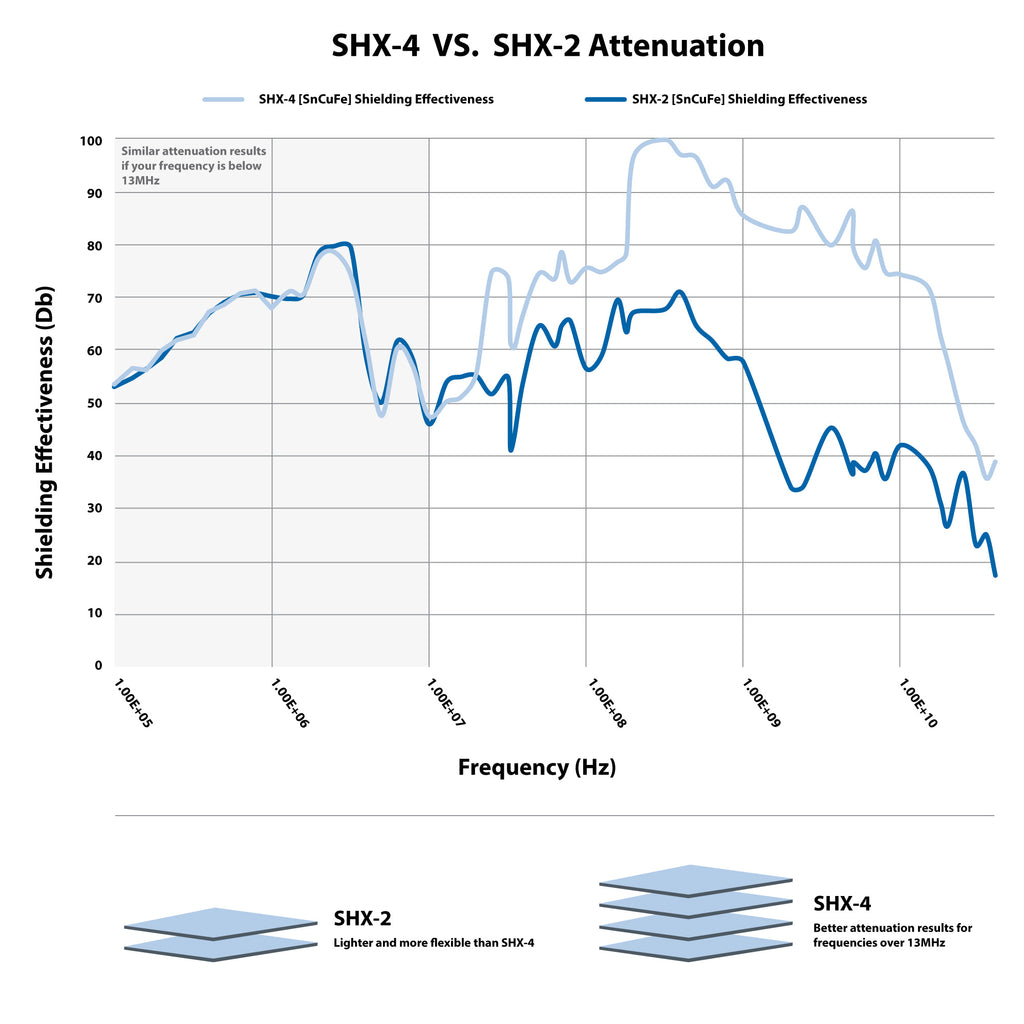

            SHIELDING EFFECTIVENESS - SHX-2 (SnCuFe), SHX-4 (SnCuFe)

            ATTENUATION DATA WAS OBTAINED USING MIL-DTL-83528H (MODIFIED). TESTING WAS PERFORMED BY ACCREDITED, THIRD-PARTY EMI LABORATORIES.

            Zipper-Mesh (No Jacket) EMI Shielded Cable Bundling

            MATERIAL SPECIFICATIONS
