Zip-Mesh®

$87.50

An EMI shielding mesh tape that has the option of being equipped with or without an adhesive closure.

Drawing Number(s): ZT16-03-001, ZT18-03-001

Zip-Mesh®
RoHS

Select product options

Selected Part Number:ZT16-03-001-1.0

Overview

Zip-Mesh®
  • A highly flexible, easy-to-use EMI shielding knitted-mesh tape

Zip-Mesh® is an EMI shielding mesh tape that is multipurpose for any application that needs shielding from EMI, RFI, or EMF. Made from a two-ply tinned mesh with the option of a self-adhesive closure, Zip-Mesh® provides protection of your wires or cables from interferences. Zip-Mesh® is engineered to be the perfect solution for cable splices, branch-outs, and transitions to connector hardware, and it perfectly complements Zipper-Mesh® and SHX series of knitted wire EMI shielding mesh.

Zip-Mesh® is offered in 1” and 2” tape widths with custom sizes available upon request. Zip-Mesh® has an operational temperature range of -40°F to 300°F (-40°C to 149°C).

Zip-Mesh® is also available as Zip-Mesh® (CU), an EMI shielding mesh tape with a copper foil, or Zip-Mesh® (AL), an EMI shielding mesh tape with an aluminum foil. If you require a bit more flexibility, our plated copper and nickel Z-3250-Tape™ or our copper-plated, halogen-free Z-7200 Tape™ are ideal for high-flexing applications.

ATTENUATION DATA WAS OBTAINED USING MIL-DTL-83528H (MODIFIED). TESTING WAS PERFORMED BY ACCREDITED, THIRD-PARTY EMI LABORATORIES.

Specifications

Overall Performance

  • Closure: Tape (High Temperature)
  • Maximum Operating Temperature: 400°F
  • Minimum Operating Temperature: -148°F
  • RoHS: RoHS-6
  • Shelf-Life: 12 months
  • Shielding: SHX-2 (SnCu)
  • Shielding Material: Tin-Plated Copper
  • Width: Custom

Tape (High Temperature)

  • Solvent Resistance: Very Good
  • Shear Strength: 300 grams @ +149°C for > 10,000 minutes (Alum. to Steel)
  • REACH: Compliant
  • Release Liner: Polycoated Paper Liner
  • Adhesion: 150 oz/in. (to steel)
  • Chemical Resistance: Good
  • Flame Retardant: Fire Retardant
  • Material: Acrylic
  • Thickness: 0.005"
  • Maximum Operating Temperature: 300°F
  • Minimum Operating Temperature: -40°F
  • RoHS: RoHS-10
  • Shelf Life: 12 months, unbonded

SHX-2 (SnCu)

  • Mil-Spec: ASTM B33-94, MS3304 Type 1
  • Electrical Resistance: 939.51 ??lb/mile² @ 20C
  • Chemical Resistance: Good
  • Openings Per Inch: 10-13
  • Wire Size: 36 AWG
  • Material: Mesh
  • Material: Single knitted tube, flattened
  • Maximum Operating Temperature: 400°F
  • Minimum Operating Temperature: -148°F
  • RoHS: RoHS-6
  • Shelf Life: 60 Months
  • Shielding: SHX-2 (SnCu)
  • Tensile Strength: .785 lbs (wire)
Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.

Similar products

Z-3250-Tape™ Z-Shield® (3250) Z-Shield® (AL)
NAME Z-3250-TAPE™ Z-SHIELD® (3250) Z-SHIELD® (AL)
DESCRIPTION An EMI shielding tape that is corrosion resistant, flexible, and durable for a variety of applications. A wrap-around solution that has a protective jacketing paired with an EMI shielding cloth and adhesive closure. A wrap-around EMI shielding solution that features a flame-retardant polyurethane jacket and high-performing shielding foil.
Closure Tape (Electrically Conductive) Adhesive Adhesive
RoHS RoHS-10 RoHS-10 RoHS-10
Abrasion Resistance
Installation Type Wrap-Around Wrap-Around Wrap-Around
Purpose Tape Sleeve Sleeve
Min Temperature Moderate Moderate Extreme
Minimum Operating Temperature °F -40°F -65°F
Max Temperature Moderate Low Low
Maximum Operating Temperature 158°F 250°F 250°F
Flexibility
View View View

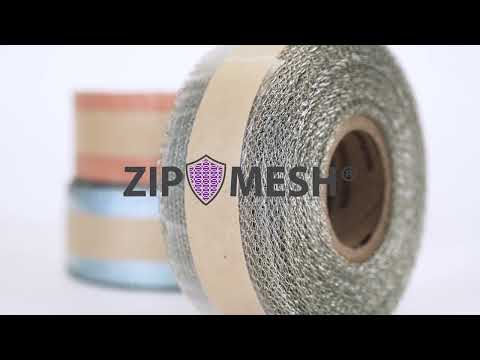

Zip-Mesh®

An EMI shielding mesh tape that has the option of being equipped with or without an adhesive closure.

Drawing Number(s): ZT18-03-001

  • A highly flexible, easy-to-use EMI shielding knitted-mesh tape
  • Features

  • Decent EMI shielding properties
  • Complements Zipper-Mesh® and SHX series of knitted wire EMI shielding mesh
  • Operational temperature range of -40°F to 300°F (-40°C to 149°C)
  • Benefits

  • Withstands severe environmental circumstances such as lightning strikes
  • Quickly and easily wrap around any size wire or cable
  • Can be equipped with or without an adhesive closure
  • Zip-Mesh®

    SHIELDING EFFECTIVENESS - SHX-2 (SnCu)

    ATTENUATION DATA WAS OBTAINED USING MIL-DTL-83528H (MODIFIED). TESTING WAS PERFORMED BY ACCREDITED, THIRD-PARTY EMI LABORATORIES.

    Zip-Mesh®

    MATERIAL SPECIFICATIONS
