Z-Shield® (3250) EMI Shielding Wrap

A wrap-around solution that has a protective jacketing paired with an EMI shielding cloth and adhesive closure.

Drawing Number(s): ZT93-04-006, ZT97-04-013, ZT96-04-025

Z-Shield® (3250) EMI Shielding Wrap
RoHS

Select product options

Please fill in at least one field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Selected Part Number:ZT93-04-006-0.25-B
Get A Quote
WARNING: Cancer and Reproductive Harm | www.P65Warnings.ca.gov
Z-Shield (3250) - Infographic
  • Excellent EMI Shielding (10 MHz to 20 GHz)
  • High Flexibility Applications
  • Flame Retardant Polyurethane Jacket
  • Easy Installed Adhesive Closure

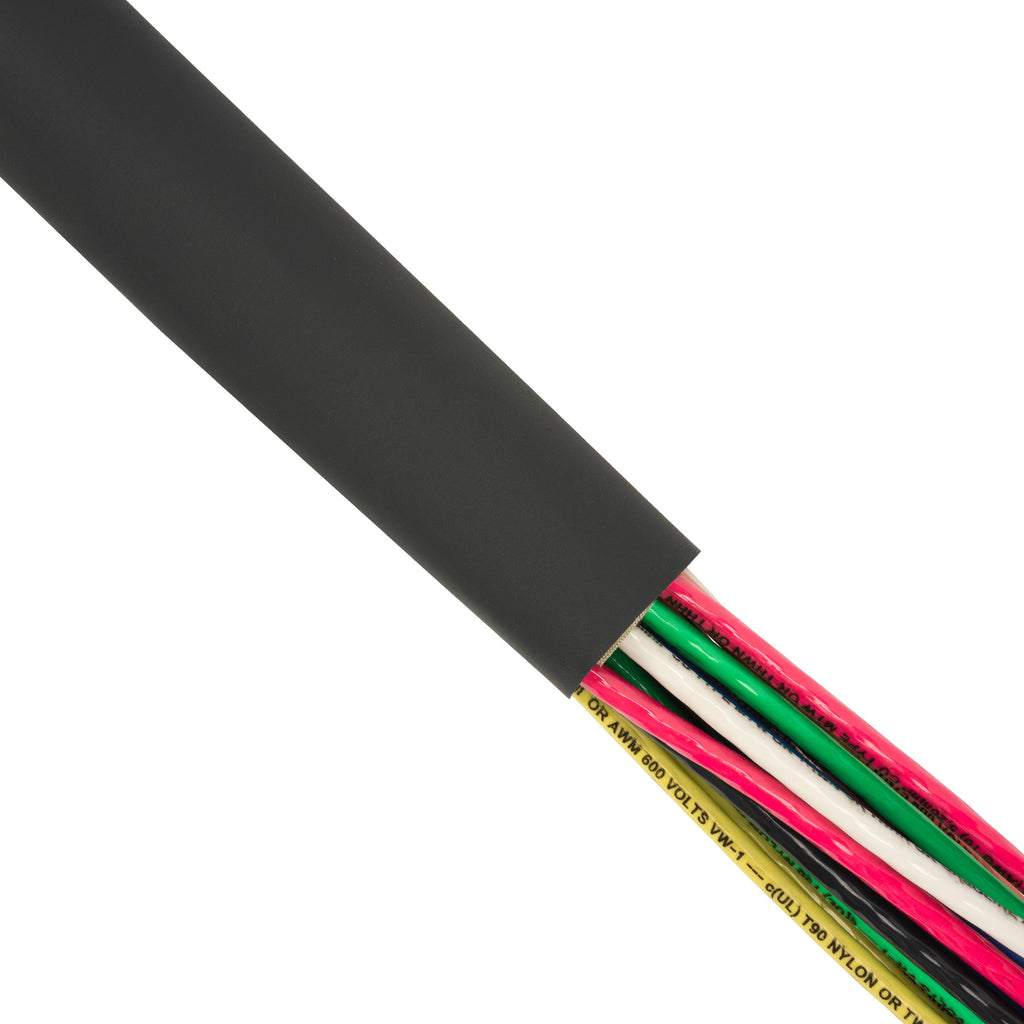

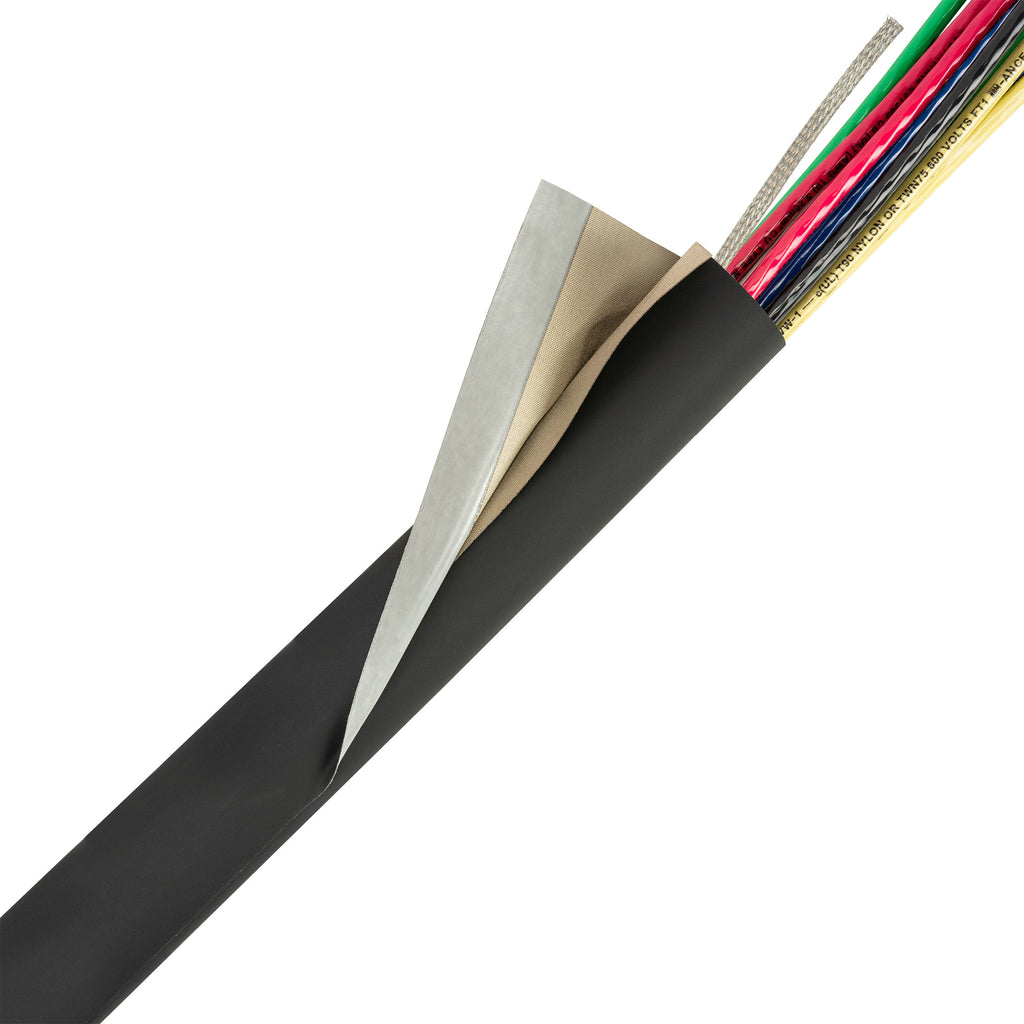

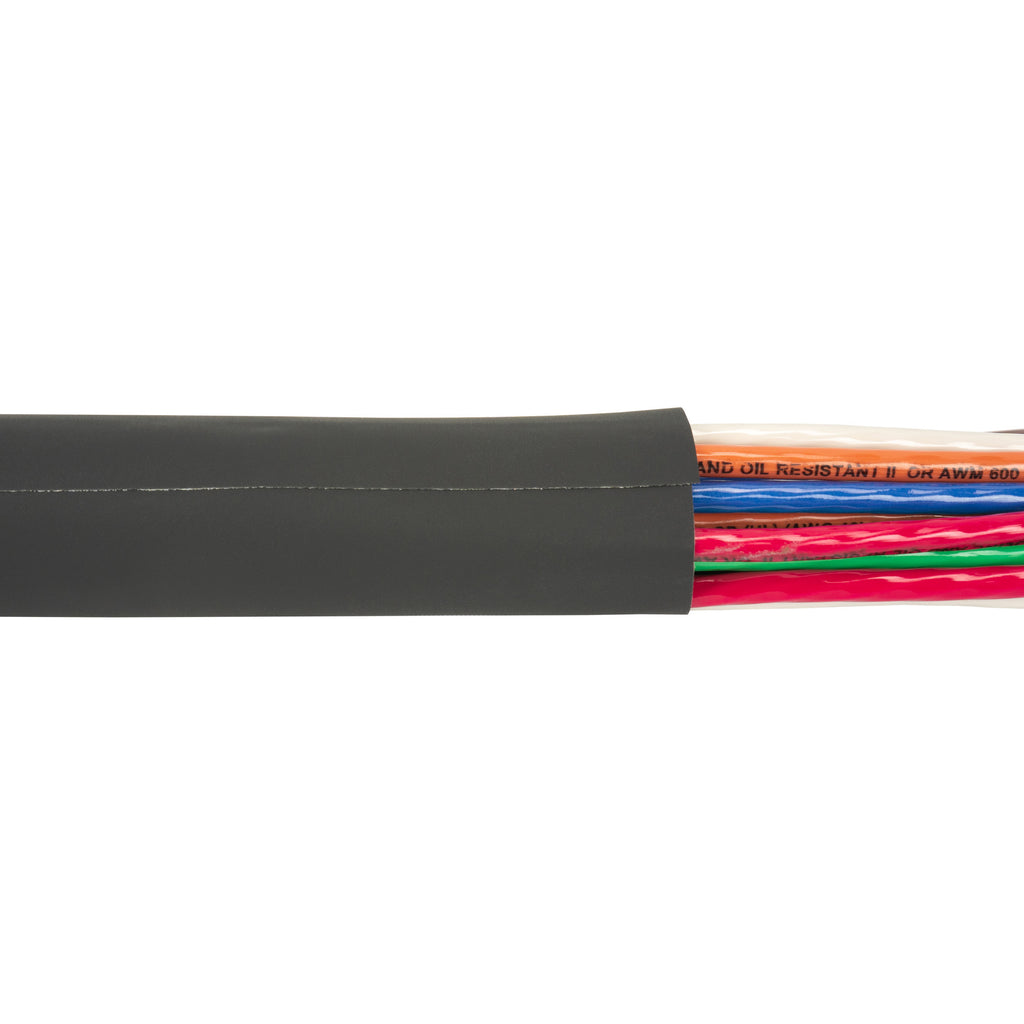

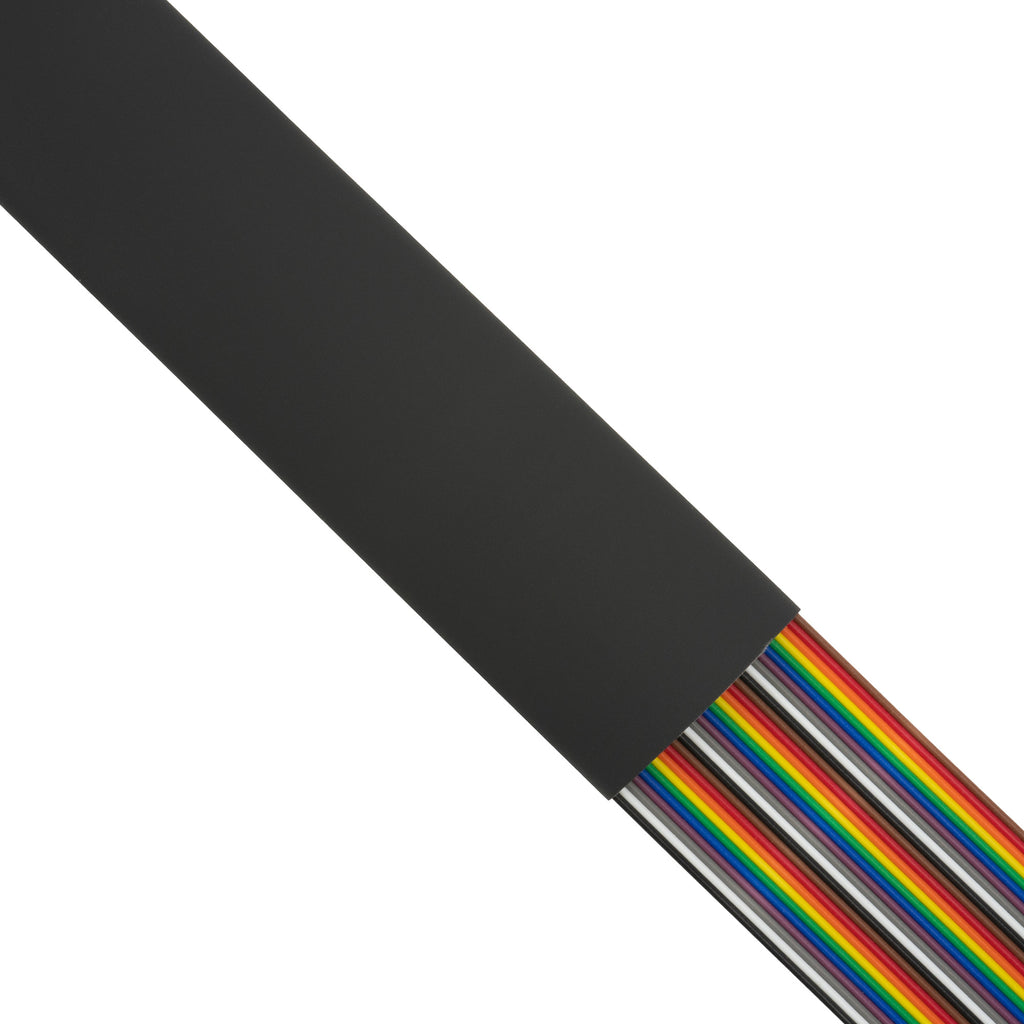

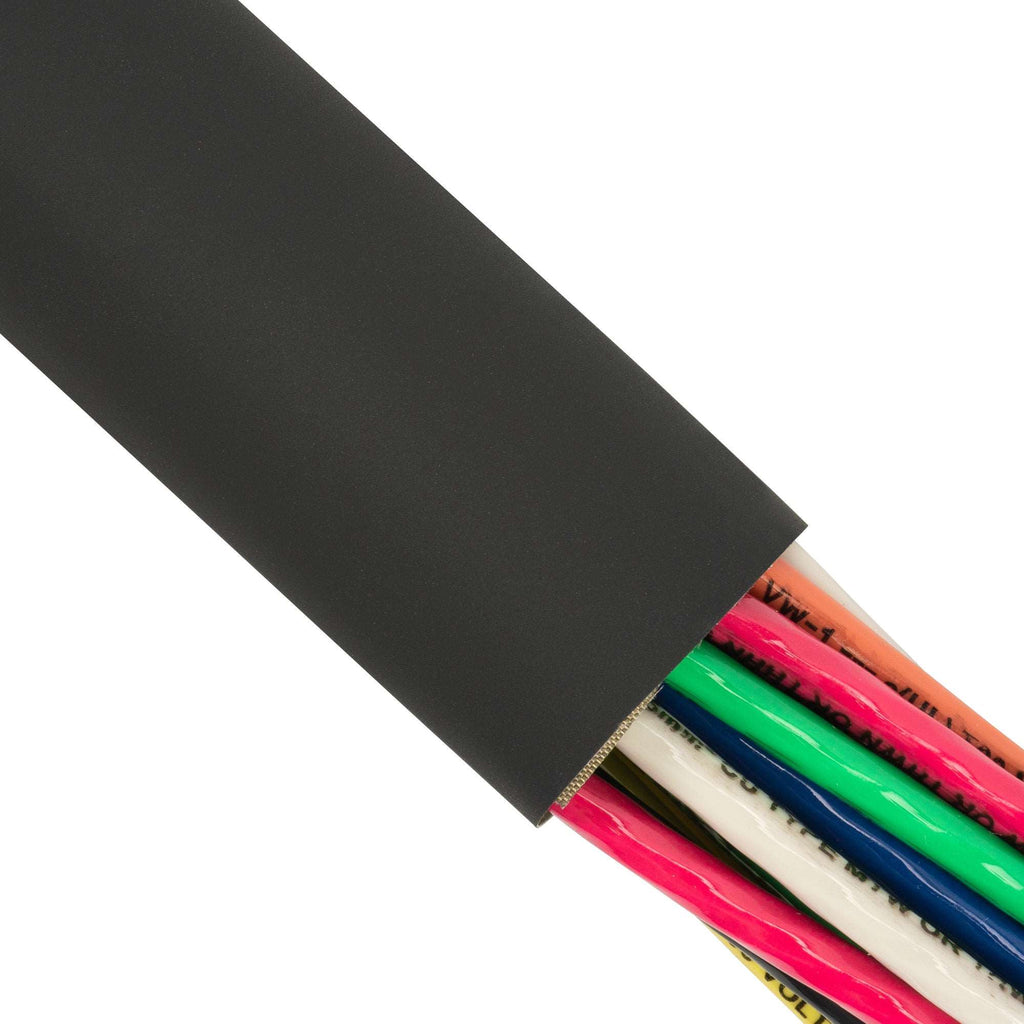

Z-Shield® (3250) is a wrap-around EMI shielding solution that features a secure, permanent adhesive closure. The jacketing is the PFR-8235 material, which is flexible, lightweight, flame-retardant, and provides protection against abrasion. The PFR-8235 material is RoHS compliant and contains no PVC, making it the ideal choice for nuclear, aerospace, and military applications where PVC material is prohibited.

The Z-3250-CN shielding cloth is made from a polyester taffeta fabric that has a nickel-over-copper coating to provide excellent corrosion resistance. The cloth has exceptional shielding performance at 98% coverage. If required, a grounding braid can be incorporated into the solution for applications that may need burial. The grounding strap is a braided and flattened tin-plated copper wire.

Z-Shield® (3250) is engineered for diameters ranging from 0.25” to 4”, with custom sizes available upon request. The operational temperature ranges from -40°F to 176°F (-40°C to 80°C).

Z-Shield® (3250) is also available on Amazon for 1” diameter components and comes in a convenient 3-foot roll.

Overall Performance

  • Diameter: 0.375" (3/8)
  • Closure: Adhesive
  • Material: PFR-8235
  • Maximum Operating Temperature: 176°F
  • Minimum Operating Temperature: -49°F
  • RoHS: RoHS-10
  • Shelf-Life: 12 months
  • Shielding: Z-3250
  • Shielding Material: Nickel Plated Copper

PFR-8235

  • Chemical Resistance: Better
  • Dielectric Strength: 800 volts/mil
  • Elongation: 636% at break
  • Flame Retardant: UL-510
  • Thickness: 0.007"
  • Maximum Operating Temperature: 250°F
  • Minimum Operating Temperature: -65°F
  • RoHS: RoHS-10
  • Shelf Life: 12 months

Z-3250

    None

      15 AWG Braided Ground Straps

        27 AWG Braided Ground Straps

          Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
          Z-3250-Tape EMI Shielding Tape  Z-Shield® (Al) EMI Shielding Wrap  Zip-Mesh® (Al) EMI Shielding Mesh Tape
          NAME Z-3250-TAPE EMI SHIELDING TAPE  Z-SHIELD® (AL) EMI SHIELDING WRAP  ZIP-MESH® (AL) EMI SHIELDING MESH TAPE
          DESCRIPTION A lightweight EMI shielding tape that is flexible, durable and corrosion resistant for a variety of applications.  A wrap-around, EMI-shielding solution featuring a flame-retardant polyurethane jacket and high-performing shielding foil.  An EMI shielding tape that has a tinned copper mesh with an aluminum polyester tape and a self-adhesive closure.
          Closure Tape (Electrically Conductive)  Adhesive  Tape (High Temperature)
          RoHS RoHS-10  RoHS-10  RoHS-6
          Abrasion Resistance
          Installation Type Wrap-Around  Wrap-Around  Wrap-Around
          Purpose Tape  Sleeve  Tape
          Min Temperature Moderate  Extreme  Moderate
          Minimum Operating Temperature °F  -65°F  -40°F
          Max Temperature Moderate  Low  Moderate
          Maximum Operating Temperature 158°F  250°F  300°F
          Flexibility
          View  View  View

          Z-Shield® (3250) EMI Shielding Wrap

          A wrap-around solution that has a protective jacketing paired with an EMI shielding cloth and adhesive closure.

          Drawing Number(s): ZT93-04-006, ZT97-04-013, ZT96-04-025

          Selected Part Number: ZT93-04-006-0.25-B

        • Excellent EMI Shielding (10 MHz to 20 GHz)
        • High Flexibility Applications
        • Flame Retardant Polyurethane Jacket
        • Features

        • Non-corrosive EMI shielding cloth that provides exceptional protection
        • Abrasion-resistant jacketing for applications in rugged conditions
        • Operational temperature ranges from -40°F to 176°F (-40°C to 80°C)
        • Benefits

        • Wrap-around wires or cables with secure, permanent adhesive closure
        • Provides 360-degree EMI, RFI, and EMF shielding
        • RoHS compliant and is made up of a non-PVC material
        • Z-Shield® (3250) EMI Shielding Wrap

          Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.

          SHIELDING EFFECTIVENESS - Z-3250

          ATTENUATION DATA WAS OBTAINED USING MIL-DTL-83528H (MODIFIED). TESTING WAS PERFORMED BY ACCREDITED, THIRD-PARTY EMI LABORATORIES.

          Z-Shield® (3250) EMI Shielding Wrap

          MATERIAL SPECIFICATIONS
