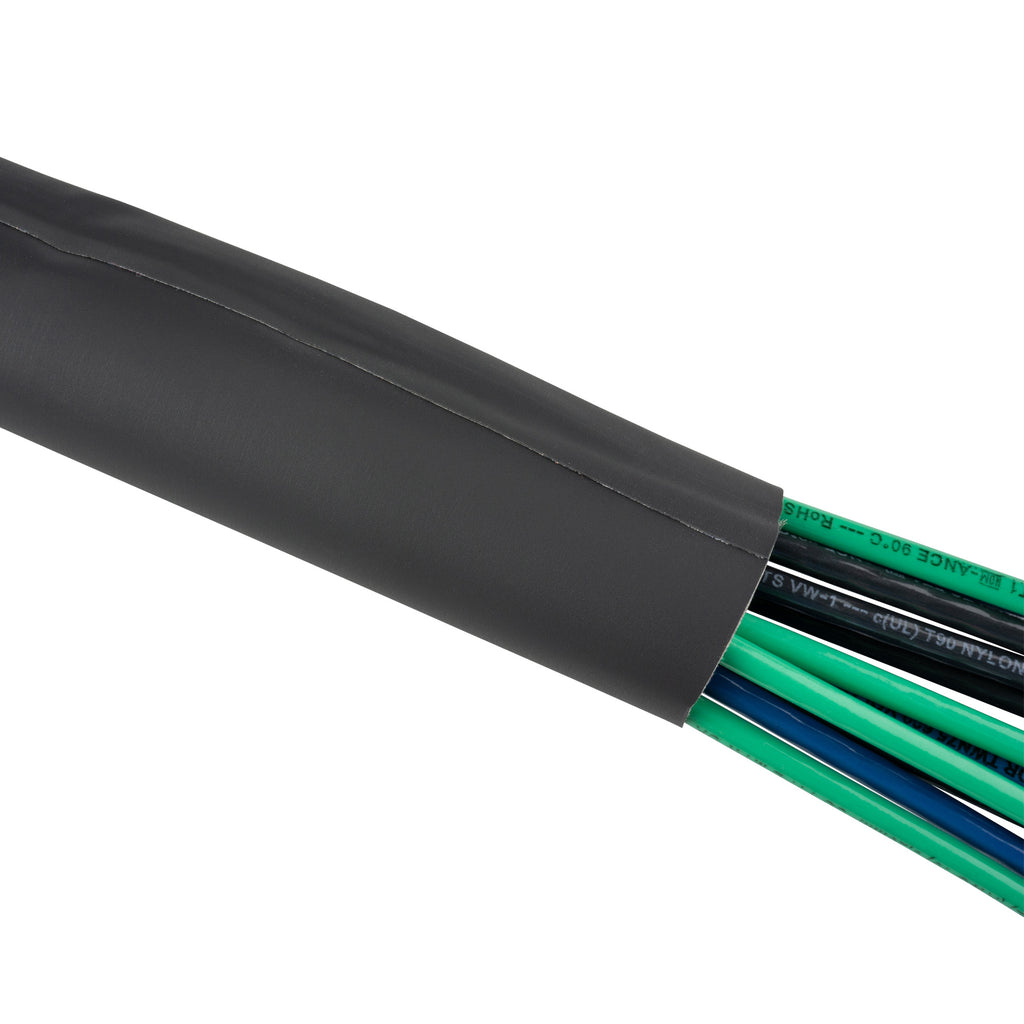

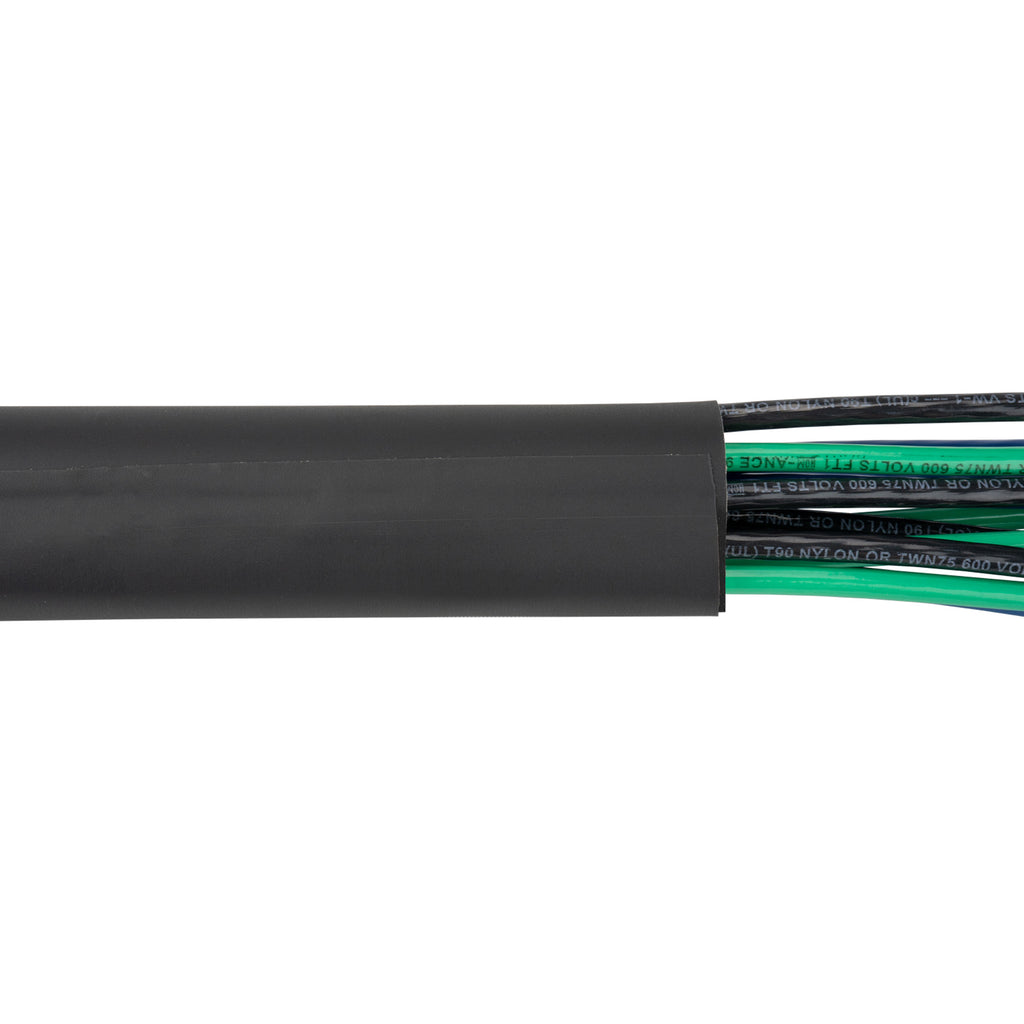

Z-Shield® (2L)

A wrap-around adhesive closure EMI shielding solution combines two layers of the fire-retardant PFR-8235 with Z-3250 shielding cloth for extra abrasion protection.

Drawing Number(s): ZT93-04-007, ZT96-04-031, ZT96-04-027, ZT93-04-004, ZT96-04-026

Z-Shield® (2L)
UL Recognized RoHS

Select product options

+ Please fill in at least one field.
Selected Part Number:ZT93-04-007-0.5-B
Get A Quote
WARNING: Cancer and Reproductive Harm | www.P65Warnings.ca.gov

Overview

Z-Shield® (2L)
  • Outstanding EMI Shielding (10 MHz to 20 GHz)
  • High Flexibility Applications
  • Flame Retardant to UL224, VW-1
  • Inner Dielectric Spacer
  • Adhesive Closure

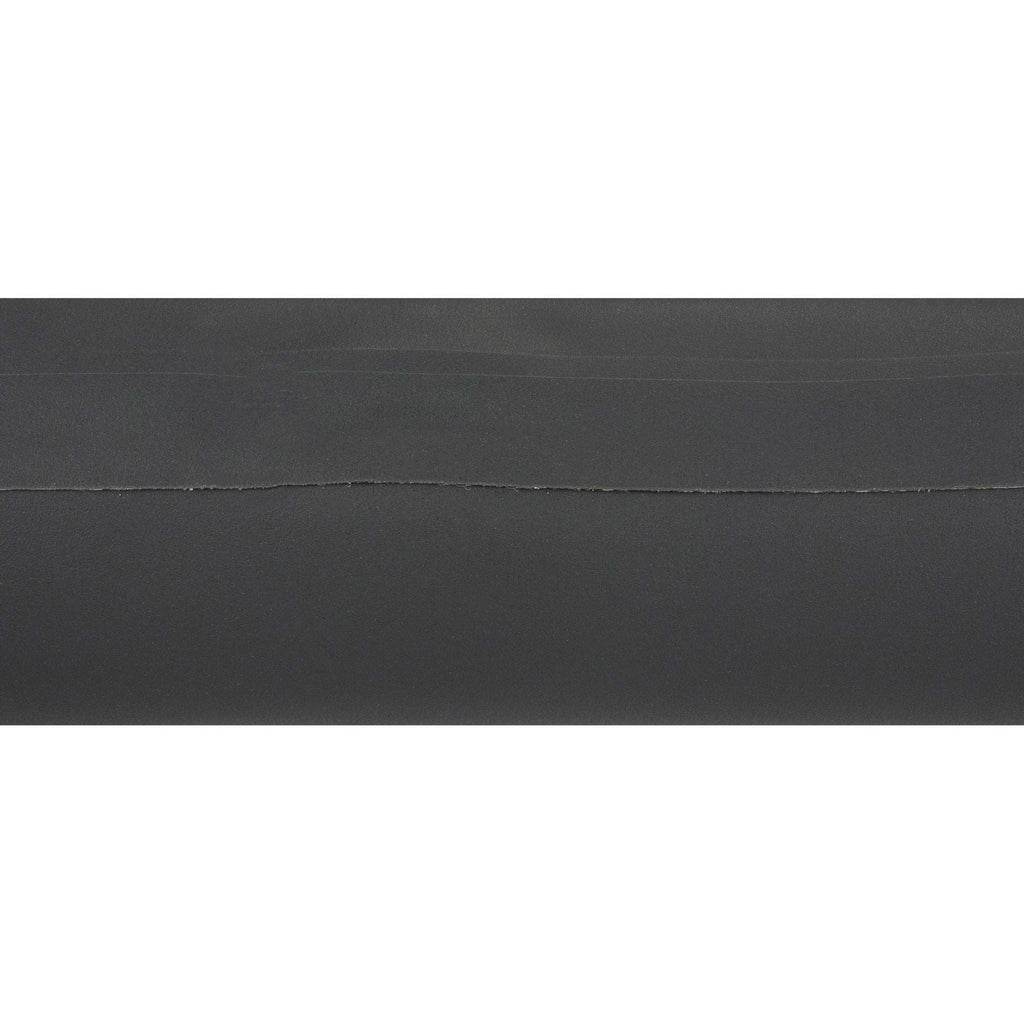

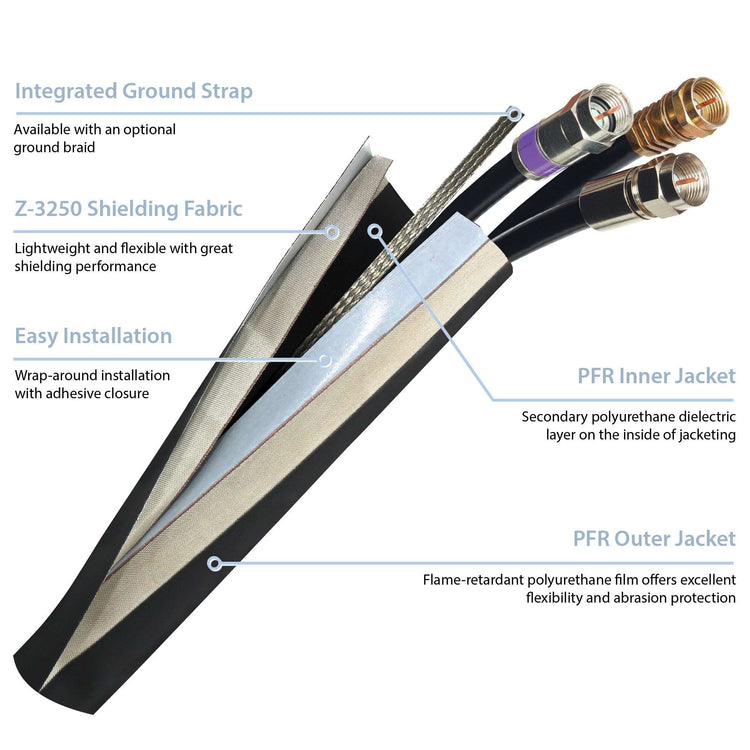

Z-Shield® (2L) is an EMI shielding solution utilizing a dual layer of PFR-8235 jacketing and a flexible shielding cloth. The PFR-8235 is a polyurethane film that has resistance to abrasion, fluids, chemicals, and UV exposure. The flexible jacketing is also UL-rated for flammability, meeting UL-510. The jacketing has an acrylic adhesive that provides a secure, long-lasting seal.

The Z-3250 shielding cloth is made of a copper-plated polyester taffeta fabric. The shielding material is flexible yet strong with providing excellent corrosion resistance and resistance to environmental degradation. The Z-3250 cloth has shielding coverage of approximately 98%, which keeps the wires or cables protected from EMI, RFI, and EMF.

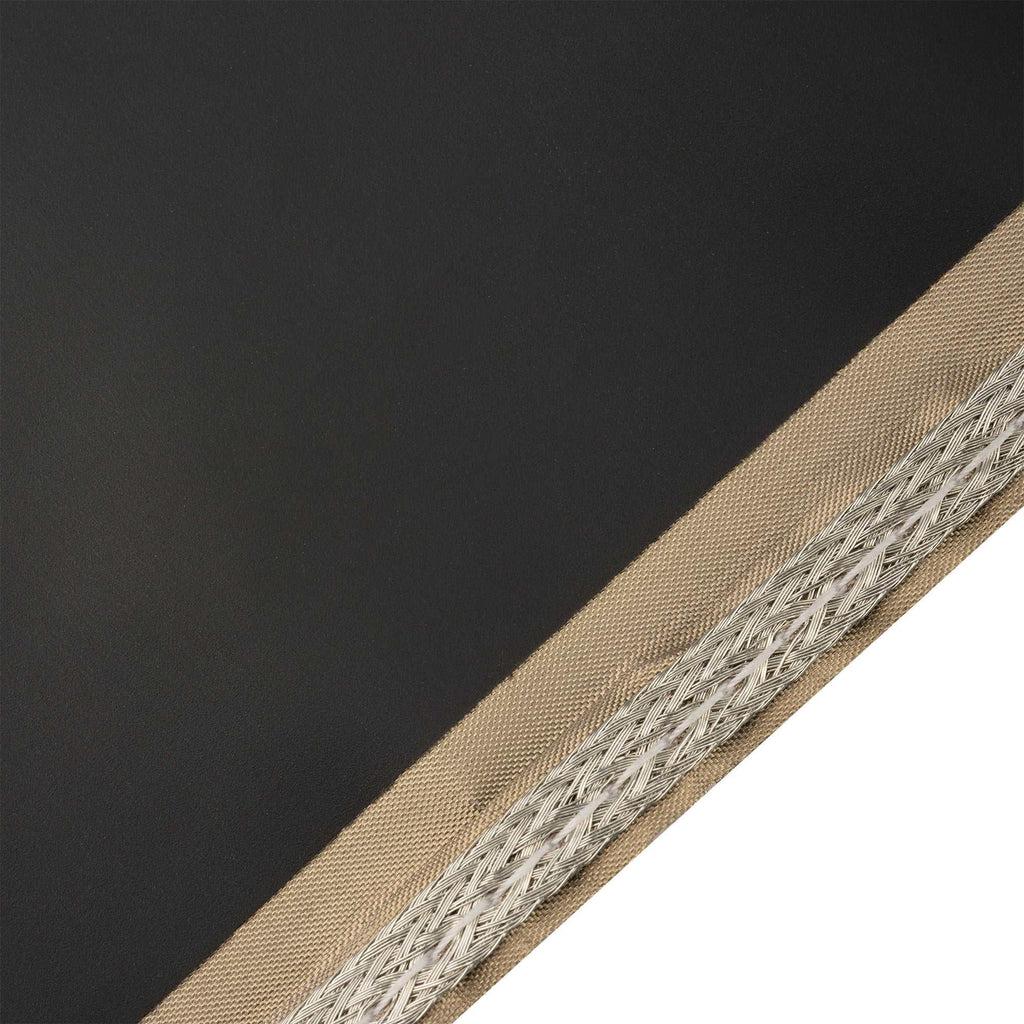

Z-Shield® (2L) has the option to add a 15 AWG or 27 AWG braided ground wire. Z-Shield® (2L) can be cut to any desired length with a standard pair of scissors, offering more versatility of applications. Z-Shield® (2L) is offered in standard sizes for diameters ranging from 0.5” to 4”. The operational temperature range -40° to 250°F* (-40°C to 121°C).

*UL-rated up to 176°F

Industries

  • Rail

Uses

  • EMI Shielding
  • Extra Abrasion Protection
  • Specialty Purpose
  • Wrap Around

Specifications

Overall Performance

  • Diameter: 0.75" (3/4)
  • Closure: Adhesive
  • Material: PFR-8235
  • Flammability: UL224, VW-1
  • Maximum Operating Temperature: 250°F
  • Minimum Operating Temperature: -40°F
  • RoHS: RoHS-10
  • Shelf-Life: 12 months
  • Shielding: Z-3250
  • Shielding Material: Nickel Plated Copper

PFR-8235

  • Chemical Resistance: Better
  • Dielectric Strength: 800 volts/mil
  • Elongation: 636% at break
  • Flame Retardant: UL-510
  • Thickness: 0.007"
  • Maximum Operating Temperature: 250°F
  • Minimum Operating Temperature: -65°F
  • RoHS: RoHS-10
  • Shelf Life: 60 months

Z-3250

    None

      15 AWG Braided Ground Straps

        27 AWG Braided Ground Straps

          Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.

          Similar products

          Z-3250-Tape™ Z-Shield® (3250) Z-Shield® (Al)
          NAME Z-3250-TAPE™ Z-SHIELD® (3250) Z-SHIELD® (AL)
          DESCRIPTION A lightweight EMI shielding tape that is flexible, durable and corrosion resistant for a variety of applications. A wrap-around solution that has a protective jacketing paired with an EMI shielding cloth and adhesive closure. A wrap-around, EMI-shielding solution featuring a flame-retardant polyurethane jacket and high-performing shielding foil.
          Closure Tape (Electrically Conductive) Adhesive Adhesive
          RoHS RoHS-10 RoHS-10 RoHS-10
          Abrasion Resistance
          Installation Type Wrap-Around Wrap-Around Wrap-Around
          Purpose Tape Sleeve Sleeve
          Min Temperature Moderate Moderate Extreme
          Minimum Operating Temperature °F -49°F -65°F
          Max Temperature Moderate Low Low
          Maximum Operating Temperature 158°F 176°F 250°F
          Flexibility
          View View View

          Guides

          Z-Shield® (2L)

          A wrap-around adhesive closure EMI shielding solution combines two layers of the fire-retardant PFR-8235 with Z-3250 shielding cloth for extra abrasion protection.

          Drawing Number(s): ZT93-04-007, ZT96-04-031, ZT96-04-027, ZT93-04-004, ZT96-04-026

          Selected Part Number: ZT93-04-007-0.5-B

        • Outstanding EMI Shielding (10 MHz to 20 GHz)
        • High Flexibility Applications
        • Flame Retardant to UL224, VW-1
        • Features

        • Abrasion-resistant, fluid-resistant, chemical-resistant, and UV-resistant jacketing
        • Adhesive provides secure, permanent closure
        • Operational temperature range -40° to 250°F (-40°C to 121°C)
        • Benefits

        • Wrap-around solution doesn’t require disassembly of components
        • Can be cut to any desired length
        • UL-rated, meeting UL-510
        • Z-Shield® (2L)

          Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.

          SHIELDING EFFECTIVENESS - Z-3250

          ATTENUATION DATA WAS OBTAINED USING MIL-DTL-83528H (MODIFIED). TESTING WAS PERFORMED BY ACCREDITED, THIRD-PARTY EMI LABORATORIES.

          Z-Shield® (2L)

          MATERIAL SPECIFICATIONS
