Z flex® (VNH) Rugged Pull-through Cable Bundling

A pull-through cable bundling and protection solution that utilizes a flame retardant, waterproof jacketing and a nylon cloth leader for easy installation.

Drawing Number(s): ZT05-10-001

Z flex® (VNH) Rugged Pull-through Cable Bundling
RoHS Military Grade

Select product options

Please fill in at least one field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Selected Part Number:ZT05-10-001-1.625-B
Get A Quote
WARNING: Cancer and Reproductive Harm | www.P65Warnings.ca.gov
Z flex (VNH) infographic
  • VNH-23 jacketing meets Mil-C-20696 / Mil-PRF-20696, Type II, Class 2 requirements
  • Double heat-sealed edges provides complete security and protection of components inside
  • Nylon cloth leader wraps around wires or cables for easy pull-through installation

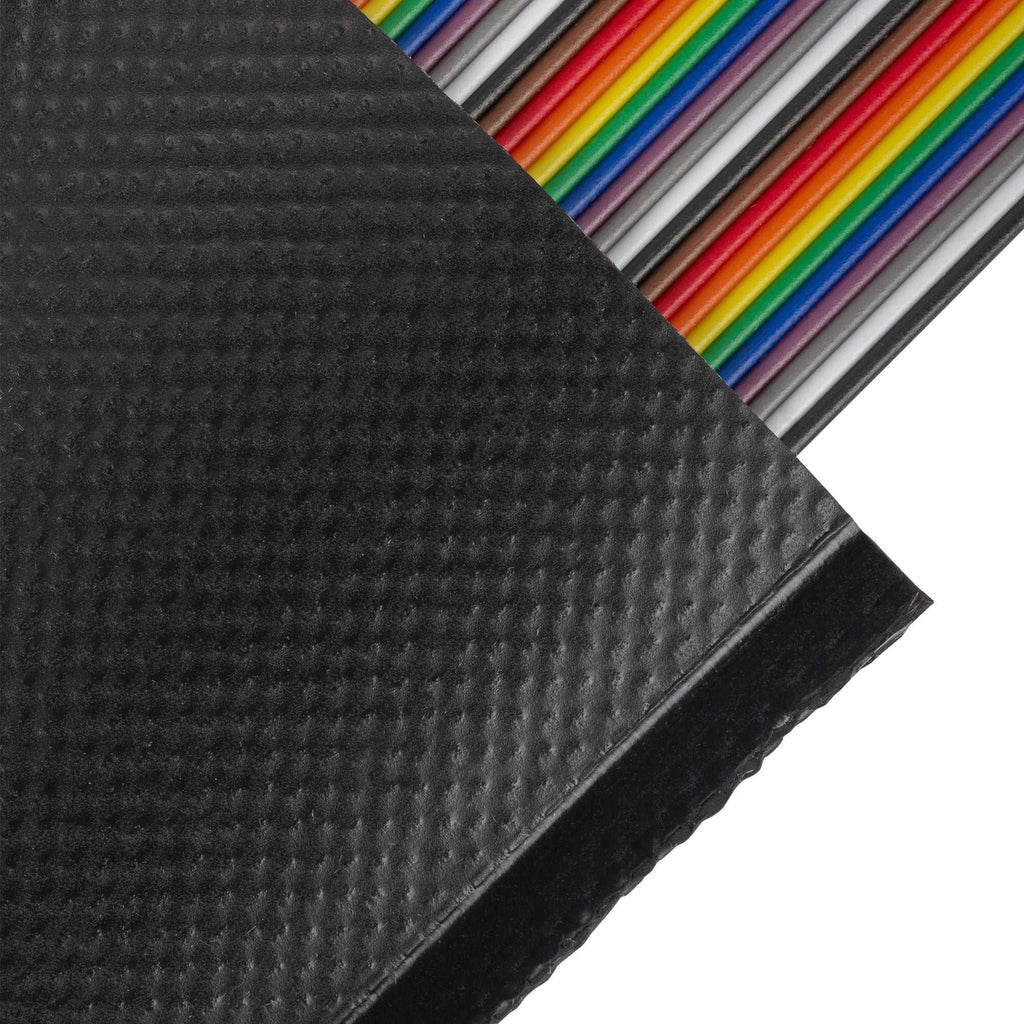

Z flex® (VNH) is an economical, heavy duty, pull-thru jacketing system for flat cables made from Zippertubing's type VNH-23. This configuration is ideal for inter-connection applications where mechanical protection is required and a sealed, flat, tubular jacket is desirable. Z flex® is supplied in reel form and is easily cut to any length required.

A special "blue-line" nylon cloth leader inside the jacket is provided for fast, easy pull-through of the cable. Z flex® (VNH) is available in many standard sizes to fit the most popular flat cable sizes ranging from 20 to 64 conductors. Custom sizes and colors are also available.

Refer to Zippertubing's VNH-23 data sheet below for specific material characteristics.

Overall Performance

  • Material: VNH-23
  • Diameter: 1.625" (1 5/8)
  • Maximum Operating Temperature: 167°F
  • Minimum Operating Temperature: -67°F
  • RoHS: RoHS-10
  • Shelf-Life: 36 Months

VNH-23

  • Mil-Spec: Mil-C-20696 / Mil-PRF-20696, Type II, Class 2
  • Durability: Better
  • REACH: Compliant
  • Flame Retardant: FED-STD-191 Method 5903
  • Thickness: 0.023"
  • Maximum Operating Temperature: 171°F
  • Minimum Operating Temperature: -65°F
  • RoHS: RoHS-10
  • Shelf Life: 36 Months
  • Tensile Strength: 225 Warp; 225 Fill
Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
Z flex® (PFR) Polyurethane Pull-through Cable Bundling  Channel-Wrap® (PFR) Robotic Cable Sleeving  Z flex® (63) PVC Pull-through Cable Bundling
NAME Z FLEX® (PFR) POLYURETHANE PULL-THROUGH CABLE BUNDLING  CHANNEL-WRAP® (PFR) ROBOTIC CABLE SLEEVING  Z FLEX® (63) PVC PULL-THROUGH CABLE BUNDLING
DESCRIPTION A military-grade, flame-retardant, pull-through cable and wire protection solution that has a nylon cloth leader.  A flexible, wrap-around robotic cable management sleeve with a Velcro-style hook-and-loop closure for bundling and protecting crucial wires and cables.  A pull-through bundling sleeve equipped with a nylon cloth leader, made of a 0.02” thick military-grade material that offers protection from abrasion & fluid.
Closure  Hook-and-Loop (Nylon)
RoHS RoHS-6  RoHS-10  RoHS-6
Abrasion Resistance Best  Best  Best
Installation Type Pull Through  Wrap-Around  Pull Through
Purpose Sleeve  Sleeve  Sleeve
Min Temperature Extreme  Extreme  Low
Minimum Operating Temperature -67°F  -67°F  -4°F
Max Temperature Moderate  Low  Moderate
Maximum Operating Temperature 224°F  199°F  221°F
Flexibility Best  Best  Better
View  View  View

Z flex® (VNH) Rugged Pull-through Cable Bundling

A pull-through cable bundling and protection solution that utilizes a flame retardant, waterproof jacketing and a nylon cloth leader for easy installation.

Drawing Number(s): ZT05-10-001

Selected Part Number: ZT05-10-001-1.625-B

  • VNH-23 jacketing meets Mil-C-20696 / Mil-PRF-20696, Type II, Class 2 requirements
  • Double heat-sealed edges provides complete security and protection of components inside
  • Nylon cloth leader wraps around wires or cables for easy pull-through installation
  • Features

  • Military-grade jacketing for use in military and aerospace industries
  • Engineered for flat cables or wires that need durable protection
  • Operational temperature range of -67°F to 167°F (-55°C to 75°C)
  • Benefits

  • Flame-retardant, abrasion-resistant, waterproof jacketing
  • Can be cut to any desired length for versatility in applications
  • No tools are required for installation
  • Z flex® (VNH) Rugged Pull-through Cable Bundling

    Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
