Z flex® (PFR) Polyurethane Pull-through Cable Bundling

A military-grade, flame-retardant, pull-through cable and wire protection solution that has a nylon cloth leader.

Drawing Number(s): ZT94-10-006

Z flex® (PFR) Polyurethane Pull-through Cable Bundling
RoHS Military Grade

Select product options

Please fill in at least one field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Selected Part Number:ZT94-10-006-1.625-B
Get A Quote
WARNING: Cancer and Reproductive Harm | www.P65Warnings.ca.gov

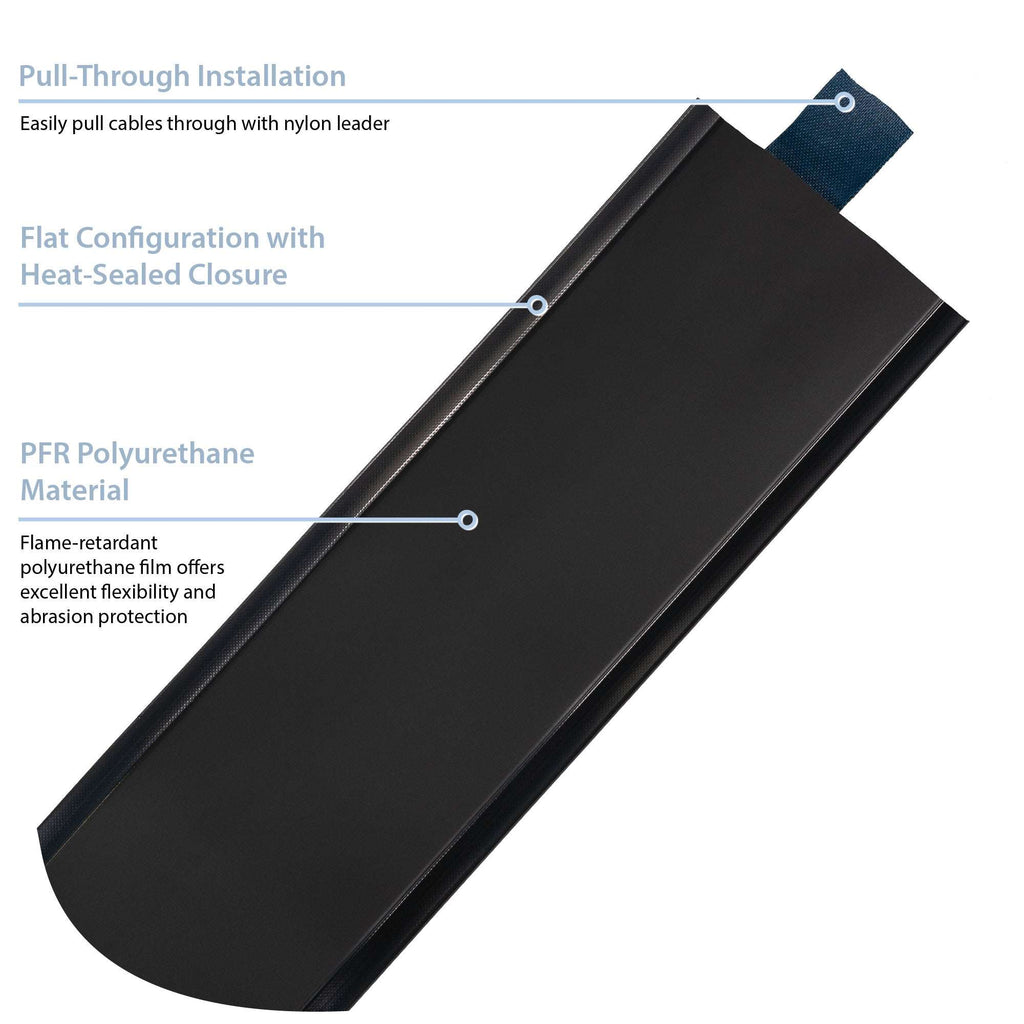

Z flex (PFR) infographic
  • This product is flame retardant that passes FAR-25, and provides a complete 360° protection to your application
  • Z Flex® offers outstanding flexibility for applications that need flat cable, wire or component protection and management
  • The best protection on airborne and shipborne applications because of its outstanding abrasion, environmental, chemical and electrical protection properties

Boasting military-tough jacketing, Z flex® (PFR) was engineered for nuclear, aerospace and military industries. Because of its military-grade specifications and extensive list of resistant properties, Z flex® (PFR) is the ideal choice for applications that have stringent requirements. The double heat-sealed edges completely protect interior components from dust, debris, fluid and other harsh environmental conditions. No tools are required to install Z flex® (PFR). Additionally, Z flex® (PFR) is supplied in reel form, can be easily cut to various lengths and features a nylon oxford cloth leader for easy pull-through installation.

The PFR-18 jacketing is an ether-based polyurethane film material that is flame retardant, fungus resistant, fluid resistant and abrasion resistant. It is RoHS compliant and has also passed FAR-25 requirements for flammability. The PFR-18 jacketing is military grade as well, meeting Mil-C-27072, Mil-C-13777 and Mil-I-3930/21 specifications.

Z flex® (PFR) is ideal for flat cables ranging from 1.625” to 3.5” in diameter. Custom sizes, lengths and colors are available upon request.

Overall Performance

  • Material: PFR-18
  • Diameter: 1.625" (1 5/8)
  • Maximum Operating Temperature: 224°F
  • Minimum Operating Temperature: -67°F
  • RoHS: RoHS-6
  • Shelf-Life: 60 months

PFR-18

  • Mil-Spec: Mil-C-27072; Mil-C-13777; Mil-I-3930/21
  • Copper Corrosion: Mil-C-27072 & 13777
  • Dielectric Constant: 5.0 - 6.0
  • Dielectric Strength: 900 volts/mil
  • Elongation: 650%
  • Flame Retardant: UL 94 V-0
  • Fungus Resistance: Mil-Std-810, Method 508.3
  • Color: Black
  • Thickness: 0.018"
  • Material: Polyurethane Film
  • Maximum Operating Temperature: 225°F
  • Minimum Operating Temperature: -67°F
  • RoHS: RoHS-10
  • Shelf Life: 60 Months
  • Tensile Strength: 4,000 psi.
  • Ozone Resistance: No Cracks
Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
Channel-Wrap® (PFR) Robotic Cable Sleeving  Z flex® (63) PVC Pull-through Cable Bundling  ZTT® (PVL) Pull-Through Cable Bundling
NAME CHANNEL-WRAP® (PFR) ROBOTIC CABLE SLEEVING  Z FLEX® (63) PVC PULL-THROUGH CABLE BUNDLING  ZTT® (PVL) PULL-THROUGH CABLE BUNDLING
DESCRIPTION A flexible, wrap-around robotic cable management sleeve with a Velcro-style hook-and-loop closure for bundling and protecting crucial wires and cables.  A pull-through bundling sleeve equipped with a nylon cloth leader, made of a 0.02” thick military-grade material that offers protection from abrasion & fluid.  A pull-through cable bundling solution with a fire-retardant jacket that is available in multiple colors—equipped with a nylon cloth leader for easy installation.
Closure Hook-and-Loop (Nylon)
RoHS RoHS-10  RoHS-6  RoHS-10
Abrasion Resistance Best  Best  Better
Installation Type Wrap-Around  Pull Through  Pull-Through
Purpose Sleeve  Sleeve  Sleeve
Min Temperature Extreme  Low  Moderate
Minimum Operating Temperature -67°F  -4°F  -40°F
Max Temperature Low  Moderate  Low
Maximum Operating Temperature 199°F  221°F  179°F
Flexibility Best  Better  Better
View  View  View

Z flex® (PFR) Polyurethane Pull-through Cable Bundling

A military-grade, flame-retardant, pull-through cable and wire protection solution that has a nylon cloth leader.

Drawing Number(s): ZT94-10-006

Selected Part Number: ZT94-10-006-1.625-B

  • This product is flame retardant that passes FAR-25, and provides a complete 360° protection to your application
  • Z Flex® offers outstanding flexibility for applications that need flat cable, wire or component protection and management
  • The best protection on airborne and shipborne applications because of its outstanding abrasion, environmental, chemical and electrical protection properties
  • Features

  • No tools are required for installation
  • Heavy-duty cable bundling and protection
  • Operational temperature ranges from -67°F to 224°F (-55°C to 107°C)
  • Benefits

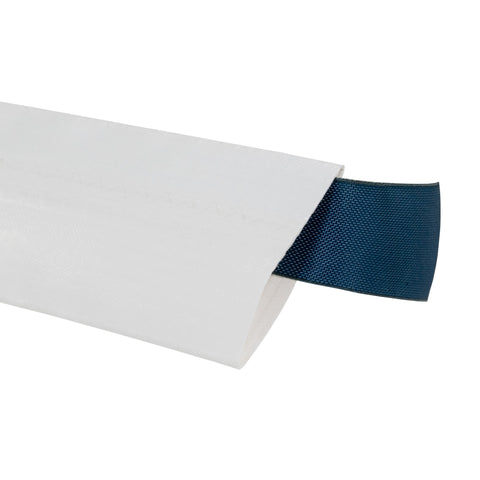

  • Nylon oxford cloth leader for fast and easy pull-through of cables or wires
  • Double heat-sealed edges for 360° security of components
  • PFR-18 jacketing is flame retardant and abrasion resistant for components that are exposed to harsh conditions
  • Z flex® (PFR) Polyurethane Pull-through Cable Bundling
