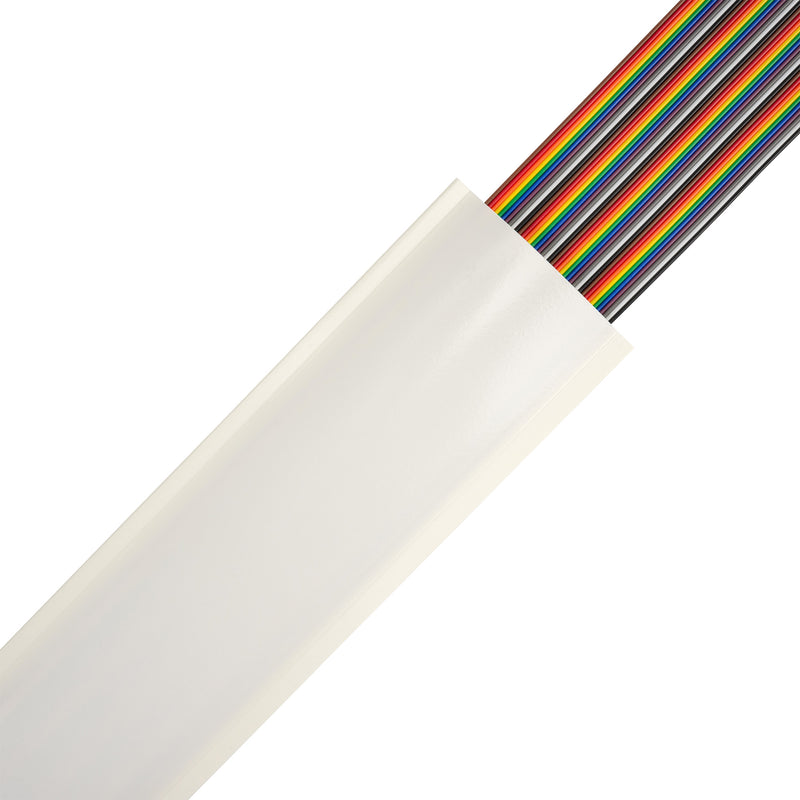

Z flex® (TPU) Polyurethane Pull-through Cable Sleeve

Name: Z flex® (TPU) Polyurethane Pull-through Cable Sleeve
Brand: Zippertubing
SKU: ZT17-10-001-1.625-W-W
Availability: InStock

A flame-retardant, pull-through cable protection solution that offers the best in abrasion resistance and is equipped with a nylon cloth leader.

Drawing Number: ZT17-10-001

Select product options

Length:

Please fill in at least one field.

Diameter: Please fill in the field.

Height: Please fill in the field.

Width: Please fill in the field.

Height: Please fill in the field.

Width: Please fill in the field.

Quantity:

Selected Part Number:ZT17-10-001-1.625-W-W

Get A Quote

Print Datasheet

Overview

Complete, 360-degree protection and bundling
abrasion-resistant, ozone-resistant, microorganism-resistant jacketing
UL-rated for flammability, meeting UL 94 V-0

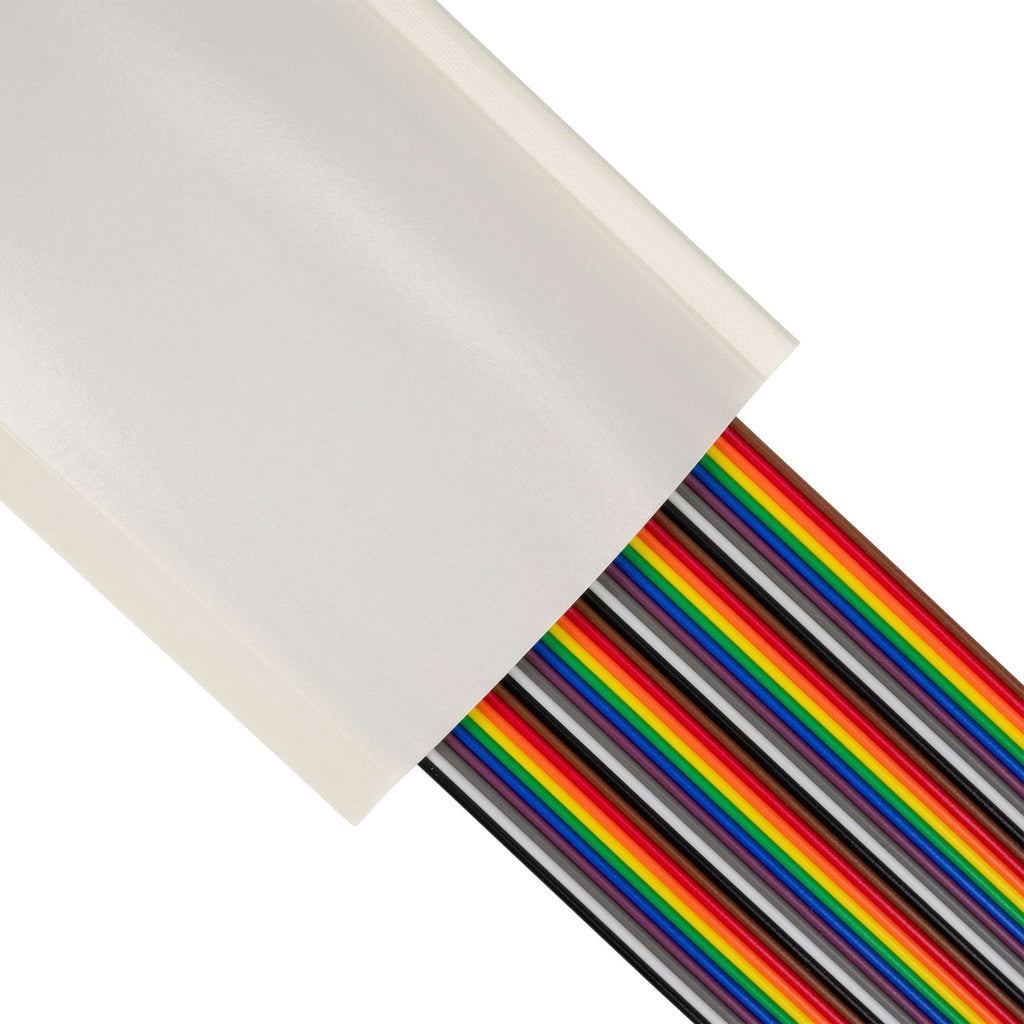

Z flex® (TPU) features the thermoplastic polyurethane film and a nylon cloth leader. The TPU jacketing is halogen free, making this material a viable option for medical industry applications. The jacketing is UL-rated with meeting UL 94 V-0 for flame retardancy. Additionally, the TPU offers superior abrasion resistance, as well as being resistant to ozone damage (Stage 0, “Crack Free”) and microorganisms. The nylon cloth leader allows for an easier installation; just wrap the oxford leader around wires or cables and pull-through. The double heat-sealed edges provide complete protection of components inside from debris, fluids, and other harsh environmental conditions.

Z flex® (TPU) is supplied in spool form, and can be cut to any length needed. Z flex® (TPU) is offered for diameters ranging from 1.625” to 3.5”, with custom sizes available upon request. The operational temperature range is 67°F to 225°F (-55°C to 107°C).

Features

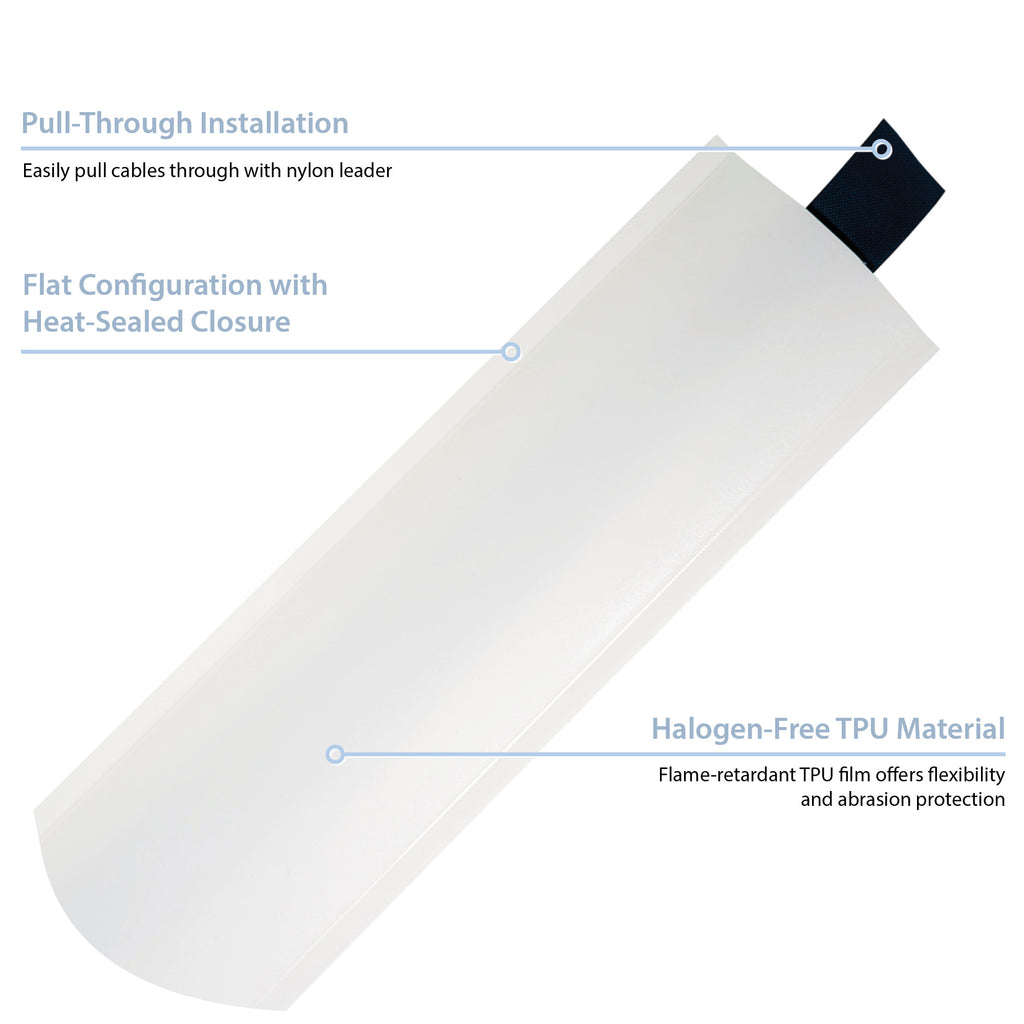

Nylon cloth leader provides easier installation of pulling wires through
Lightweight jacketing with the best abrasion resistance
Operational temperature range is 67°F to 225°F (-55°C to 107°C)

Benefits

No tools are required for installation

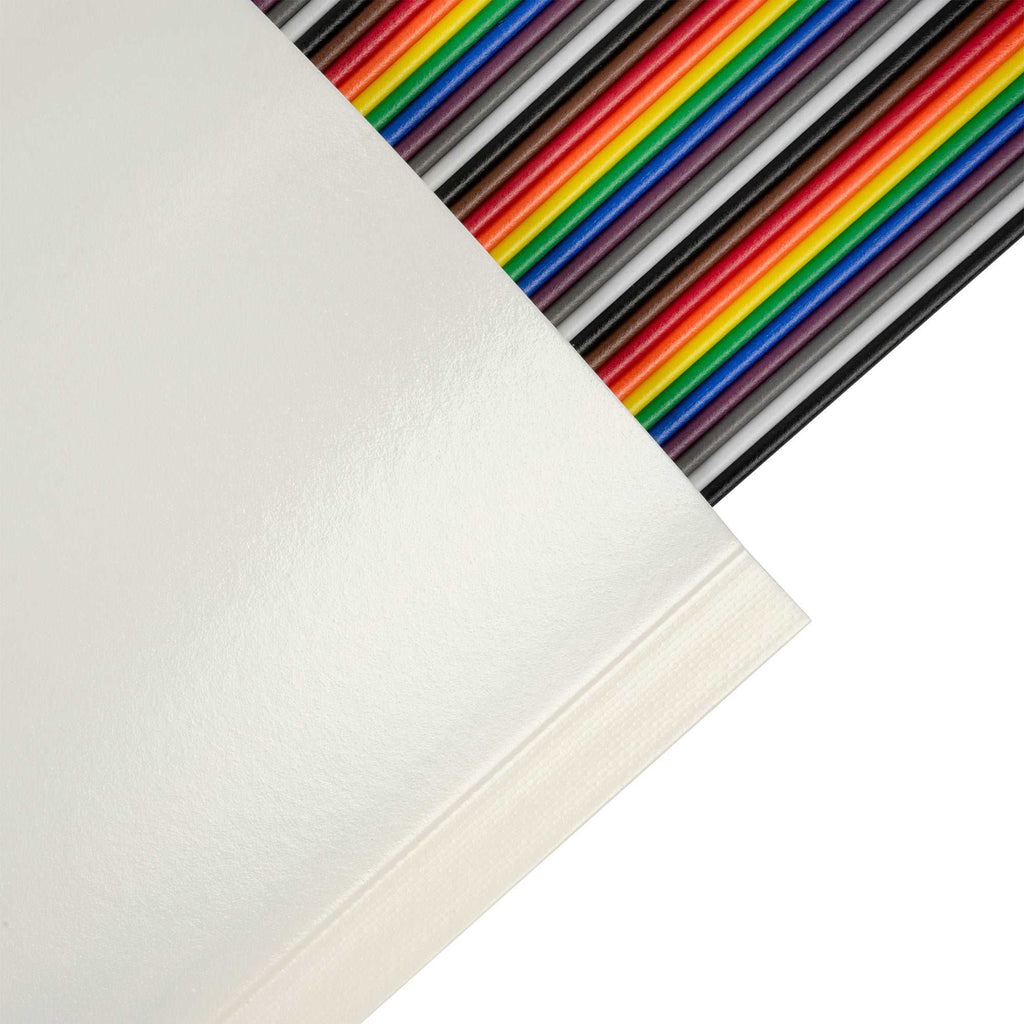

Double heat-sealed edges offers complete protection

Installation Instructions

FREQUENTLY ASKED QUESTIONS

Q: What lengths of Z Flex jacketing are available?

A: Typical spool lengths for most sizes are 100 feet, but will depend on total order footage. Custom lengths can be provided, just make sure to ask when ordering or include details on the PO for the lengths required.

Q: Can I cut the tubing?

A: Yes. Standard scissors are suitable for cutting through Z Flex sleeves.

Q: What diameter of jacketing do I need? Is it recommended to oversize?

A: We will often suggest oversizing the sleeve diameter by 1/8” to allow for ease of installation. If the application
requires significant bending or flexing we will suggest even more extra room. For assistance with sizing you can also contact one of our design engineers.

Q: What is the minimum bend radius of the tubing?

A: There is no minimum bend radius for our Z flex products. The flexible jacketing material allows for extreme amounts of bending and flexing. The bend radius of the installed sleeving is typically dictated by the harness it is covering.

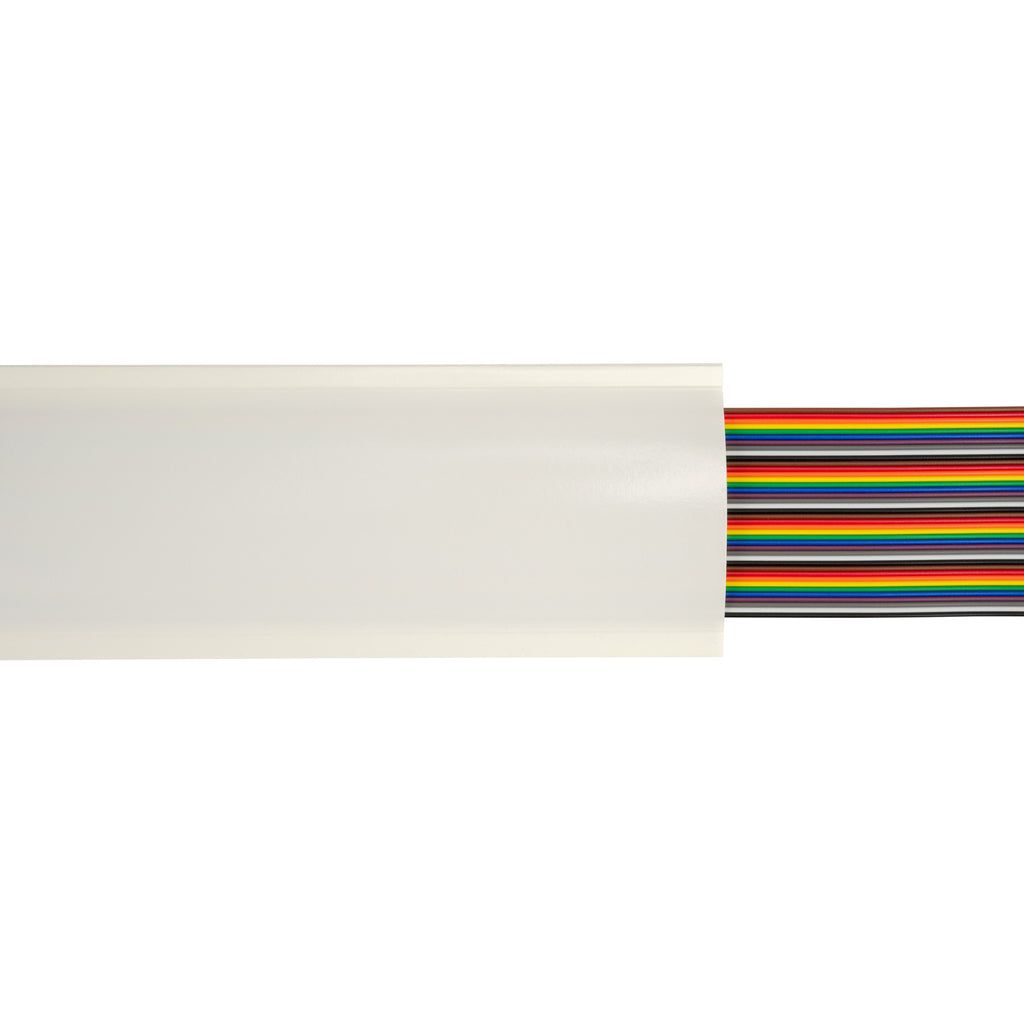

Q: This jacketing looks flat, but I have a round cable, will this still work?

A: Z flex was designed to be used on flat ribbon cables, but can be used on any shape of cable harness. For round cables, ZTT or one of our many other jacketing options may provide a better fit.

Q: What is the nylon pull-through leader and do I need it?

A:The nylon fabric leader is an optional installation aid.For short sections of tubing it is not necessary, but can be very helpful for longer cable runs.First, one end is tied, taped, or otherwise attached to the cable to be covered.Then the opposite end of the leader is pulled out of the Z flex jacketing, bringing the cable with it, through the sleeving.

Specifications

Overall Performance

Material: TPU-20
Diameter: 1.625" (1 5/8)
Maximum Operating Temperature: 257°F
Minimum Operating Temperature: -40°F
RoHS: RoHS-6
Shelf-Life: 60 months

TPU-20

Durability: Better
REACH: Compliant
Elongation: 350%
Flammability: Self-extinguishing
Color: White
Thickness: 0.020"
Thickness Variance: +/- 0.001"
Material: Thermoplastic polyurethane
Maximum Operating Temperature: 257°F
Minimum Operating Temperature: -40°F
RoHS: RoHS-10
Tensile Strength: 4,300 psi.
Ozone Resistance: Stage 0, "Crack Free"

Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
