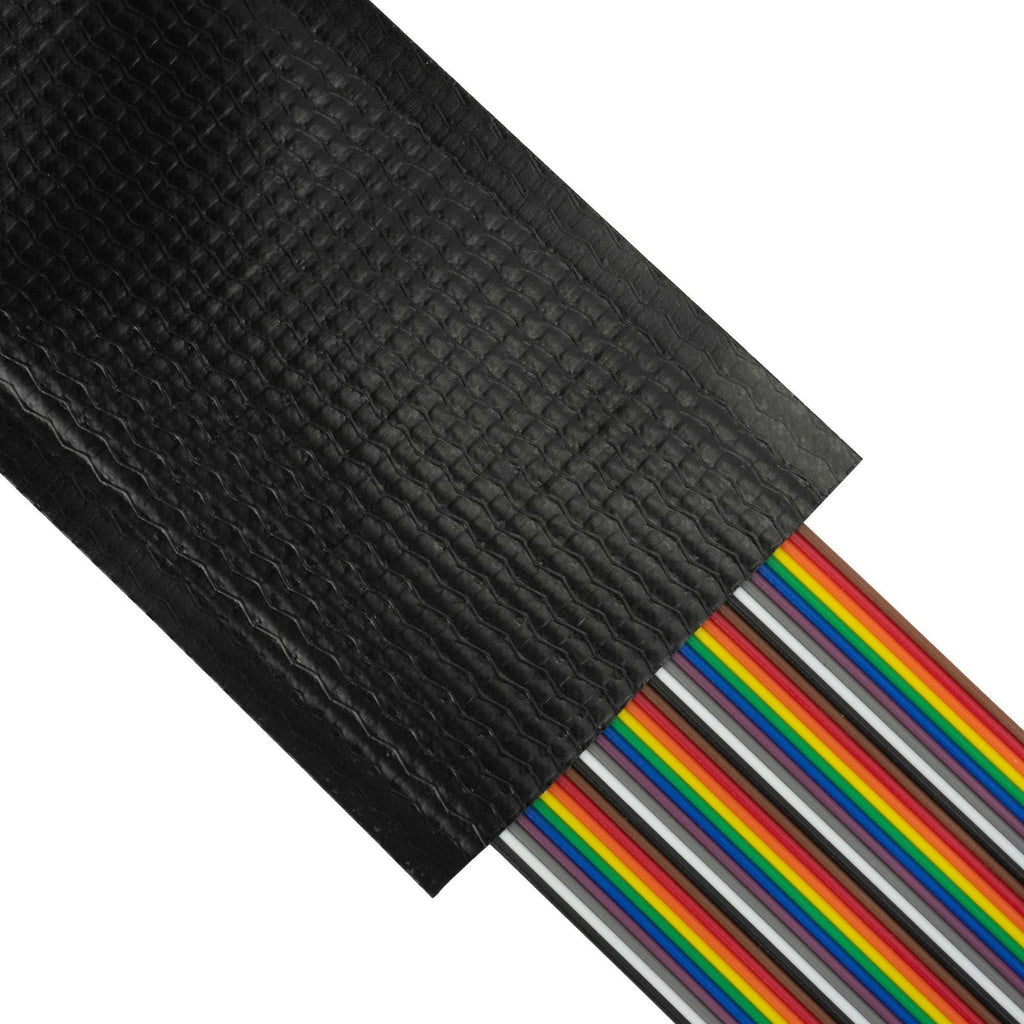

Z flex® (PVL) Flexible Pull-through Cable Sleeve

A pull-through, lightweight, abrasion-resistant cable sleeving solution equipped with a nylon cloth leader for easy installation.

Drawing Number(s): ZT94-10-007

Z flex® (PVL) Flexible Pull-through Cable Sleeve
RoHS Military Grade

Select product options

Please fill in at least one field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Selected Part Number:ZT94-10-007-1.625-B
Get A Quote
WARNING: Cancer and Reproductive Harm | www.P65Warnings.ca.gov

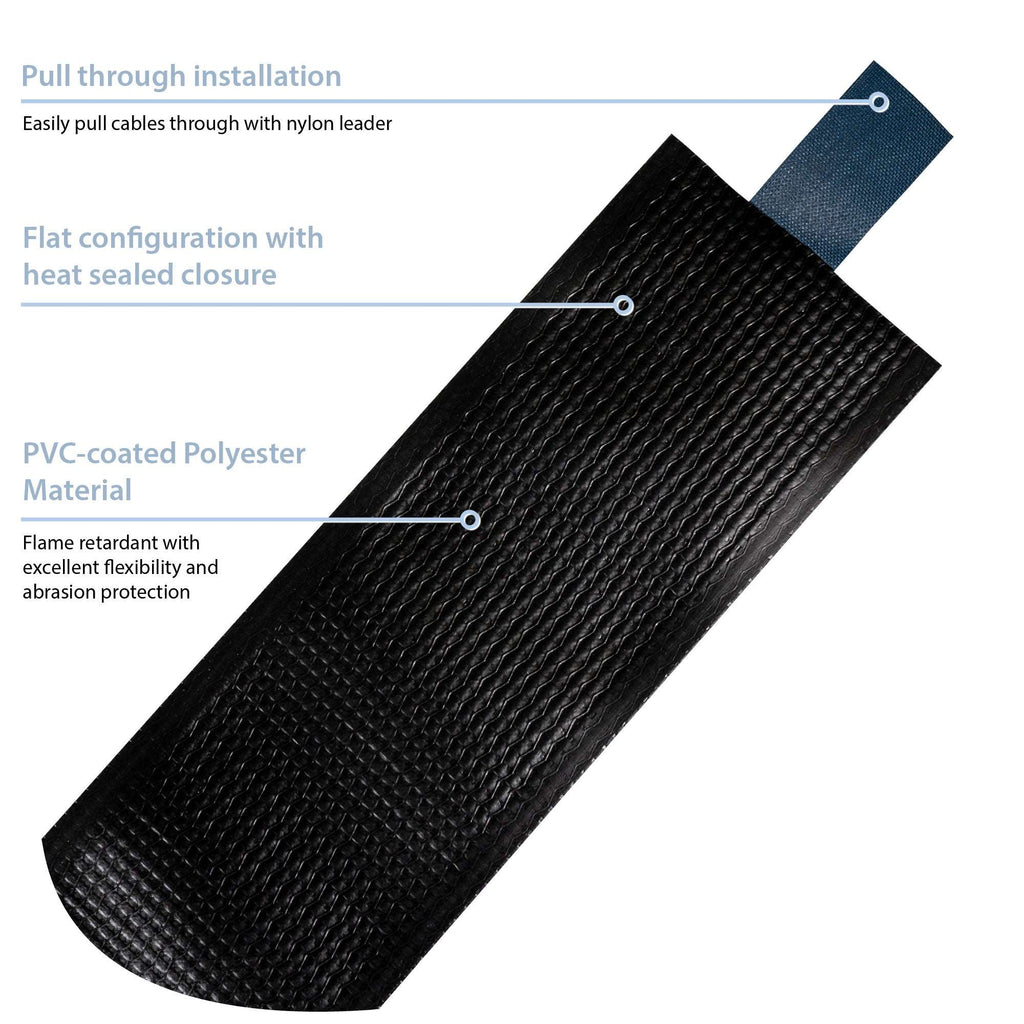

Z flex® (PVL) infographic
  • PVL-10 jacketing meets MIL-C-43006G, Type II, Class 1 requirements
  • Nylon cloth leader wraps around wires or cables for easy pull-through installation
  • Fire retardant, abrasion resistant, and chemical resistant cable management solution

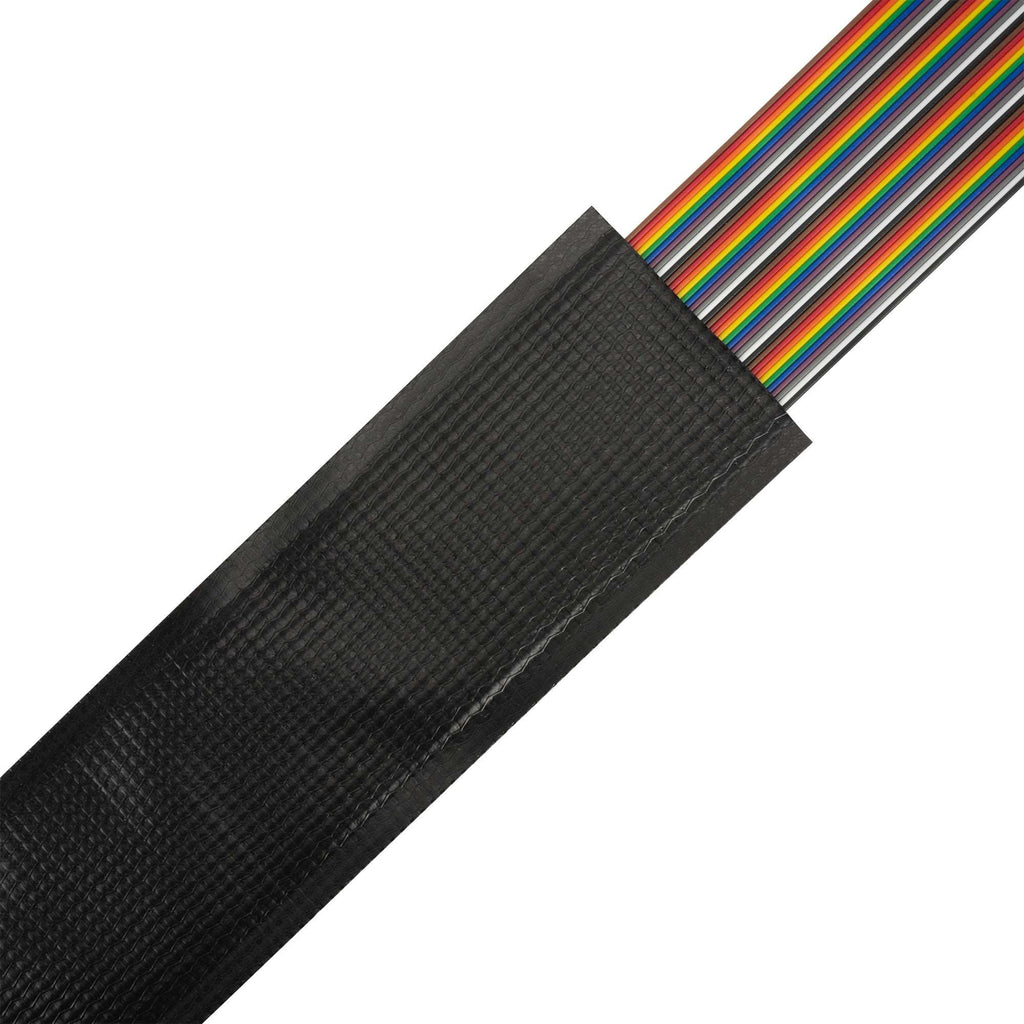

Z flex® (PVL) is an economical, heavy duty, pull-thru jacketing system for flat cables made from Zippertubing's type PVL-10. This configuration is ideal for inter-connection applications where mechanical protection is required and a sealed, flat, tubular jacket is desirable. Z flex® is supplied in reel form and is easily cut to any length required.

A special "blue-line" nylon cloth leader inside the jacket is provided for fast, easy pull-through of the cable. Z flex® (PVL) is available in many standard sizes to fit the most popular flat cable sizes ranging from 20 to 64 conductors. Custom sizes and colors are also available.

Refer to Zippertubing's PVL-10 data sheet below for specific material characteristics.

Overall Performance

  • Material: PVL-10
  • Diameter: 1.625" (1 5/8)
  • Maximum Operating Temperature: 179°F
  • Minimum Operating Temperature: -40°F
  • RoHS: RoHS-6
  • Shelf-Life: 36 Months

PVL-10

  • Mil-Spec: MIL-C-43006G, Type II, Class 1
  • REACH: Compliant
  • Chemical Resistance: Good
  • Flame Retardant: FED-STD-191 Method 5903
  • Thickness: 0.010"
  • Material: PVC-Coated Polyester
  • Maximum Operating Temperature: 180°F
  • Minimum Operating Temperature: -40°F
  • RoHS: RoHS-10
  • Shelf Life: 36 Months
  • Tensile Strength: 120 lbs/min (warp); 100 lbs/min (fill)
Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
Z flex® (PFR) Polyurethane Pull-through Cable Sleeve  Channel-Wrap® (PFR) Robotic Cable Sleeving  Z flex® (63) PVC Pull-through Cable Sleeve
NAME Z FLEX® (PFR) POLYURETHANE PULL-THROUGH CABLE SLEEVE  CHANNEL-WRAP® (PFR) ROBOTIC CABLE SLEEVING  Z FLEX® (63) PVC PULL-THROUGH CABLE SLEEVE
DESCRIPTION A military-grade, flame-retardant, pull-through cable and wire protection solution that has a nylon cloth leader.  A flexible, wrap-around robotic cable management sleeve with a Velcro-style hook-and-loop closure for bundling and protecting crucial wires and cables.  A pull-through bundling sleeve equipped with a nylon cloth leader, made of a 0.02” thick military-grade material that offers protection from abrasion & fluid.
Closure  Hook-and-Loop (Nylon)
RoHS RoHS-6  RoHS-10  RoHS-6
Abrasion Resistance Best  Best  Best
Installation Type Pull Through  Wrap-Around  Pull Through
Purpose Sleeve  Sleeve  Sleeve
Min Temperature Extreme  Extreme  Low
Minimum Operating Temperature -67°F  -67°F  -4°F
Max Temperature Moderate  Low  Moderate
Maximum Operating Temperature 224°F  199°F  221°F
Flexibility Best  Best  Better
View  View  View
Zippertubing

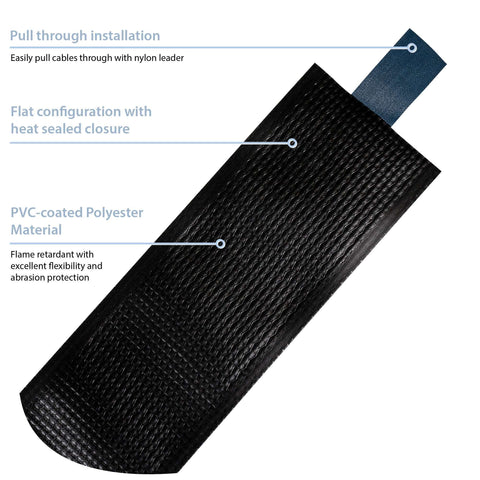

Z flex® (PVL) infographic

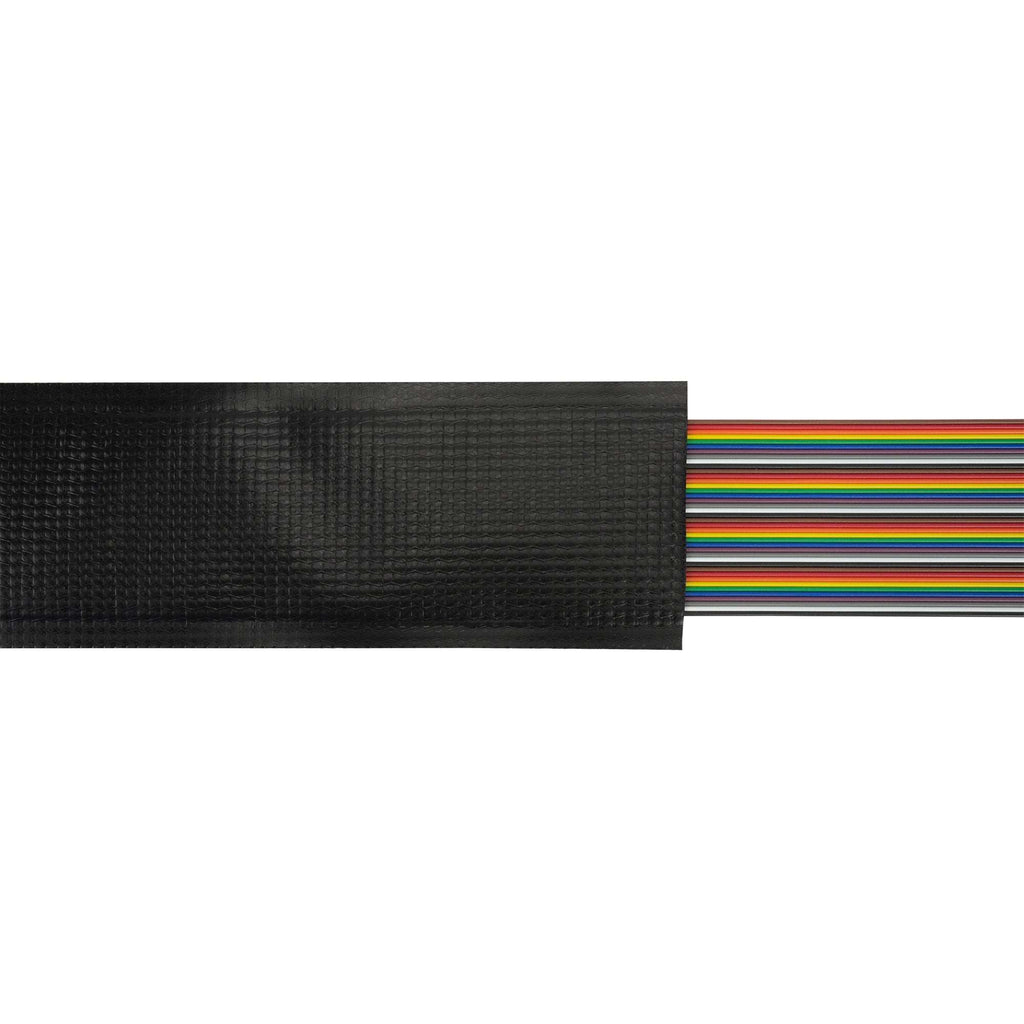

Z flex® (PVL) Flexible Pull-through Cable Sleeve

A pull-through, lightweight, abrasion-resistant cable sleeving solution equipped with a nylon cloth leader for easy installation.

Drawing Number(s): ZT94-10-007

Selected Part Number: ZT94-10-007-1.625-B

  • PVL-10 jacketing meets MIL-C-43006G, Type II, Class 1 requirements
  • Nylon cloth leader wraps around wires or cables for easy pull-through installation
  • Fire retardant, abrasion resistant, and chemical resistant cable management solution
  • Military
    Z flex (PVL)
    Z flex® (PVL) cable management solutions
    Z flex® (PVL) wire and cable protection
    Z flex® (PVL) electrical cable protection

    Features

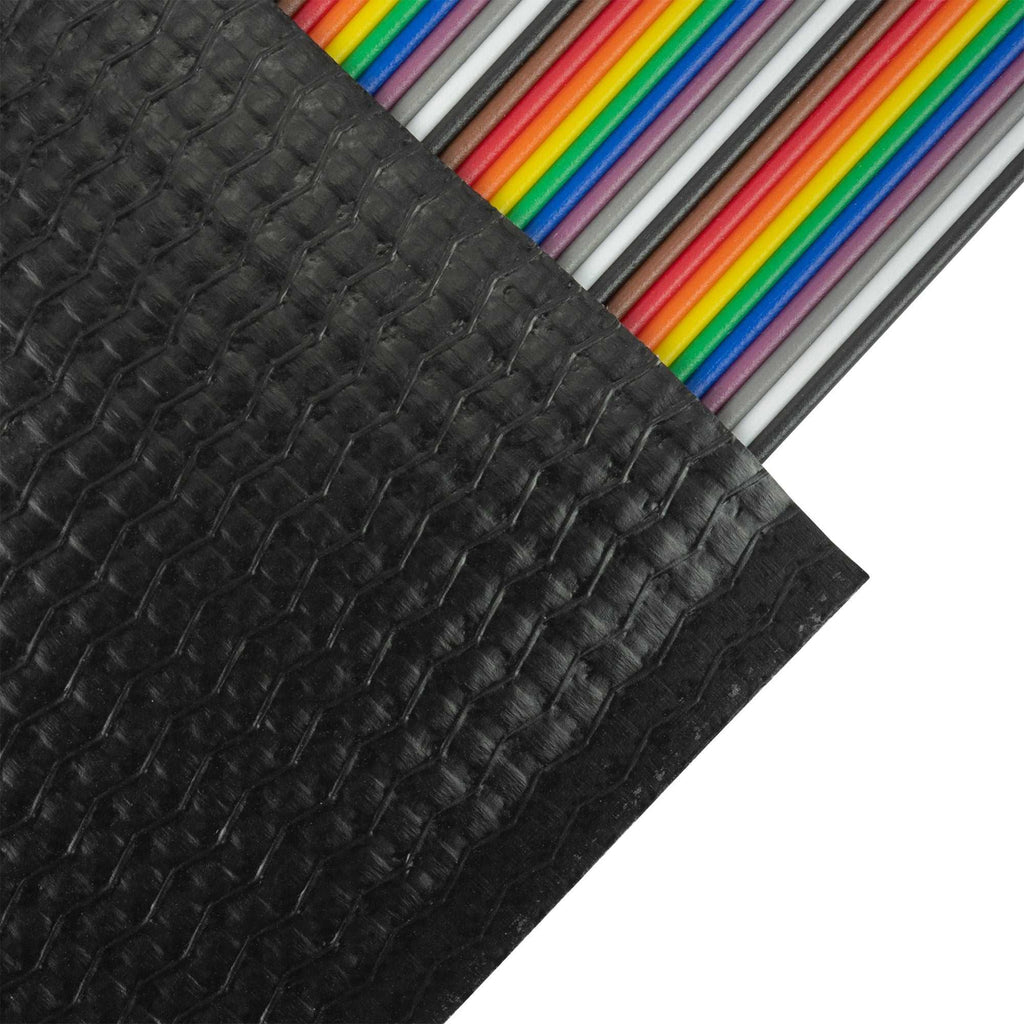

  • Double heat sealed edges provides 360-degree security of components
  • No tools are required for installation
  • Operational temperature range of -40°F to 180°F (-40°F to 82°C)
  • Benefits

  • Ideal for flat components that need protection and bundling
  • Can be cut to any desired length
  • Jacketing is resistant to abrasion, chemicals, and flames
  • Z flex® (PVL) Flexible Pull-through Cable Sleeve

    Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.

    Z flex® (PVL) Flexible Pull-through Cable Sleeve

    MATERIAL SPECIFICATIONS
