Z-Block® (135) Water Blocking Hot-Melt Adhesive Tape

$157.52

A hot-melt adhesive tape that blocks and seals wires from water, oils, greases, and most fluids and can handle temperatures up to 275°F (135°C).

Drawing Number(s): ZT11-03-001

Z-Block® (135) Water Blocking Hot-Melt Adhesive Tape
RoHS

Select product options

Selected Part Number:ZT11-03-001-2.0-X300.0

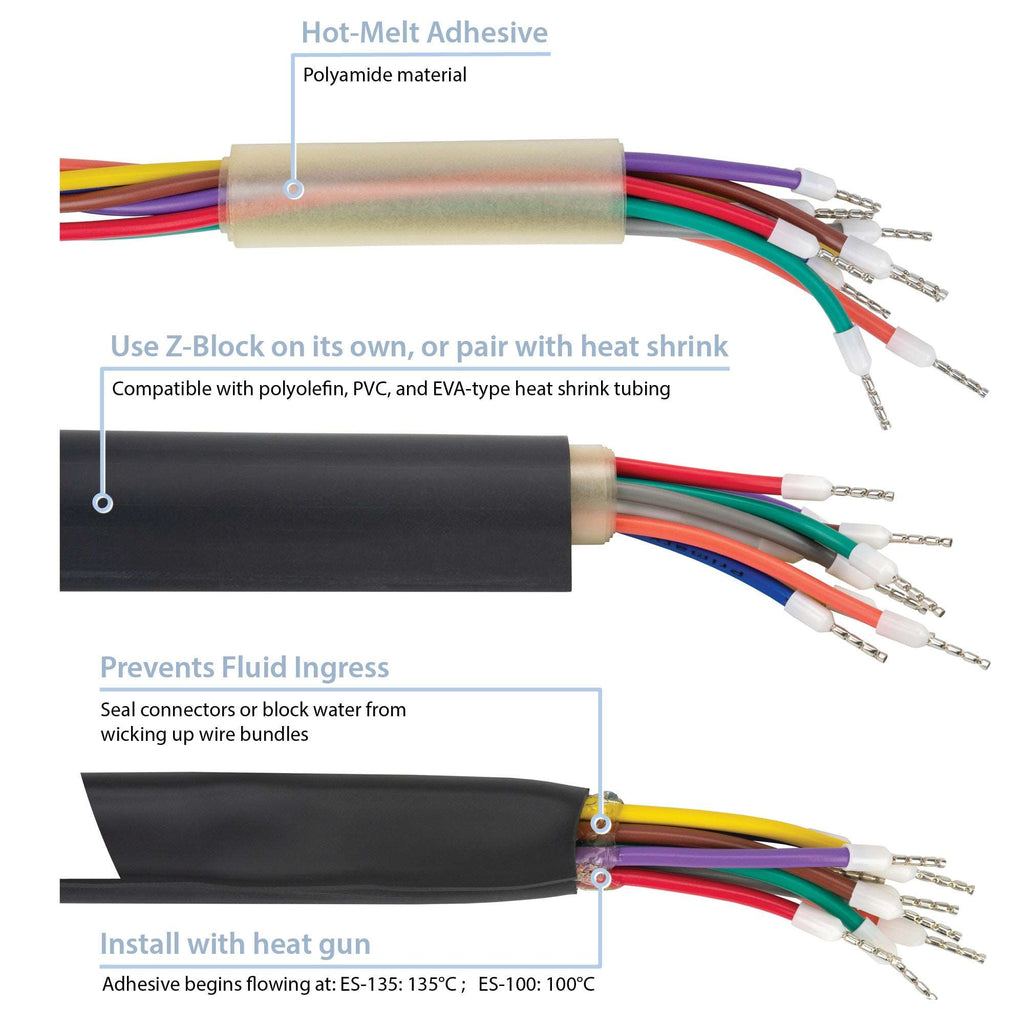

Z-Block (135) Infographic

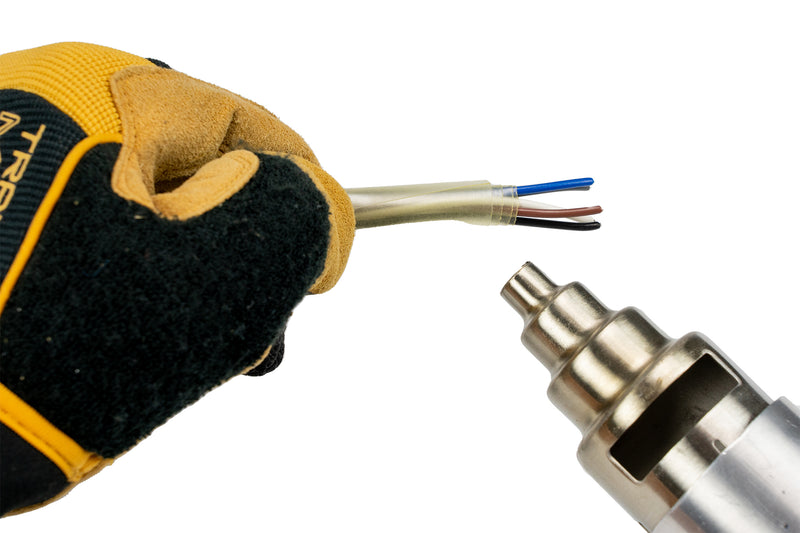

  • Quick installation with only needing a standard heat gun
  • Environmental sealant for any shape wire or cable
  • Compatible with polyolefin, PVC, and EVA-type heat shrink tubing

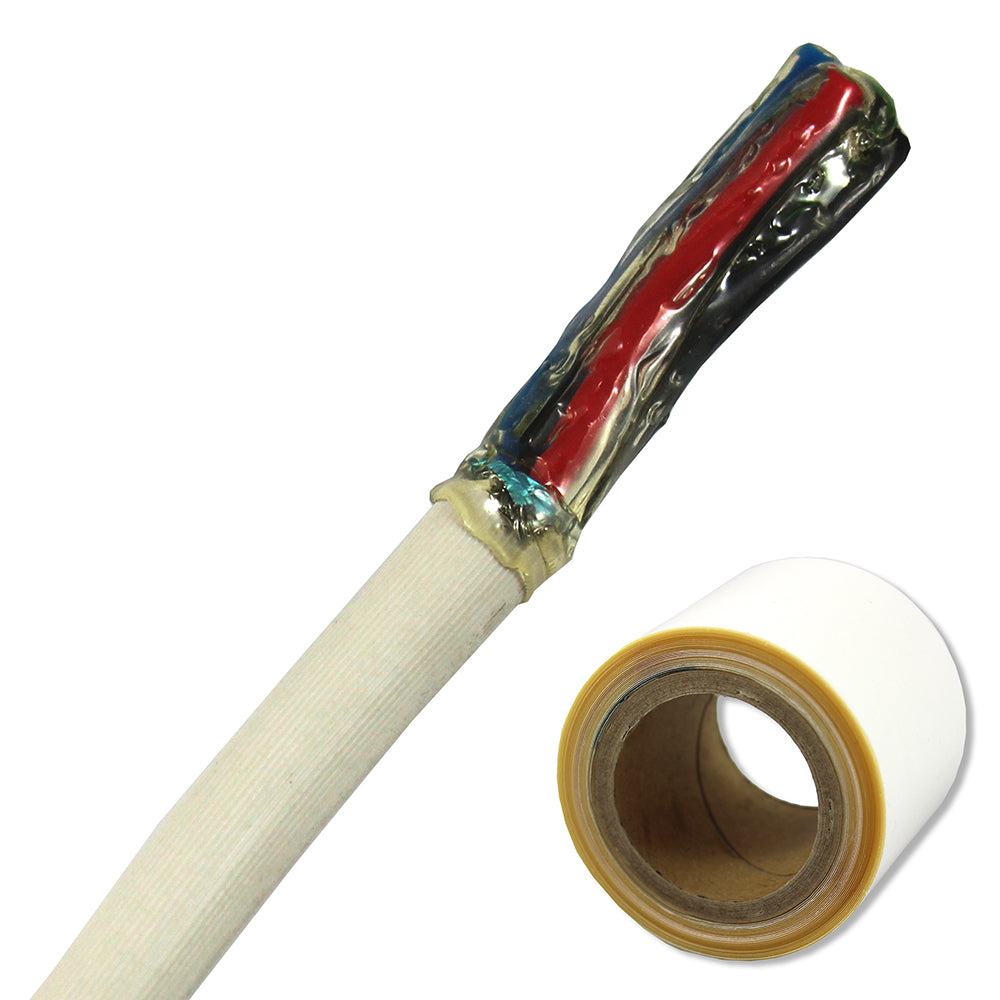

Z-Block® (135) is resistant to most fluids, making this hot-melt, heat shrink tape the ideal solution for protecting wires or cables exposed to water, oils, or greases. Z-Block® (135) will create no corrosion of copper and aluminum metal substrates and is RoHS compliant. Z-Block® (135) is an environmental seal that will prevent fluid from damaging or penetrating components and is versatile to be used on various sizes and shapes.

For the consumer marketplace, Z-Block® (135) pairs perfectly with our Shrink-N-Repair® to seal and repair. Z-Block® (135) is also utilized in the wrap-around, military-grade PRT® (ES-135) to create a durable and lasting water-blocking repair. Sealing with Z-Block® (135) creates an impossible barrier for fluids to enter, which extends the lives of your components and ensures ultimate protection.

Z-Block® is available in two different temperature ranges – Z-Block® (100) can be used on applications exposed to temperatures up to 212°F (100°C), and Z-Block® (135) can be exposed to temperatures up to 275°F (135°C).

Z-Block® (135) is available in 2” width and 25 feet spools, with custom widths and lengths available upon request. Z-Block® (135) has an operational temperature range of -67°F to 275°F (-55°C to 135°C).

Overall Performance

  • Closure: Adhesive
  • Material: Polyamide Hot Melt (135)
  • Flame Retardant: No Fire Retardants
  • Heat Shrink Material: Polyamide Hot Melt
  • Material: {}
  • Thickness: 0.008"
  • Material Type: Polyamide Hot Melt Tape
  • Maximum Operating Temperature: 275°F
  • Minimum Operating Temperature: -67°F
  • RoHS: RoHS-10
  • Shelf-Life: 60 months
  • Width: 2.0" Wide

Polyamide Hot Melt (135)

  • REACH: Compliant
  • Elongation: 350%
  • Material: Polyamide Polymer
  • Color: Amber (semi-transparent)
  • Thickness: 0.008"
  • Maximum Operating Temperature: 275°F
  • Minimum Operating Temperature: -67°F
  • Water Absorption: 0.5% maximum
  • RoHS: RoHS-10
  • Shelf Life: 60 Months
  • Softening Temp: 284°F
  • Softening Temp Variance: +/- 9°F
Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
PRT® MIL-SPEC Wrap-Around Heat Shrink Tubing  Shrink-N-Repair® (M) Wrap-Around Heat Shrink  PRT® (ES-135) Water-Blocking Wrap-Around Heat Shrink
NAME PRT® MIL-SPEC WRAP-AROUND HEAT SHRINK TUBING  SHRINK-N-REPAIR® (M) WRAP-AROUND HEAT SHRINK  PRT® (ES-135) WATER-BLOCKING WRAP-AROUND HEAT SHRINK
DESCRIPTION A wrap-around heat shrink made from MIL-SPEC tubing that repairs electrical systems and assembled components and is resistant to abrasion and chemicals.  A wrap-around, abrasion-resistant, fluid-resistant heat shrink that repairs wires or cables with diameters up to 0.5”.  A wrap-around, military-grade heat shrink paired with a high-temperature water blocking, hot-melt adhesive that protects against harsh environmental conditions.
Closure Tape (Specialty Surface)  Tape (Specialty Surface)  Tape (Specialty Surface)
RoHS RoHS-10  RoHS-10  RoHS-10
Abrasion Resistance Best  Best  Best
Installation Type Wrap-Around  Wrap-Around  Wrap-Around
Purpose Wire Repair  Wire Repair  Water Blocking
Min Temperature Extreme  Moderate  Extreme
Minimum Operating Temperature -67°F  -67°F  -67°F
Max Temperature Moderate  Low  Moderate
Maximum Operating Temperature 275°F  275°F  275°F
Flexibility
View  View  View

Z-Block® (135) Water Blocking Hot-Melt Adhesive Tape

A hot-melt adhesive tape that blocks and seals wires from water, oils, greases, and most fluids and can handle temperatures up to 275°F (135°C).

Drawing Number(s): ZT11-03-001

Selected Part Number: ZT11-03-001-2.0-X300.0

  • Quick installation with only needing a standard heat gun
  • Environmental sealant for any shape wire or cable
  • Compatible with polyolefin, PVC, and EVA-type heat shrink tubing
  • Features

  • Fits around any shape or size component
  • Pairs well with our wrap-around heat shrink to create a lasting, water-blocking repair
  • Operational temperature range of -67°F to 275°F (-55°C to 135°C)
  • Benefits

  • Resistant to various oils such as brake fluid, engine coolant, ASTM reference oil #3, and automatic transmission fluid, making this solution ideal for the automotive industry
  • Can be intertwined easily between wire bundles to protect each wire completely
  • Corrosion resistant for copper and aluminum metal substrates
  • Z-Block® (135) Water Blocking Hot-Melt Adhesive Tape

    Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.

    Z-Block® (135) Water Blocking Hot-Melt Adhesive Tape

    MATERIAL SPECIFICATIONS
