TREVIRA Canvas Fabric - 15 Mil

Lightweight Canvas Jacketing, 15 Mil

Material Specification: 1114 RoHS REACH Compliant

Select product options

Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution.

Overview

  • Zero Cadmium
  • Lightweight & Extemely Flexible
  • Flame Retardant, Low Smoke & Toxic Gas Generation
  • UV & Ozone Resistant
  • Outstanding Wear Resistance

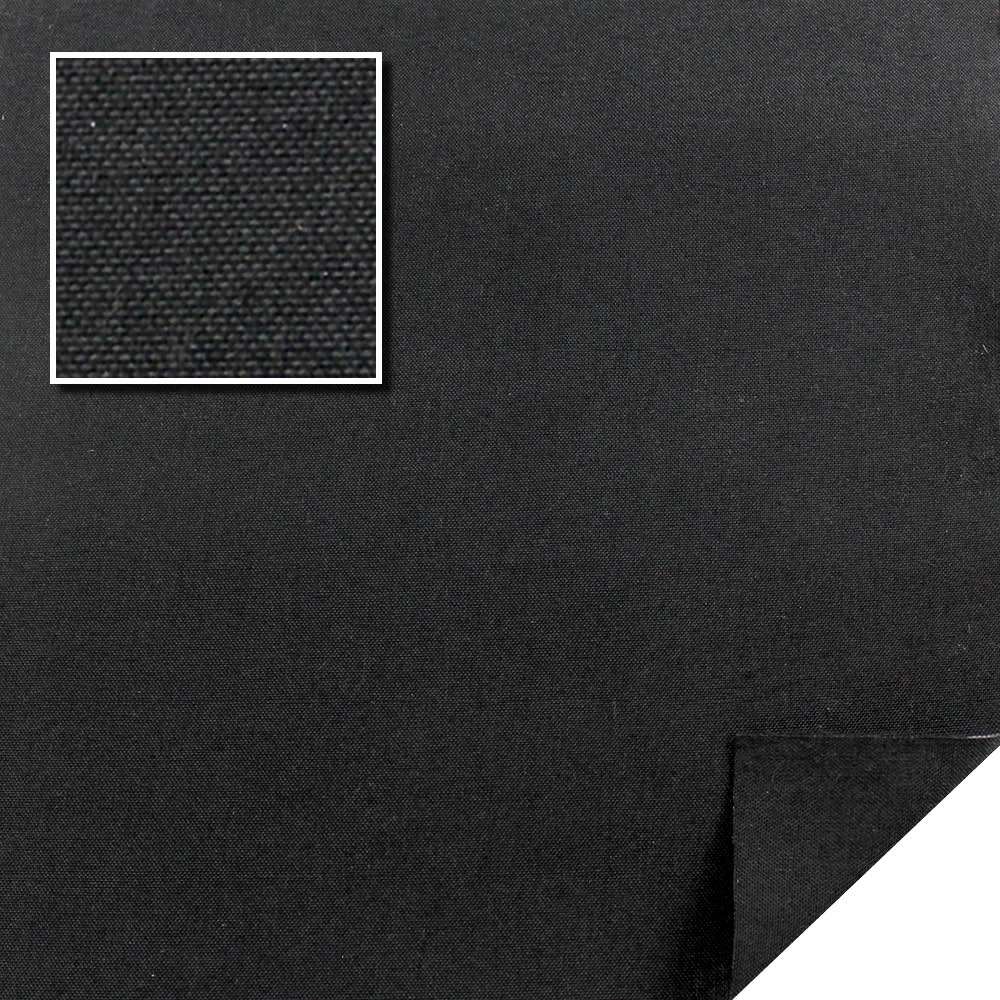

Trevira is a lightweight (.015") fire retardant woven fabric material for applications requiring a Zero Halogen and Cadmium free product. This material is self-extinguishing per FMVSS 302 and DIN 75200. It meets ASTM E 662 for smoke generation and Bombardier SMP 800-C for toxic gas generation. The material is also UV and Ozone stabilized. The patented Trevira material offers excellent wear resistance (50,000 cycles per DIN 53863F T4) combined with high tear strength in a lightweight and flexible canvas material. Jacket designs are available for round, flat or rectangular cable configurations and are typically closed with a zipper, hook and loop or a sewn closure. Trevira has an operating temperature range of -40°C to 160°C.

Specifications

  • REACH: Compliant
  • Flammability: Self-extinguishing
  • Thickness: 0.015"
  • Maximum Operating Temperature: 320°F
  • Minimum Operating Temperature: -40°F
  • RoHS: RoHS-10
  • Shelf Life: 60 Months
  • Flexibility: Best
  • Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.

    Similar Materials

    FRC-15 Canvas Fabric - 15 Mil RPH-14 - Polyurethane Coated Polyester Fabric - 14 Mil RPA-14 - Polyurethane Coated Aramid Fabric - 14 Mil
    NAME FRC-15 CANVAS FABRIC - 15 MIL RPH-14 - POLYURETHANE COATED POLYESTER FABRIC - 14 MIL RPA-14 - POLYURETHANE COATED ARAMID FABRIC - 14 MIL
    DESCRIPTION Lightweight Multi-Purpose Canvas Jacket, 15 Mil A Flexible, Medium Weight, Polyurethane Coated Polyester Fabric, 14 mil A Strong, Medium-Weight, Polyurethane Coated Aramid Fabric
    RoHS RoHS-10 RoHS-10
    Abrasion Resistance Best Best
    Min Temperature Moderate Extreme Low
    Minimum Operating Temperature -22°F -67°F -4°F
    Max Temperature Low Moderate Moderate
    Maximum Operating Temperature 140°F 356°F 302°F
    Flexibility Better Better
    View View View
    ZT-Zippertubing

    TREVIRA Canvas Fabric - 15 Mil

    Lightweight Canvas Jacketing, 15 Mil

    Material Sprcification: 1114

    • Zero Cadmium
    • Lightweight & Extemely Flexible
    • Flame Retardant, Low Smoke & Toxic Gas Generation
    • UV & Ozone Resistant
    • Outstanding Wear Resistance
    WARNING: Raw materials are not sold separately, please contact the sales department for any special requirements.

    SPECIFICATIONS

  • REACH: Compliant
  • Flammability: Self-extinguishing
  • Thickness: 0.015"
  • Maximum Operating Temperature: 320°F
  • Minimum Operating Temperature: -40°F
  • RoHS: RoHS-10
  • Shelf Life: 60 Months
  • Flexibility: Best
  • DESCRIPTION

    Trevira is a lightweight (.015") fire retardant woven fabric material for applications requiring a Zero Halogen and Cadmium free product. This material is self-extinguishing per FMVSS 302 and DIN 75200. It meets ASTM E 662 for smoke generation and Bombardier SMP 800-C for toxic gas generation. The material is also UV and Ozone stabilized. The patented Trevira material offers excellent wear resistance (50,000 cycles per DIN 53863F T4) combined with high tear strength in a lightweight and flexible canvas material. Jacket designs are available for round, flat or rectangular cable configurations and are typically closed with a zipper, hook and loop or a sewn closure. Trevira has an operating temperature range of -40°C to 160°C.

    Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
