RPA-14 - Polyurethane Coated Aramid Fabric - 14 Mil

A Strong, Medium-Weight, Polyurethane Coated Aramid Fabric

Material Specification: 1133

Select product options

Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution.

Overview

  • Withstands high heat and extremely low temperatures
  • Highly flexible
  • Abrasion and wear resistant

Featuring characteristics of an aramid base and polyurethane coating, this material offers endless possibilities when combined or sewn with our other materials such as EMI shields, and a variety of closures, creating the perfect custom solution for your needs.

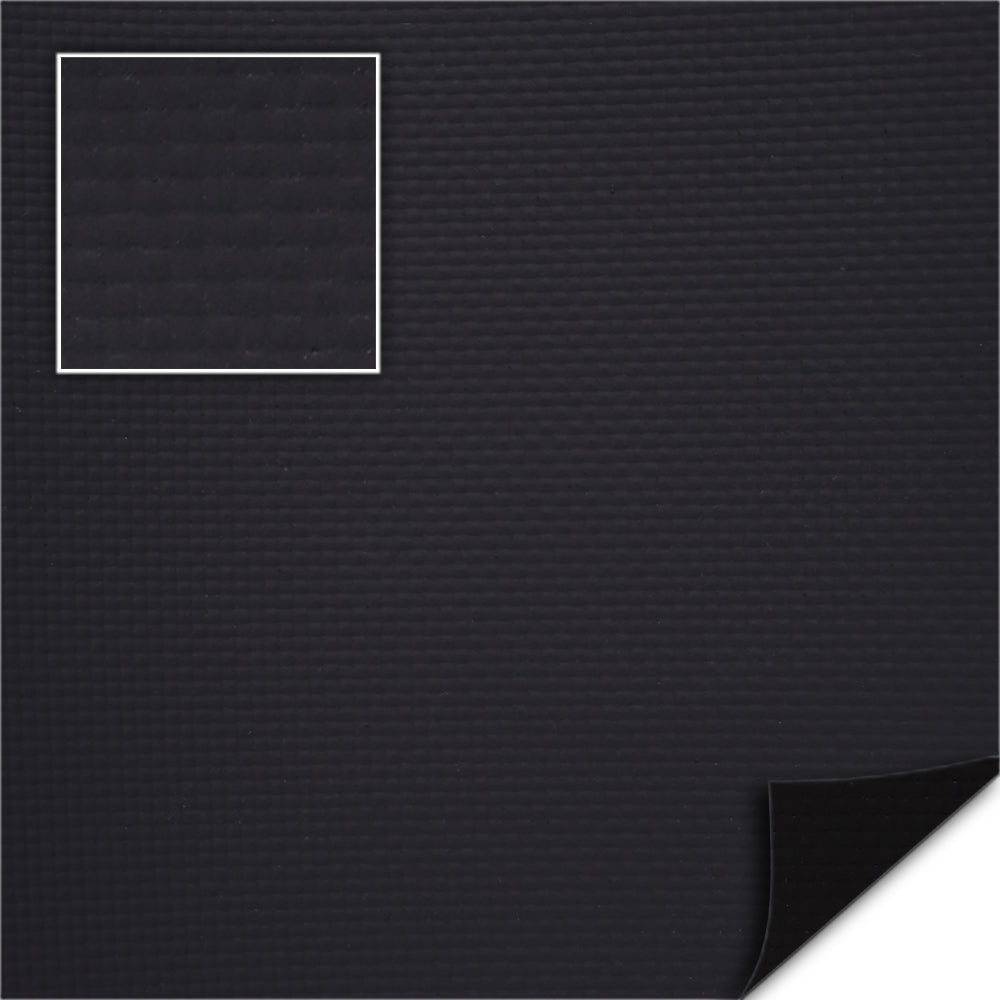

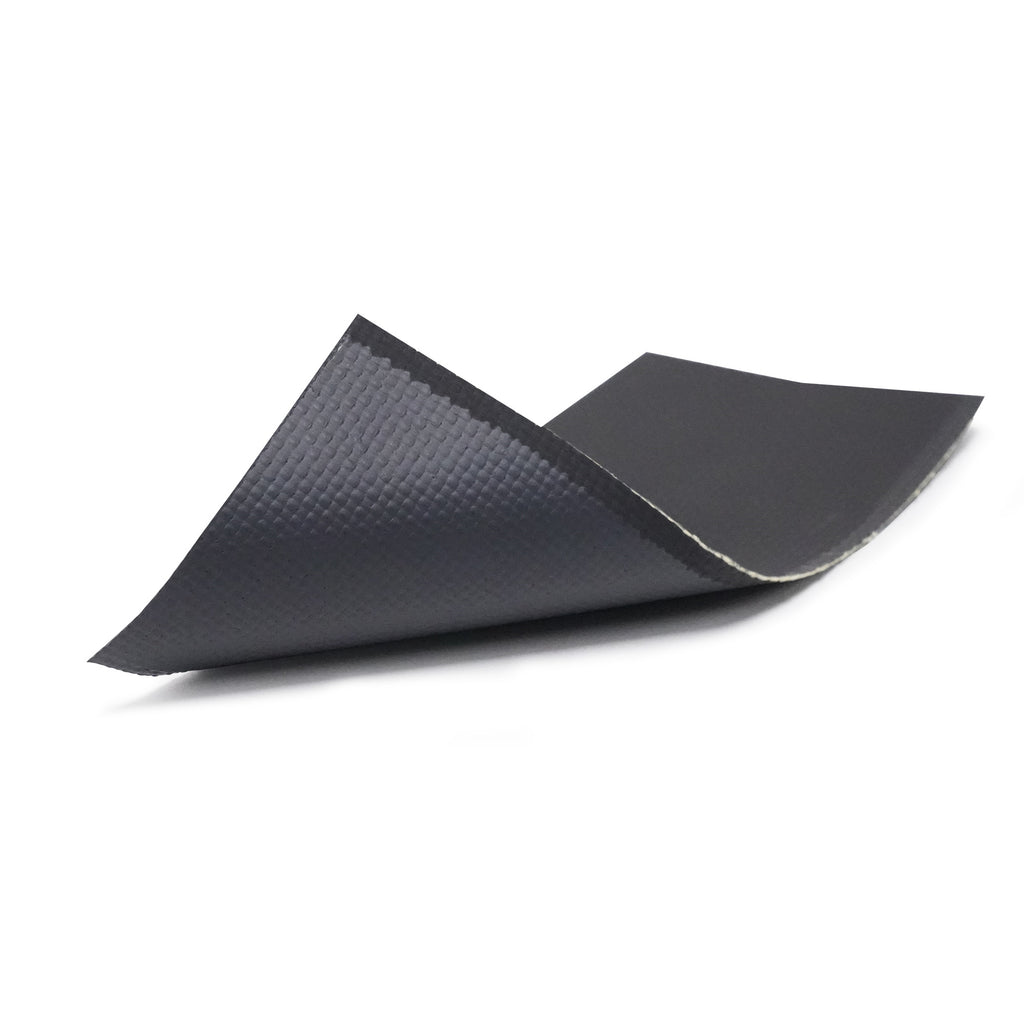

Aramid fabrics are excellent for temperatures ranging from -4°F to 302°F, allowing for the fabric to maintain the veracity of its characteristics in various harsh environments. RPA-14 is very similar to the basic structure of our Kevlar (KWF-24) material, excluding its thickness and color. The RPA-14 material is a dark-grey, medium-weight Polyurethane-coated aramid fabric, with a 0.14" thickness allowing for high-flexibility. Comprised of high-performance fibers, and the characteristics of the Polyurethane coating, this marterial allows for a highly resilient solution. RPA-14 provides excellent strength-to-weight properties, ideal for creating a pliable, durable, and wear-resistant fabric jacketing solution.

Features

  • An Aramid base fabric with a Polyurethane coating
  • High-tensile strength, of 15daN min. Warp and 10 daN min. Fill
  • Temperature range from -20°C to 150°C

Benefits

  • High strength and flexibility with medium weight
  • Perfect for use as an abrasion and wear resistant outer jacketing material
  • Can be sewn to other materials, and a variety of closures

Specifications

  • Weight: 10.3 oz sq. yd
  • Base Fabric: Aramid
  • Coating: Polyurethane
  • Flame Retardant: UL94, VTM -0
  • Thickness: 0.014"
  • Material: Polyurethane-Coated Aramid
  • Maximum Operating Temperature: 302°F
  • Minimum Operating Temperature: -4°F
  • RoHS: RoHS-10
  • Tear Strength: 15 daN/min (Warp) | 10 daN/min (Fill)
  • Flexibility: Better
  • Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.

    Similar Materials

    RPH-14 - Polyurethane Coated Polyester Fabric - 14 Mil FRC-15 Canvas Fabric - 15 Mil RPU-17 - Polyurethane Coated Polyster - 17 Mil
    NAME RPH-14 - POLYURETHANE COATED POLYESTER FABRIC - 14 MIL FRC-15 CANVAS FABRIC - 15 MIL RPU-17 - POLYURETHANE COATED POLYSTER - 17 MIL
    DESCRIPTION A Flexible, Medium Weight, Polyurethane Coated Polyester Fabric, 14 mil Lightweight Multi-Purpose Canvas Jacket, 15 Mil Reinforced Polyurethane Cable Jacket
    RoHS RoHS-10 RoHS-10
    Abrasion Resistance Best
    Min Temperature Extreme Moderate Moderate
    Minimum Operating Temperature -67°F -22°F -40°F
    Max Temperature Moderate Low Low
    Maximum Operating Temperature 356°F 140°F 160°F
    Flexibility Better
    View View View
    ZT-Zippertubing

    RPA-14 - Polyurethane Coated Aramid Fabric - 14 Mil

    A Strong, Medium-Weight, Polyurethane Coated Aramid Fabric

    Material Sprcification: 1133

    • Withstands high heat and extremely low temperatures
    • Highly flexible
    • Abrasion and wear resistant
    WARNING: Raw materials are not sold separately, please contact the sales department for any special requirements.

    SPECIFICATIONS

  • Weight: 10.3 oz sq. yd
  • Base Fabric: Aramid
  • Coating: Polyurethane
  • Flame Retardant: UL94, VTM -0
  • Thickness: 0.014"
  • Material: Polyurethane-Coated Aramid
  • Maximum Operating Temperature: 302°F
  • Minimum Operating Temperature: -4°F
  • RoHS: RoHS-10
  • Tear Strength: 15 daN/min (Warp) | 10 daN/min (Fill)
  • Flexibility: Better
  • DESCRIPTION

    Featuring characteristics of an aramid base and polyurethane coating, this material offers endless possibilities when combined or sewn with our other materials such as EMI shields, and a variety of closures, creating the perfect custom solution for your needs.

    Aramid fabrics are excellent for temperatures ranging from -4°F to 302°F, allowing for the fabric to maintain the veracity of its characteristics in various harsh environments. RPA-14 is very similar to the basic structure of our Kevlar (KWF-24) material, excluding its thickness and color. The RPA-14 material is a dark-grey, medium-weight Polyurethane-coated aramid fabric, with a 0.14" thickness allowing for high-flexibility. Comprised of high-performance fibers, and the characteristics of the Polyurethane coating, this marterial allows for a highly resilient solution. RPA-14 provides excellent strength-to-weight properties, ideal for creating a pliable, durable, and wear-resistant fabric jacketing solution.

    Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
