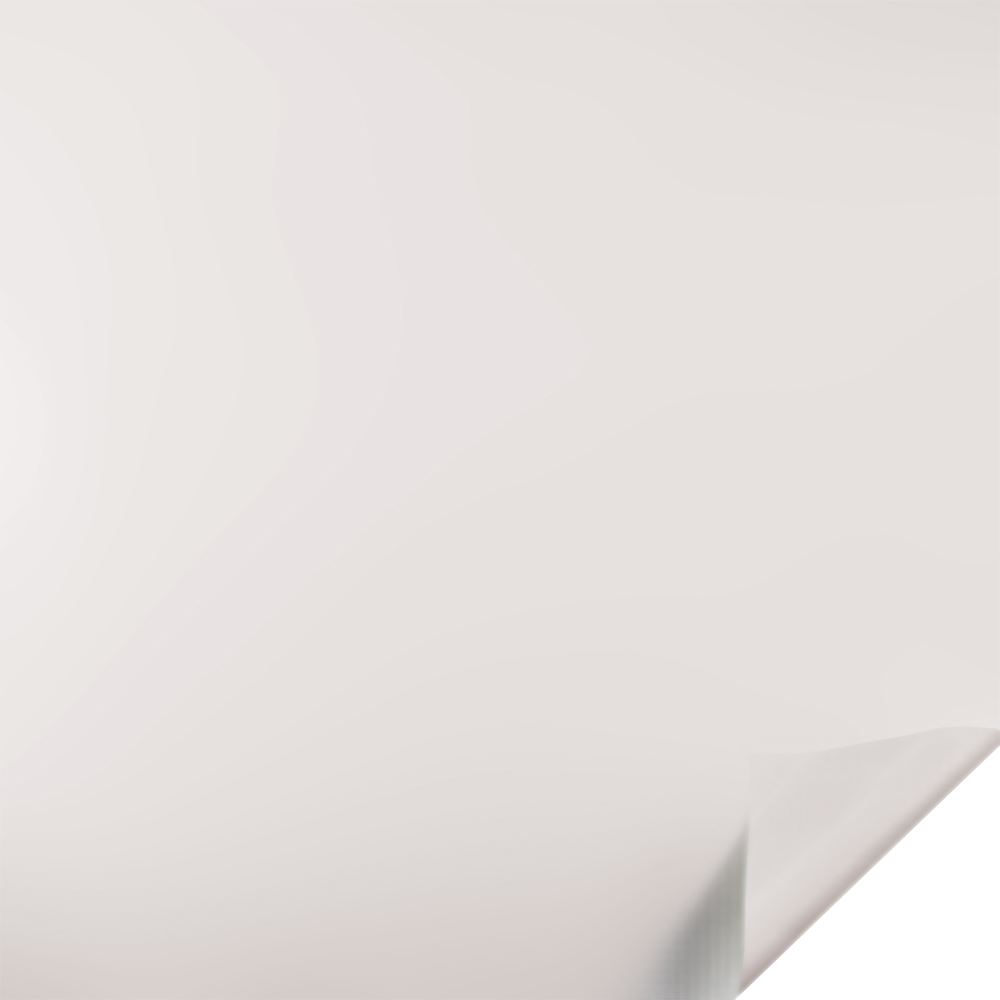

TPU-20 Thermoplastic Polyurethane Film - 20 Mil

Flexible, High-Temperature, Flame-Retardant Film, 20 Mil

Material Specification: 1013 RoHS REACH Compliant

Select product options

Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution.

Overview

  • A flexible film that has excellent abrasion resistance
  • High-temperature and flame-retardant wrap-around solution
  • Can be RF sealed or sewn to other films, EMI shields, and closures, including our EZ-Track™ (TPU)

Introducing Zippertubing's latest material offering for the medical industry, TPU. TPU, or thermoplastic polyurethane, is a flexible, high-temperature, halogen-free, flame-retardant jacketing film that offers excellent abrasion properties. This material, when used in conjunction with our other halogen-free materials, will provide a completely halogen-free and flame-retardant wraparound solution for virtually any industry or application.

TPU is a flexible film that has excellent abrasion resistance, remains flexible through a wide range of temperatures, and can be RF sealed or sewn to other films, EMI shields, and closures, including our EZ-Track™ (TPU). This material is suitable for use in the medical industry due to its specifications and because of its clean white appearance.

In the instrumentation and medical industry, failure and inaccuracy are unacceptable. Whether you need EMI shielding to ensure the proper function of machinery and equipment or cable bundling for safety regulations or cosmetic application, we have you covered.

The Zippertubing® Company. American Made. Bundle. Shield. Protect.

Specifications

  • REACH: Compliant
  • Elongation: 350%
  • Flammability: Self-extinguishing
  • Color: White
  • Thickness: 0.020"
  • Thickness Variance: +/- 0.001"
  • Material: Thermoplastic polyurethane
  • Maximum Operating Temperature: 257°F
  • Minimum Operating Temperature: -40°F
  • RoHS: RoHS-10
  • Tensile Strength: 4,300 psi.
  • Ozone Resistance: Stage 0, "Crack Free"
  • Flexibility: Good
  • Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.

    Similar Materials

    63-20 PVC Film - 20 mil RPU-17 - Polyurethane Coated Polyster - 17 Mil PFR-18 Polyurethane Film - 18 Mil
    NAME 63-20 PVC FILM - 20 MIL RPU-17 - POLYURETHANE COATED POLYSTER - 17 MIL PFR-18 POLYURETHANE FILM - 18 MIL
    DESCRIPTION A flexible, medium-weight PVC film that is 20-mil (0.020") thick. Reinforced Polyurethane Cable Jacket Extremely Flexible, Abrasion-Resistant, Polyurethane Film, 18 Mil
    RoHS RoHS-10 RoHS-10 RoHS-10
    Abrasion Resistance Best
    Min Temperature Low Moderate Extreme
    Minimum Operating Temperature -4°F -40°F -67°F
    Max Temperature Moderate Low Moderate
    Maximum Operating Temperature 221°F 160°F 225°F
    Flexibility Better
    View View View
