Z-Track (PFR)

Name: Z-Track (PFR)
Brand: zippertubing
Availability: InStock

Extremely Versatile, Medium Duty, Extruded Interlock

Material Specification: 2007 RoHS

Select product options

WARNING: Raw materials are not sold separately, please contact the sales department for any special requirements.

Contact Us

Print Datasheet

Overview

Universal Track
Round, Flat, Rectangular applications
For diameters up through 4.0"
Applicable for all EMI Shield types
Closure tool required

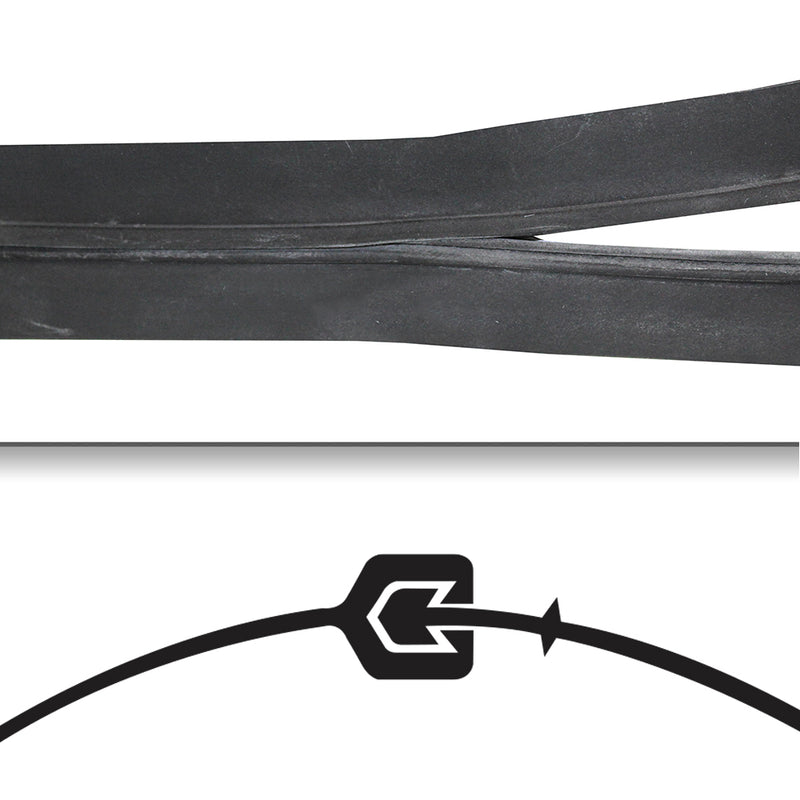

The Z-Track (PFR) is made of extremely flexible, flame retardant poly(ether) urethane material that has a soft, rubber-like texture. This material can be used in airborne and shipborne installations. Z-Track (PFR) is available in black color only.

Specifications

Closure: Pressure Track

Elongation: 340%

Bundle Size: 0.375" - 4.0"

Height: Low

Color: Black

Thickness: 0.018"

Material: Poly(ether) urethane (PFR)

Maximum Operating Temperature: 194°F

Minimum Operating Temperature: -32°F

RoHS: RoHS-10

Shelf Life: 60 Months

Tensile Strength: 15 lbf/inch (closure)

Length: Up to 200 feet continuous

Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.

Guides

How to install EZ-Track™

As its name implies, EZ-Track® is easy to install. Learn about track closure versus bend location with thes...

How to install Z-Track

Z-Track is an extremely versatile, medium duty cable jacket that uses an extruded interlock to wrap around ...

Track Closure vs Bend Location for all Zippertubing tracks

Learn how to properly install Zip-On and Zip-Shield Zippertubing® products. In this article, we also highli...

Z-Track (PFR)

Extremely Versatile, Medium Duty, Extruded Interlock

Material Sprcification: 2007

Universal Track
Round, Flat, Rectangular applications
For diameters up through 4.0"
Applicable for all EMI Shield types
Closure tool required

WARNING: Raw materials are not sold separately, please contact the sales department for any special requirements.

SPECIFICATIONS

Closure: Pressure Track

Elongation: 340%

Bundle Size: 0.375" - 4.0"

Height: Low

Color: Black

Thickness: 0.018"

Material: Poly(ether) urethane (PFR)

Maximum Operating Temperature: 194°F

Minimum Operating Temperature: -32°F

RoHS: RoHS-10

Shelf Life: 60 Months

Tensile Strength: 15 lbf/inch (closure)

Length: Up to 200 feet continuous

DESCRIPTION

The Z-Track (PFR) is made of extremely flexible, flame retardant poly(ether) urethane material that has a soft, rubber-like texture. This material can be used in airborne and shipborne installations. Z-Track (PFR) is available in black color only.

Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
