ALR-550 High Temp Aluminized E-Glass

Material Specification: 1209 RoHS REACH Compliant

Select product options

Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution. Explore the possibilities below or contact an engineer to start your custom application today!

Overview

  • Multi-Purpose High Temperature Material
  • High Temperature Heat Reflective Fiberglass
  • Custom Shapes Available
  • Snaps & Sewn Closures Available
  • 1,022°F (550°C) Operational Limit

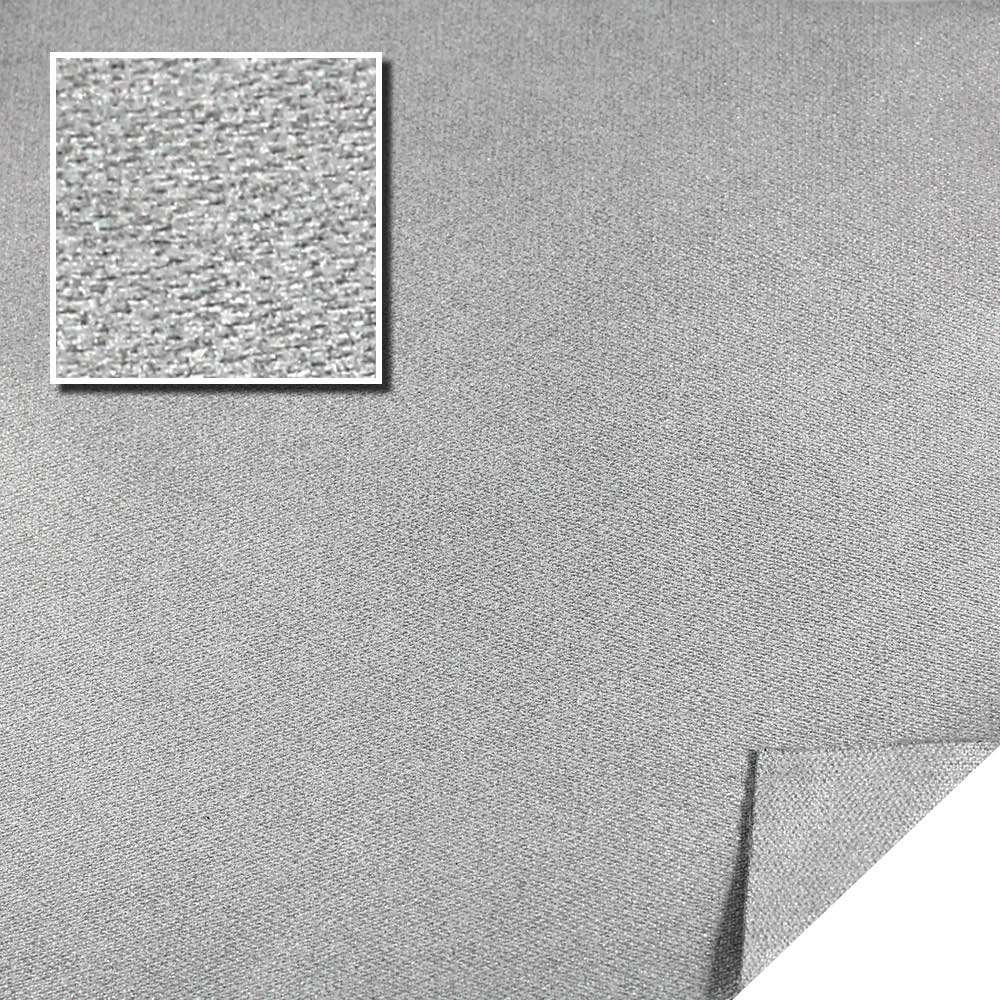

ALR-550 is a thin and flexible E-Glass with an Aluminum laminate on both sides. The product is very flexible and available with a Stainless Steel Snap closure or it may be Sewn with Kevlar/Stainless Steel thread for custom shapes. Primarily used in the truck and bus industry it has an operational temperature range of -58°F to 1,022°F or -50°C to 550°C and may be an economical alternative to heavier weight materials.

Specifications

  • REACH: Compliant
  • Thickness: 0.024"
  • Maximum Operating Temperature: 1022°F
  • Minimum Operating Temperature: -50°F
  • RoHS: RoHS-10
  • Shelf Life: 60 Months
  • Tensile Strength: 4,400 N/5cm (warp) | 2,700 N/5cm (fill)
  • Flexibility: Better
  • Thermal Effectiveness

    Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.

    Similar Materials

    ALHTG-65 High Temp Aluminized Fiberglass Fabric ZIPFLECT High-temp Polyester Felt Cloth SAM-1000 - Aluminized Silicone Coated Fiberglass Fabric
    NAME ALHTG-65 HIGH TEMP ALUMINIZED FIBERGLASS FABRIC ZIPFLECT HIGH-TEMP POLYESTER FELT CLOTH SAM-1000 - ALUMINIZED SILICONE COATED FIBERGLASS FABRIC
    DESCRIPTION ZIPFLECT is a lightweight, fire-retardant material laminated to a reflective Aluminum surface for high temperature heat barrier protection. Rugged, Aluminized Silicone Coated Fiberglass, Up to 240 C
    RoHS RoHS-10 RoHS-10 RoHS-10
    Abrasion Resistance Good Better
    Min Temperature Moderate Extreme Extreme
    Minimum Operating Temperature -32°F -58°F -58°F
    Max Temperature Extreme Moderate Moderate
    Maximum Operating Temperature 1202°F 392°F 464°F
    Flexibility Better Better
    View View View
    ZT-Zippertubing

    ALR-550 High Temp Aluminized E-Glass

    Material Sprcification: 1209

    • Multi-Purpose High Temperature Material
    • High Temperature Heat Reflective Fiberglass
    • Custom Shapes Available
    • Snaps & Sewn Closures Available
    • 1,022°F (550°C) Operational Limit
    WARNING: Raw materials are not sold separately, please contact the sales department for any special requirements.

    SPECIFICATIONS

  • REACH: Compliant
  • Thickness: 0.024"
  • Maximum Operating Temperature: 1022°F
  • Minimum Operating Temperature: -50°F
  • RoHS: RoHS-10
  • Shelf Life: 60 Months
  • Tensile Strength: 4,400 N/5cm (warp) | 2,700 N/5cm (fill)
  • Flexibility: Better
  • DESCRIPTION

    ALR-550 is a thin and flexible E-Glass with an Aluminum laminate on both sides. The product is very flexible and available with a Stainless Steel Snap closure or it may be Sewn with Kevlar/Stainless Steel thread for custom shapes. Primarily used in the truck and bus industry it has an operational temperature range of -58°F to 1,022°F or -50°C to 550°C and may be an economical alternative to heavier weight materials.

    Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.

    ALR-550 High Temp Aluminized E-Glass

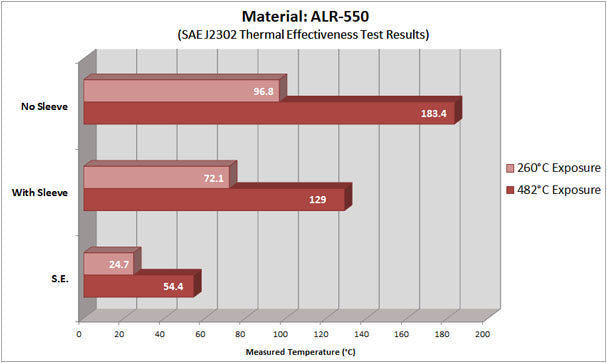

    Thermal Effectiveness

    Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
