FRC-15

Lightweight Multi-Purpose Canvas Jacket, 15 Mil

Material Specification: 1112

Select product options

WARNING: Raw materials are not sold separately, please contact the sales department for any special requirements.

Overview

  • Popular General Purpose Jacket
  • Good Abrasion Resistance
  • Lightweight & Excellent Flexibility
  • Flame Retardant

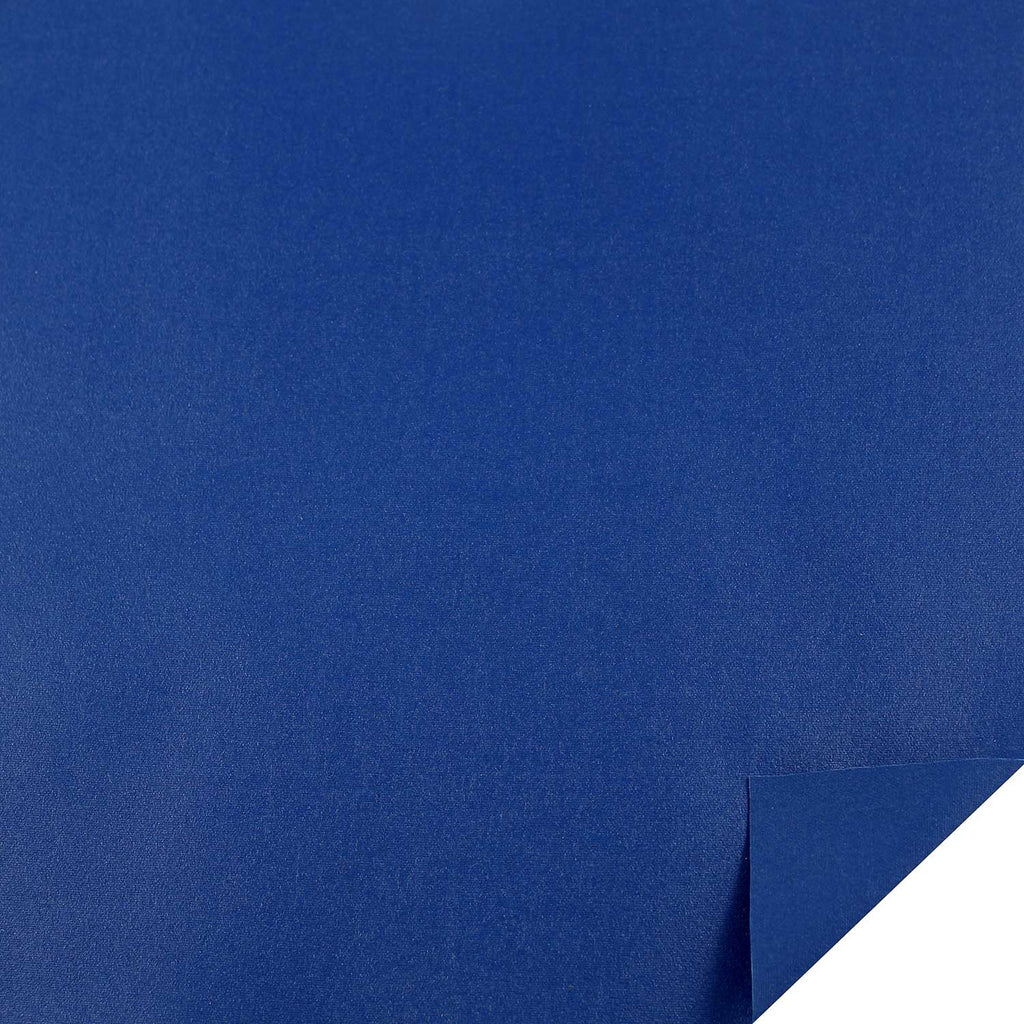

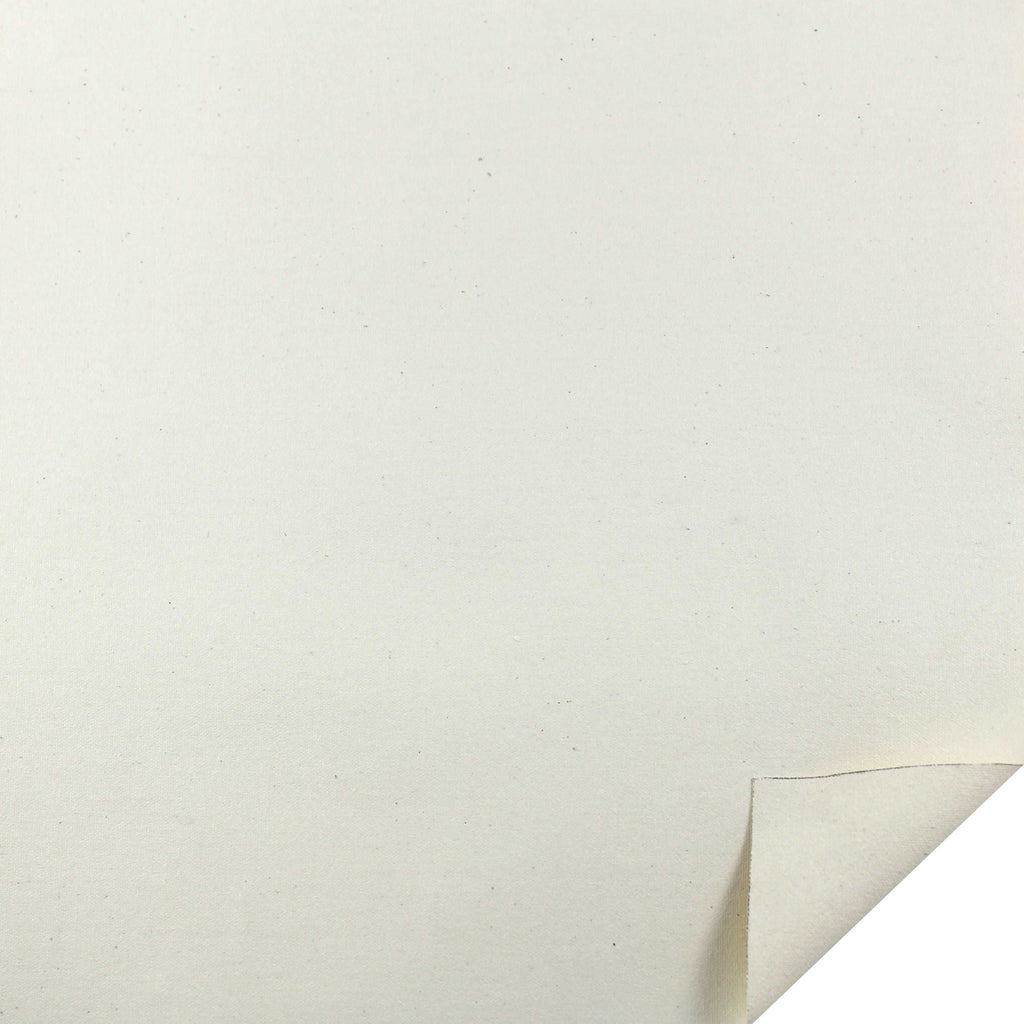

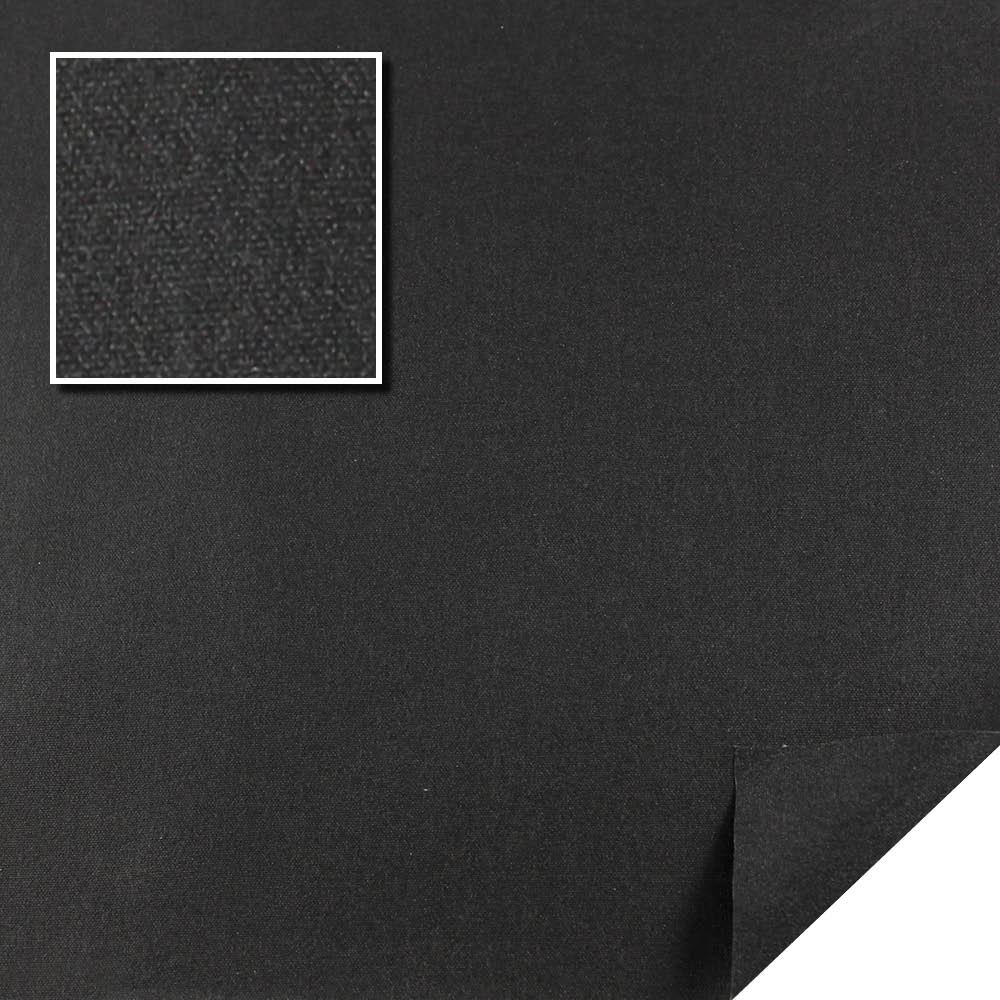

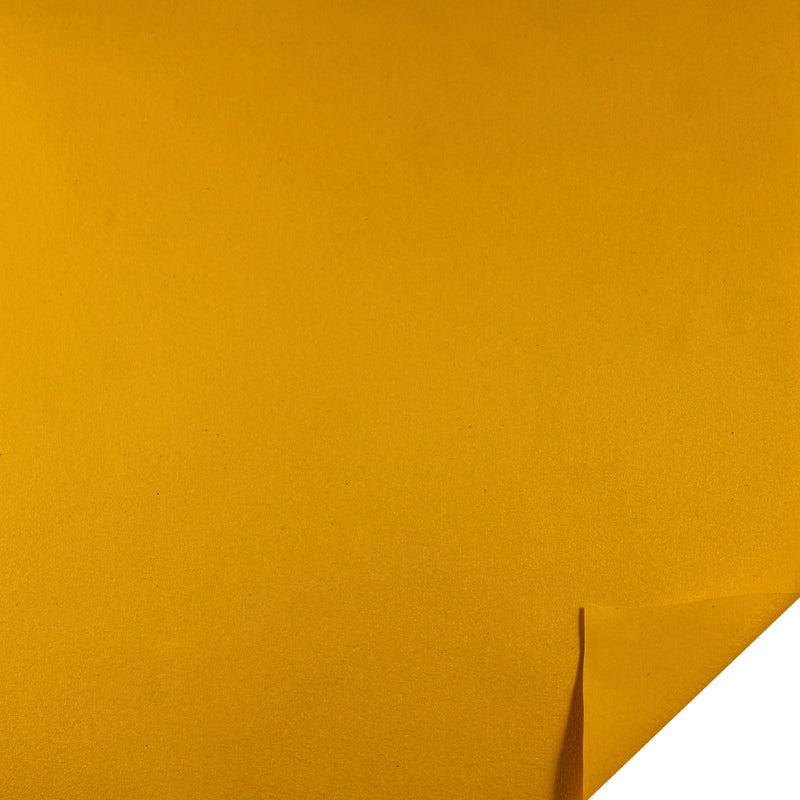

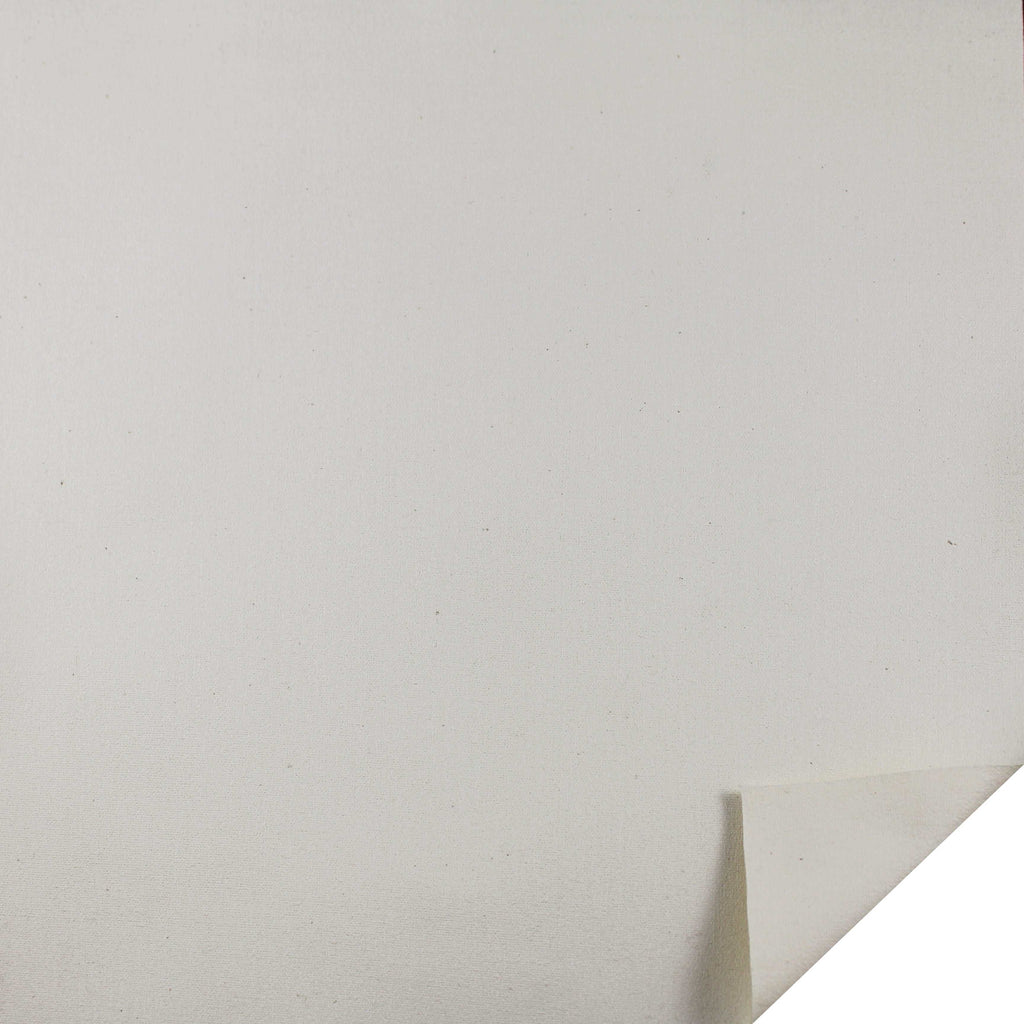

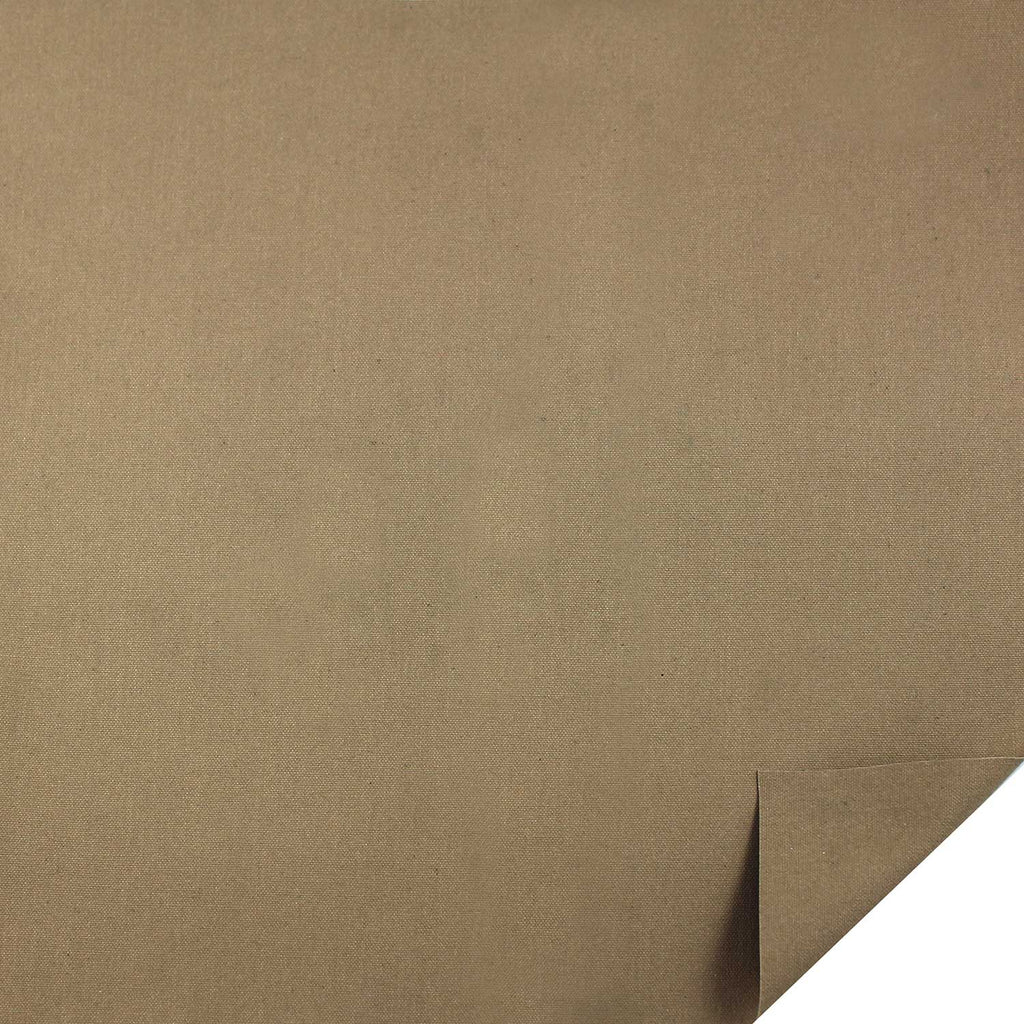

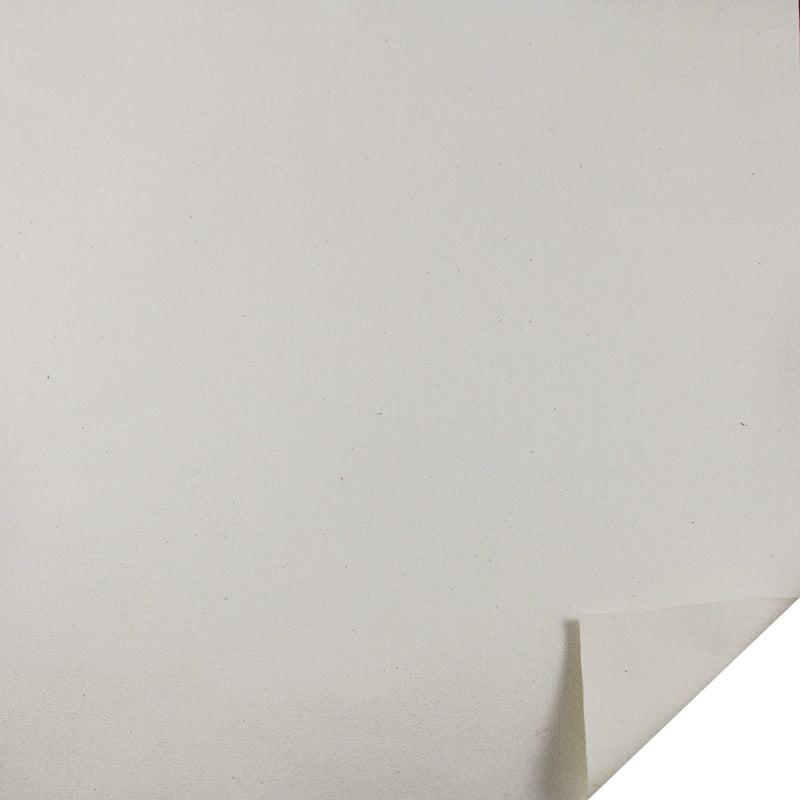

  • Many Colors Available

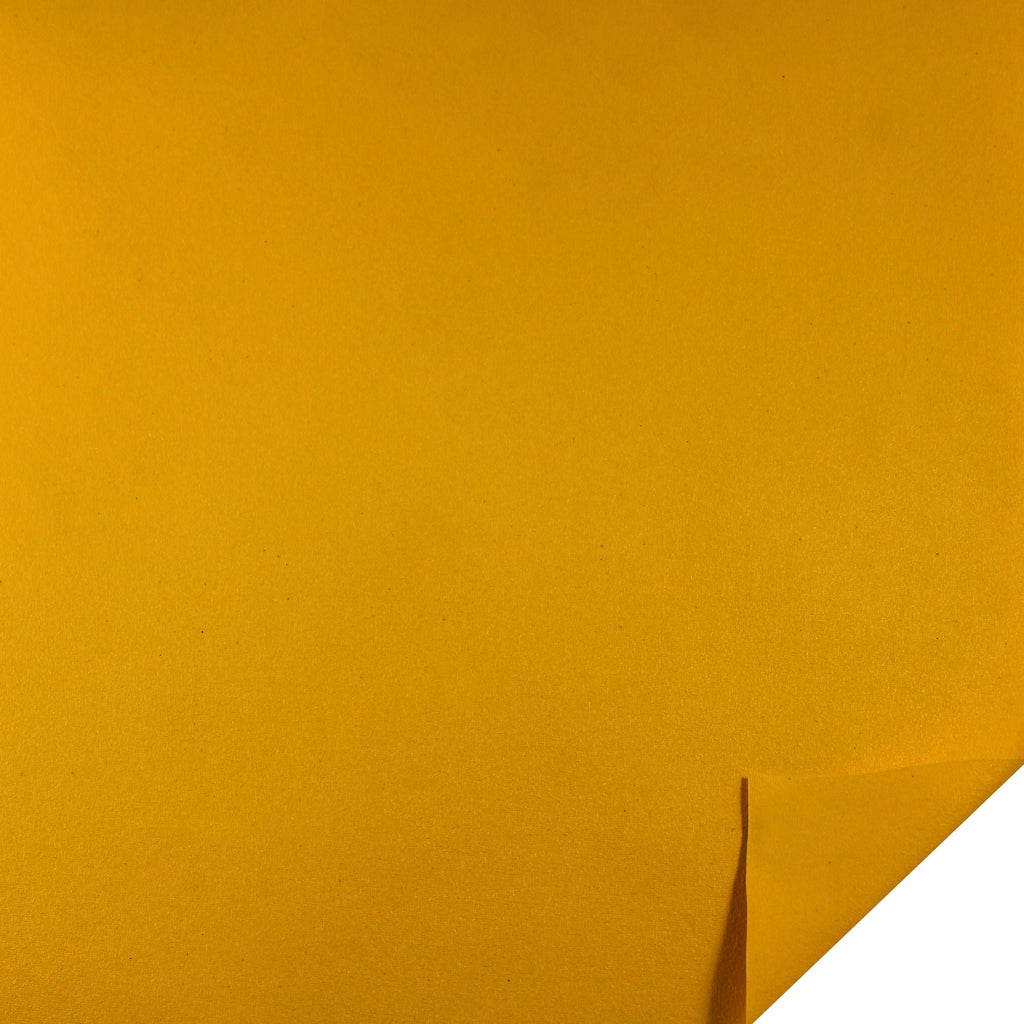

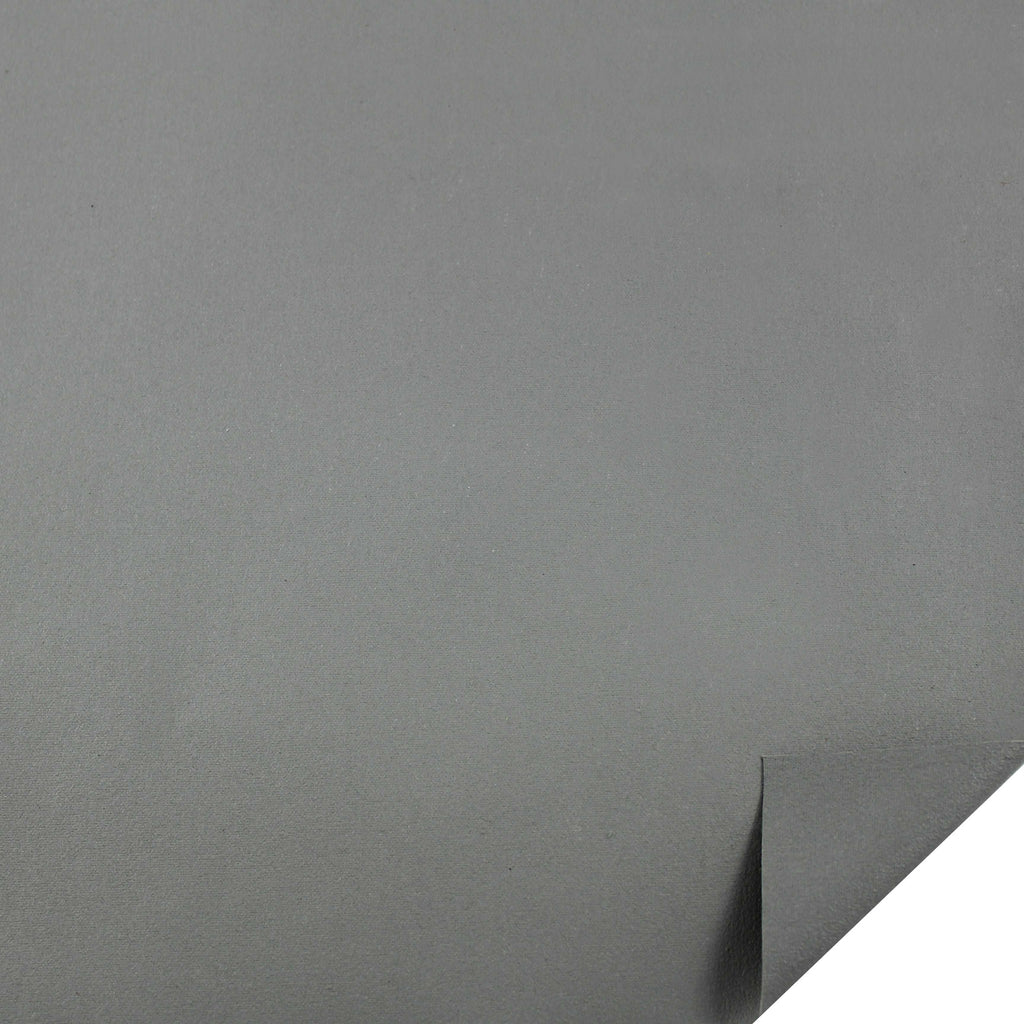

FRC-15 is a lightweight woven fabric made from a 45:55 blend of Polyester and Cotton yarns pigmented with fire retardant Acrylic Vinyl providing a soft and flexible jacketing solution. This lightweight, yet durable and strong construction also provides good wear resistance, has high tear strength and is water and mildew resistant. FRC-15 jackets are ideal for applications that require flexibility, strength, and durability as well as abrasion resistance. This material has a long history of usage in clean room applications for very large diameter umbilical cables within the I.C. Test Equipment Industry. It has many different color options allowing for color coordination to related equipment. FRC-15 is available in the classic Zippertubing wrap around design and is most commonly closed using a mechanical zipper or hook and loop. This material meets the California Fire Marshal, Title 19 and NFPA-701 flammability requirements.

Specifications

  • Break Strength: 283 lbs/min (Warp); 214 lbs/min (Fill)
  • Flame Retardant: CCR Title 19 and NFPA-701
  • Thickness: 0.015"
  • Maximum Operating Temperature: 140°F
  • Minimum Operating Temperature: -22°F
  • Shelf Life: 36 Months
  • Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.

    Similar Materials

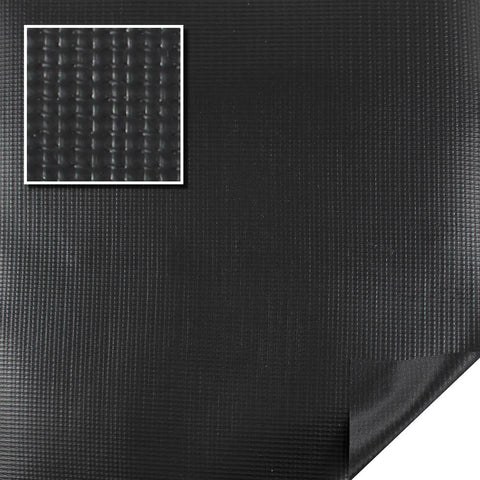

    DVH-20 PVL-10 VNH-23
    NAME DVH-20 PVL-10 VNH-23
    DESCRIPTION General Purpose PVC Coated Polyester Jacket, 20 Mil Lightweight PVC Coated Polyester Jacket, 10-Mil Mil-Spec PVC Coated Nylon Jacket, 23 Mil
    RoHS RoHS-10 RoHS-10 RoHS-10
    Abrasion Resistance Better Better Better
    Min Temperature Moderate Moderate Extreme
    Minimum Operating Temperature -30°F -40°F -65°F
    Max Temperature Low Low Low
    Maximum Operating Temperature 185°F 180°F 171°F
    Flexibility Good Better Better
