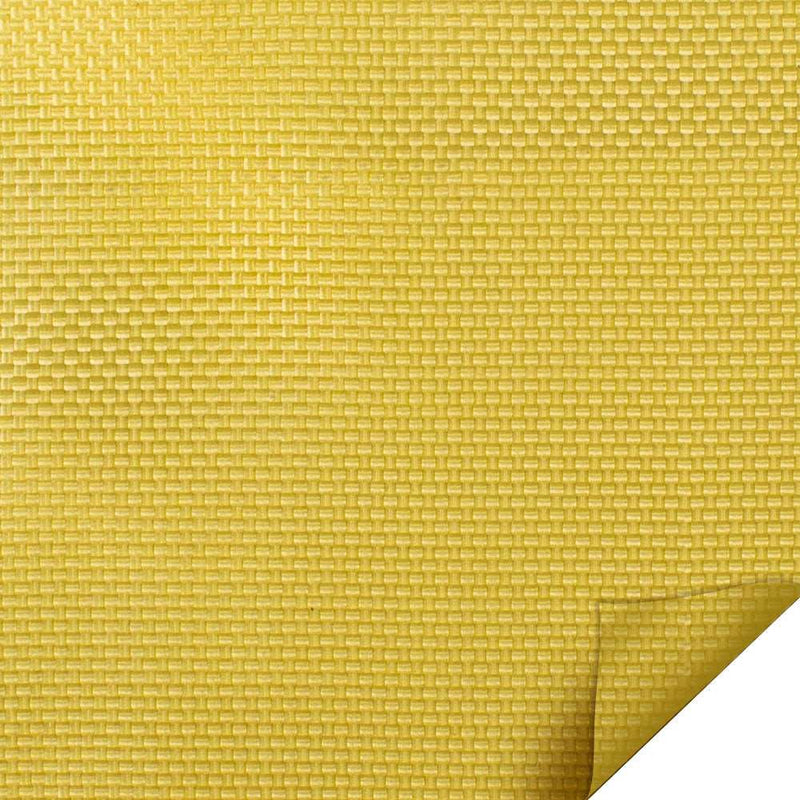

Kevlar (KWF-24)

Flexible and Rugged, Kevlar 24 Style 745, 24 Mil

Material Specification: 1131

Select product options

WARNING: Raw materials are not sold separately, please contact the sales department for any special requirements.

Overview

  • Perfect for industries where strength and abrasion protection are required
  • Offers excellent flexibility and can be used in a multitude of combinations
  • With the right configurations, this material will withstand just about anything

There are so many uses for Kevlar, and that is why The Zippertubing® Company now offers this material as an addition to their ever-growing inventory of products and materials. This ballistic-grade, woven fabric Kevlar material is resistant to wear and has a high breakage strength, all while maintaining its lightweight properties. It can be configured for round, flat or rectangular wire or cable bundles, as well as other custom component configurations, and can utilize many of our different closure options.

This combination of features makes it the perfect solution for abrasion protection jackets that wrap around your critical components. Kevlar can also be applied in multiple layers for use in safety or personal protection. To determine the number of layers needed for your chosen application, testing should be completed under the given circumstances you require.

Recommended Maximum Temperature Range for Long-Term Use in Air: 300°F to 350°F

*Please note that this material will degrade in UV light, and may not retain its original properties when immersed in liquid.

Features

  • Operational temperature range of -320°F to 350°F
  • Clean natural yellow appearance, perfect for military or industrial applications

Benefits

  • A flexible, heat-resistant and strong synthetic fiber
  • Can be sewn to other materials such as EMI shields and a variety of closures, including our hi-temp zippers

Specifications

  • Thread Count: 17 x 17 Length & Width
  • Denier: 3000
  • Weight: 14 oz. sq. yd
  • Break Strength: Length - 1600 lbs/in | Width - 1800 lbs/in
  • Color: Natural (Yellow)
  • Thickness: 0.024"
  • Material: Kevlar 24 Style 745 Ballistic Fabric
  • Maximum Operating Temperature: 350°F
  • Minimum Operating Temperature: -321°F
  • Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.

    Similar Materials

    RPA-14 RPH-14 SRFG-32
    NAME RPA-14 RPH-14 SRFG-32
    DESCRIPTION A Strong, Medium-Weight, Polyurethane Coated Aramid Fabric A Flexible, Medium Weight, Polyurethane Coated Polyester Fabric, 14 mil Heavy Duty Silicone Coated Fiberglass Jacket, 32 Mil
    RoHS RoHS-10 RoHS-10 RoHS-10
    Abrasion Resistance Best Best
    Min Temperature Low Extreme Extreme
    Minimum Operating Temperature -4°F -67°F -55°F
    Max Temperature Moderate Moderate Extreme
    Maximum Operating Temperature 302°F 356°F 449°F
    Flexibility Better Better
    View View View
