Shrink-N-Repair® (L)

A wrap-around, abrasion-resistant and fluid-resistant heat shrink that repairs large wires or cables with diameters ranging from 0.5” to 1”.

Drawing Number(s): ZT18-04-006

Shrink-N-Repair® (L)
UL Recognized RoHS

Select product options

Selected Part Number:CSMR-ZT18-04-006-B-X12.0
Purchase on Amazon

Overview

Shrink-N-Repair® (L)
  • Repairs or strengthens components while providing protection from abrasion, chemicals, and fluids
  • Can be cut to any desired length
  • Available on Amazon in either a 12” piece or 36” roll

Shrink-N-Repair® (L), wrap-around heat shrink for 0.5” to 1” wires or cables that need to be repaired or just need extra abrasion protection.

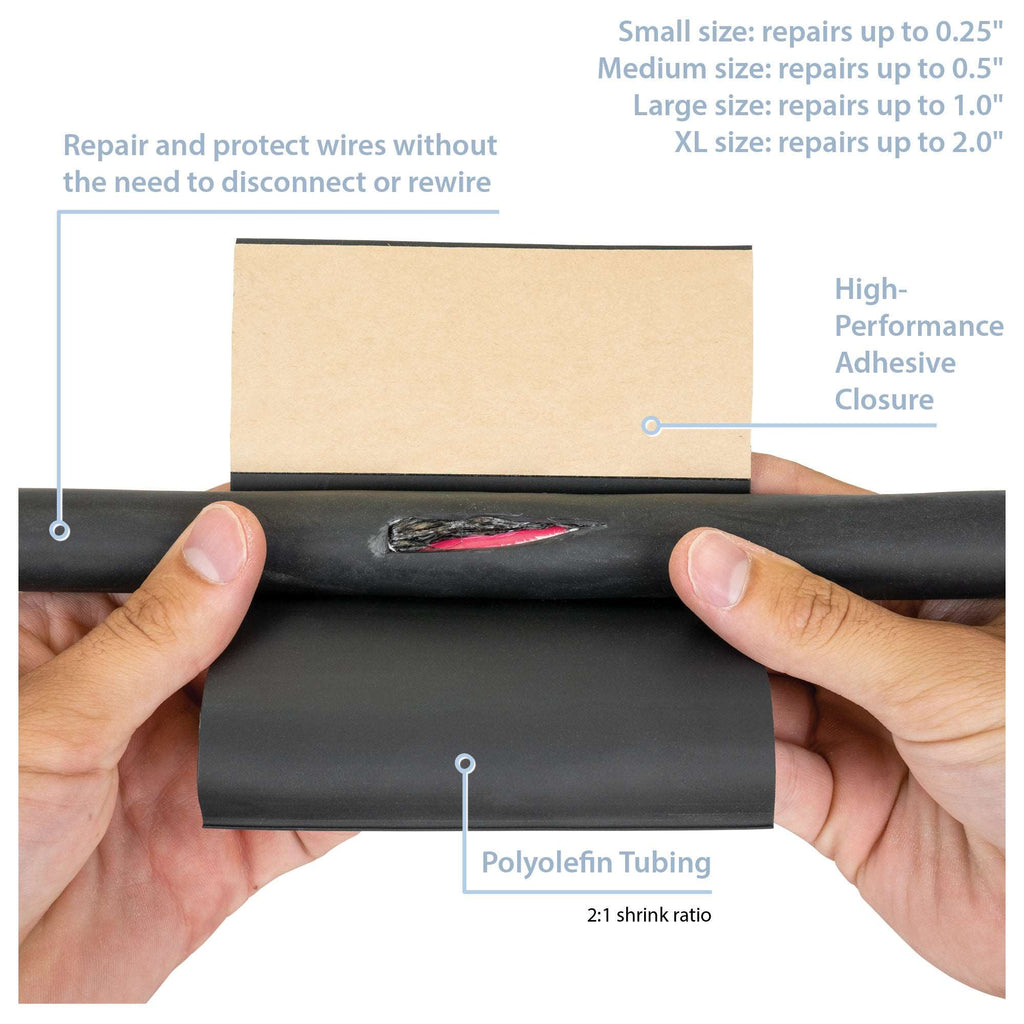

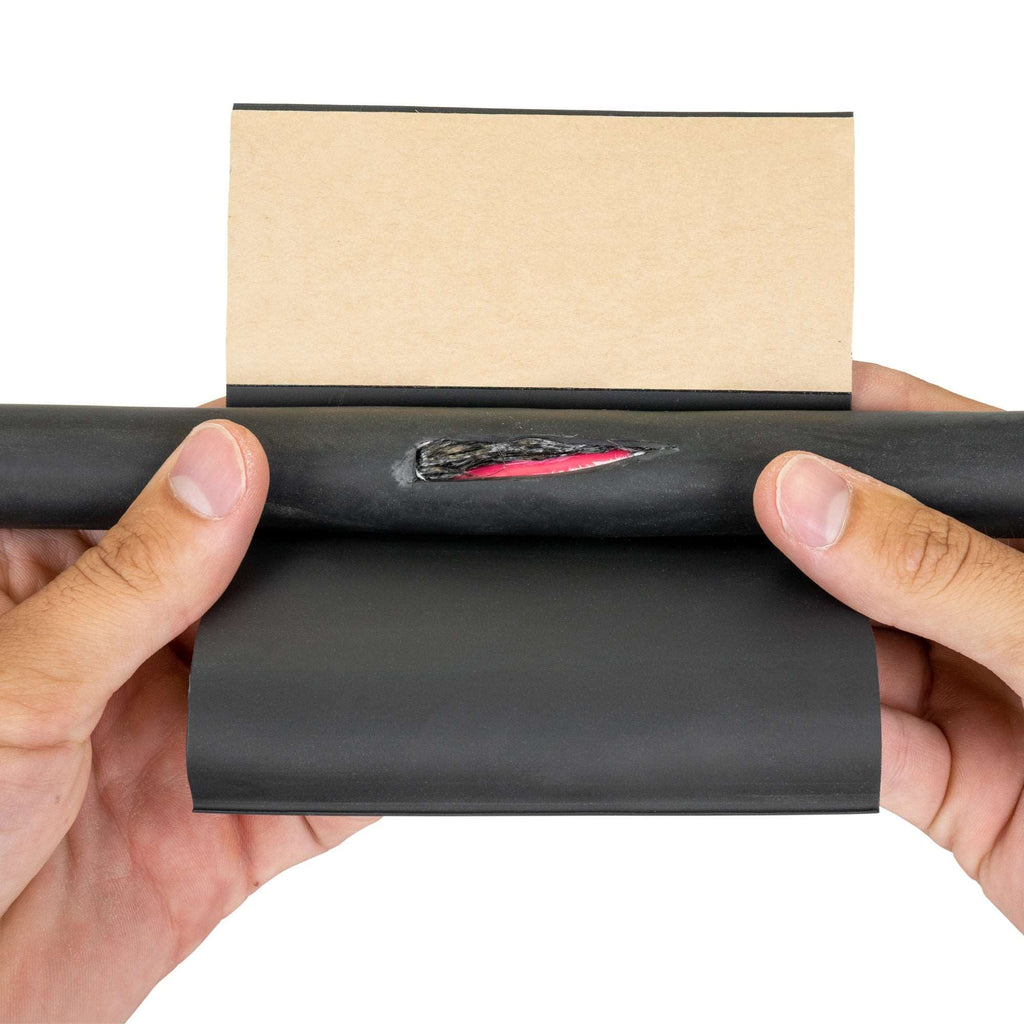

Cover, wrap, repair, or bulk up your wires for better protection and organization. Zippertubing's Shrink-N-Repair® (L) wrap-around heat shrink offers a unique solution to repair damaged, cracked or chafed wires and cables.

This UL recognized indoor/outdoor wire repair heat shrink is not your standard heat shrink, the Shrink-N-Repair® wrap-around heat shrink is thicker and offers more abrasion protection where it’s needed. This product can be used in any automotive, airplane, industrial, commercial or residential industry.

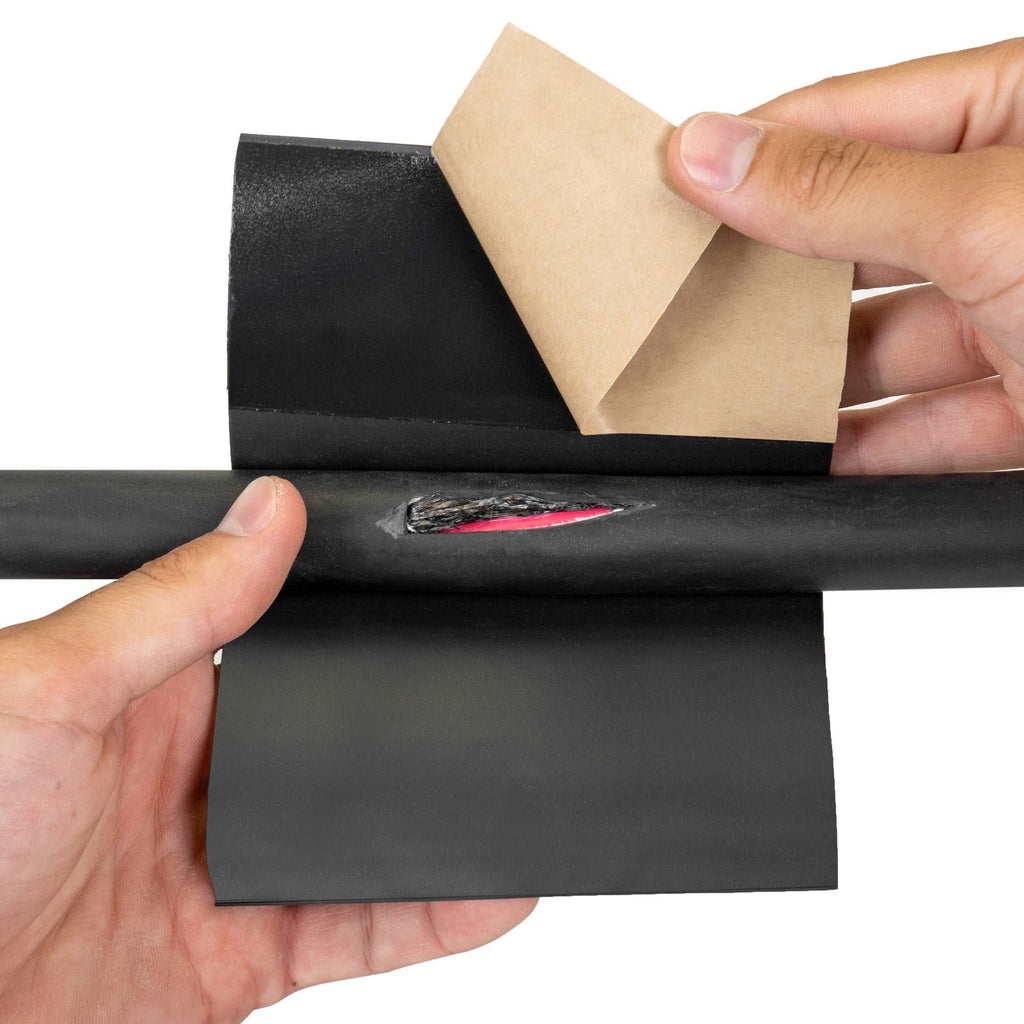

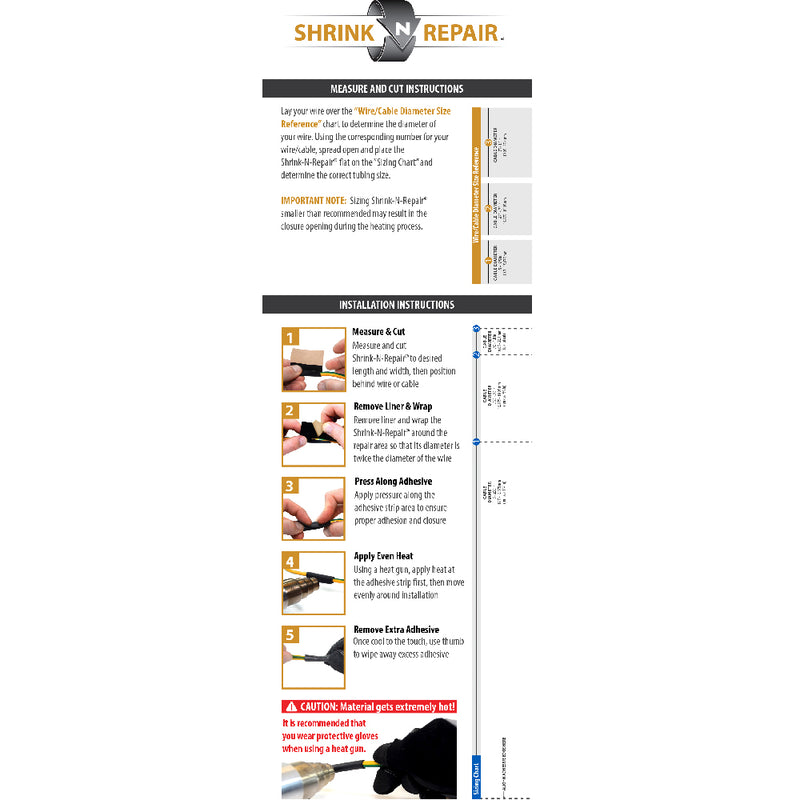

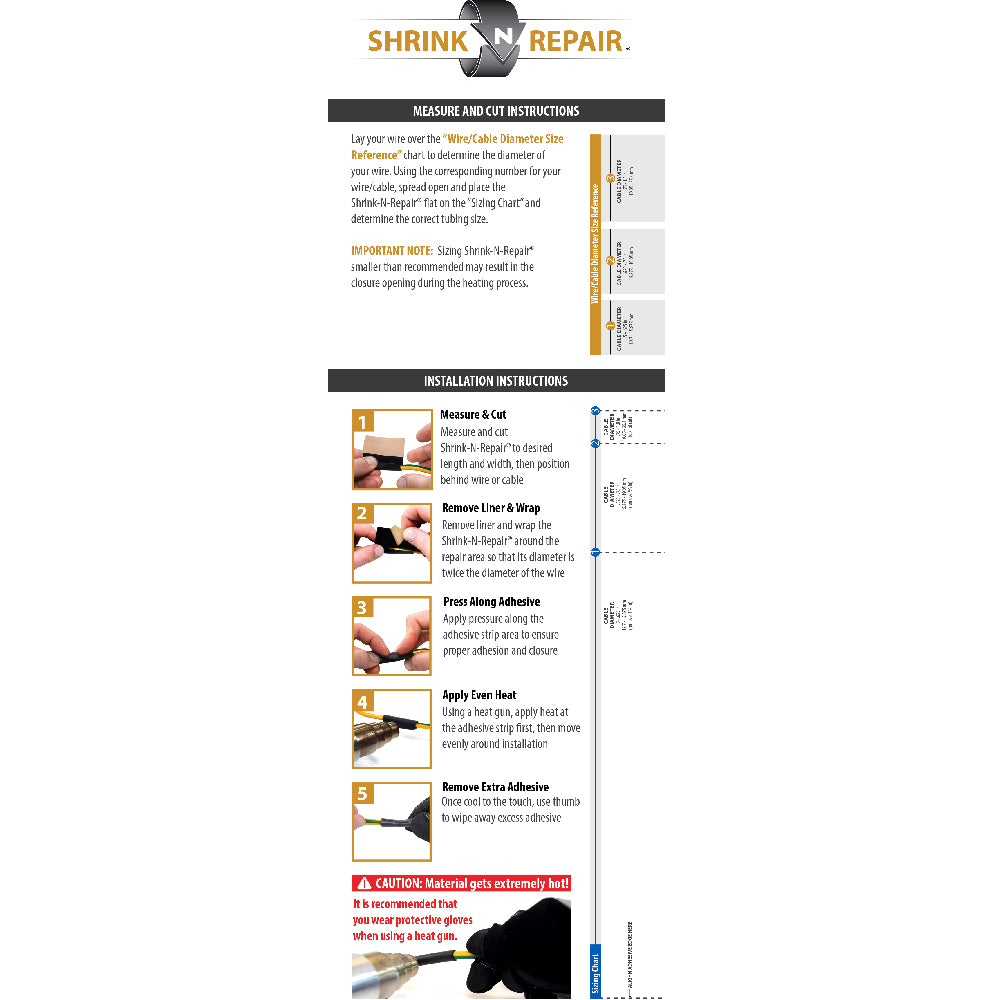

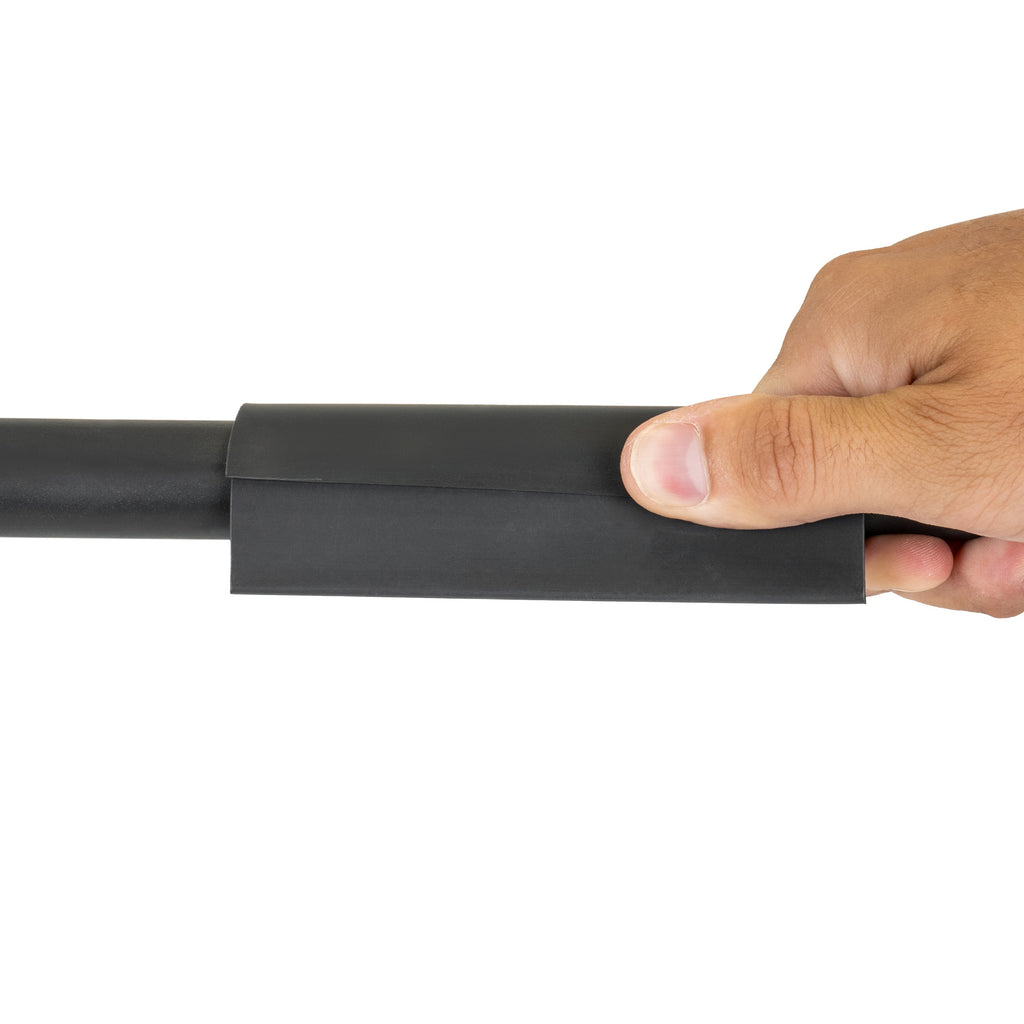

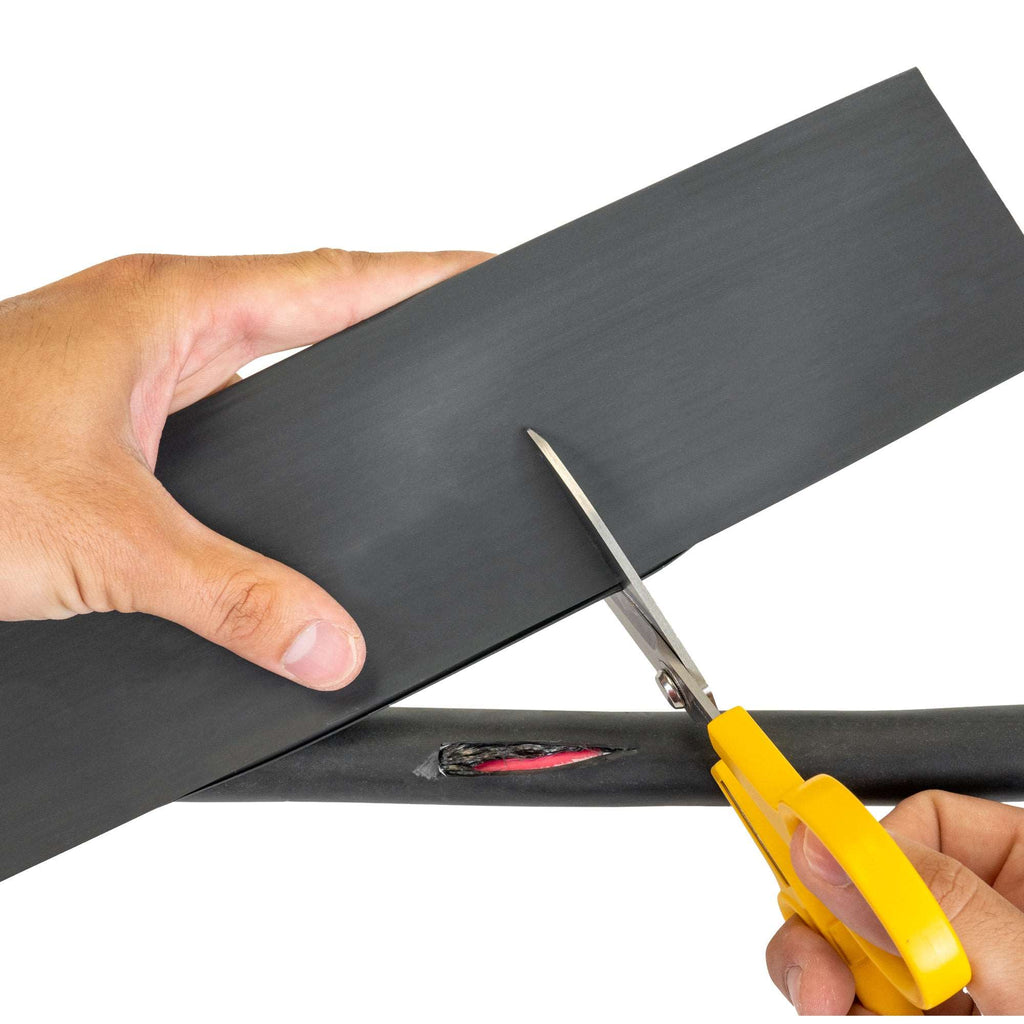

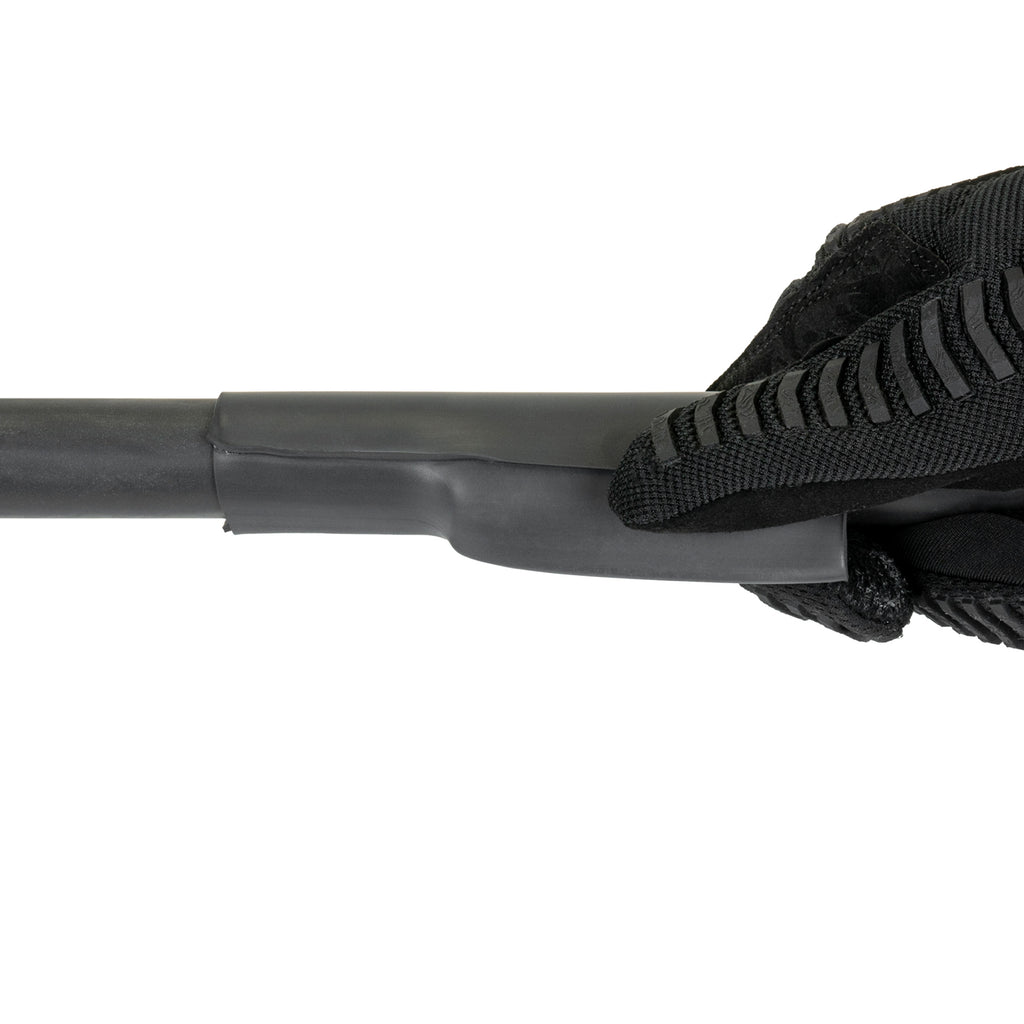

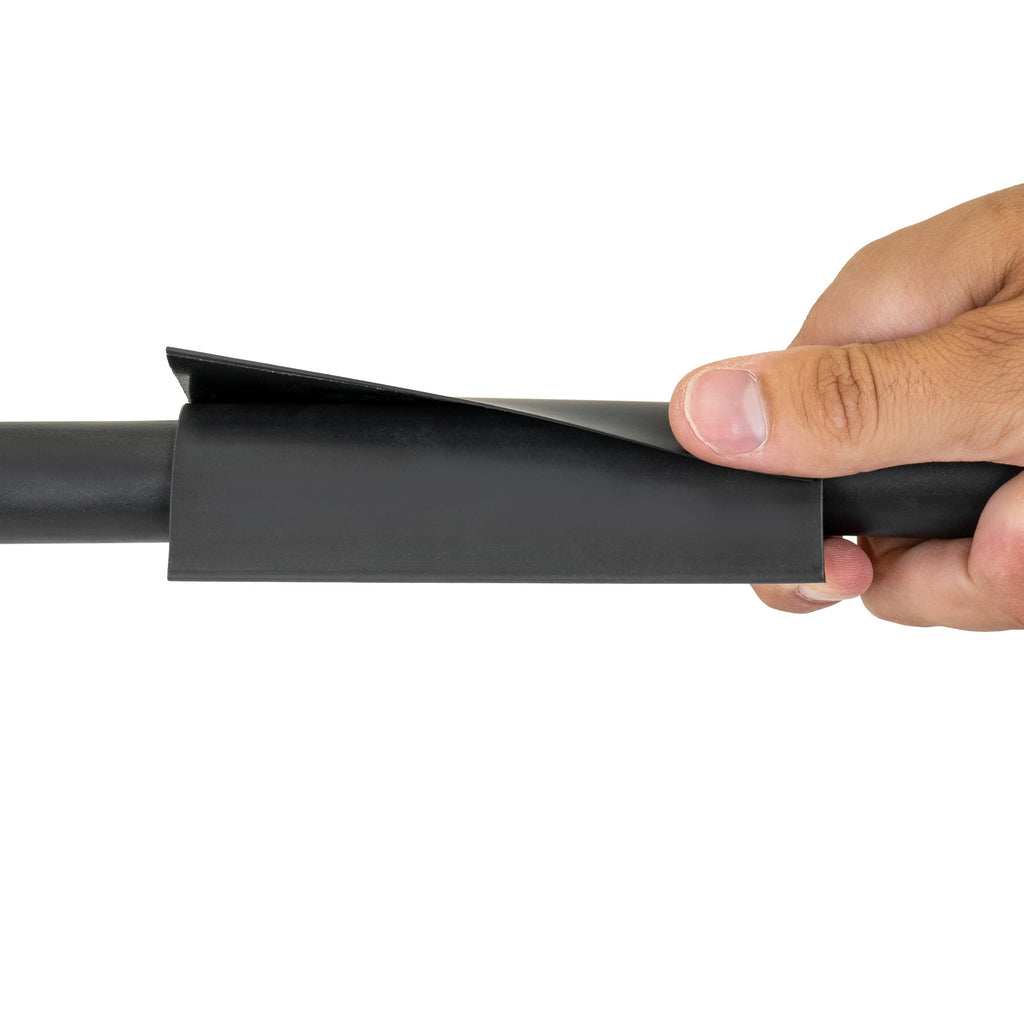

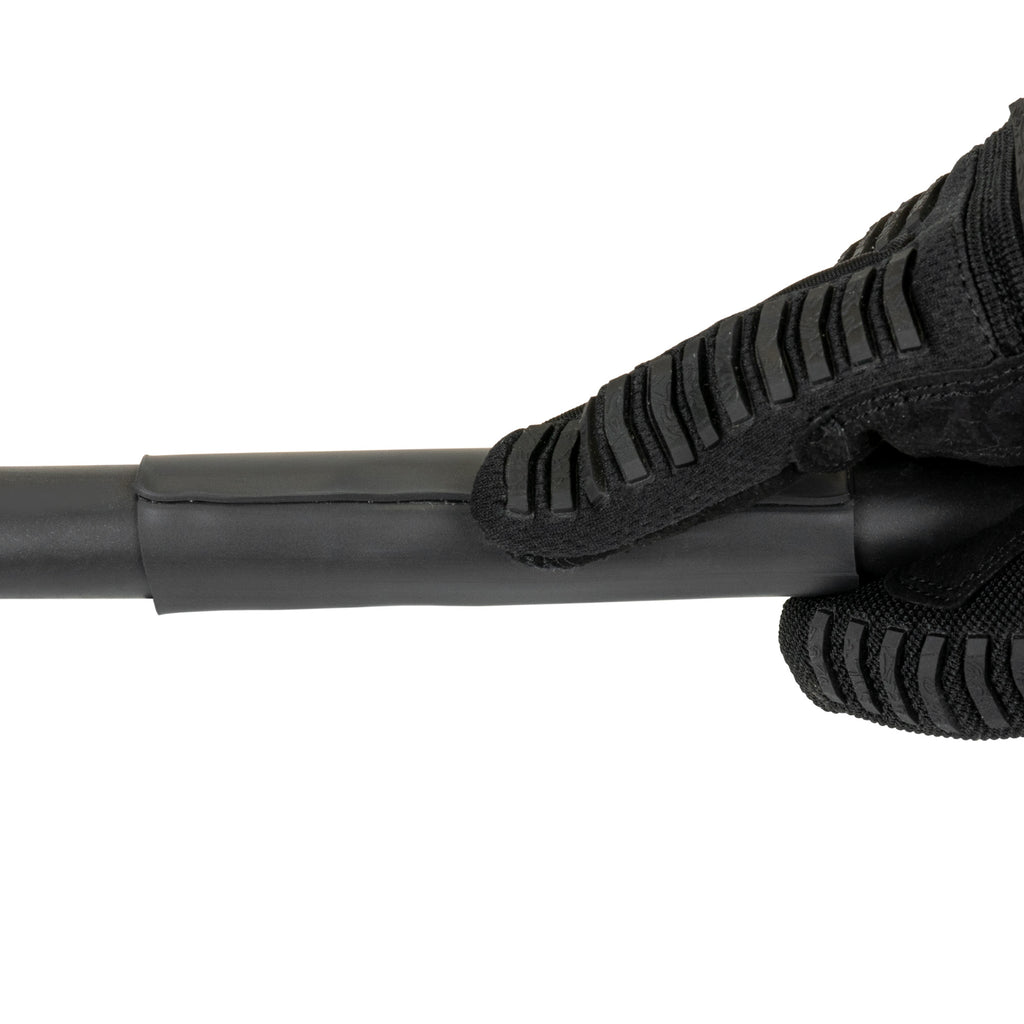

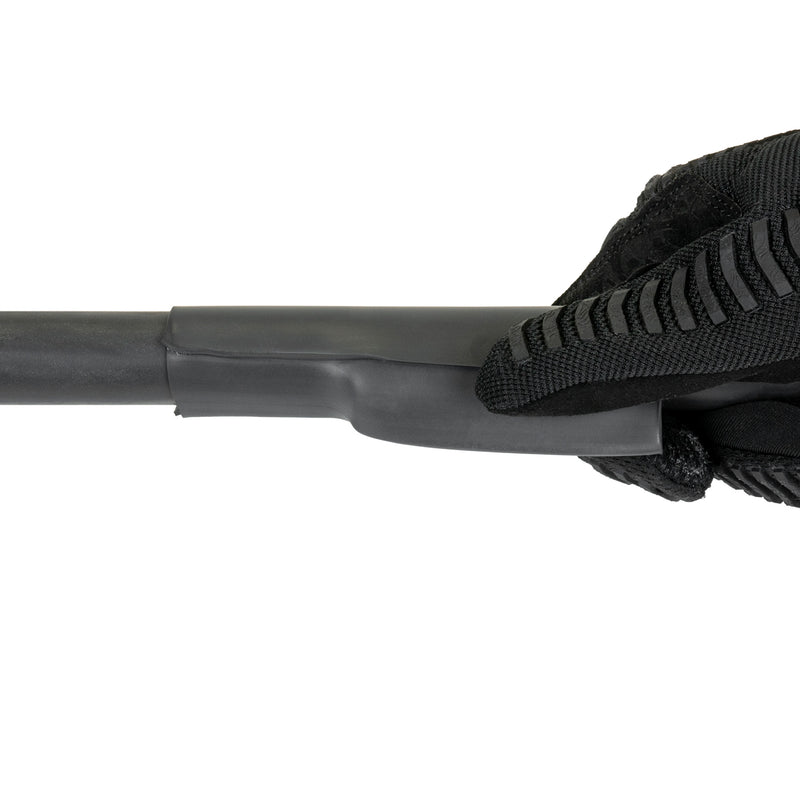

The Shrink-N-Repair® comes standard as a three or one foot roll and can be cut to your desired length and width covering a half to one inch diameter wire repairs. Unlike other forms of heat shrink that are tubes, the Shrink-N-Repair® is a wrap that wraps around your wires. You’ll never ever again need to slip, disconnect or re-wire prior to installation again! The only tools that you’ll need are scissors and a high temperature heat gun. How is the product installed? It’s as easy as open, cut, wrap, stick and heat.

Save time and get better protection on any job with Zippertubing’s Shrink-N-Repair® wrap-around installation. Look for other products or custom applications from Zippertubing® on Amazon or zippertubing.com.

Specifications

Overall Performance

  • Closure: Tape (Specialty Surface)
  • Dielectric Strength: 500v/mil (after shrink)
  • Elongation: 200% (after shrink)
  • Material: Polyolefin
  • Flammability: UL224, VW-1, Self-extinguishing
  • Fungicide: No Growth
  • Heat Shrink Material: Cross-Linked Polyolefin
  • Longitudinal Shrinkage: +/-5% (after heat recovery)
  • Thickness: 0.025"
  • Maximum Operating Temperature: 275°F
  • Minimum Operating Temperature: -67°F
  • RoHS: RoHS-10
  • Shelf-Life: 24 months
  • Shrink Ratio: 2:1
  • Shrink Temperature: 90° to 121°C (194° to 250°F)

Polyolefin

  • Mil-Spec: SAE-AMS-DTL-23053/5
  • REACH: Compliant
  • Dielectric Strength: 500 volt/mil
  • Elongation: 200% (after shrink)
  • Flammability: UL224, VW-1, Self-extinguishing
  • Fungicide: No Growth
  • Longitudinal Shrinkage: +/-5% (after heat recovery)
  • Thickness: 0.035" - 0.055"
  • Maximum Operating Temperature: 275°F
  • Minimum Operating Temperature: -67°F
  • RoHS: RoHS-10
  • Shelf Life: 60 Months
  • Shrink Ratio: 2:1, 3:1 or 4:1
  • Tensile Strength: 1500 psi. (after shrink)
  • Specific Gravity: 1.35 (max.)
  • Outgasssing (%TML): Min 0.2 | Max 0.93%
  • Outgassing (%CVCM): Min 0.02 | Max 0.13%
  • Outgassing (%WVR): Min 0.01 | Max 0.16%

Tape (Specialty Surface)

  • Shear Strength: >200 grams @ +400°F (1/2" overlap)
  • REACH: Compliant
  • Release Liner: 0.0065" Polycoated Paper Liner, 86#
  • Humidity Resistance: Excellent
  • Adhesion: 140 oz-in. (to steel) 136 oz-in. (to Polyproylene)
  • Chemical Resistance: Good
  • Material: Acrylic
  • Thickness: 0.005"
  • Maximum Operating Temperature: 200°F
  • Minimum Operating Temperature: -40°F
  • RoHS: RoHS-10
  • Shelf Life: 12 months, unbonded
Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.

Similar products

PRT® Shrink-N-Repair® (M) PRT® (ES-135)
NAME PRT® SHRINK-N-REPAIR® (M) PRT® (ES-135)
DESCRIPTION A wrap-around heat shrink made from MIL-SPEC tubing that repairs electrical systems and assembled components and is resistant to abrasion and chemicals. A wrap-around, abrasion-resistant, fluid-resistant heat shrink that repairs wires or cables with diameters up to 0.5”. A wrap-around, military-grade heat shrink paired with a high-temperature water blocking, hot-melt adhesive that protects against harsh environmental conditions.
Closure Tape (Specialty Surface) Tape (Specialty Surface) Tape (Specialty Surface)
RoHS RoHS-10 RoHS-10 RoHS-10
Abrasion Resistance Best Best Best
Installation Type Wrap-Around Wrap-Around Wrap-Around
Purpose Wire Repair Wire Repair Water Blocking
Min Temperature Extreme Moderate Extreme
Minimum Operating Temperature -67°F -67°F -67°F
Max Temperature Moderate Low Moderate
Maximum Operating Temperature 275°F 275°F 275°F
Flexibility
View View View

Shrink-N-Repair® (L)

A wrap-around, abrasion-resistant and fluid-resistant heat shrink that repairs large wires or cables with diameters ranging from 0.5” to 1”.

Drawing Number(s): ZT18-04-006

Selected Part Number: CSMR-ZT18-04-006-B-X12.0

  • Repairs or strengthens components while providing protection from abrasion, chemicals, and fluids
  • Can be cut to any desired length
  • Available on Amazon in either a 12” piece or 36” roll
  • Features

  • Heat shrink can be cut to any desired length
  • Requires no disconnection or re-wiring of components
  • Operational temperature range of -67°F to 275°F (-55°C to 135°C)
  • Benefits

  • Quick and easy installation with only a heat gun and a standard pair of scissors
  • Shrink ratio of 2:1 allows for versatility of application
  • Paper release liner on adhesive allows for clean installation
  • Shrink-N-Repair® (L)

    Shrink-N-Repair® (L)

    MATERIAL SPECIFICATIONS
