Quick-Feed® - Zipper-Closed Cable Pulling Sleeve

A pull-through sleeve utilized for electrical, network, and fiber-optic wire navigation and installation in conduit or similar tubing.

Drawing Number(s): ZT17-07-012

Quick-Feed® - Zipper-Closed Cable Pulling Sleeve
RoHS

Select product options

Please fill in at least one field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Selected Part Number:ZT17-07-012-15
Get A Quote
WARNING: Cancer and Reproductive Harm | www.P65Warnings.ca.gov

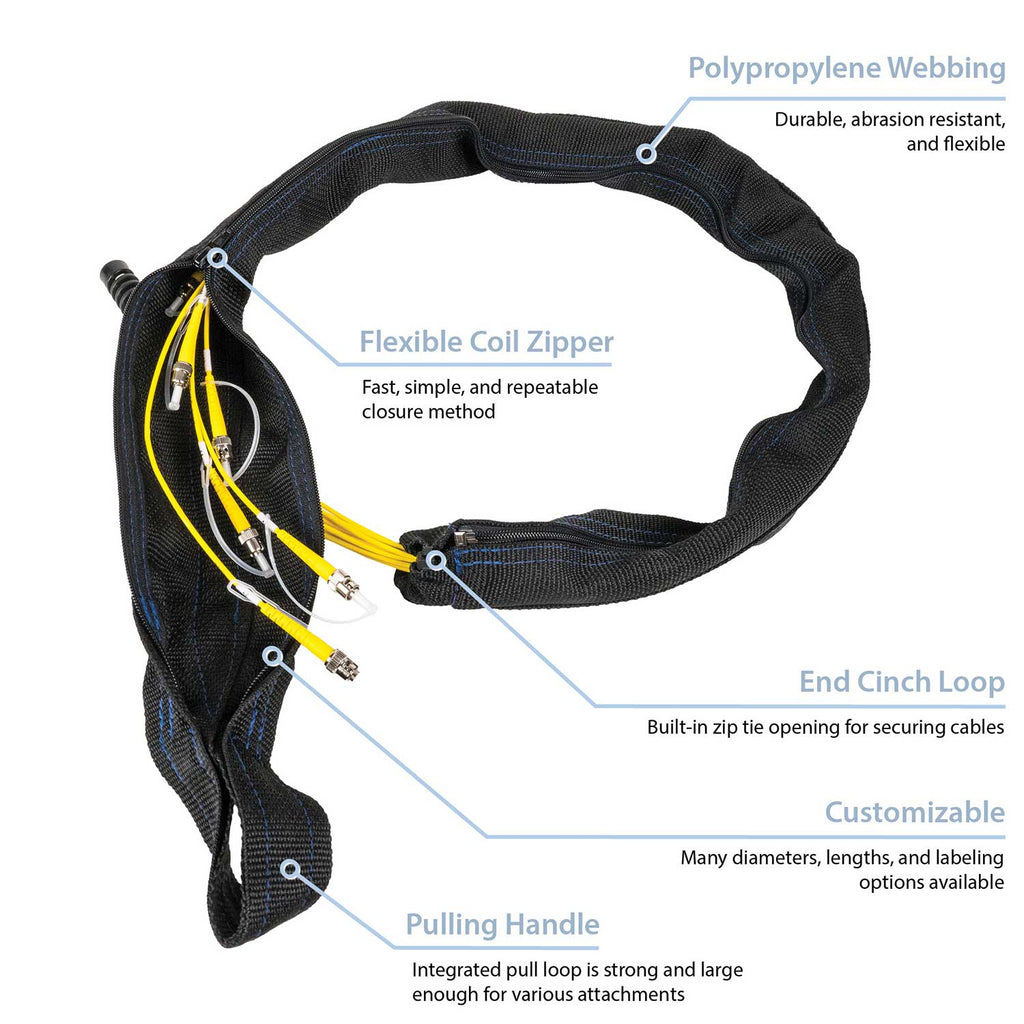

Quick-Feed Infographic
  • Integrated handle allows to hook and traverse through conduit or tubing for easier navigation
  • Bundles wires or cables through the installation process
  • Customizable with a foam or conduit liner inside for added protection

Do you have electrical, network, or fiber-optic wires that you’re trying to run through a piece of conduit or through an area that requires the wires to be bundled together, routed, and pulled through?

Zippertubing’s Quick-Feed® pull-through sleeve will allow you to navigate conduits or similar areas by gathering together, securing, and protecting your cable or wire bundles, providing a lasting, cost-effective solution.

Our Quick-Feed® is manufactured with durable polypropylene webbing, sewn together with nylon thread in various color options. The integrated handle allows you to hook onto the bundle and traverse your cable routing system by hand, connecting rod, or other method.

Our only consumable is a simple zip tie, which can be inserted into an opening at one end of the sleeve to ensure the wires do not get pulled from the bundle. This system allows you to bypass the need for excessive amounts of tape and the hassle of cleaning up the residue it leaves behind.

Simply place your cables and wire in the Quick-Feed®, zip it together, and cinch the zip tie on the opposite end to secure the cables and wires as you pull them through your system.

For added protection, we also offer an optional conduit sleeve that can be permanently sewn into the jacketing to help protect the fragile connector ends in your bundle, especially in high-traffic areas such as construction zones.

No matter how you intend to use Zippertubing’s Quick-Feed® pull-through sleeve, you’ll find it to be the perfect solution for safely pulling your cables and wires through your conduit systems.

Overall Performance

  • Diameter: 1.125" (1 1/8)
  • Closure: Zipper (Nylon)
  • Material: PPW (50)
  • Maximum Operating Temperature: 212°F
  • Minimum Operating Temperature: 14°F
  • RoHS: RoHS-10

PPW (50)

  • Break Strength: 600 lb. Min./in.
  • REACH: Compliant
  • Chemical Resistance: Good
  • Material: Polypropylene
  • Color: Green, Gray, Black, Red or Blue
  • Thickness: 0.050"
  • Maximum Operating Temperature: 212°F
  • Minimum Operating Temperature: 14°F
  • RoHS: RoHS-10
  • Specific Gravity: 0.91
  • Width: 3/4", 1.0", 2.0", and 3.0"

Zipper (Nylon)

    Nylon Thread

      Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
      Zip-On® (63) Military-Grade Cable Bundling  Zip-On® (PFR) Polyurethane Cable Bundling  Z-Coil Self-Closing Cable Jacketing
      NAME ZIP-ON® (63) MILITARY-GRADE CABLE BUNDLING  ZIP-ON® (PFR) POLYURETHANE CABLE BUNDLING  Z-COIL SELF-CLOSING CABLE JACKETING
      DESCRIPTION A wrap-around cable bundling and protection solution that has a PVC, military-grade jacket that is abrasion and fluid resistant, with a pressure track.  A wrap-around cable protection solution that is flexible, resistant to abrasion and fluids, and has a pressure track closure.  A self-closing wire bundling and protection sleeve made from a durable, flame-retardant, woven PET material
      Closure Z-Track (PVC), R-Track (PVC), D-Track (PVC), EZ-Track (PVC)  Z-Track (PFR)  Self-Closing
      RoHS RoHS-10  RoHS-10  RoHS-10
      Abrasion Resistance Best  Best  Better
      Installation Type Wrap-Around  Wrap-Around  Wrap-Around
      Purpose Sleeve  Sleeve  Sleeve
      Min Temperature Low  Moderate  Extreme
      Minimum Operating Temperature -4°F  -67°F  -58°F
      Max Temperature Moderate  Low  Moderate
      Maximum Operating Temperature 221°F  225°F  302°F
      Flexibility Better  Best  Best
      View  View  View
      Zippertubing
      Quick-Feed Infographic

      Quick-Feed® - Zipper-Closed Cable Pulling Sleeve

      A pull-through sleeve utilized for electrical, network, and fiber-optic wire navigation and installation in conduit or similar tubing.

      Drawing Number(s): ZT17-07-012

      Selected Part Number: ZT17-07-012-15

    • Integrated handle allows to hook and traverse through conduit or tubing for easier navigation
    • Bundles wires or cables through the installation process
    • Customizable with a foam or conduit liner inside for added protection
    • Military
      Quick-Feed
      Quick-Feed cable management
      Quick-Feed wire harnessing
      Quick-Feed flexible conduit

      Features

    • Customizable with many colors including a gray or green thread and custom branded tag
    • Optional foam or conduit insert for added protection around wires or cables
    • Operational temperature range of 14°F to 212°F (-10°C to 100°C)
    • Benefits

    • Secures and protects components from being crushed and damaged during installation
    • No tools are required for installation; just zip closed and zip tie the end
    • Handle allows for simple navigation through conduit or tubing
    • Quick-Feed® - Zipper-Closed Cable Pulling Sleeve
