Overview
- Available in six color options and a multitude of diameters with National Stock Numbers (NSN)
- Never disconnect or pull through another wire or cable again and water block it
- Excellent-anti abrasive, environmental, chemical, and electrical properties with resistance to most oils and fluids, mild acids, and alkalis

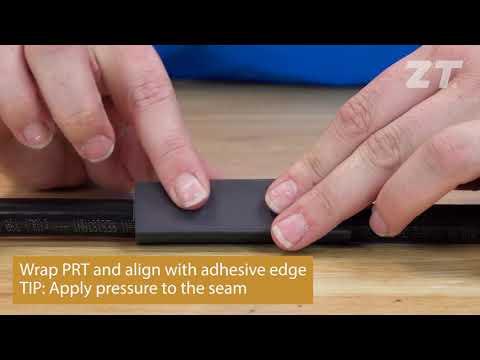

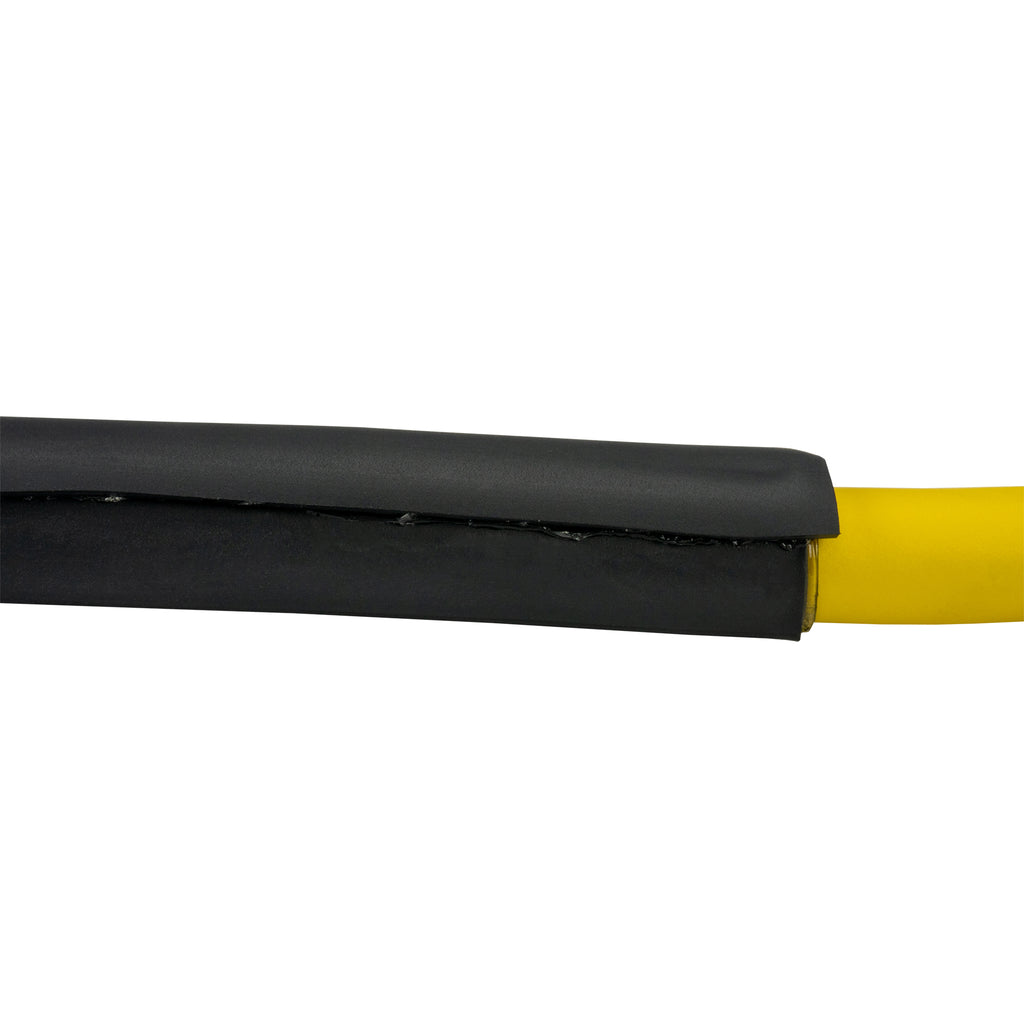

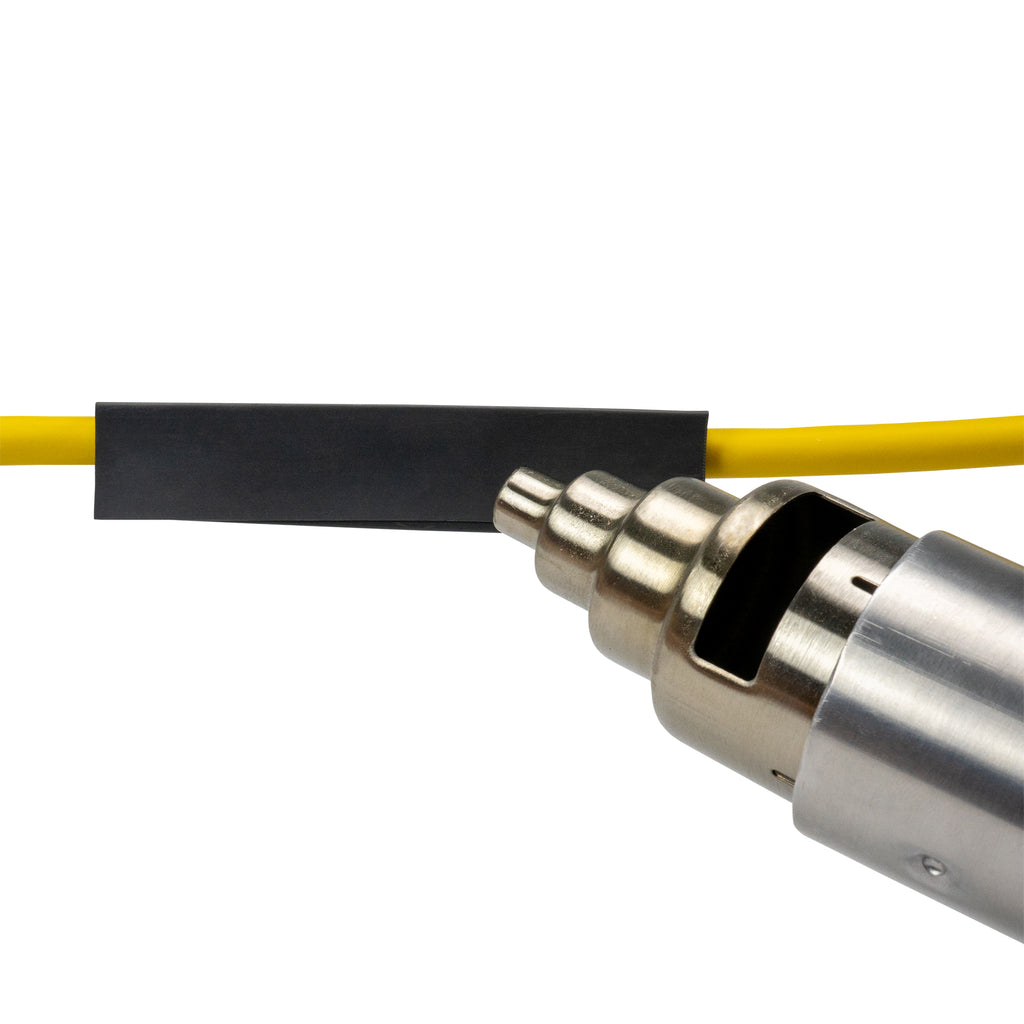

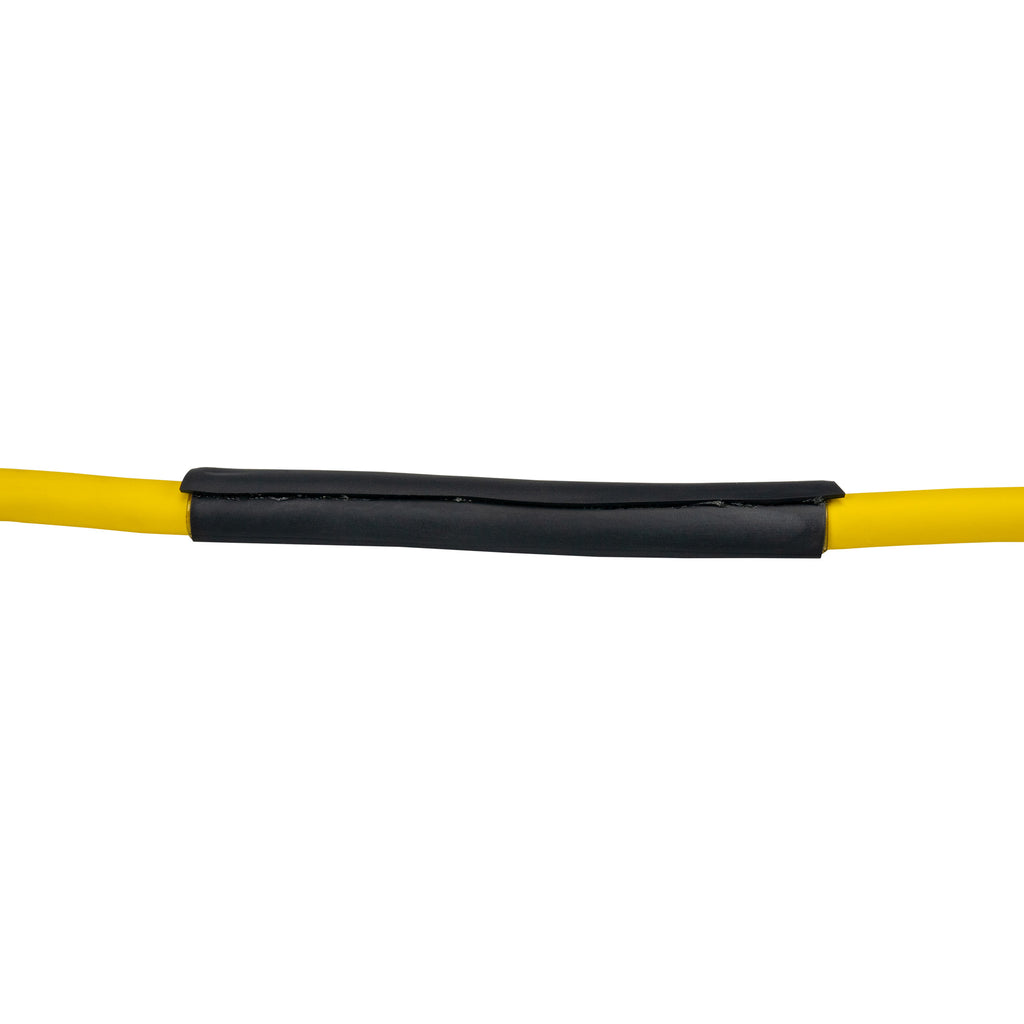

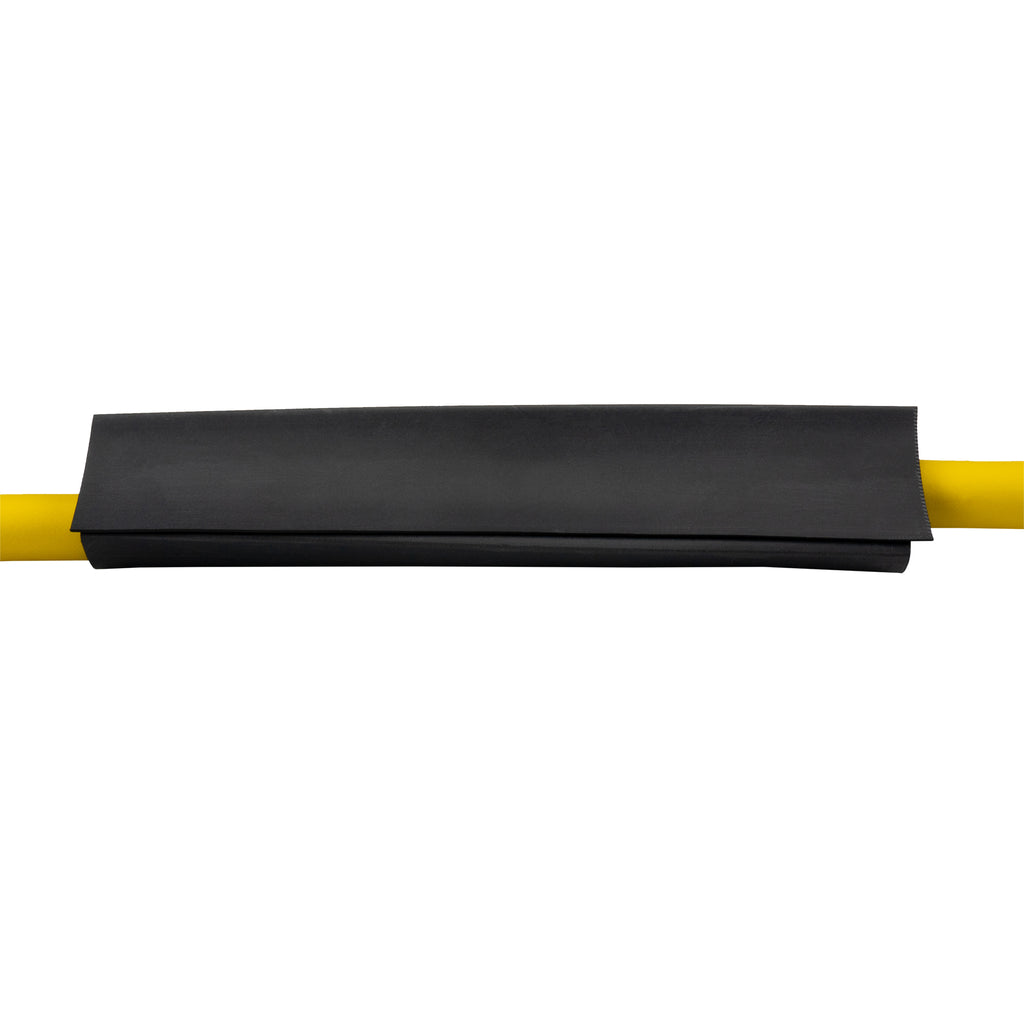

PRT® (ES-135) is our easy to install, wrap-around, military-grade PRT® heat shrink, combined with our high-temperature water blocking, hot-melt Z-Block™ (135). PRT® is a flame-retardant, abrasion-resistant, chemical-resistant, and fluid-resistant polyolefin heat shrink. PRT® is also RoHS compliant and UL-rated. PRT® repairs or re-jackets damaged components that cannot be disassembled. PRT® (ES-135) should be installed by using a standard heat gun that can reach 275°F (135°C).

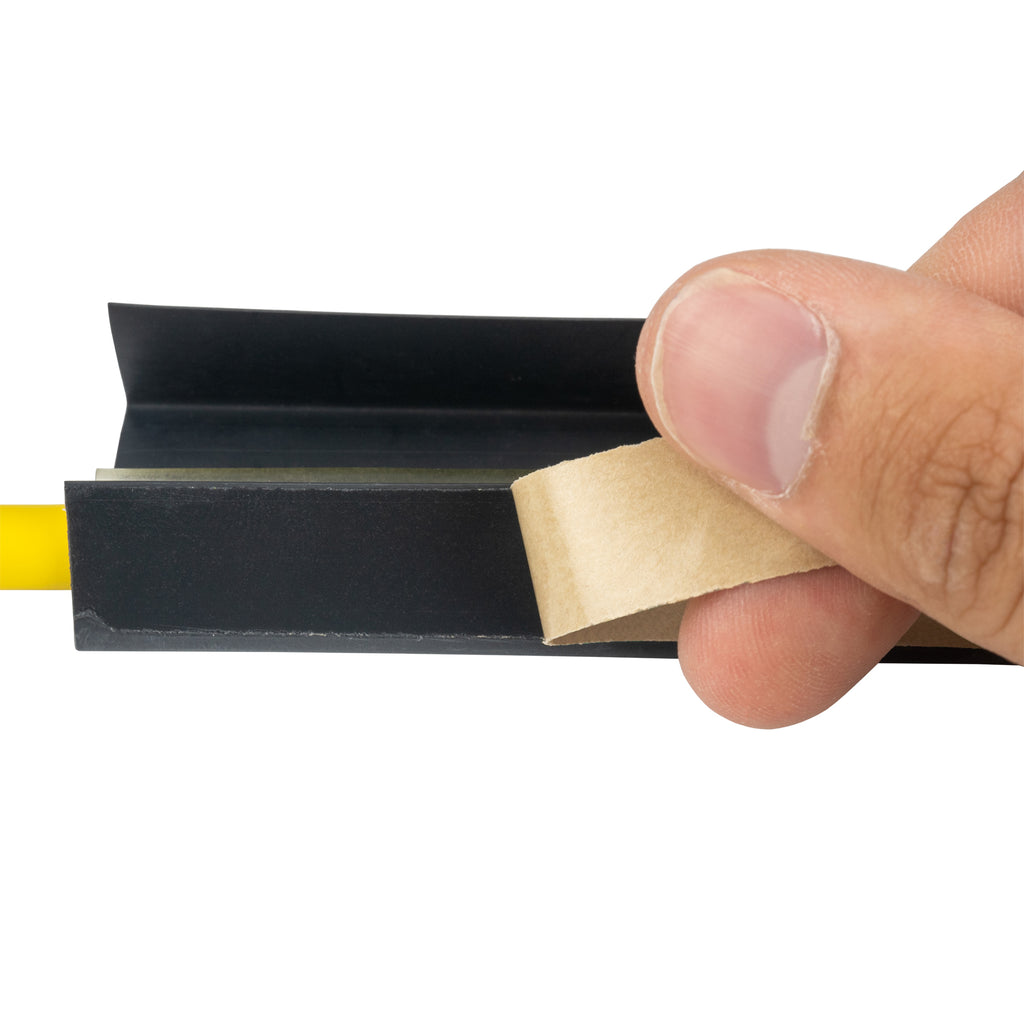

Z-Block™ (135) is a high-temperature hot-melt adhesive tape that blocks and seals wires from fluids, oils, and greases. Z-Block™ (135) creates an environmental seal that will prevent fluids from damaging or penetrating components and can withstand temperatures of up to 275°F. Z-Block™ (135) is also RoHS compliant.

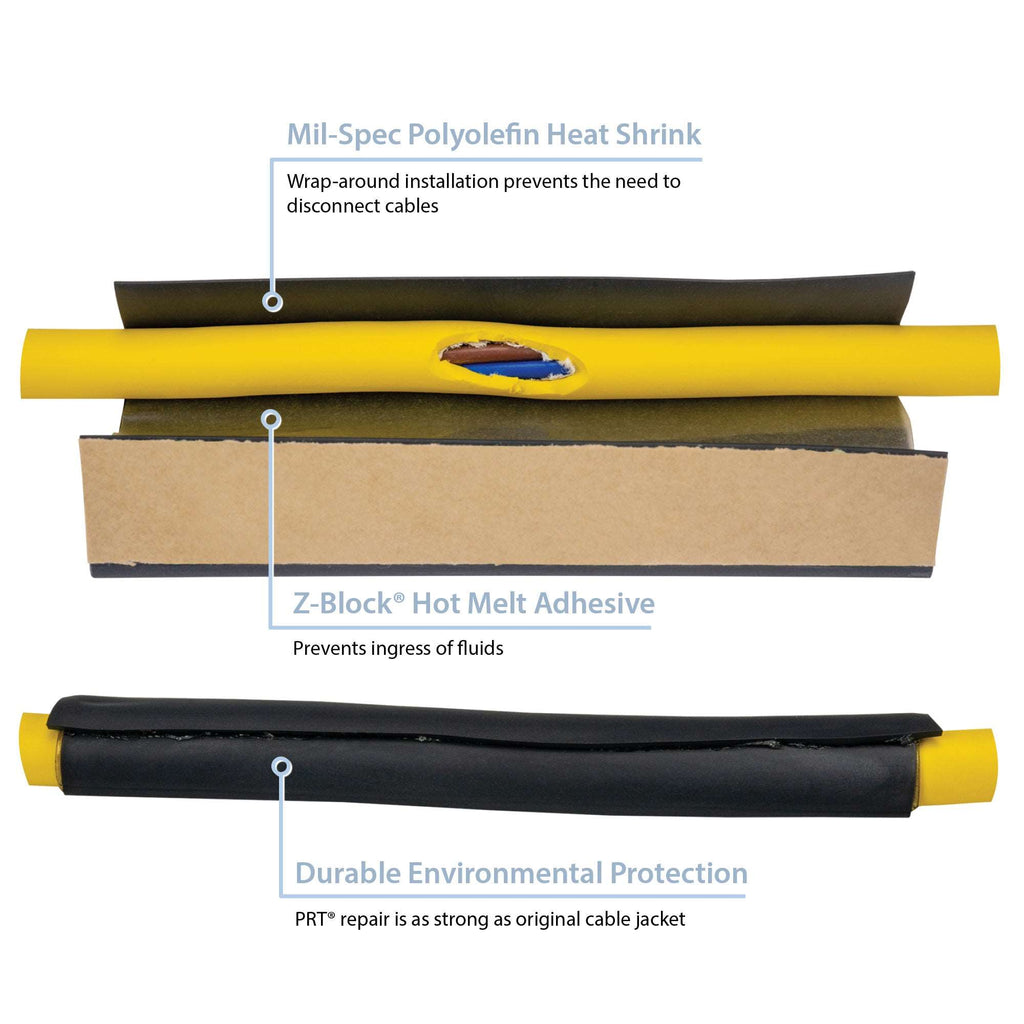

Pairing PRT® with Z-Block™ (135) creates the perfect solution for wires or cables exposed to fluids, and need repair or a durable jacket to prevent damage from occurring. PRT® (ES-135) comes in a standard 50-foot roll that can be cut to any desired length, offering versatility for application. PRT® (ES-135) is engineered for diameters ranging from 0.04” to 1.87”, with custom sizes available upon request. PRT® (ES-135) can also be customized with having a range of color options available for applications that may need color-coding. The operational temperature range is -67°F to 275°F (-55°C to 135°C). We also offer PRT® (ES-100), which has a lower temperature range of up to 212°F.
PRT® (ES-135) is available with National Stock Numbers (NSN). This designation ensures that PRT® (ES-135) meets the stringent standards required by military and government agencies, facilitating easy procurement and inventory management. The availability of PRT® (ES-135) with NSNs underscores Zippertubing's commitment to quality and reliability in providing essential components for critical operations.
- Comes in standard 50-foot roll that can be easily cut to any desired length

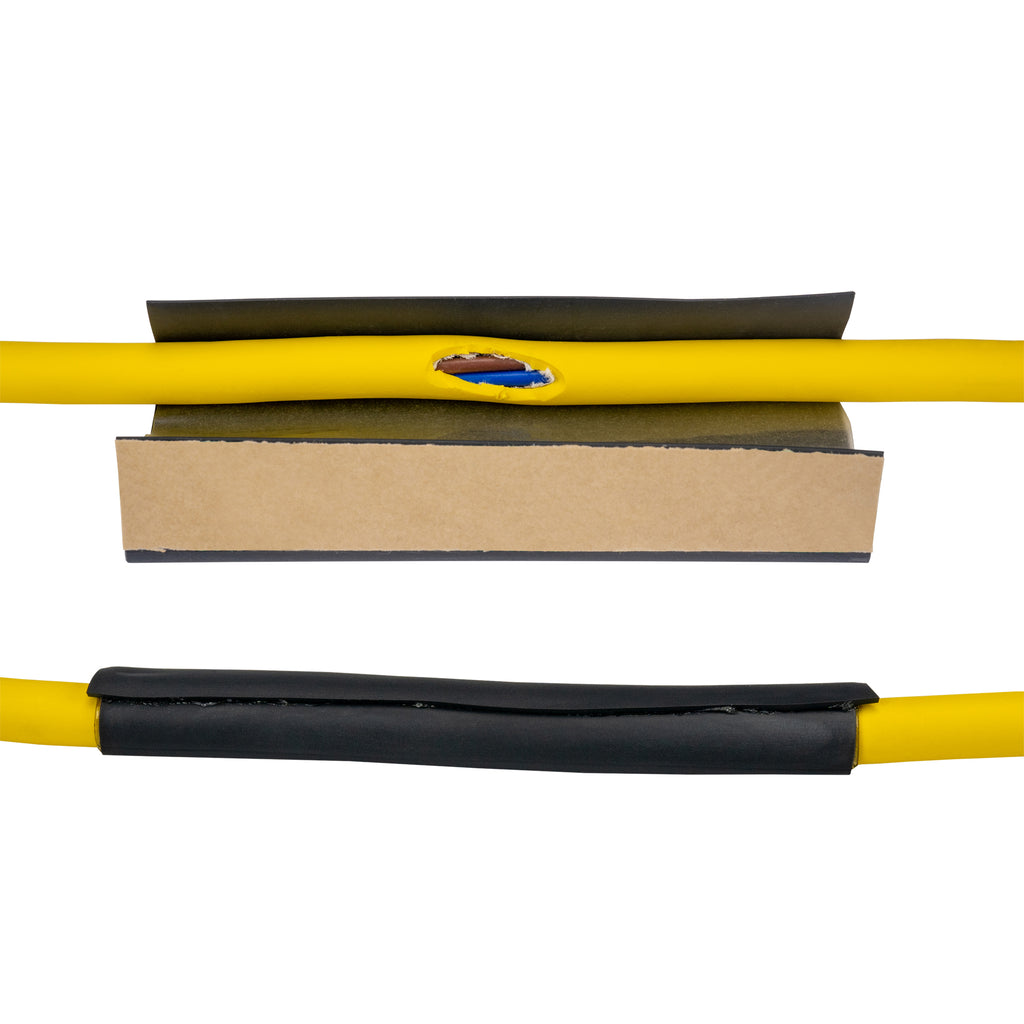

- Ideal for repairing damaged wires that also needs protection from water
- Operational temperature range is -67°F to 275°F (-55°C to 135°C)
- Utilizes a high-temperature hot-melt adhesive
- Military-grade, wrap-around heat shrink
- Available in custom sizes and colors upon request
Product Data
Diameter - After Shrink | ||||
---|---|---|---|---|
0.040" - 0.075" (#01) | 0.25" - 0.37" (#09) | 0.75" - 0.87" (#17) | 1.25" - 1.37" (#25) | 1.75" - 1.87" (#33) |
0.076" - 0.125" (#03) | 0.38" - 0.49" (#11) | 0.88" - 0.99" (#19) | 1.38" - 1.49" (#27) | |
0.126" - 0.174" (#05) | 0.50" - 0.62" (#13) | 1.0" - 1.12" (#21) | 1.50" - 1.62" (#29) | |
0.175" - 0.250" (#07) | 0.63" - 0.74" (#15) | 1.13" - 1.24" (#23) | 1.63" - 1.74" (#31) |
Specifications
Overall Performance
- Cable Diameter After Shrinkage:
- Closure:
- Environmental Seal:
- Material:
- Heat Shrink Material:
- Maximum Operating Temperature:
- Minimum Operating Temperature:
- RoHS:
- Shelf-Life:
- Shielding Material:
- Shrink Ratio:
- Water Blocking Type:
Polyolefin
- Mil-Spec:
- REACH:
- Dielectric Strength:
- Elongation:
- Flammability:
- Fungicide:
- Longitudinal Shrinkage:
- Material:
- Thickness:
- Maximum Operating Temperature:
- Minimum Operating Temperature:
- RoHS:
- Shelf Life:
- Shrink Ratio:
- Tensile Strength:
- Specific Gravity:
- Outgasssing (%TML):
- Outgassing (%CVCM):
- Outgassing (%WVR):
Tape (Specialty Surface)
Polyamide Hot Melt (135)
- REACH:
- Abrasion Resistance:
- Elongation:
- Flexibility:
- Material:
- Thickness:
- Maximum Operating Temperature:
- Minimum Operating Temperature:
- Water Absorption:
- RoHS:
- Shelf Life:
- Softening Temp:
- Softening Temp Variance:
