PRT® (1553-100)

A wrap-around, MIL-SPEC heat shrink paired with a water-blocking, hot-melt adhesive that comes equipped with the Z-3250-Tape™ for shielding against EMI.

Drawing Number(s): ZT11-KT-001

PRT® (1553-100)
RoHS Military Grade

Select product options

+ Please fill in at least one field.
Selected Part Number:ZT11-KT-001-01
Get A Quote
WARNING: Cancer and Reproductive Harm | www.P65Warnings.ca.gov

Overview

PRT® (1553-100)

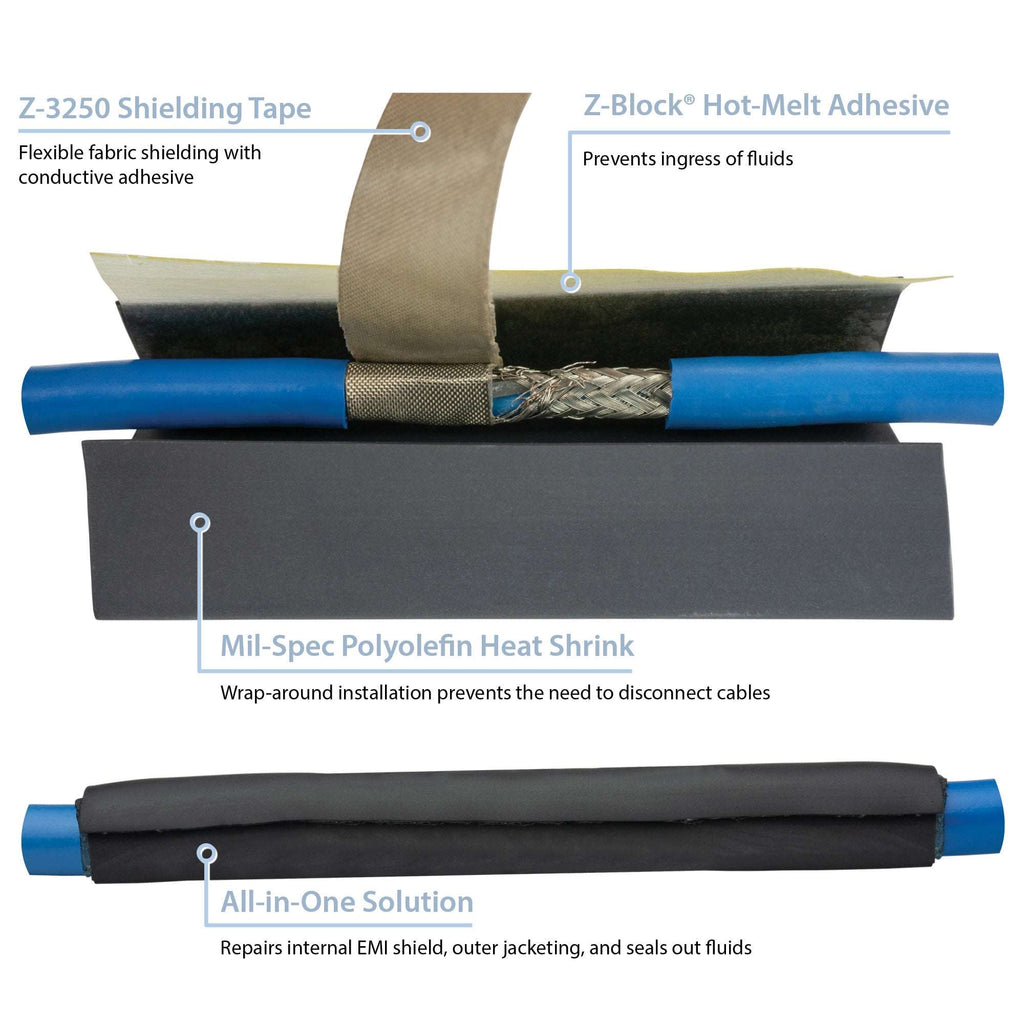

  • Polyolefin heat shrink meets SAE-AMS-DTL-23053/5
  • Z-3250-Tape™ offers exceptional EMI shielding
  • Z-Block® (100) water-blocking adhesive protects from fluids, oils, and debris

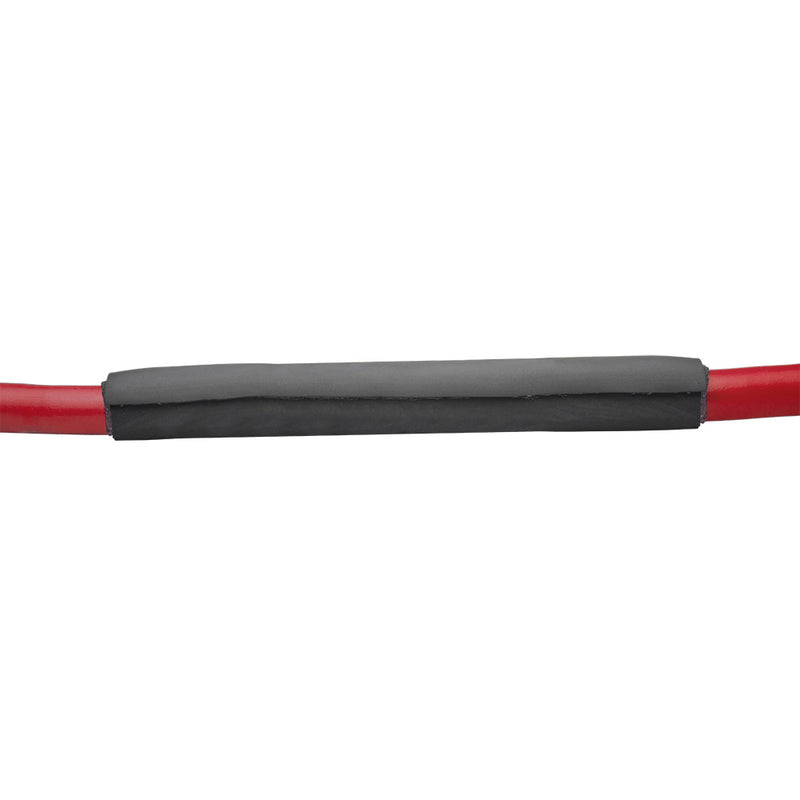

PRT® (1553-100) is a kit that includes wrap-around heat shrink with a water-blocking adhesive and an EMI shielding tape. The polyolefin heat shrink is military grade with meeting MIL-DTL-23053/5C and UL-rated meeting UL 224, VW-1. The heat shrink is non-flammable, abrasion resistant, fluid resistant, and fungus resistant. This polyolefin is ideal for applications exposed to rugged conditions that need long-lasting, durable protection.

The heat shrink is lined with the Z-Block® (100) water-blocking, hot-melt adhesive. The Z-Block® (100) is resistant to most fluids, water, oils, and greases. The adhesive will create no corrosion of copper and aluminum substrates, and will prevent any fluids from penetrating into the wires or cables.

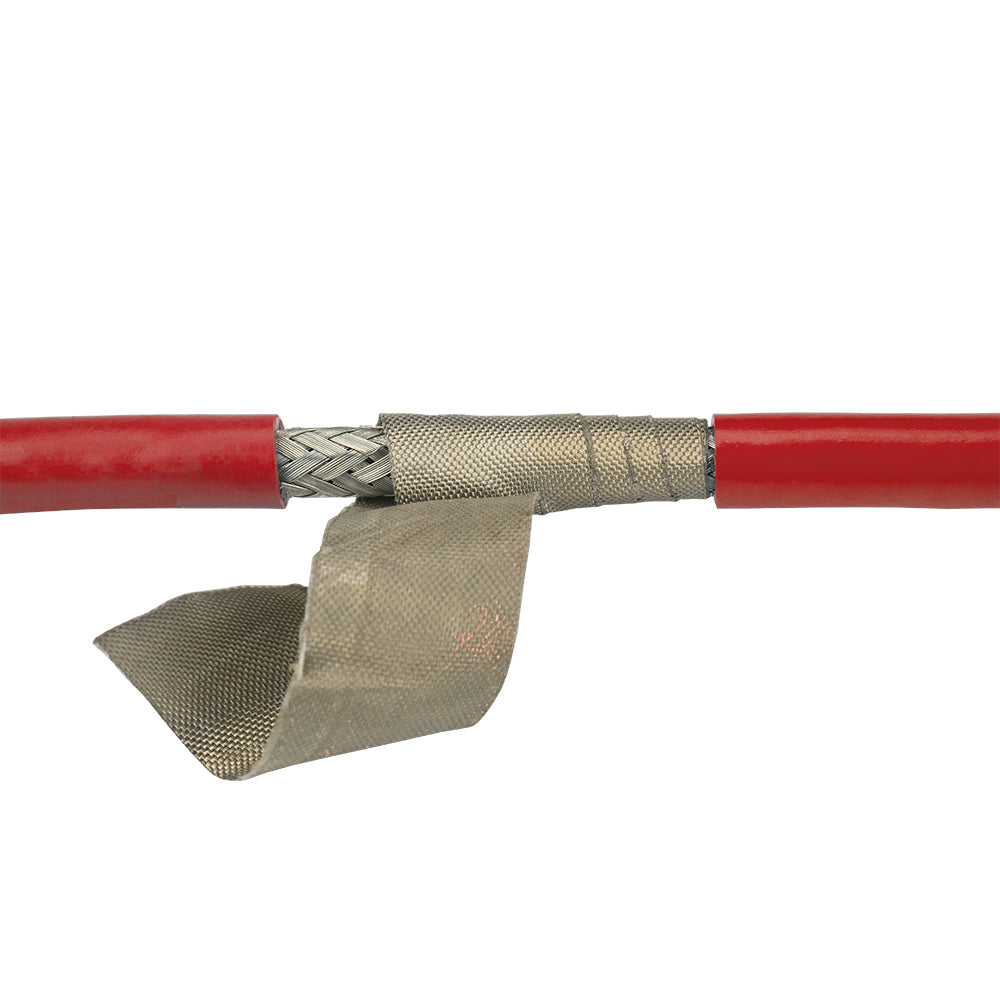

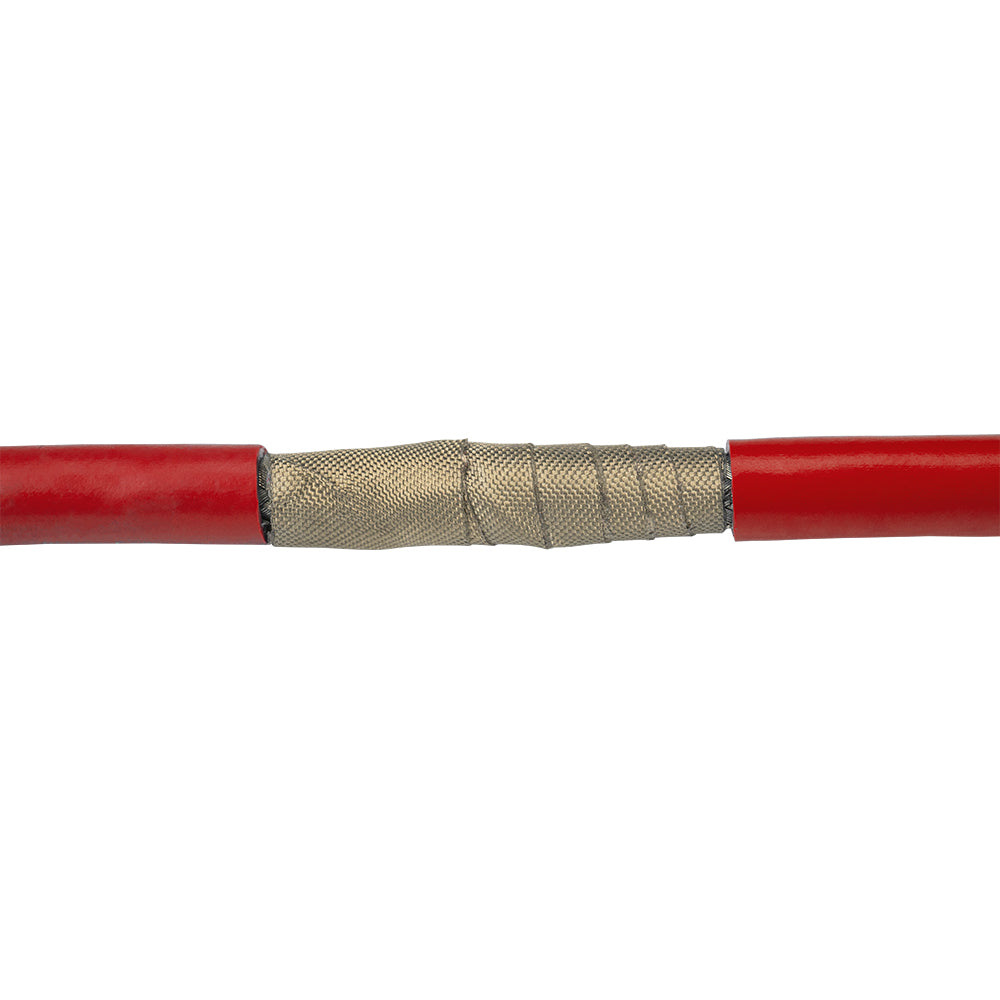

The PRT® (1553-100) kit includes the Z-3250-Tape™ for shielding against EMI, RFI, and EMF. The shielding tape has a corrosion-resistant coating made of plated copper and nickel, and will not flake over time. The Z-3250-Tape™ is equipped with an adhesive closure to make wrapping around the wire or cable quick and easy.

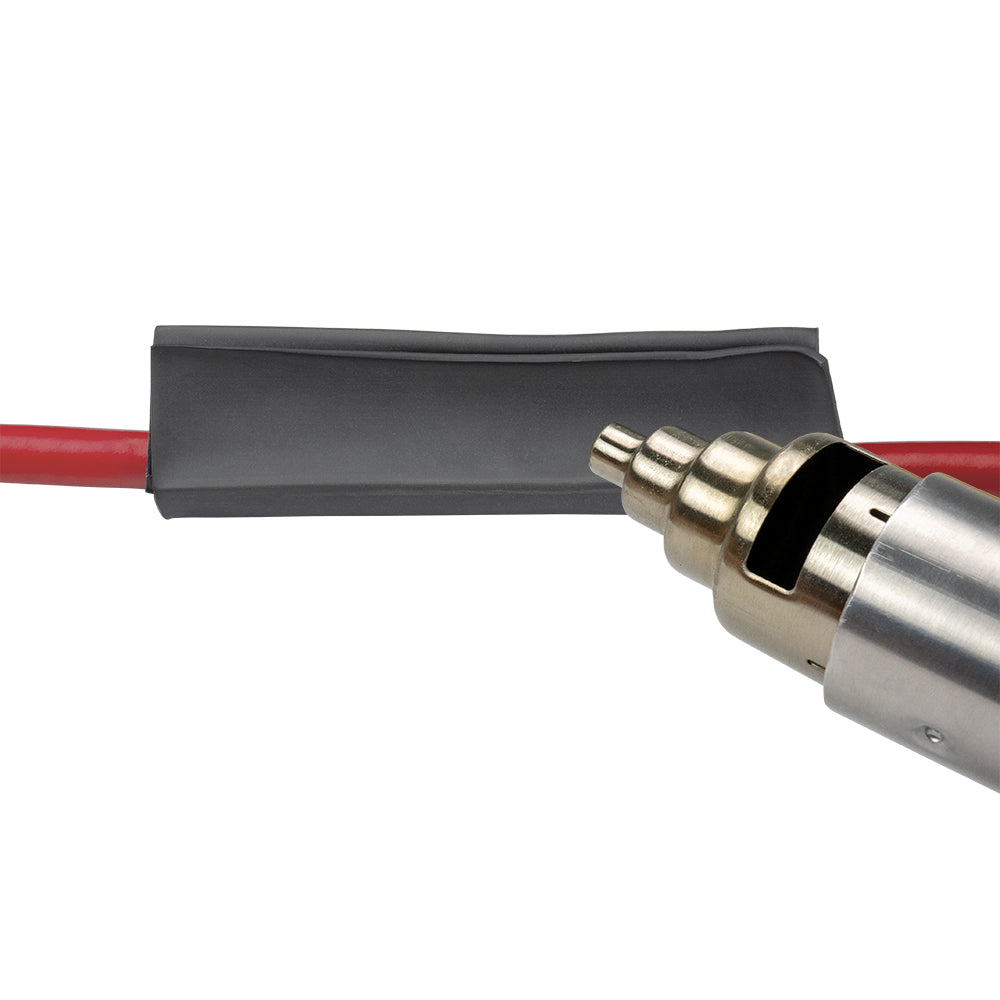

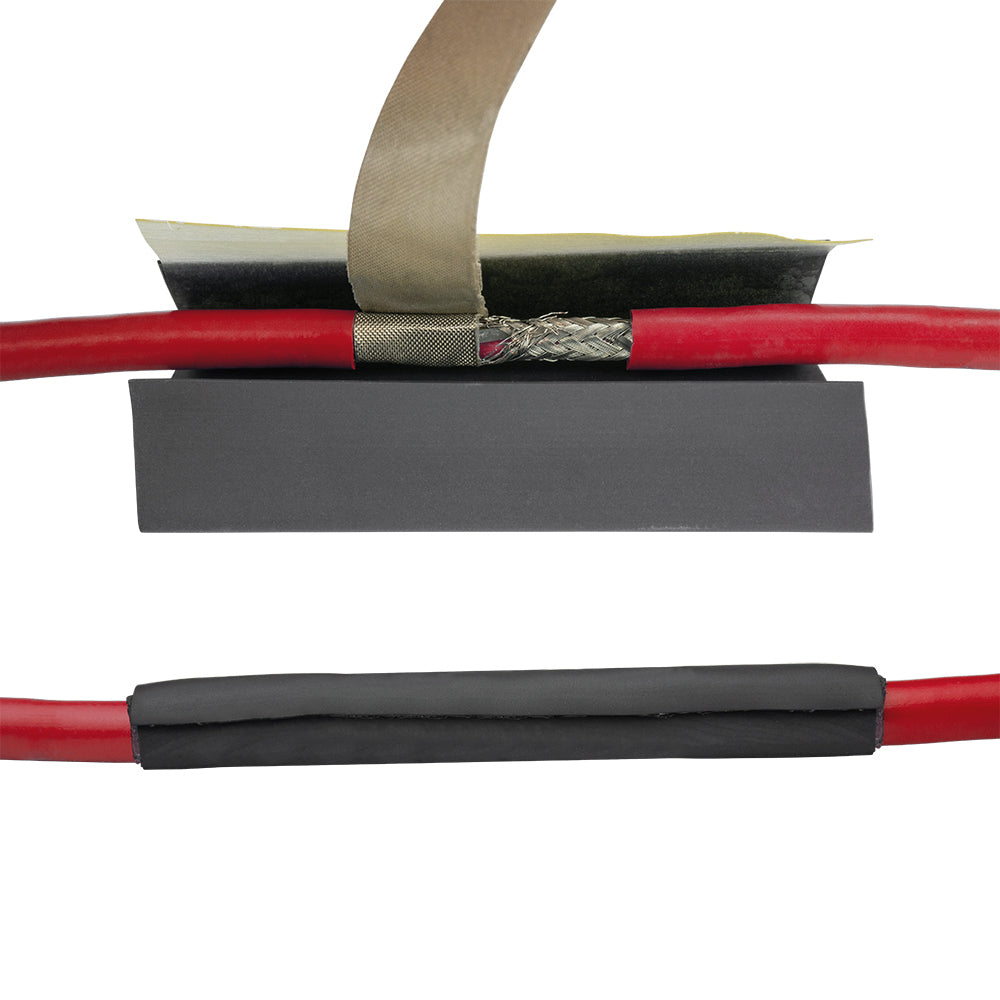

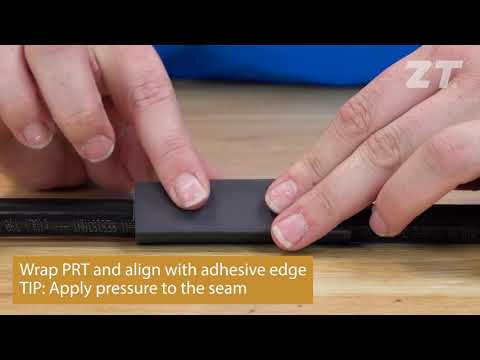

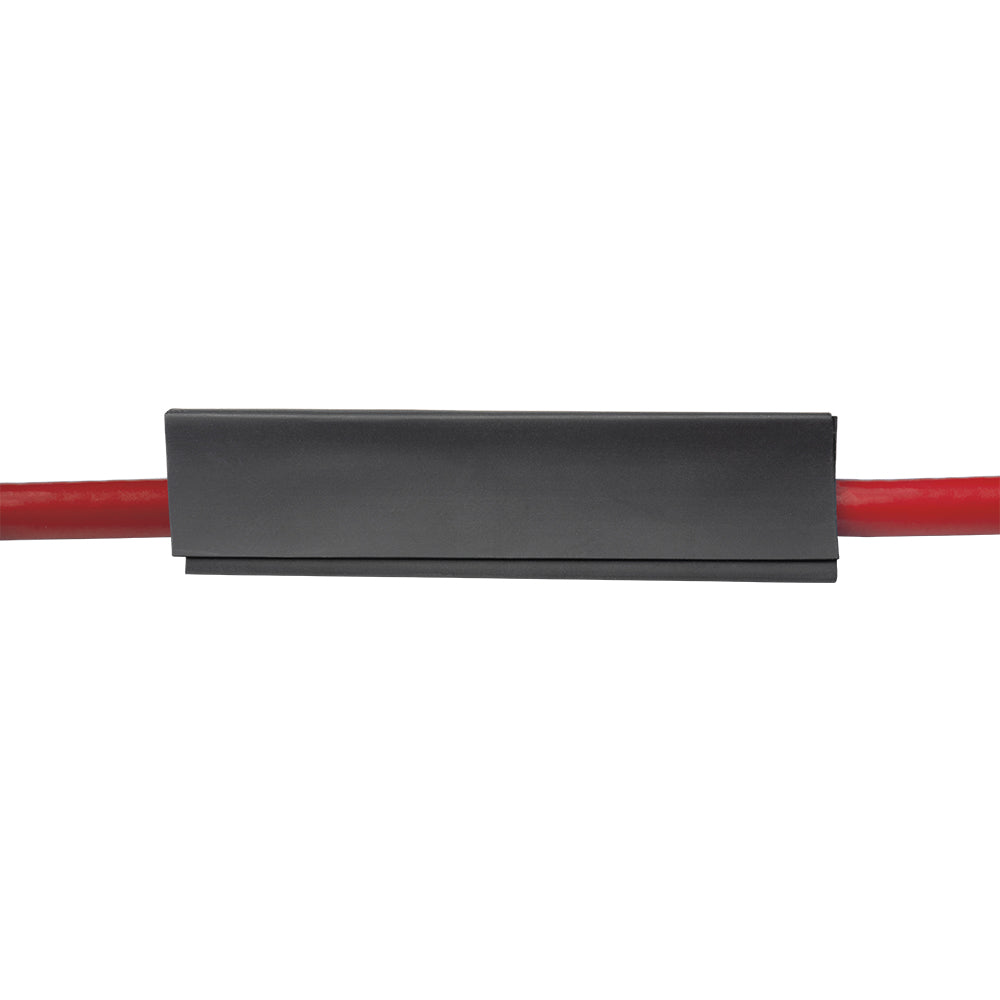

Installation of PRT® (1553-100) only requires a standard heat gun. Simply wrap the wire or wires to be repaired with the EMI shielding tape, then wrap with the Z-Block®. Once you have wrapped your wire/wires, follow the detailed instructions on our website to properly shrink the PRT®. The heat shrink can also be cut to any desired length. PRT® (1553-100) is offered in 6” pieces, for diameter ranges from 0.075” to 0.249”, with custom lengths and sizes available upon request. The operational temperature range is -67°F to 212°F (-55°C to 100°C).

Industries

  • Aerospace
  • Appliance
  • Automotive
  • Food & Chemical
  • Industrial & Commercial
  • Marine
  • Military & Defense
  • Nuclear Energy, Power & Utility
  • Rail
  • Sustainable Energy

Uses

  • EMI Shielding
  • Military Grade
  • Wrap Around

Product Data

Diameter - Pre-Shrink
0.075" - 0.125"
0.126" - 0.174"
0.175" - 0.249"

Specifications

Overall Performance

  • Cable Diameter After Shrinkage: 0.075" - 0.125"
  • Closure: Tape (Specialty Surface)
  • Environmental Seal: Z-Block (100)
  • Material: Polyolefin
  • Heat Shrink Material: Cross-Linked Polyolefin
  • Maximum Operating Temperature: 212°F
  • Minimum Operating Temperature: -67°F
  • RoHS: RoHS-10
  • Shelf-Life: 24 months
  • Shielding: Z-3250
  • Shielding Material: Nickel Plated Copper
  • Shrink Ratio: 2:1
  • Water Blocking Type: Polyamide Hot Melt (100)'

Polyolefin

  • Mil-Spec: SAE-AMS-DTL-23053/5
  • REACH: Compliant
  • Dielectric Strength: 500 volt/mil
  • Elongation: 200% (after shrink)
  • Flammability: UL224, VW-1, Self-extinguishing
  • Fungicide: No Growth
  • Longitudinal Shrinkage: +/-5% (after heat recovery)
  • Material: Cross-linked Polyolefin
  • Thickness: 0.035" - 0.055"
  • Maximum Operating Temperature: 275°F
  • Minimum Operating Temperature: -67°F
  • RoHS: RoHS-10
  • Shelf Life: 60 Months
  • Shrink Ratio: 2:1, 3:1 or 4:1
  • Tensile Strength: 1500 psi. (after shrink)
  • Specific Gravity: 1.35
  • Outgasssing (%TML): Min 0.2 | Max 0.93%
  • Outgassing (%CVCM): Min 0.02 | Max 0.13%
  • Outgassing (%WVR): Min 0.01 | Max 0.16%

Tape (Specialty Surface)

    Z-3250

      Polyamide Hot Melt (100)

      • REACH: Compliant
      • Abrasion Resistance: Best
      • Elongation: 350%
      • Flexibility: Good
      • Material: Polyamide Polymer
      • Thickness: 0.012"
      • Maximum Operating Temperature: 212°F
      • Minimum Operating Temperature: -67°F
      • Water Absorption: 0.5% maximum
      • RoHS: RoHS-10
      • Shelf Life: 60 Months
      • Softening Temp: 212°F
      • Softening Temp Variance: +/- 9°F
