Shrink-N-Shield® (3:1)

3

A heat-shrink tubing that provides exceptional shielding from EMI, RFI and EMF.
  • Excellent abrasion, chemical and fluid resistance
  • EMI shielding cloth protects components from damaging interferences
  • One step installation for less down time and total install costs

Shape of Installation: Round
Exterior Material: Polyolefin Heat Shrink
Shielding:

Details

Specifications

Materials

Print Datasheet


Details

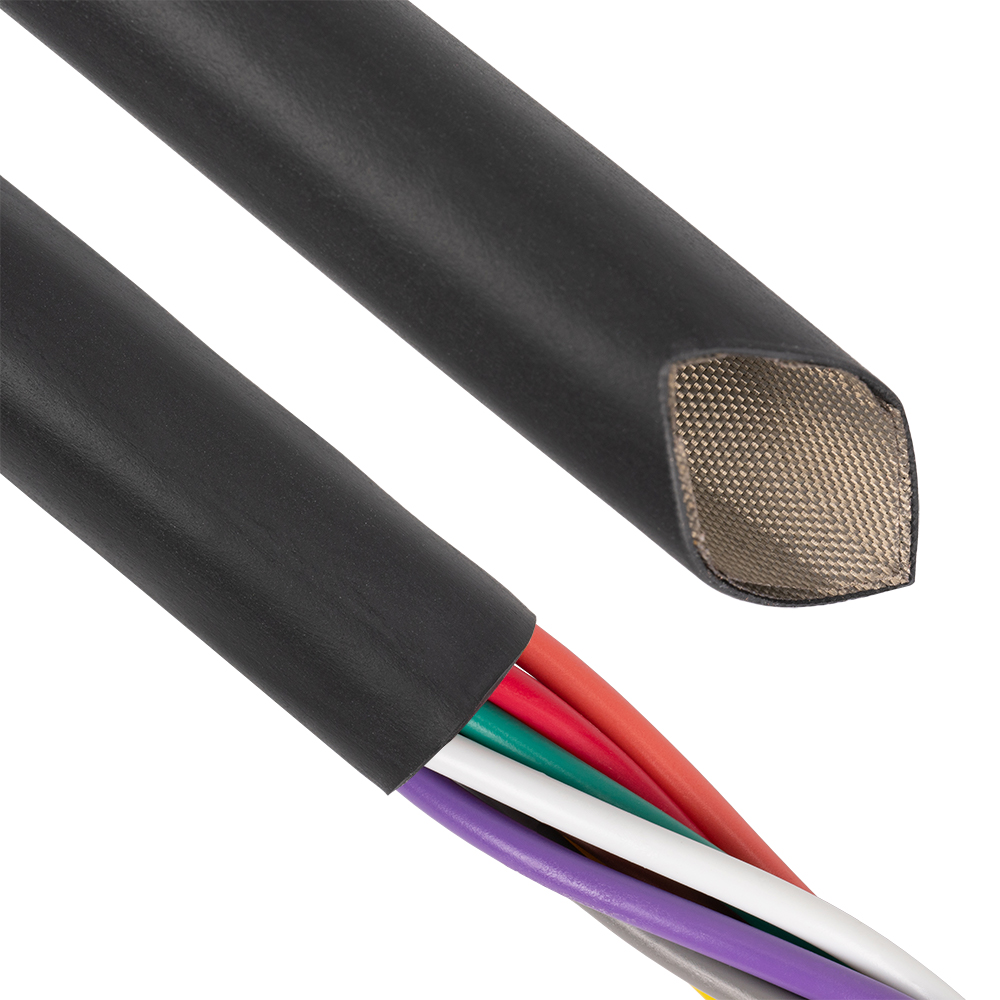

Shrink-N-Shield® (3:1) offers shielding for wires and cables from EMI, RFI and EMF.

Shrink-N-Shield® (3:1) is an EMI shielding heat-shrink tubing that has a 3:1 shrink ratio and can be cut to length. The flexible, flame-retardant and self-extinguishing polyolefin sleeve can withstand temperatures up to 275°F (135°C). Additionally, the jacketing has excellent abrasion, chemical, fluid and fungus resistance.

There are two standard shielding cloths available for Shrink-N-Shield® (3:1): Z-3250-CN and Z-7200-C. However, other EMI-shielding cloths are available upon request.

The Z-3250-CN shielding cloth is made of a taffeta fabric that is plated with copper and then nickel for excellent corrosion protection. The lightweight, flexible shielding cloth will not flake or deteriorate over time, so you can be confident your components will have long-lasting protection against EMI, RFI, and EMF.

The Z-7200-C shielding cloth is made of a copper-plated nylon ripstop fabric and a proprietary corrosion and fray-resistant coating. The halogen-free, nickel-free, and hypoallergenic cloth is ideal for applications that have such requirements. The 7200 cloth is the perfect choice for applications dealing with sensitive magnetic instrumentation.

Shrink-N-Shield® (3:1) is offered in diameters from 0.375” to 2” with custom sizes available upon request, and has an operational temperature range of -40°F to 275°F (-40°C to 121°C).

If you require a 2:1 or 4:1 shrink ratio, Zippertubing® offers Shrink-N-Shield® (2:1) and Shrink-N-Shield® (4:1), and if you have components with diameters as small as 0.015”, Shrink-N-Shield® (Nano) is also available for your EMI shielding heat-shrink needs.

If your application is more suited to a wrap-around heat-shrink tubing for ease of installation, PRT® (S-3250) and PRT® (S-7200) are the solutions. Both standard products offer EMI shielding and can easily wrap around your wires or cables, rather than having to pull them through. If required, other EMI-shielding fabrics are available for PRT® upon request.

*Class III polyolefin heat-shrink tubing is available upon request.


Benefits

  • One-step installation for less downtime and total installation costs
  • Excellent high frequency EMI shielding for components
  • Flame-retardant and self-extinguishing jacketing

Features

  • 3:1 shrink ratio for versatile application requirements
  • Can be used as secondary jacketing for protection of wires or cables
  • Operational temperature range of -40°F to 275°F (-40°C to 135°C)

Specifications

RoHS Compliant
Shelf Life 60 months
Minimum Operating Temperature -49 ° F (-45 ° C )
Maximum Operating Temperature 275 ° F (135 ° C )

Available Attributes

Please contact us for custom needs. We have a solution for you!

Shape of Installation Round
Exterior Material Polyolefin Heat Shrink
Shielding Z-3250-CN
Z-7200-C
Diameter Before Shrinkage 0.25"
0.375"
0.5"
0.75"
1.0"
1.5"
2.0"
Shrink Ratio 3:1
Unit Length 1 ft. Stick
4 ft. Sticks
Material Color Black
Shield Bonding Nitrile Adhesive

Sizing Chart: ZT01-18-001

Size BEFORE
Inside Diameter (inches)
AFTER
Inside Diameter (inches)
AFTER
Wall Thickness (inches)
0.375 0.36 0.12 0.031
0.5 0.48 0.16 0.033
0.75 0.72 0.24 0.039
1 0.945 0.315 0.048
1.5 1.575 0.515 0.05
2.0 2 0.67 0.059

Installation Instructions

Termination and Splicing

Recommended Heat Gun

Materials

Z-3250-CN

Coating Nickel Over Copper
Base Fabric Polyester Taffeta Fabric
Surface Resistivity <0.1 ohms/sq
RoHS Compliant
Shelf Life 60 months
Elongation 27%
Material Thickness 0.004"
Shielding Effectiveness Better
Durability Better
Minimum Operating Temperature -40 ° F (-40 ° C )
Maximum Operating Temperature 250 ° F (121 ° C )
Tensile Strength 74-79 lbs/in

Attenuation data was derived using procedures defined in MIL-STD-285 and tested by scientific applications international corporation (SAIC) EMI laboratories, San Diego, California

Polyolefin

Specific Gravity 1.35 (max.)
Dielectric Strength 500v/mil (after shrink)
Flammability UL224, VW-1, Self-extinguishing
Fluid Resistance Best
Fungicide No Growth
Abrasion Resistance Best
Elongation 200% (after shrink)
Minimum Operating Temperature -67 ° F (-55 ° C )
Maximum Operating Temperature 275 ° F (135 ° C )
Tensile Strength 1500 psi. (after shrink)
Flexibility Better
