Zip-Mesh™
Share

Favorite

Zip-Mesh

Drawing No. ZT16-03-001

Part No. ZT16-03-001-1.0

EMI Shielding Knitted Mesh Tape, Adhesive Backed

  • Aerospace
  • Military
  • Marine
  • Automotive/Trucks/Bus
  • Railroad
  • Industrial/Commercial
  • Space
  • Energy
  • Medical/Dental
  • Electronics
  • Food Industry

Shape of Installation

ALL

Tape Width

Roll Length

Shielding

Closure

Units Per Box


Quantity:

-+

Product Specifications

RoHS Compliant
Shelf-Life 24 months
Temperature Range -40° to 149°C (-40° to 300°F)
Shape of Installation ALL
Tape Width 1.0" Wide 2.0" Wide
Roll Length 16.4 ft. Roll
Shielding 36 AWG Wire Mesh
Closure Adhesive
Units Per Box 2 Roll Pack
Shielding Effectiveness

Material Specifications

Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © 2018 The Zippertubing® Company, Chandler, Arizona.

EMI Shielding Knitted Mesh Tape, Adhesive Backed

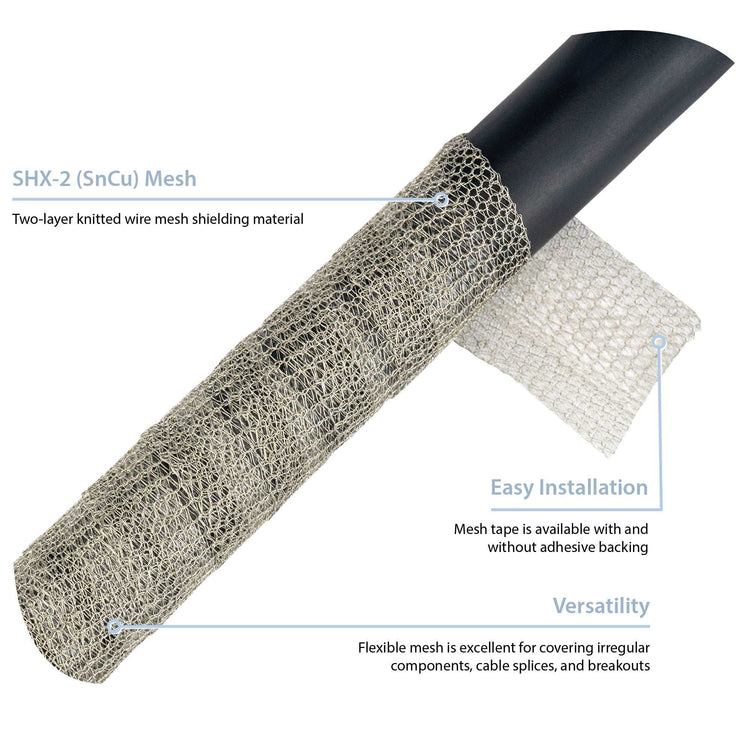

Zip-Mesh™ is a highly flexible, easy-to-use EMI shielding knitted-mesh tape comprised of two-ply, 36 AWG woven tinned-plated copper mesh with a high-temperature, solvent-resistant adhesive backing. The knitted mesh design creates a highly flexible shield that unlike many tubular braids will not change its attenuation performance when articulated.

Zip-Mesh™ knitted-mesh tape is ideal for applications where high flexibility in repair locations, splices, branch-outs, or transitions is needed. Although this product comes standard in 1.0” and 2.0” tape widths from our website, custom sizes, shapes and lengths are also available by contacting us directly.

Zippertubing’s Zip-Mesh™ is intended to complement Zipper-Mesh™ and other SHX knitted-mesh series products.

This product has an operational temperature range of -40° to 149°C (-40° to 300°F).

Benefits

Benefits:
  • Withstands lightning strikes
  • Non-flammable
  • Features

    Features:
  • EMI Shielding (500 KHz to 500 MHz)
  • Extremely flexible & lightweight
