Zip-Wrap® (VNH) Military-Grade Cable Management

A military-grade, PVC-coated cable bundling and protection solution equipped with a zipper closure.

Drawing Number(s): ZT98-07-020

Zip-Wrap® (VNH) Military-Grade Cable Management
RoHS Military Grade

Select product options

Please fill in at least one field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Selected Part Number:ZT98-07-020-0.5-B-B
Get A Quote

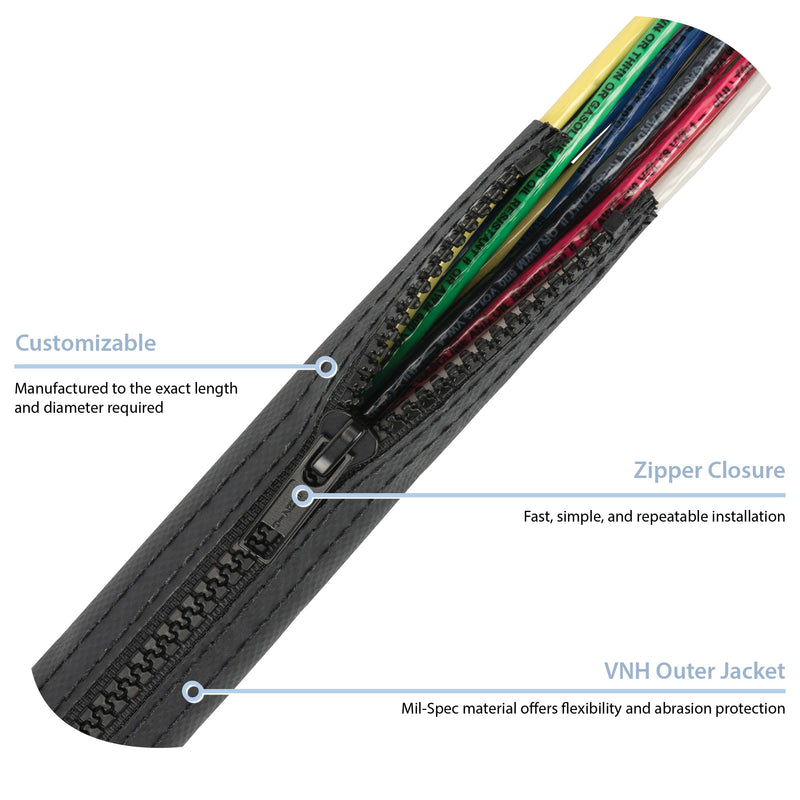

Zip-Wrap (VNH) infographic
  • Flame-retardant, VNH-23 jacketing meets Mil-C-20696 / Mil-PRF-20696, Type II, Class 2 requirements
  • Zipper closure allows for quick and easy installation
  • Operational temperature range of -65°F to 171°F (-54°C to 77°C)

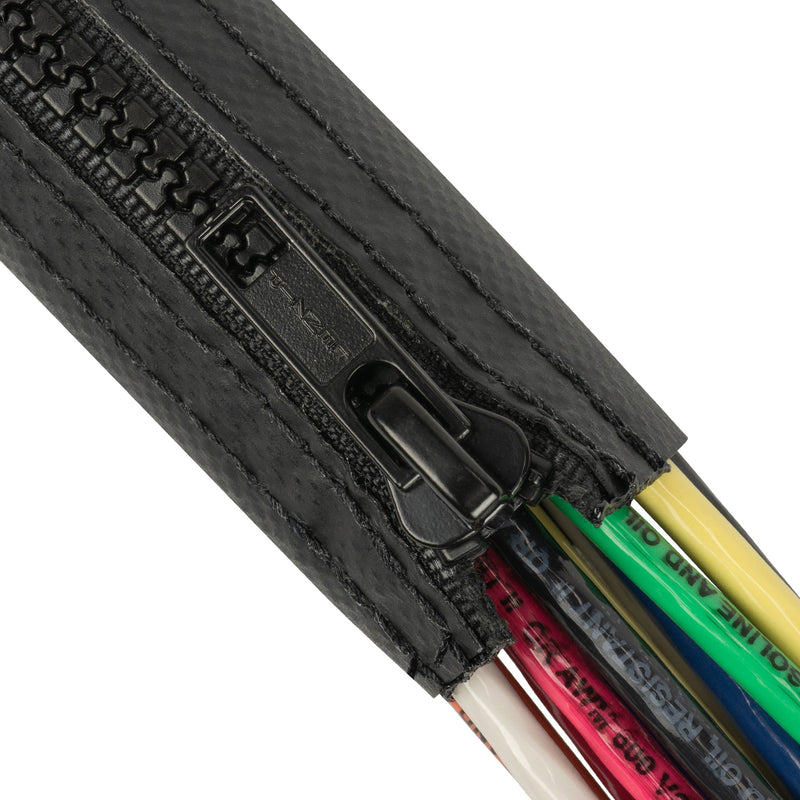

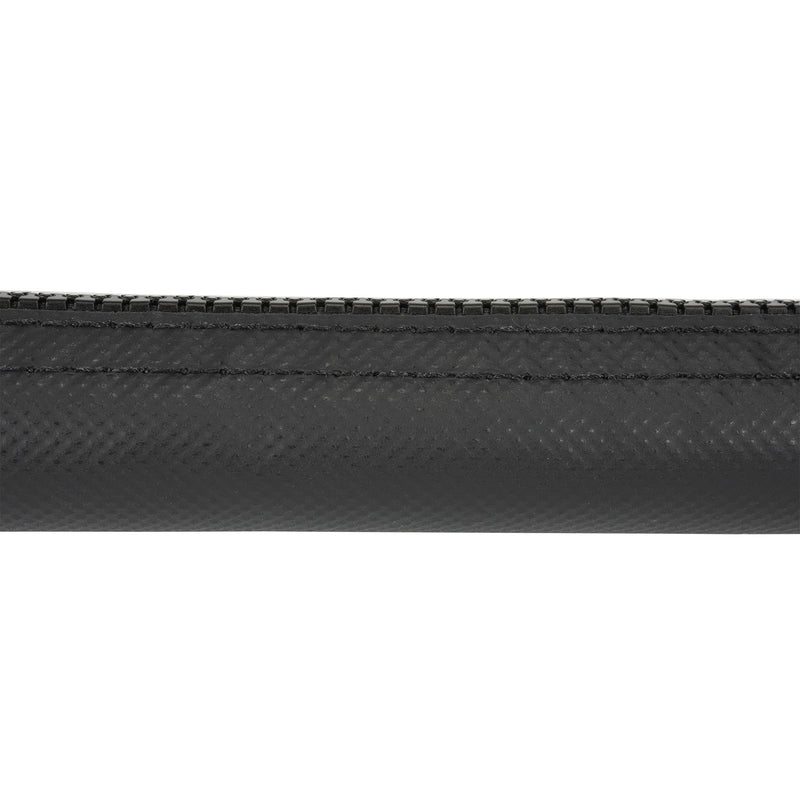

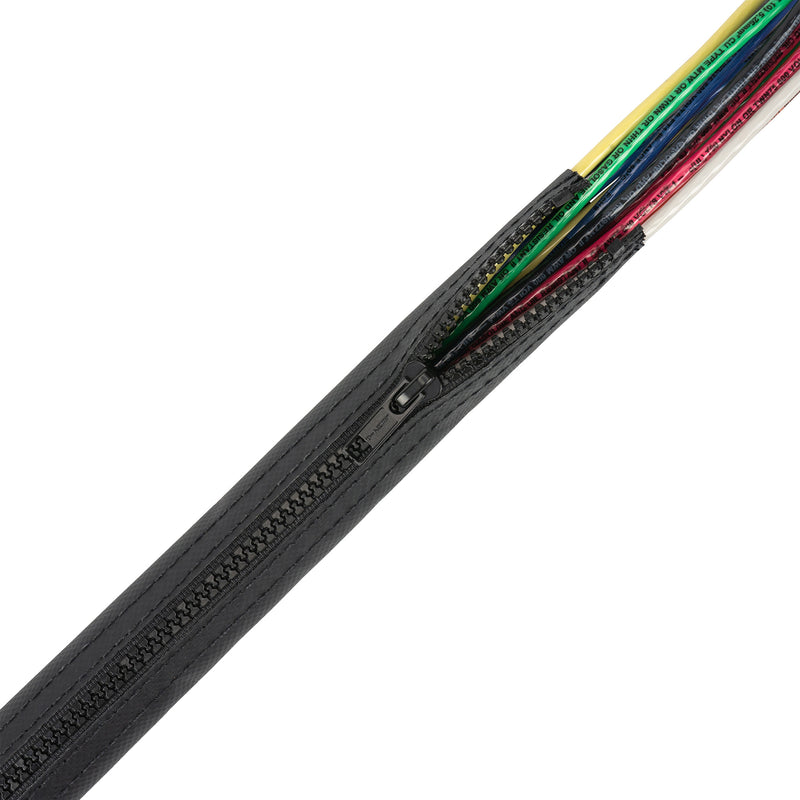

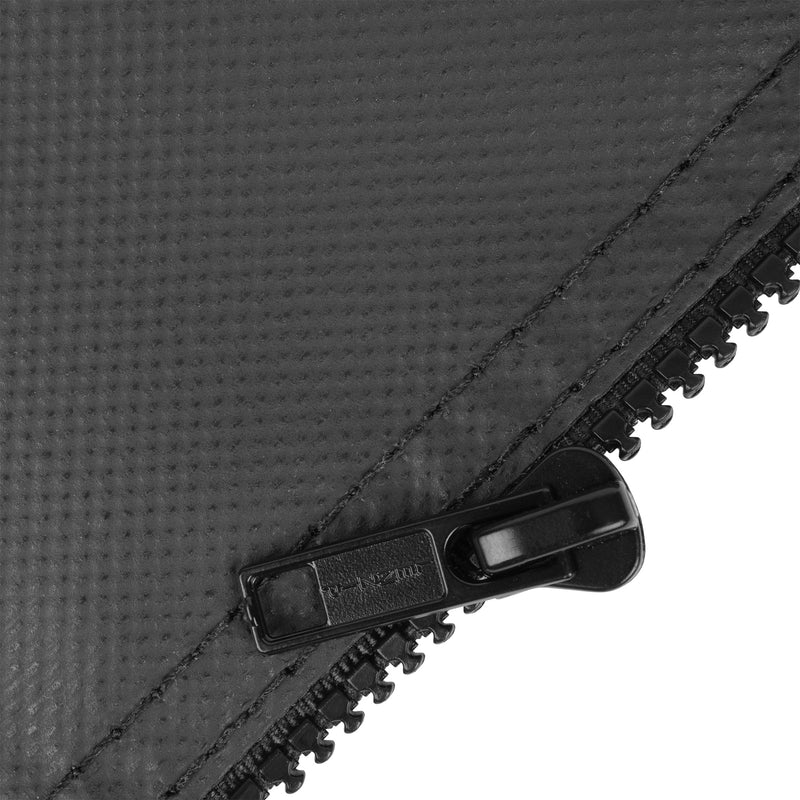

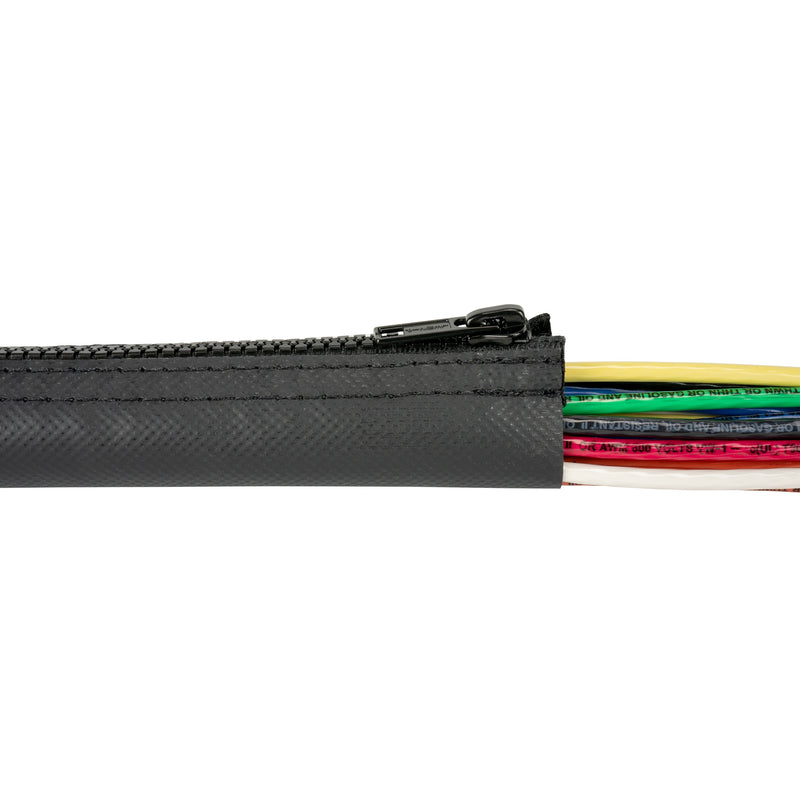

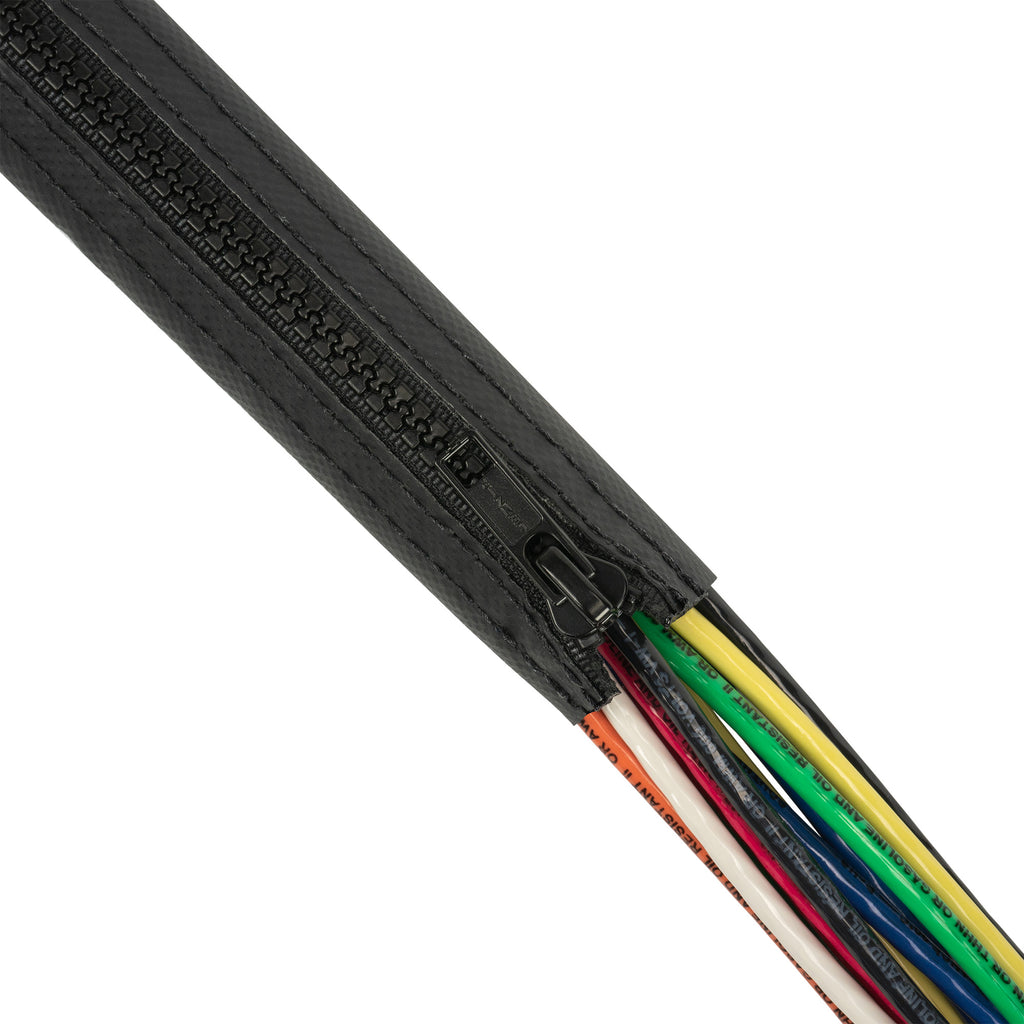

Zip-Wrap® (VNH) is a 23mil thick, PVC-coated nylon cable management solution equipped with a plastic zipper to enable a quick application. The VNH jacketing is military grade conforming to Mil-C-20696, Type II, Class 2 requirements. The waterproofed, abrasion-resistant and flame-retardant jacketing is strong enough to withstand high-flexing or rugged conditions often seen in the military and aerospace industries.

Zip-Wrap® (VNH) organizes and bundles cables quickly and easily while still allowing continued access to the components inside. Standard diameter sizes for Zip-Wrap® (VNH) range from 0.5” to 5.5”, with custom sizes available upon request. The product has an operational temperature range of -65°F to 171°F (-54°C to 77°C).

Zip-Wrap® (VNH) comes standard in black and yellow; and many other custom color options are available upon request. Zip-Wrap® (VNH) requires no tools, allowing for fast, clean installation.

Q:  What lengths of zippered jacketing are available?

A:  Our zipper closed sleeves can be ordered in lengths as short as a few inches to lengths of 100 feet or more.  When quoting or ordering, make sure to clearly state the length of each sleeve in inches, which is typically referenced at the end of the part number (-X120.0 for example).

Q:  What diameter of jacketing do I need?  Is it recommended to oversize?

A:  We will often suggest oversizing the sleeve diameter by 1/8” to allow for ease of installation.  If the application requires significant bending or flexing we will suggest even more extra room.  For assistance with sizing you can also contact one of our design engineers.

Q:  Can I cut the Jacketing?

A:  Yes*.  *Although you can cut the jacketing, we recommend ordering zipper-closed jackets to the exact length required.  If you need to trim down your jacketing, make sure you do it from the end opposite the zipper pin/box end and reinstall top zipper stops at the point where you trimmed the jacketing.  For more details on cutting or size recommendations please contact one of our design engineers.

Q:  Will the zipper keep out water and is it water-tight?

A:  No.  Our standard zippers do a great job at keeping big debris and dirt out of the jacketing but are not water tight.  Our tooth and coil zippers are rated at IP4X, which means they will keep out most dirt and dust but water splashing can enter the jacket.  If you need more protection, you may consider a track closure or adhesive closure option.

Q:  What is the minimum bend radius of the tubing?

A:  There is no minimum bend radius for our Zip-Wrap products.  The flexible jacketing material allows for extreme amounts of bending and flexing.  The bend radius of the installed tubing is typically dictated by the harness it is covering.

show more >>

Overall Performance

  • Diameter: 0.5" (1/2)
  • Closure: Zipper (Nylon)
  • Material: VNH-23
  • Maximum Operating Temperature: 171°F
  • Minimum Operating Temperature: -65°F
  • RoHS: RoHS-10
  • Shelf-Life: 36 Months

VNH-23

  • Mil-Spec: Mil-C-20696 / Mil-PRF-20696, Type II, Class 2
  • Durability: Better
  • REACH: Compliant
  • Flame Retardant: FED-STD-191 Method 5903
  • Thickness: 0.023"
  • Maximum Operating Temperature: 171°F
  • Minimum Operating Temperature: -65°F
  • RoHS: RoHS-10
  • Shelf Life: 36 Months
  • Tensile Strength: 225 Warp; 225 Fill

Zipper (Nylon)

    Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
    Zip-On® (63) Military-Grade Cable Bundling  Zip-On® (PFR) Polyurethane Cable Bundling  Z-Coil Self-Closing Cable Jacketing
    NAME ZIP-ON® (63) MILITARY-GRADE CABLE BUNDLING  ZIP-ON® (PFR) POLYURETHANE CABLE BUNDLING  Z-COIL SELF-CLOSING CABLE JACKETING
    DESCRIPTION A wrap-around cable bundling and protection solution that has a PVC, military-grade jacket that is abrasion and fluid resistant, with a pressure track.  A wrap-around cable protection solution that is flexible, resistant to abrasion and fluids, and has a pressure track closure.  A self-closing wire bundling and protection sleeve made from self-extinguishing PET material—ideal for high-volume requirements.
    Closure Z-Track (PVC), R-Track (PVC), D-Track (PVC), EZ-Track (PVC)  Z-Track (PFR)  Self-Closing
    RoHS RoHS-10  RoHS-10  RoHS-10
    Abrasion Resistance Best  Best  Better
    Installation Type Wrap-Around  Wrap-Around  Wrap-Around
    Purpose Sleeve  Sleeve  Sleeve
    Min Temperature Low  Moderate  Extreme
    Minimum Operating Temperature -4°F  -32.8°F  -58°F
    Max Temperature Moderate  Low  Moderate
    Maximum Operating Temperature 221°F  194°F  302°F
    Flexibility Better  Best  Best
    View  View  View

    Zip-Wrap® (VNH) Military-Grade Cable Management

    A military-grade, PVC-coated cable bundling and protection solution equipped with a zipper closure.

    Drawing Number(s): ZT98-07-020

    Selected Part Number: ZT98-07-020-0.5-B-B

  • Flame-retardant, VNH-23 jacketing meets Mil-C-20696 / Mil-PRF-20696, Type II, Class 2 requirements
  • Zipper closure allows for quick and easy installation
  • Operational temperature range of -65°F to 171°F (-54°C to 77°C)
  • Features

  • Waterproof, flame-retardant, abrasion-resistant jacketing
  • Zipper closure requires no tools for installation
  • Operational temperature range of -65°F to 171°F (-54°C to 77°C)
  • Benefits

  • MIL-SPEC jacketing ideal for military and aerospace industries
  • Comes in a many diameters including customization options
  • Organizes and bundles cables quickly and easily
  • Zip-Wrap® (VNH) Military-Grade Cable Management
