Z-Wrap® (PVL) Flexible Cable Bundling

A lightweight, abrasion-resistant, wrap-around cable bundling and protection solution that has an acrylic-based transfer adhesive closure.

Drawing Number(s): ZT93-04-008, ZT14-04-008, ZT93-04-009

Z-Wrap® (PVL) Flexible Cable Bundling
UL Recognized RoHS Military Grade

Select product options

Please fill in at least one field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Selected Part Number:ZT93-04-008-0.375-B
Get A Quote
WARNING: Cancer and Reproductive Harm | www.P65Warnings.ca.gov

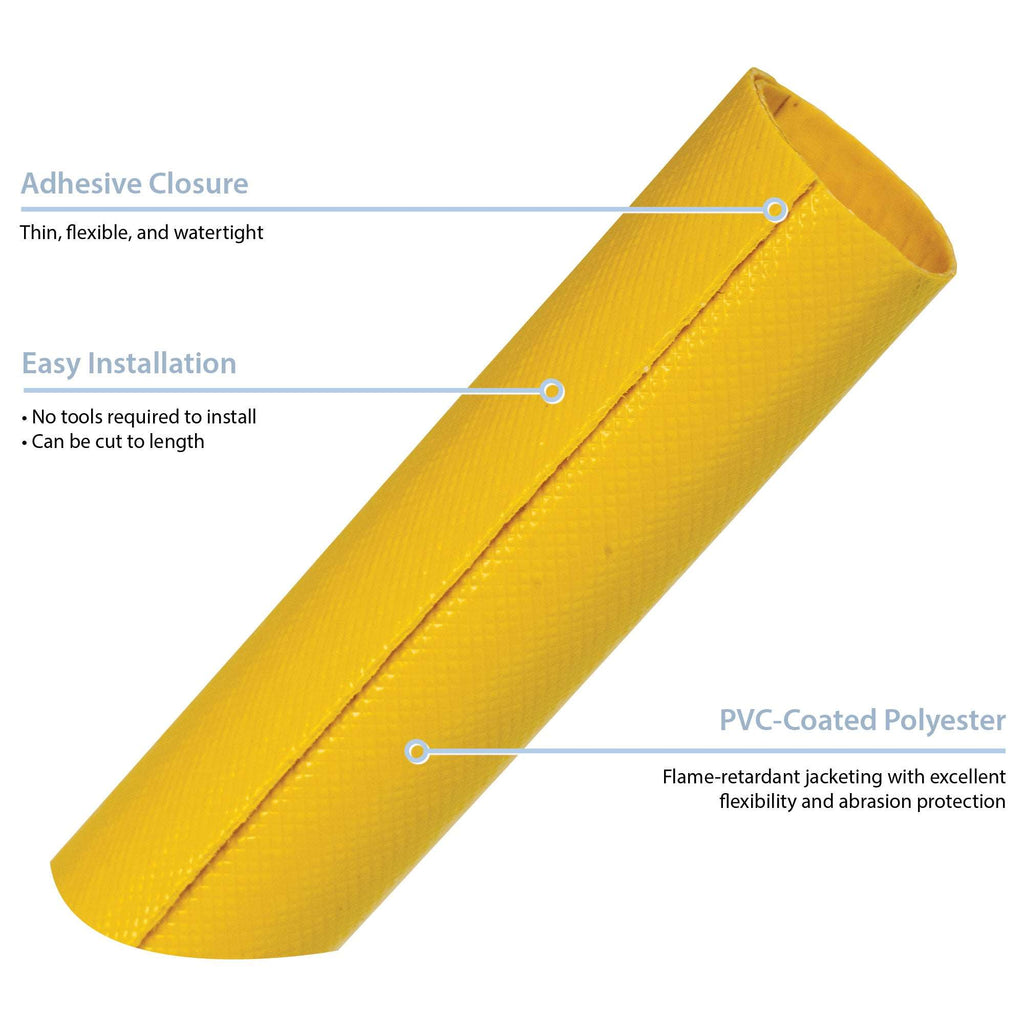

Z-Wrap (PVL) Infographic
  • Jacketing is military grade, abrasion resistant, and fire retardant
  • Adhesive provides a secure and permanent closure
  • Can be cut to desired length of application

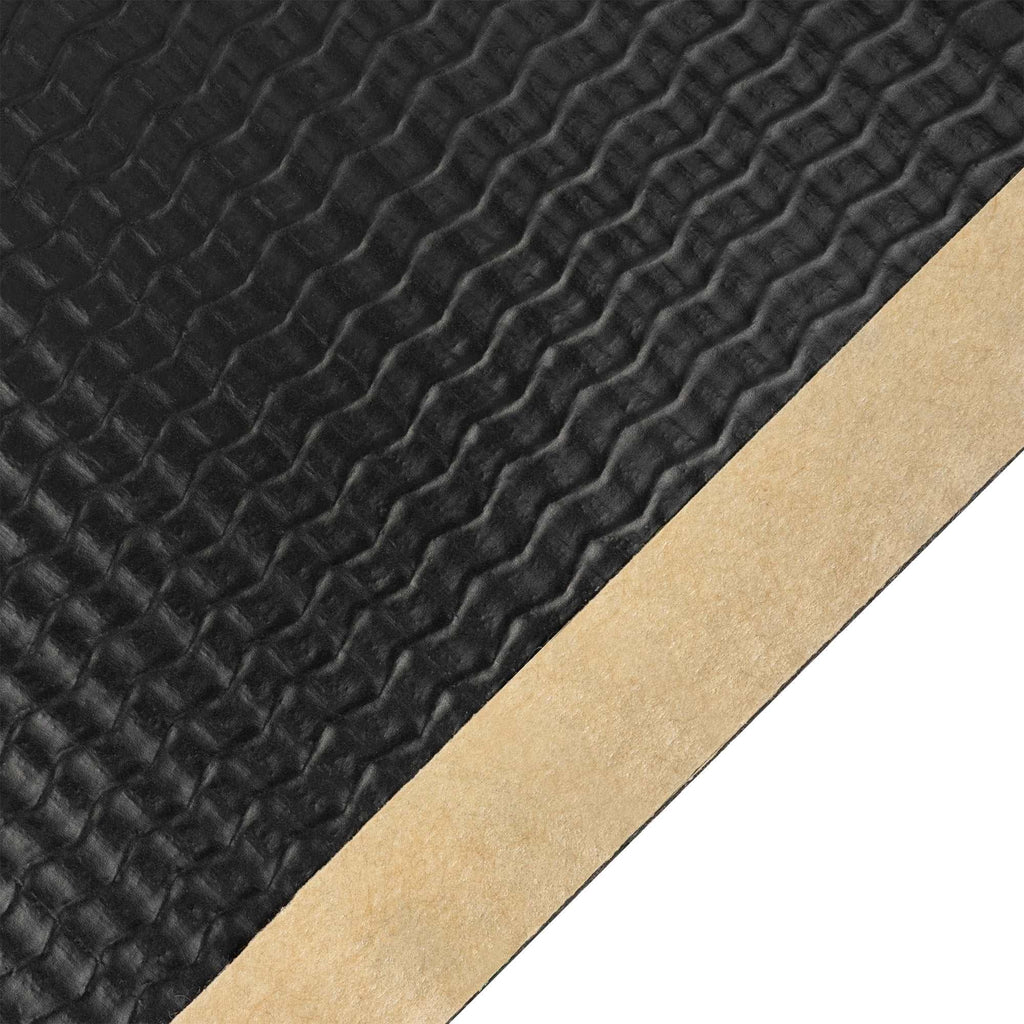

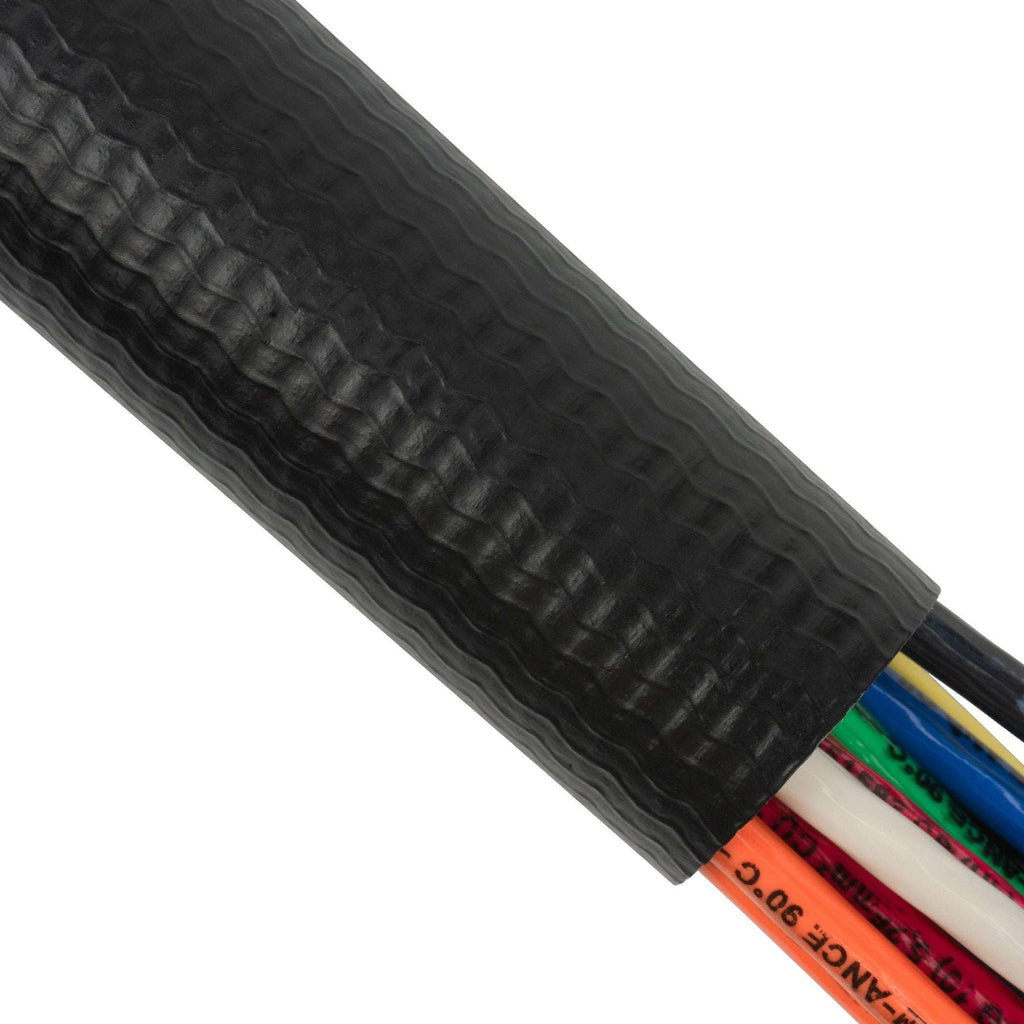

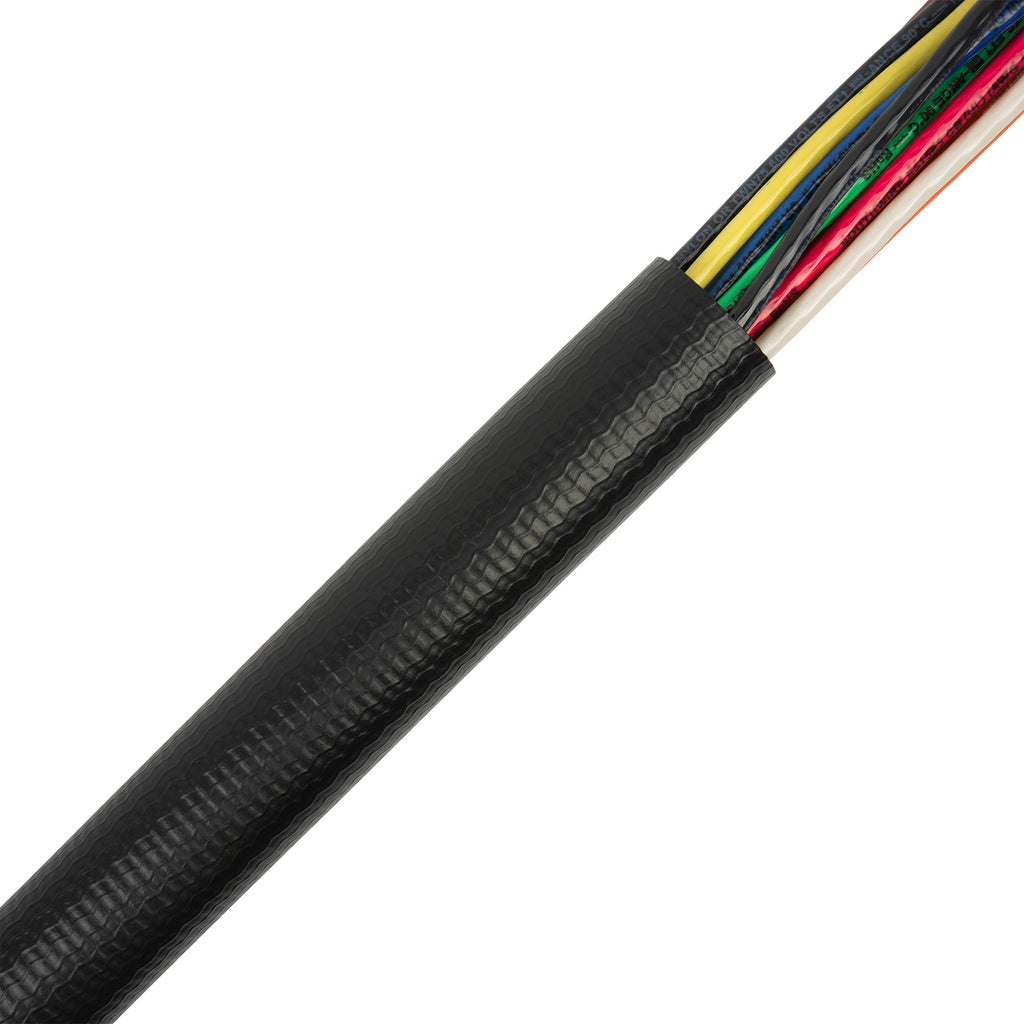

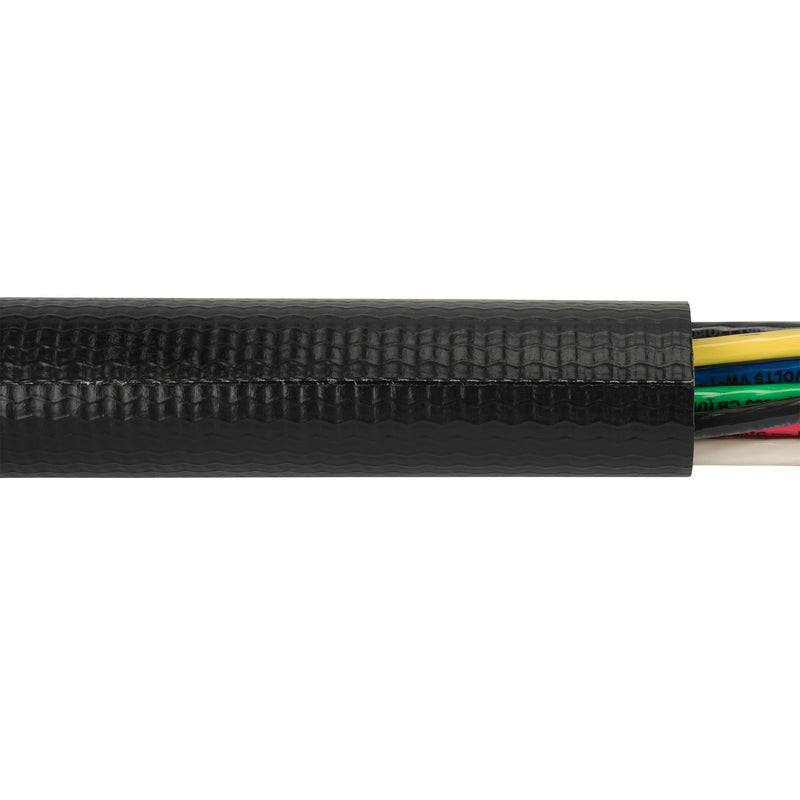

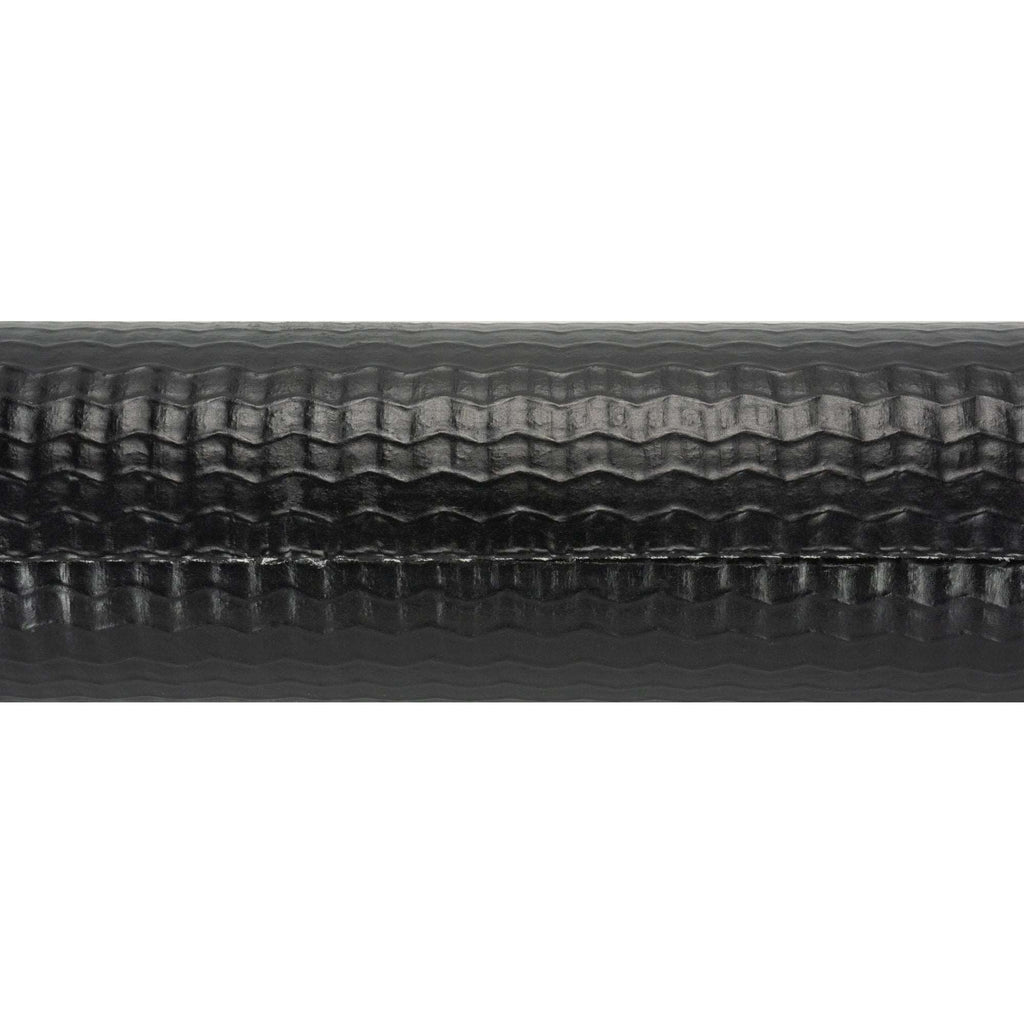

Z-Wrap® (PVL) is a wrap-around cable bundling and protection solution that is equipped with a high-strength acrylic adhesive. The PVL-10 jacketing is made of a polyester material that is coated with PVC on both sides. The jacketing is abrasion resistant, fire retardant, and meets MIL-C-43006G, Type II, Class 1 specifications. Additionally, the PVL jacketing is RoHS compliant and has good chemical and fluid resistance. The acrylic-based transfer adhesive has a high-strength bond, creates a secure seal, and is equipped with a paper release liner for clean application. The adhesive is also fire retardant and RoHS compliant.

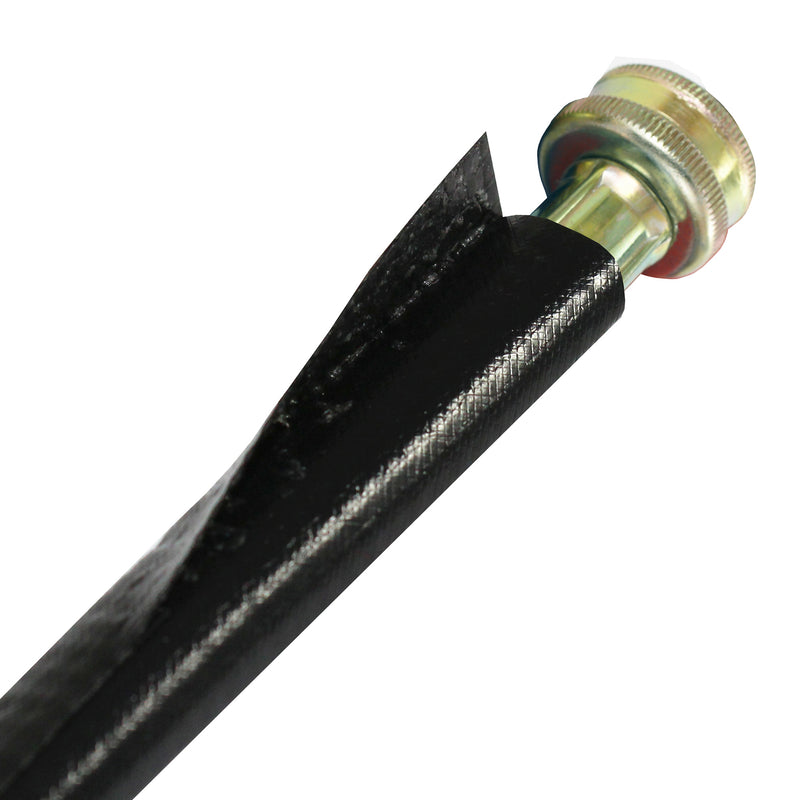

The application of Z-Wrap® (PVL) can be performed quickly, saving time and resources without the hassle of disassembly. Z-Wrap® (PVL) requires no tools for installation; just wrap around the wire or cable bundle, remove the paper release liner from the adhesive strip, and seal securely. Z-Wrap® (PVL) can also be easily cut to any desired length with a pair of standard scissors.

Z-Wrap® (PVL) is available in a range of colors—perfect for applications that may require color coding of components, wires, or cables—and is offered in diameters ranging from 0.375” to 12”, with custom sizes and shapes available upon request. Z-Wrap® (PVL) has an operational temperature range of -40°F to 180°F (-40°C to 82°C).

Overall Performance

  • Diameter: 0.375" (3/8)
  • Closure: Tape (Plasticizer Resistant)
  • Material: PVL-10
  • Maximum Operating Temperature: 165°F
  • Minimum Operating Temperature: 50°F
  • RoHS: RoHS-10
  • Shelf-Life: 12 months

PVL-10

  • Mil-Spec: MIL-C-43006G, Type II, Class 1
  • REACH: Compliant
  • Chemical Resistance: Good
  • Flame Retardant: FED-STD-191 Method 5903
  • Thickness: 0.010"
  • Material: PVC-Coated Polyester
  • Maximum Operating Temperature: 180°F
  • Minimum Operating Temperature: -40°F
  • RoHS: RoHS-10
  • Shelf Life: 36 Months
  • Tensile Strength: 120 lbs/min (warp); 100 lbs/min (fill)

PVL-10 (UL TESTED)

  • Mil-Spec: MIL-C-43006G, Type II, Class 1
  • REACH: Compliant
  • Thickness: 0.010"
  • Thickness Variance: +/- 0.002"
  • Maximum Operating Temperature: 179°F
  • Minimum Operating Temperature: -40°F
  • RoHS: RoHS-10
  • Shelf Life: 36 Months
  • Tensile Strength: 120 lbs/min (Warp); 100 lbs/min (Fill)
  • UL Recognition: UL224, VW-1 under UL file #E72210 w/ R-Track or Z-Track Closure

Tape (Plasticizer Resistant)

    Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
    Zip-On® (63) Military-Grade Cable Bundling  Zip-On® (PFR) Polyurethane Cable Bundling  Z-Coil Self-Closing Cable Jacketing
    NAME ZIP-ON® (63) MILITARY-GRADE CABLE BUNDLING  ZIP-ON® (PFR) POLYURETHANE CABLE BUNDLING  Z-COIL SELF-CLOSING CABLE JACKETING
    DESCRIPTION A wrap-around cable bundling and protection solution that has a PVC, military-grade jacket that is abrasion and fluid resistant, with a pressure track.  A wrap-around cable protection solution that is flexible, resistant to abrasion and fluids, and has a pressure track closure.  A self-closing wire bundling and protection sleeve made from self-extinguishing PET material—ideal for high-volume requirements.
    Closure Z-Track (PVC), R-Track (PVC), D-Track (PVC), EZ-Track (PVC)  Z-Track (PFR)  Self-Closing
    RoHS RoHS-10  RoHS-10  RoHS-10
    Abrasion Resistance Best  Best  Better
    Installation Type Wrap-Around  Wrap-Around  Wrap-Around
    Purpose Sleeve  Sleeve  Sleeve
    Min Temperature Low  Moderate  Extreme
    Minimum Operating Temperature -4°F  -32.8°F  -58°F
    Max Temperature Moderate  Low  Moderate
    Maximum Operating Temperature 221°F  194°F  302°F
    Flexibility Better  Best  Best
    View  View  View

    Z-Wrap® (PVL) Flexible Cable Bundling

    A lightweight, abrasion-resistant, wrap-around cable bundling and protection solution that has an acrylic-based transfer adhesive closure.

    Drawing Number(s): ZT93-04-008, ZT14-04-008, ZT93-04-009

    Selected Part Number: ZT93-04-008-0.375-B

  • Jacketing is military grade, abrasion resistant, and fire retardant
  • Adhesive provides a secure and permanent closure
  • Can be cut to desired length of application
  • Features

  • Wide range of sizing, with custom sizes and shapes available
  • Military-grade jacketing for applications with such requirements
  • Extremely flexible, with good wear and abrasion resistance
  • Benefits

  • No tools required for installation
  • Abrasion-resistant jacketing makes this solution ideal for rugged environments
  • Adhesive closure with paper release liner offers quick and easy application
  • Z-Wrap® (PVL) Flexible Cable Bundling
