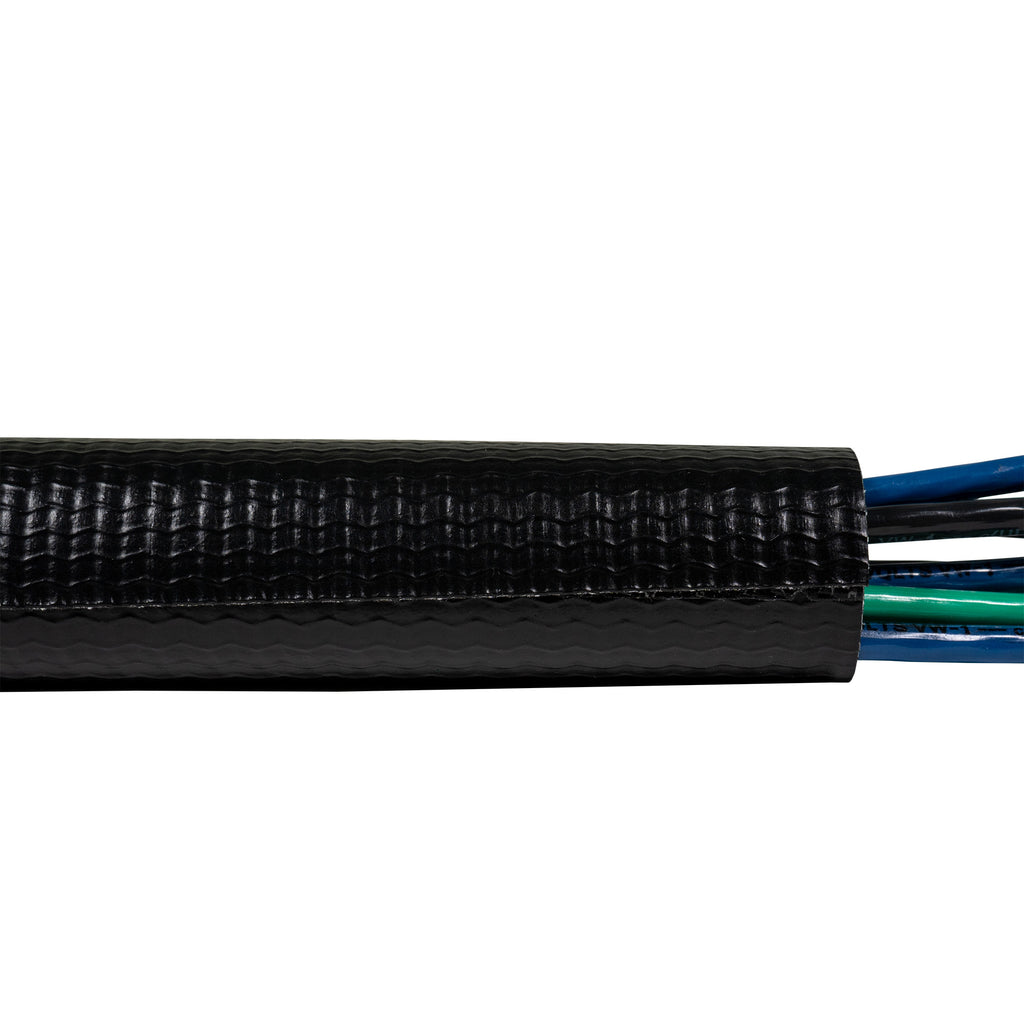

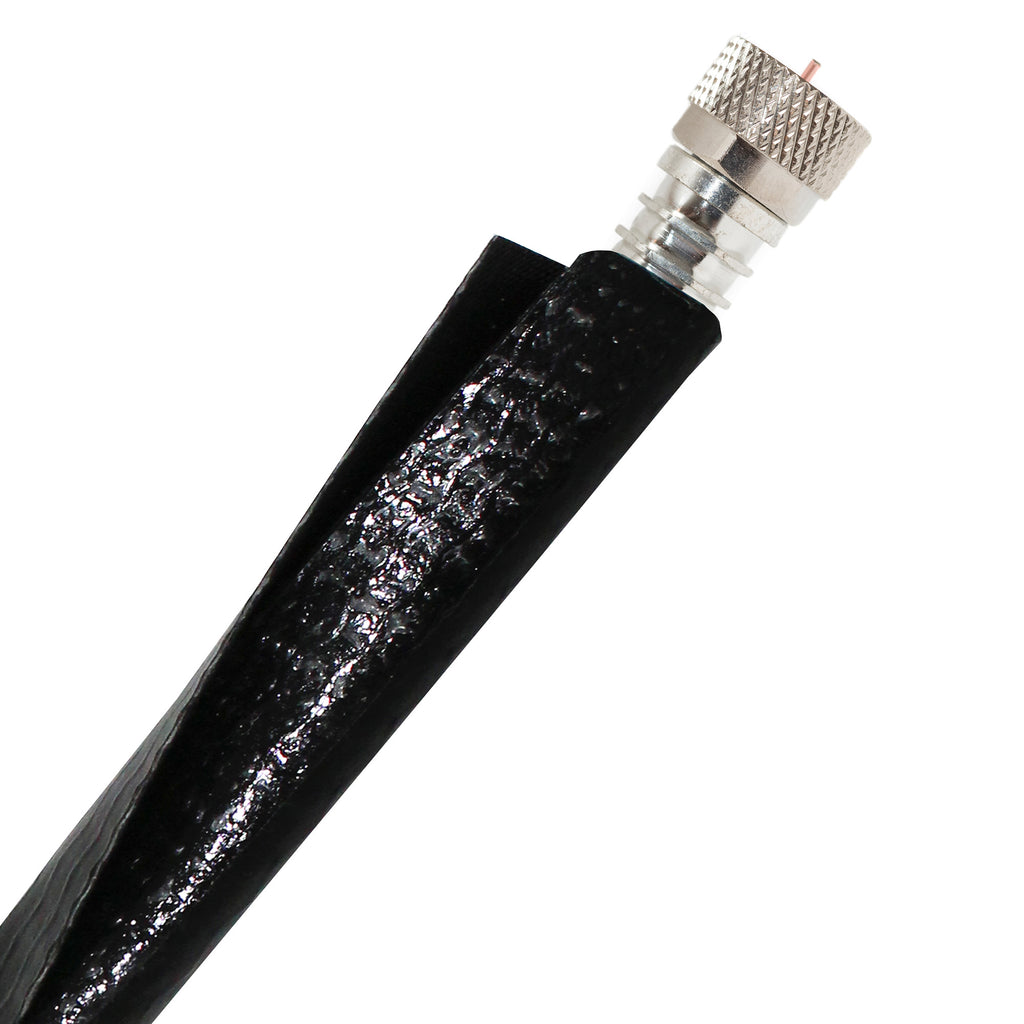

Z-Wrap® (DVH) Cable Bundling

A durable, wrap-around, permanent cable protection solution pairing an abrasion-resistant, tear-resistant jacketing with an acrylic adhesive.

Drawing Number(s): ZT00-04-005, ZT00-04-006, ZT00-04-003

Z-Wrap® (DVH) Cable Bundling
RoHS Military Grade

Select product options

Please fill in at least one field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Selected Part Number:ZT00-04-005-0.375-B
Get A Quote
WARNING: Cancer and Reproductive Harm | www.P65Warnings.ca.gov
Z-Wrap (DVH) Infographic
  • A wrap-around, cut to length, adhesive closure solution that requires no additional tooling
  • Offers better abrasion strength as well as excellent fluid and chemical resistance properties
  • Z-Wrap® (DVH) is a flame retardant product that is certified to UL 224, VW-1 (upon request)

Z-Wrap® (DVH) uses the DVH jacketing and high-bond strength adhesive for a long-lasting cable bundling solution. The DVH jacketing is a polyester fabric coated with PVC on both sides. This durable jacketing is resistant to abrasion, tearing, puncturing, and fluids. The jacketing is available in two different thicknesses. The DVH-20 is 0.02” thick and engineered for a better resistance to abrasion as well as meeting Mil-C-43006, Type I, Class 1. The DVH-40 is thicker at 0.04” and offers the best resistance to abrasion. Both jacketings are ideal for low-flexing, rugged applications.

The acrylic adhesive is fire retardant and resistant to U.V. and the effects of plasticizer migration. The high-bond strength of the adhesive provides a secure, permanent closure. Installing Z-Wrap® (DVH) requires no additional tools; just peel off the paper release liner and seal the product around your components. Z-Wrap® (DVH) can also be cut with a standard pair of scissors for applications that may have varying lengths of wires and cables.

Z-Wrap® (DVH) is offered for diameters ranging from 0.375” to 8”, with custom shapes and sizes available upon request. The operational temperature range is -34°F to 185°F (-30°C to 85°C) for DVH-20, and -40°F to 180°F (-40°C to 200°C) for DVH-40.

Overall Performance

  • Closure: Tape (Plasticizer Resistant)
  • Material: DVH-20
  • Fungicide: No Growth
  • Diameter: 0.375" (3/8)
  • Thickness: 0.040"
  • Maximum Operating Temperature: 160°F
  • Minimum Operating Temperature: -22°F
  • RoHS: RoHS-10
  • Shelf-Life: 12 months
  • Tear Strength: {}

DVH-20

  • Mil-Spec: Mil-C-43006, Type I, Class 1
  • Durability: Better
  • Coating: Polyvinylchloride
  • REACH: Compliant
  • Flame Retardant: Fed-Std-191A Method 5903 - 2 sec. max
  • Thickness: 0.020"
  • Material: Woven Polyester impregnated with PVC
  • Maximum Operating Temperature: 185°F
  • Minimum Operating Temperature: -30°F
  • RoHS: RoHS-10
  • Shelf Life: 36 Months
  • Tensile Strength: 200 lbs/min (Warp); 190 lbs/min (Fill)

DVH-40

  • Mil-Spec: Mil-C-43006, Type I, Class 1
  • REACH: Compliant
  • Fungicide: No Growth
  • Thickness: 0.040"
  • Material: Woven Polyester impregnated with PVC
  • Maximum Operating Temperature: 180°F
  • Minimum Operating Temperature: -40°F
  • RoHS: RoHS-10
  • Shelf Life: 36 Months
  • Tear Strength: 90 lbs/min (Warp); 125 lbs/min (Fill)
  • Tensile Strength: 385 Warp; 125 Fill

Tape (Plasticizer Resistant)

    Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
    Zip-On® (63) Military-Grade Cable Bundling  Zip-On® (PFR) Polyurethane Cable Bundling  Z-Coil Self-Closing Cable Jacketing
    NAME ZIP-ON® (63) MILITARY-GRADE CABLE BUNDLING  ZIP-ON® (PFR) POLYURETHANE CABLE BUNDLING  Z-COIL SELF-CLOSING CABLE JACKETING
    DESCRIPTION A wrap-around cable bundling and protection solution that has a PVC, military-grade jacket that is abrasion and fluid resistant, with a pressure track.  A wrap-around cable protection solution that is flexible, resistant to abrasion and fluids, and has a pressure track closure.  A self-closing wire bundling and protection sleeve made from a durable, flame-retardant, woven PET material
    Closure Z-Track (PVC), R-Track (PVC), D-Track (PVC), EZ-Track (PVC)  Z-Track (PFR)  Self-Closing
    RoHS RoHS-10  RoHS-10  RoHS-10
    Abrasion Resistance Best  Best  Better
    Installation Type Wrap-Around  Wrap-Around  Wrap-Around
    Purpose Sleeve  Sleeve  Sleeve
    Min Temperature Low  Moderate  Extreme
    Minimum Operating Temperature -4°F  -67°F  -58°F
    Max Temperature Moderate  Low  Moderate
    Maximum Operating Temperature 221°F  225°F  302°F
    Flexibility Better  Best  Best
    View  View  View
    Zippertubing
    Z-Wrap (DVH) Infographic

    Z-Wrap® (DVH) Cable Bundling

    A durable, wrap-around, permanent cable protection solution pairing an abrasion-resistant, tear-resistant jacketing with an acrylic adhesive.

    Drawing Number(s): ZT00-04-005, ZT00-04-006, ZT00-04-003

    Selected Part Number: ZT00-04-005-0.375-B

  • A wrap-around, cut to length, adhesive closure solution that requires no additional tooling
  • Offers better abrasion strength as well as excellent fluid and chemical resistance properties
  • Z-Wrap® (DVH) is a flame retardant product that is certified to UL 224, VW-1 (upon request)
  • Military
    Z-Wrap (DVH)
    Z-Wrap (DVH) cable management
    Z-Wrap (DVH) wire harnessing
    Z-Wrap (DVH) wire wrapping

    Features

  • Complete 360-degree cable protection and bundling
  • No tools required; install right on the job
  • Offered in standard diameters with customized sizing available upon request
  • Benefits

  • Resistant to abrasion, tear, puncture, and fluids
  • DVH-20 jacketing is military grade; DVH-40 jacketing offers superior abrasion resistance
  • No disconnection or disassembly of components required
  • Z-Wrap® (DVH) Cable Bundling
