Z-Track (PVC) Extruded Pressure Track

Extremely Versatile, Medium Duty, Extruded Interlock

Material Specification: 2005 RoHS REACH Compliant

Select product options

Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution. Explore the possibilities below or contact an engineer to start your custom application today!

Overview

  • Universal Closure Track
  • Multiple Polymer Compound Types
  • Extremely Broad Performance Range
  • Round Cable (3/8" & Up)
  • Flat & Rectangular Cable (1-1/4" & Up)
  • All EMI Shield Material Types

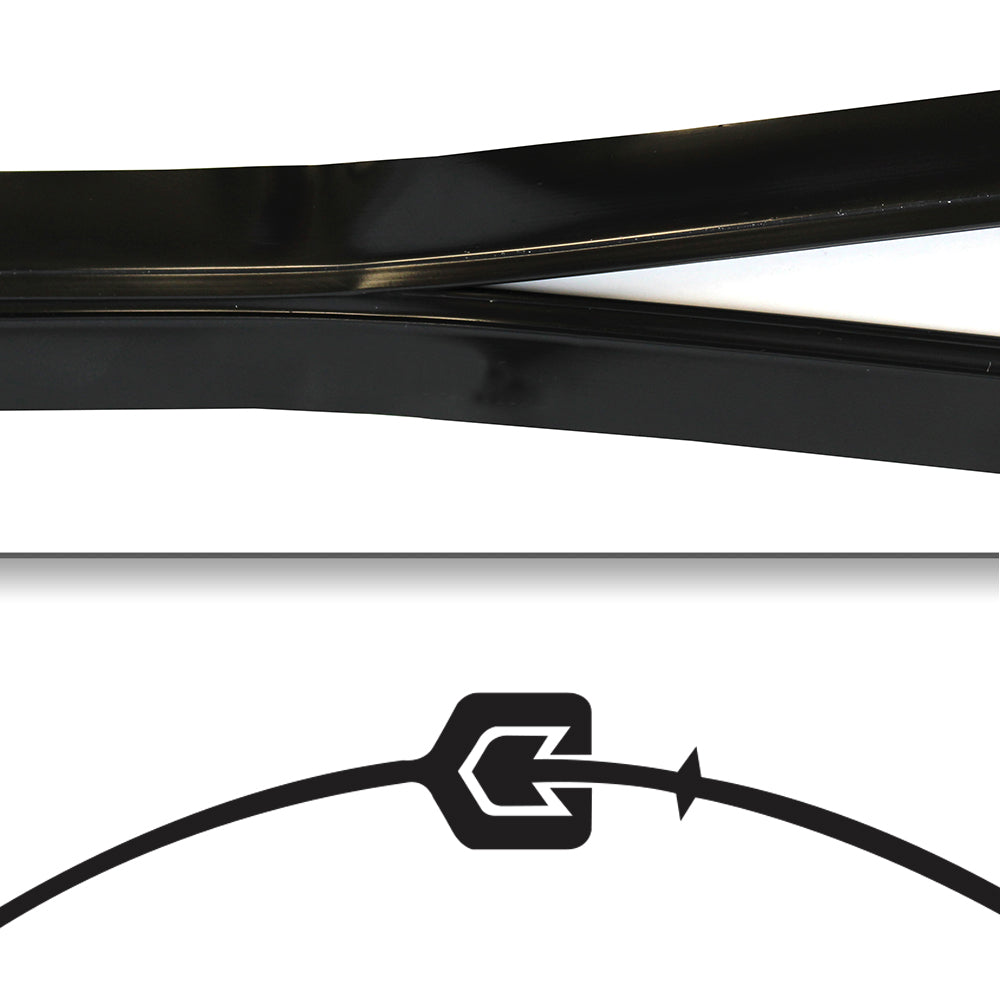

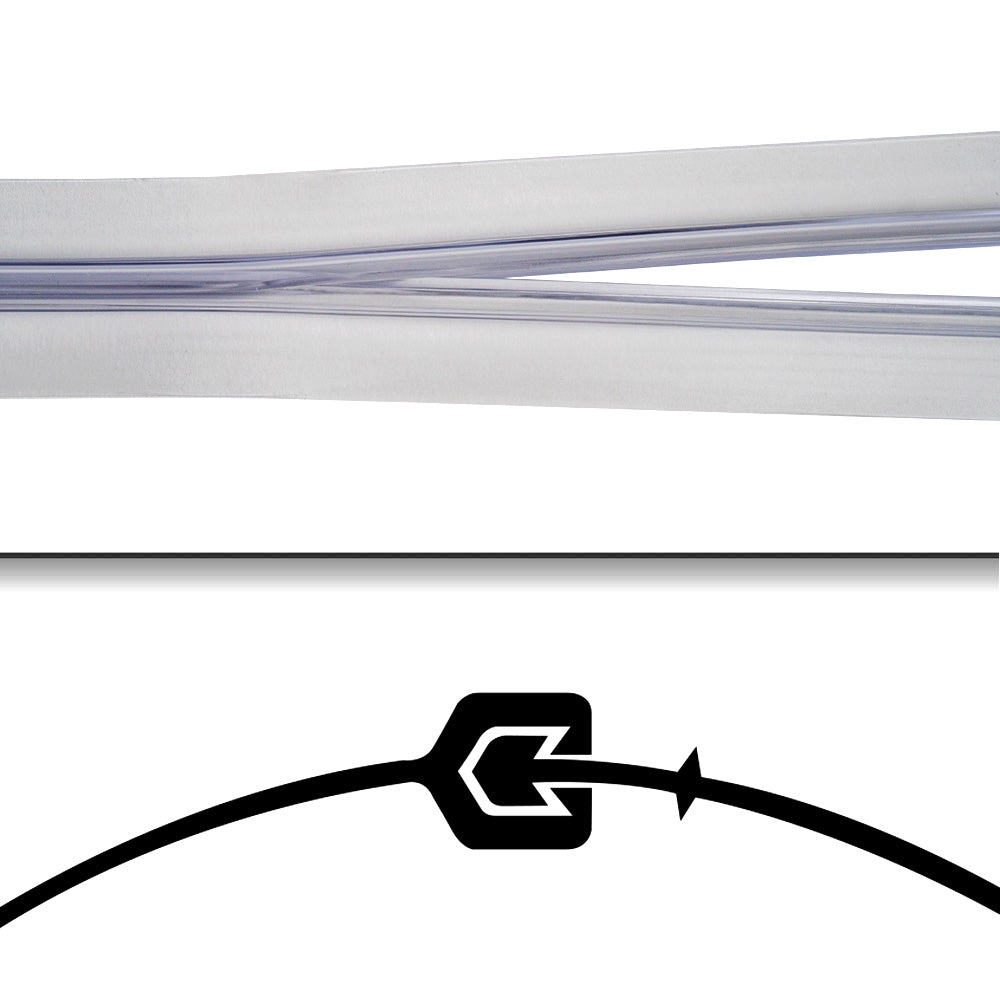

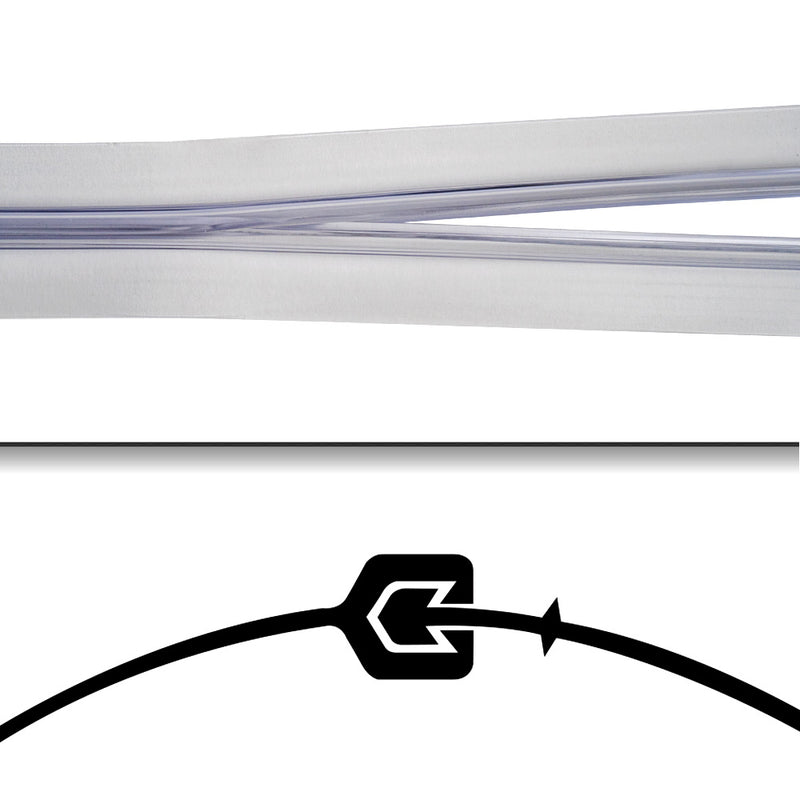

The Z-Track closure is a medium size Arrowhead & Channel interlock design approximately .150" wide and is the most versatile closure offered for Zip-On jacket applications. It should always be considered as the first closure choice when designing a wrap-a-round jacket system. Z-Track is extruded from flame retardant Polyvinylchloride polymer. The standard track color is black, which can be utilized with all PVC based jacket materials and can also be special ordered in clear for large projects.

Specifications

  • REACH: Compliant
  • Closure: Pressure Track
  • Elongation: 320%
  • Flame Retardant: UL94 V-0
  • Bundle Size: 0.375" - 4.0"
  • Height: Low
  • Color: Black or Clear
  • Thickness: 0.020"
  • Material: Polyvinyl Chloride (PVC)
  • Maximum Operating Temperature: 221°F
  • Minimum Operating Temperature: -4°F
  • RoHS: RoHS-10
  • Shelf Life: 36 Months
  • Tensile Strength: 15 lbf/inch (closure)
  • Length: Up to 200 feet continuous
  • Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.

    Guides

    How to install Z-Track

    Z-Track is an extremely versatile, medium duty cable jacket that uses an extruded interlock to wrap around ...

    Read more

    Track Closure vs Bend Location for all Zippertubing tracks

    Learn how to properly install Zip-On and Zip-Shield Zippertubing® products. In this article, we also highli...

    Read more
    ZT-Zippertubing

    Z-Track (PVC) Extruded Pressure Track

    Extremely Versatile, Medium Duty, Extruded Interlock

    Material Sprcification: 2005

    • Universal Closure Track
    • Multiple Polymer Compound Types
    • Extremely Broad Performance Range
    • Round Cable (3/8" & Up)
    • Flat & Rectangular Cable (1-1/4" & Up)
    WARNING: Raw materials are not sold separately, please contact the sales department for any special requirements.

    SPECIFICATIONS

  • REACH: Compliant
  • Closure: Pressure Track
  • Elongation: 320%
  • Flame Retardant: UL94 V-0
  • Bundle Size: 0.375" - 4.0"
  • Height: Low
  • Color: Black or Clear
  • Thickness: 0.020"
  • Material: Polyvinyl Chloride (PVC)
  • Maximum Operating Temperature: 221°F
  • Minimum Operating Temperature: -4°F
  • RoHS: RoHS-10
  • Shelf Life: 36 Months
  • Tensile Strength: 15 lbf/inch (closure)
  • Length: Up to 200 feet continuous
  • DESCRIPTION

    The Z-Track closure is a medium size Arrowhead & Channel interlock design approximately .150" wide and is the most versatile closure offered for Zip-On jacket applications. It should always be considered as the first closure choice when designing a wrap-a-round jacket system. Z-Track is extruded from flame retardant Polyvinylchloride polymer. The standard track color is black, which can be utilized with all PVC based jacket materials and can also be special ordered in clear for large projects.

    Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
