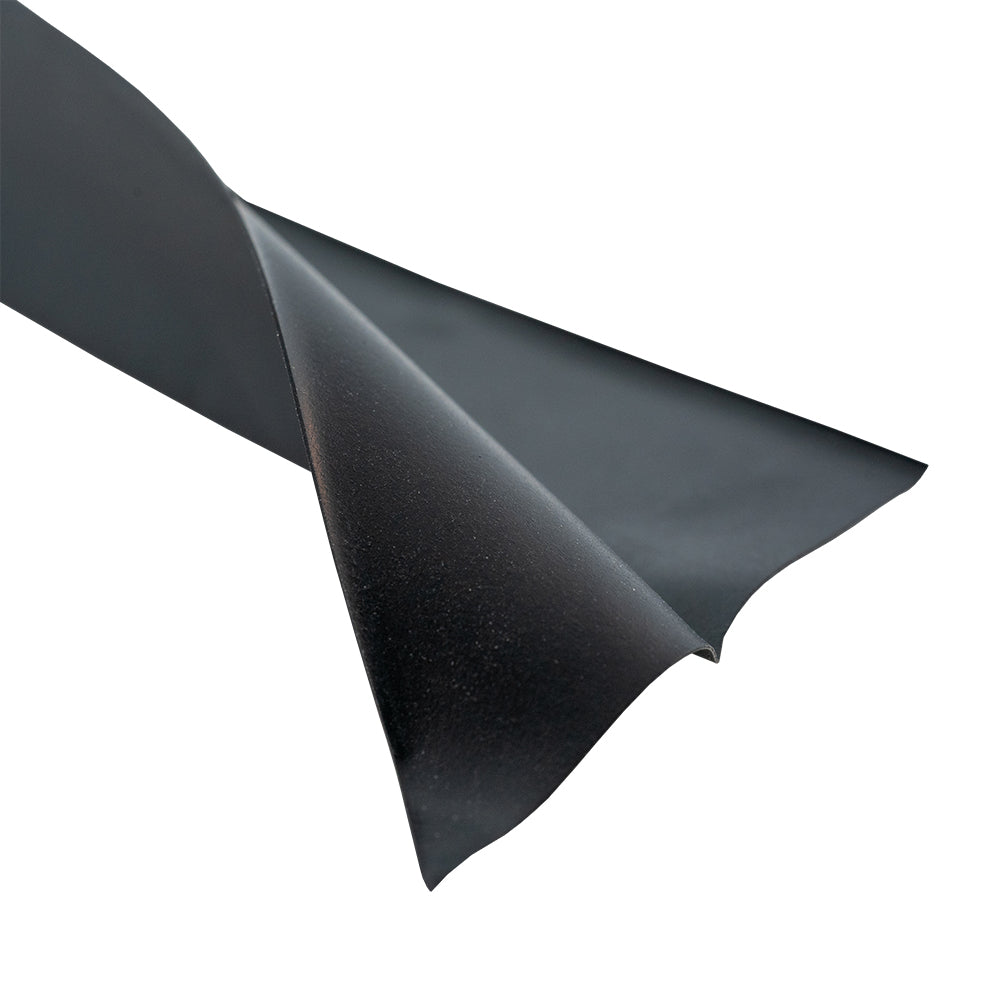

Thin Wall Polyolefin Heat Shrink Tubing

Material Specification: 6005 RoHS REACH Compliant

Select product options

Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution. Explore the possibilities below or contact an engineer to start your custom application today!

Overview

  • Flame-retardant; UL 224, VW-1 (Class 1)
  • Offers a 2:1 shrink ratio and 50% thinner than standard heat shrink
  • Various color options, perfect for color-coding

The thin wall polyolefin heat shrink tubing is made of a cross-linked polyolefin co-polymer material. This flexible material is UL-rated for flame retardancy per UL 224, VW-1. This polyolefin material is offered in black, white, clear, gray, red, yellow, orange, brown, green blue, and purple, and in a 2:1 shrink ratio. The thin wall polyolefin heat shrink tubing has an operational temperature range of -67°F to 257°F (-55°C to 125°C).

Specifications

  • REACH: Compliant
  • Dielectric Strength: 2500v (after shrink)
  • Elongation: 100% (after shrink)
  • Flammability: UL 224, VW-1
  • Thickness: 0.0059" - 0.0079"
  • Maximum Operating Temperature: 257°F
  • Minimum Operating Temperature: -67°F
  • RoHS: RoHS-10
  • Shelf Life: 60 Months
  • Shrink Ratio: 2:1
  • Tensile Strength: 1500 psi (after shrink)
  • Specific Gravity: 1.35 (max.)
  • Flexibility: Best
  • Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.

    Similar Materials

    Polyolefin Heat Shrink Tubing Viton Cross-Linked Fluoroelastomer Heat Shrink Tubing
    NAME POLYOLEFIN HEAT SHRINK TUBING VITON CROSS-LINKED FLUOROELASTOMER HEAT SHRINK TUBING
    DESCRIPTION
    RoHS RoHS-10 RoHS-10
    Abrasion Resistance Best Best
    Min Temperature Extreme Extreme
    Minimum Operating Temperature -67°F °F -67°F
    Max Temperature Moderate Moderate
    Maximum Operating Temperature 275°F °F 392°F
    Flexibility Better Best
    View View
    ZT-Zippertubing

    Thin Wall Polyolefin Heat Shrink Tubing

    Material Sprcification: 6005

    • Flame-retardant; UL 224, VW-1 (Class 1)
    • Offers a 2:1 shrink ratio and 50% thinner than standard heat shrink
    • Various color options, perfect for color-coding
    WARNING: Raw materials are not sold separately, please contact the sales department for any special requirements.

    SPECIFICATIONS

  • REACH: Compliant
  • Dielectric Strength: 2500v (after shrink)
  • Elongation: 100% (after shrink)
  • Flammability: UL 224, VW-1
  • Thickness: 0.0059" - 0.0079"
  • Maximum Operating Temperature: 257°F
  • Minimum Operating Temperature: -67°F
  • RoHS: RoHS-10
  • Shelf Life: 60 Months
  • Shrink Ratio: 2:1
  • Tensile Strength: 1500 psi (after shrink)
  • Specific Gravity: 1.35 (max.)
  • Flexibility: Best
  • DESCRIPTION

    The thin wall polyolefin heat shrink tubing is made of a cross-linked polyolefin co-polymer material. This flexible material is UL-rated for flame retardancy per UL 224, VW-1. This polyolefin material is offered in black, white, clear, gray, red, yellow, orange, brown, green blue, and purple, and in a 2:1 shrink ratio. The thin wall polyolefin heat shrink tubing has an operational temperature range of -67°F to 257°F (-55°C to 125°C).

    Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
