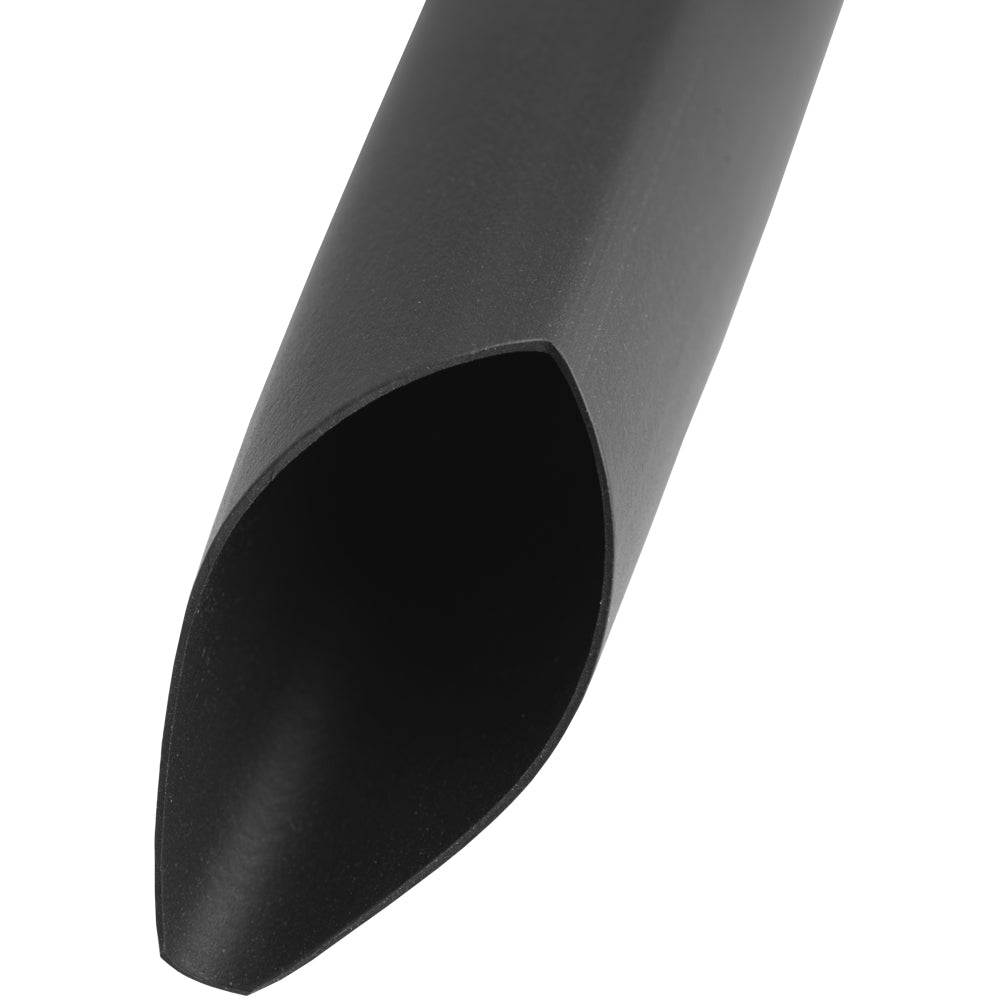

Viton Cross-Linked Fluoroelastomer Heat Shrink Tubing

Material Specification: 6006 RoHS REACH Compliant

Select product options

Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution.

Overview

  • Meets MIL-DTL-23053/13 and MIL-R-46846, Type III, Class 1
  • Excellent fluid resistance
  • Can be exposed to temperatures up to 392°F

Viton® is a cross-linked fluoroelastomer heat shrink tubing material. The rubber-like material is fluid resistant and copper corrosion resistant. The material meets MIL-DTL-23053/13 and MIL-R-46846, Type III, Class 1, making this heat shrink an ideal choice for the military. Viton® is used for our Shrink-N-Shield® (FE), an EMI shielding heat shrink solution that is perfect for severe-duty applications. Viton® has an operational temperature range of -67°F to 392°F (-55°C to 200°C).

Specifications

  • REACH: Compliant
  • Copper Corrosion: Mil-DTL-23053
  • Dielectric Volts/Mil: 200 (after shrink)
  • Elongation: 250% (after shrink)
  • Flammability: Mil-DTL-23053, 15 sec (max)
  • Longitudinal Shrinkage: +1%, -20% maximum (after heat recovery)
  • Material: Cross-linked Fluoroelastomer (Viton®)
  • Maximum Operating Temperature: 392°F
  • Minimum Operating Temperature: -67°F
  • Water Absorption: 0.5 maximum
  • RoHS: RoHS-10
  • Shelf Life: 60 Months
  • Shrink Ratio: 2:1
  • Tensile Strength: 1200 psi (after shrink)
  • Flexibility: Best
  • Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
