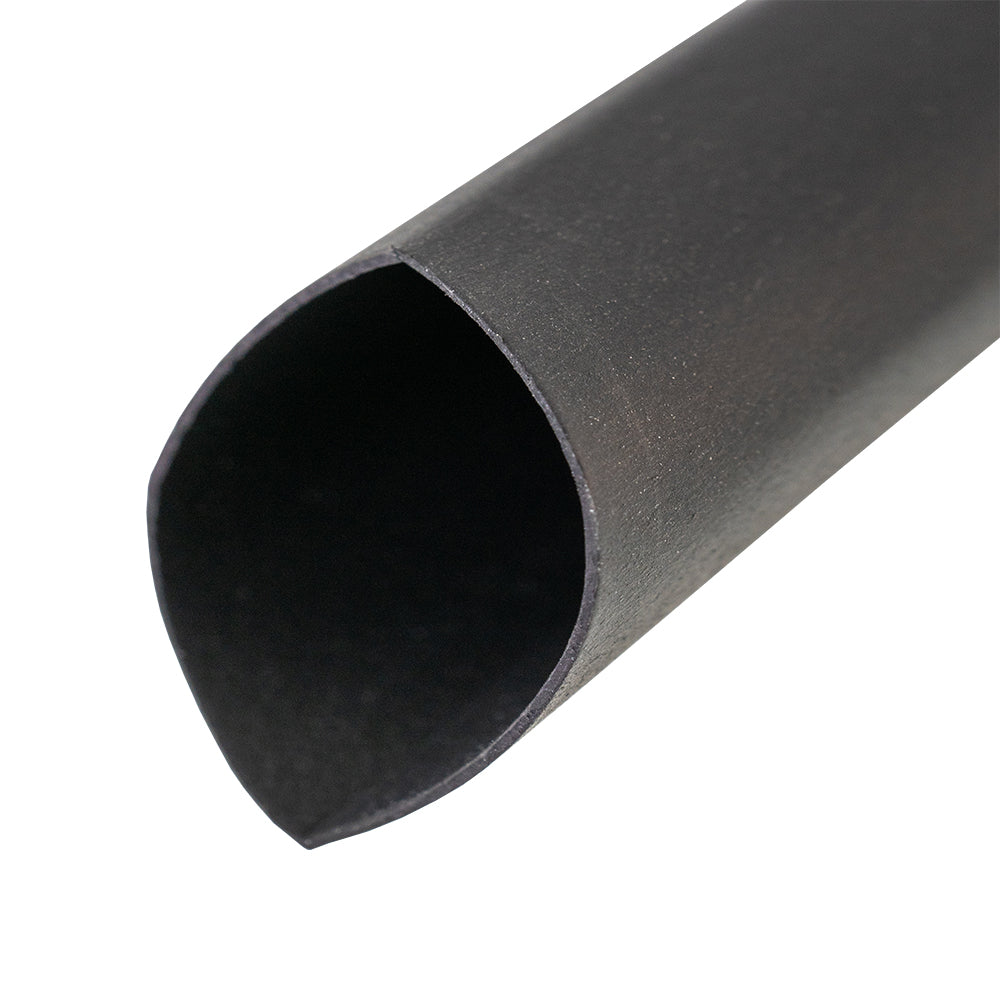

Polyolefin Heat Shrink Tubing

Material Specification: 6002 UL Recognized RoHS REACH Compliant

Select product options

Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution. Explore the possibilities below or contact an engineer to start your custom application today!

Overview

  • Meets MIL-DTL-23053/5C; Class 1, 2, and 3 available
  • Self-extinguishing; UL 224, VW-1 (except Class 2)
  • Flame-retardant, fluid-resistant, and fungus-resistant tubing

The polyolefin heat shrink tubing is made of a cross-linked polyolefin material. This flexible material has excellent fluid resistance, is fungus resistant, flame retardant and meets MIL-DTL-23053/5C; Class 1, 2, and 3 available. This polyolefin material is offered in black, white, clear, blue, green, red and yellow, and in 2:1, 3:1, and 4:1 shrink ratios. The polyolefin heat shrink tubing has an operational temperature range of -67°F to 275°F (-55°C to 135°C).

Specifications

  • Mil-Spec: SAE-AMS-DTL-23053/5
  • REACH: Compliant
  • Dielectric Strength: 500 volt/mil
  • Elongation: 200% (after shrink)
  • Flammability: UL224, VW-1, Self-extinguishing
  • Fungicide: No Growth
  • Longitudinal Shrinkage: +/-5% (after heat recovery)
  • Material: Cross-linked Polyolefin
  • Thickness: 0.035" - 0.055"
  • Maximum Operating Temperature: 275°F
  • Minimum Operating Temperature: -67°F
  • RoHS: RoHS-10
  • Shelf Life: 60 Months
  • Shrink Ratio: 2:1, 3:1 or 4:1
  • Tensile Strength: 1500 psi. (after shrink)
  • Specific Gravity: 1.35
  • Total Mass Loss (Recovered): 0.82%
  • Collected Volatile Condensable Material: 0.26%
  • Outgasssing (%TML): Min 0.2 | Max 0.93%
  • Outgassing (%CVCM): Min 0.02 | Max 0.13%
  • Outgassing (%WVR): Min 0.01 | Max 0.16%
  • Flexibility: Better
  • Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
    ZT-Zippertubing

    Polyolefin Heat Shrink Tubing

    Material Sprcification: 6002

    • Meets MIL-DTL-23053/5C; Class 1, 2, and 3 available
    • Self-extinguishing; UL 224, VW-1 (except Class 2)
    • Flame-retardant, fluid-resistant, and fungus-resistant tubing
    WARNING: Raw materials are not sold separately, please contact the sales department for any special requirements.

    SPECIFICATIONS

  • Mil-Spec: SAE-AMS-DTL-23053/5
  • REACH: Compliant
  • Dielectric Strength: 500 volt/mil
  • Elongation: 200% (after shrink)
  • Flammability: UL224, VW-1, Self-extinguishing
  • Fungicide: No Growth
  • Longitudinal Shrinkage: +/-5% (after heat recovery)
  • Material: Cross-linked Polyolefin
  • Thickness: 0.035" - 0.055"
  • Maximum Operating Temperature: 275°F
  • Minimum Operating Temperature: -67°F
  • RoHS: RoHS-10
  • Shelf Life: 60 Months
  • Shrink Ratio: 2:1, 3:1 or 4:1
  • Tensile Strength: 1500 psi. (after shrink)
  • Specific Gravity: 1.35
  • Total Mass Loss (Recovered): 0.82%
  • Collected Volatile Condensable Material: 0.26%
  • Outgasssing (%TML): Min 0.2 | Max 0.93%
  • Outgassing (%CVCM): Min 0.02 | Max 0.13%
  • Outgassing (%WVR): Min 0.01 | Max 0.16%
  • Flexibility: Better
  • DESCRIPTION

    The polyolefin heat shrink tubing is made of a cross-linked polyolefin material. This flexible material has excellent fluid resistance, is fungus resistant, flame retardant and meets MIL-DTL-23053/5C; Class 1, 2, and 3 available. This polyolefin material is offered in black, white, clear, blue, green, red and yellow, and in 2:1, 3:1, and 4:1 shrink ratios. The polyolefin heat shrink tubing has an operational temperature range of -67°F to 275°F (-55°C to 135°C).

    Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
