Snap-Grip® (VNH) Military-Grade Cable Bundling

A military-grade, PVC-coated cable bundling and protection solution that is available in a range of colors and equipped with nylon snaps for easy re-entry.

Drawing Number(s): ZT20-08-003

Snap-Grip® (VNH) Military-Grade Cable Bundling
RoHS Military Grade

Select product options

Please fill in at least one field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Selected Part Number:ZT20-08-003-0.375-B-B
Get A Quote
WARNING: Cancer and Reproductive Harm | www.P65Warnings.ca.gov
Snap-Grip (VNH) infographic
  • Easy-to-install, snap-button closure requires no tools and can be cut to length
  • Operational temperature range of -65°F to 171°F (-54°C to 77°C)
  • VNH-23 jacketing meets Mil-C-20696 / Mil-PRF-20696, Type II, Class 2 requirements

Snap-Grip® (VNH) is a PVC-coated nylon cable management solution equipped with nylon snap buttons to enable a quick application. The VNH-23 jacketing is military grade conforming to Mil-C-20696, Type II, Class 2 requirements. The waterproofed, abrasion-resistant and flame-retardant jacketing is strong enough to withstand high-flexing or rugged conditions often seen in the military and aerospace industries.

Snap-Grip® (VNH) organizes and bundles cables quickly and easily while still supporting breakouts and continued access to the components inside. Diameter sizes for Snap-Grip® (VNH) range from 0.375” to 4.125”, with custom sizes available upon request. The product has an operational temperature range of -65°F to 171°F (-54°C to 77°C).

Snap-Grip® (VNH) is available in six colors as well as custom colors — great for applications that require additional organization or need customized color coding to indicate certain precautions. Snap-Grip® (VNH) requires no tools, allowing for fast, clean installation. Because of the spacing between snaps, you can easily cut to any length required.

Overall Performance

  • Diameter: 0.375" (3/8)
  • Closure: Nylon Snaps
  • Material: VNH-23
  • Maximum Operating Temperature: 171°F
  • Minimum Operating Temperature: -65°F
  • RoHS: RoHS-10

VNH-23

  • Mil-Spec: Mil-C-20696 / Mil-PRF-20696, Type II, Class 2
  • Durability: Better
  • REACH: Compliant
  • Flame Retardant: FED-STD-191 Method 5903
  • Thickness: 0.023"
  • Maximum Operating Temperature: 171°F
  • Minimum Operating Temperature: -65°F
  • RoHS: RoHS-10
  • Shelf Life: 36 Months
  • Tensile Strength: 225 Warp; 225 Fill

Nylon Snaps

    Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
    Zip-On® (63) Military-Grade Cable Bundling  Zip-On® (PFR) Polyurethane Cable Bundling  Z-Coil Self-Closing Cable Jacketing
    NAME ZIP-ON® (63) MILITARY-GRADE CABLE BUNDLING  ZIP-ON® (PFR) POLYURETHANE CABLE BUNDLING  Z-COIL SELF-CLOSING CABLE JACKETING
    DESCRIPTION A wrap-around cable bundling and protection solution that has a PVC, military-grade jacket that is abrasion and fluid resistant, with a pressure track.  A wrap-around cable protection solution that is flexible, resistant to abrasion and fluids, and has a pressure track closure.  A self-closing wire bundling and protection sleeve made from a durable, flame-retardant, woven PET material
    Closure Z-Track (PVC), R-Track (PVC), D-Track (PVC), EZ-Track (PVC)  Z-Track (PFR)  Self-Closing
    RoHS RoHS-10  RoHS-10  RoHS-10
    Abrasion Resistance Best  Best  Better
    Installation Type Wrap-Around  Wrap-Around  Wrap-Around
    Purpose Sleeve  Sleeve  Sleeve
    Min Temperature Low  Moderate  Extreme
    Minimum Operating Temperature -4°F  -67°F  -58°F
    Max Temperature Moderate  Low  Moderate
    Maximum Operating Temperature 221°F  225°F  302°F
    Flexibility Better  Best  Best
    View  View  View
    Zippertubing
    Snap-Grip (VNH) infographic

    Snap-Grip® (VNH) Military-Grade Cable Bundling

    A military-grade, PVC-coated cable bundling and protection solution that is available in a range of colors and equipped with nylon snaps for easy re-entry.

    Drawing Number(s): ZT20-08-003

    Selected Part Number: ZT20-08-003-0.375-B-B

  • Easy-to-install, snap-button closure requires no tools and can be cut to length
  • Operational temperature range of -65°F to 171°F (-54°C to 77°C)
  • VNH-23 jacketing meets Mil-C-20696 / Mil-PRF-20696, Type II, Class 2 requirements
  • Military

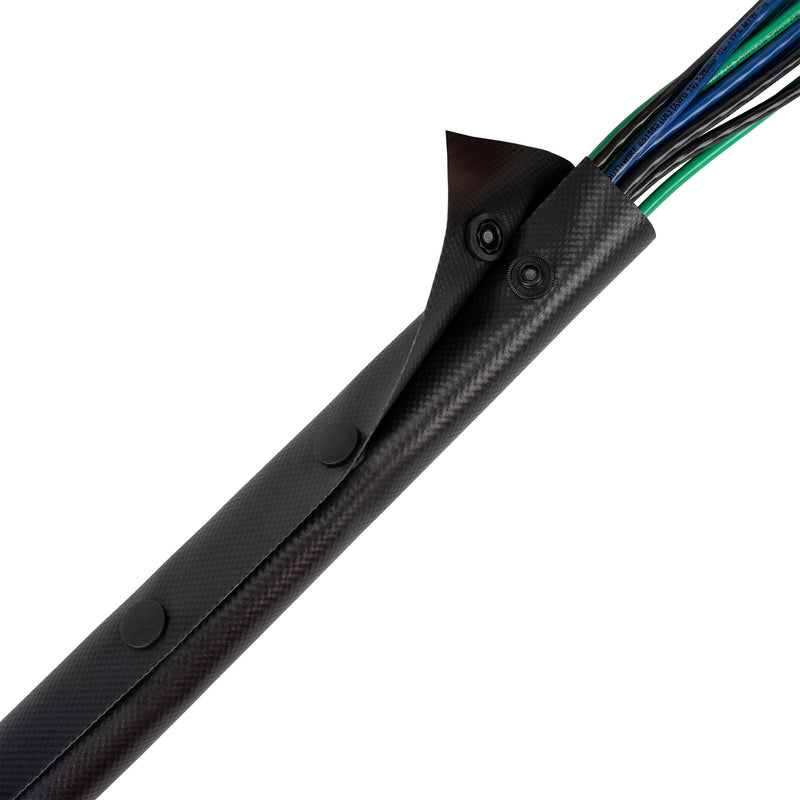

    Snap-Grip (VNH)

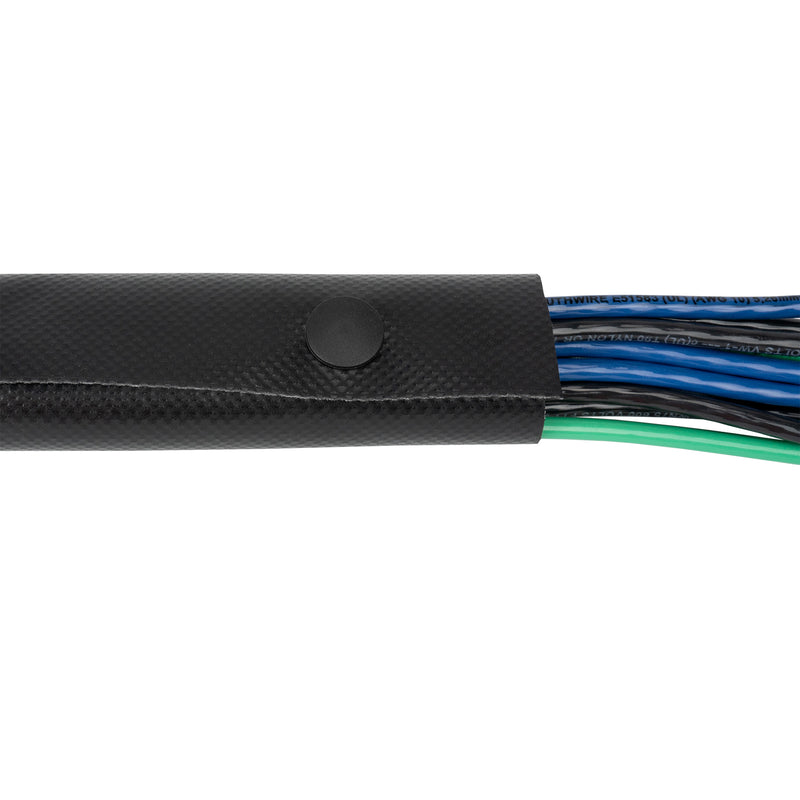

    Snap-Grip (VNH) wire harnessing
    Snap-Grip (VNH) flexible conduit
    Snap-Grip (VNH) wire covering

    Features

  • Waterproof, flame-retardant, abrasion-resistant jacketing
  • Snap-button closure allows for installation without disassembly — perfect for breakouts
  • Operational temperature range of -65°F to 171°F (-54°C to 77°C)
  • Benefits

  • MIL-SPEC jacketing ideal for military and aerospace industries
  • Comes in a many colors and diameters including customization options
  • Can be cut to any desired length
  • Snap-Grip® (VNH) Military-Grade Cable Bundling

    Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
