Shrink-N-Shield® (HW) EMI Shielded Heat Shrink Tubing

A durable, heavy wall heat-shrink tubing paired with the Z-3250-CN shielding fabric to protect from EMI.

Drawing Number(s): ZT04-18-002

Shrink-N-Shield® (HW) EMI Shielded Heat Shrink Tubing

Select product options

Please fill in at least one field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Selected Part Number:ZT04-18-002-01-B-X48.0
Get A Quote
WARNING: Cancer and Reproductive Harm | www.P65Warnings.ca.gov

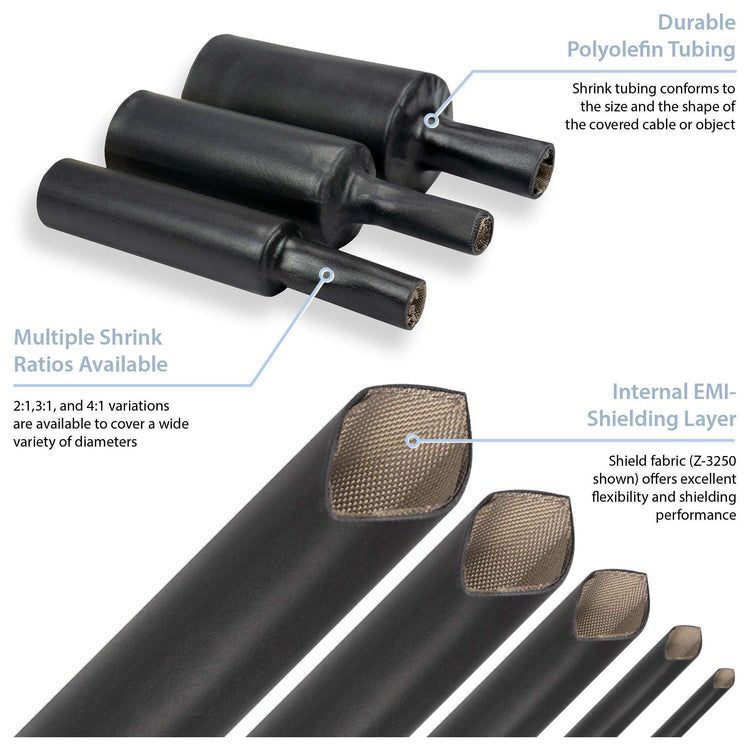

Shrink-N-Shield (HW) Infographic
  • Heavy wall heat-shrink tubing is UL-rated meeting UL 486D
  • EMI shielding fabric provides better protection from electromagnetic interference
  • Shrink ratio of 3:1 allows for versatility in application uses

Shrink-N-Shield® (HW) combines two proven technologies into a single, easy to install product for adding EMI shield protection to wire and cable bundles with diameters of 1/2" and less. Makes adding an EMI shield or secondary EMI shielding to wire and cable a snap. This product is comprised of SAE-AMS-DTL-23053/15 (w/o the adhesive layer) heat shrink tubing and Zippertubing's Z-3250 conductive cloth which has outstanding shielding properties. It is ideal for applications where thick, heavy wall insulation is needed for superior mechanical protection. This product has an operational temperature range of -55°C to 110°C. This product is supplied in four foot long sticks.

Overall Performance

  • Diameter - Before Shrink: 0.35" (#01)
  • Material: Heavy Wall Polyolefin
  • Heat Shrink Material: Polyolefin
  • Maximum Operating Temperature: 230°F
  • Minimum Operating Temperature: -40°F
  • Shelf-Life: 60 months
  • Shield Bonding: Nitrile Adhesive
  • Shielding: Z-3250
  • Shielding Material: Nickel Plated Copper
  • Shrink Ratio: 3:1

Heavy Wall Polyolefin

  • Elongation: per AMS DTL-23053/15
  • Flammability: Flame retardant (UL 486)
  • Material: Cross-linked Polyolefin Copolymer
  • Maximum Operating Temperature: 235°F
  • Minimum Operating Temperature: -67°F
  • Shelf Life: 60 Months
  • Shrink Ratio: 3:1
  • Tensile Strength: per AMS DTL-23053/15

Z-3250

    Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
    Shrink-N-Shield® (2:1) EMI Shielded Heat Shrink Tubing  Flex-Shield (HP) Braided EMI Shielding Sleeve
    NAME SHRINK-N-SHIELD® (2:1) EMI SHIELDED HEAT SHRINK TUBING  FLEX-SHIELD (HP) BRAIDED EMI SHIELDING SLEEVE
    DESCRIPTION Shrink-N-Shield® (2:1) is a MIL-SPEC, heat-shrink tubing with a 2:1 shrink ratio that provides exceptional shielding from EMI, RFI and EMF.  A braided, expandable EMI, RFI and EMF shielding sleeve that is lightweight and flexible—an ideal solution for the aerospace industry.
    Closure
    RoHS RoHS-10  RoHS-10
    Abrasion Resistance Best
    Installation Type Pull-Through  Pull-Through
    Purpose EMI Shielding  Sleeve
    Min Temperature Extreme  Moderate
    Minimum Operating Temperature -40°F  -40°F
    Max Temperature Moderate  Moderate
    Maximum Operating Temperature 275°F  302°F
    Flexibility
    View
    Zippertubing
    Shrink-N-Shield (HW) Infographic

    Shrink-N-Shield® (HW) EMI Shielded Heat Shrink Tubing

    A durable, heavy wall heat-shrink tubing paired with the Z-3250-CN shielding fabric to protect from EMI.

    Drawing Number(s): ZT04-18-002

    Selected Part Number: ZT04-18-002-01-B-X48.0

  • Heavy wall heat-shrink tubing is UL-rated meeting UL 486D
  • EMI shielding fabric provides better protection from electromagnetic interference
  • Shrink ratio of 3:1 allows for versatility in application uses
  • Military

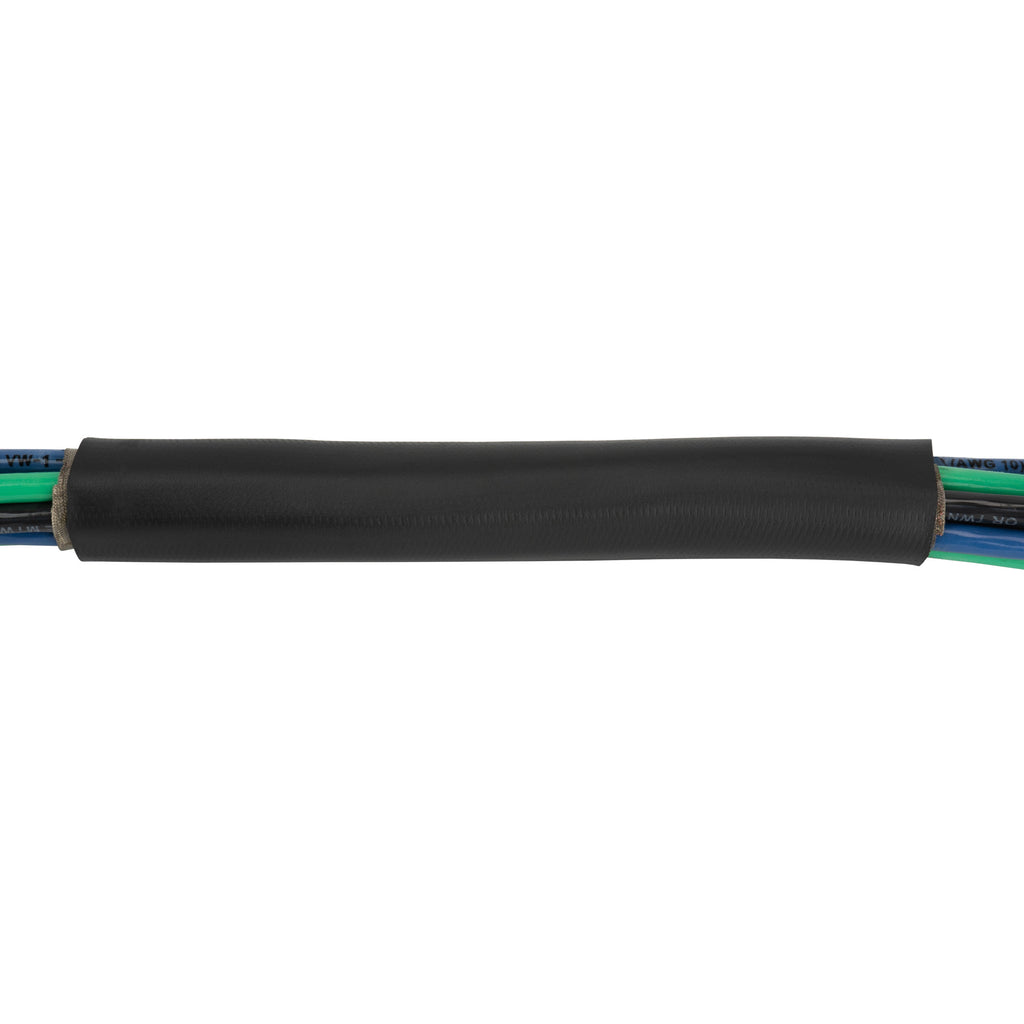

    Shrink-N-Shield (HW)

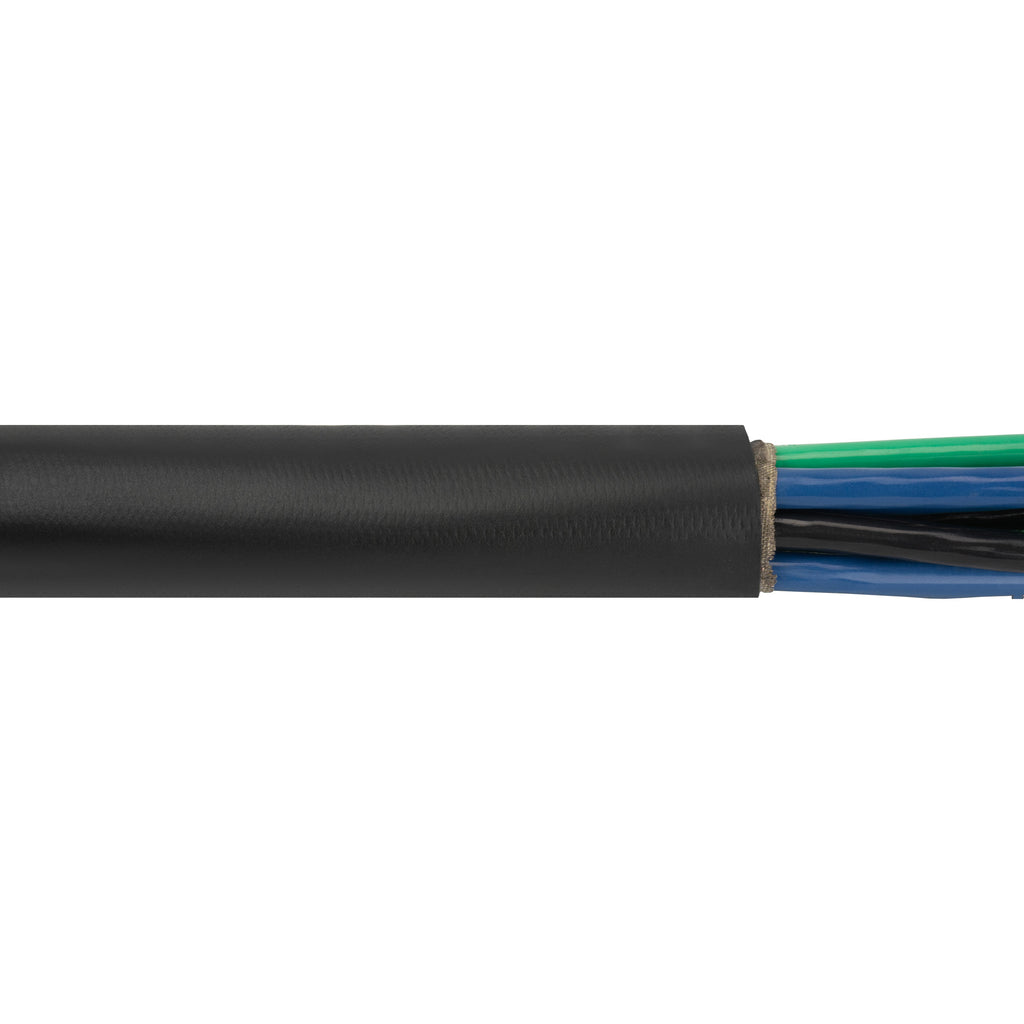

    Shrink-N-Shield (HW) EMI Shielding
    Shrink-N-Shield (HW) Heat Shrink Tubing with EMI Shielding
    Shrink-N-Shield (HW) Wire Harness Protection

    Features

  • Adhesive sticks to EMI shielding for easier installation and will outlast harsh conditions to ensure a long-lasting solution
  • Shields from EMI, RFI, and EMF
  • Operational temperature range of -40°F to 235°F (-40°C to 113°C)
  • Benefits

  • Heavy wall tubing protects from the toughest of conditions and environments
  • Z-3250-CN shielding fabric has a nickel coating for excellent corrosion resistance

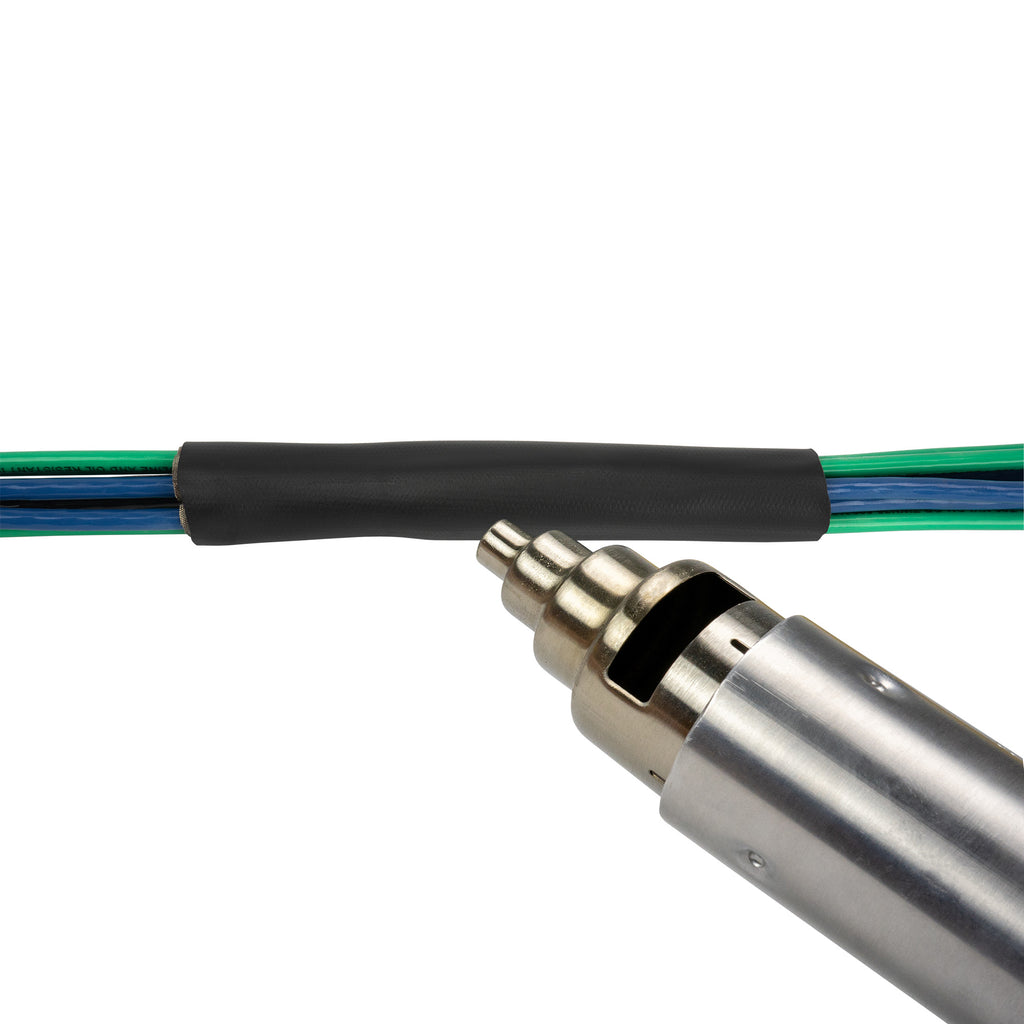

  • Installation only requires a standard heat gun
