Shrink-N-Repair® (S) Wrap-Around Heat Shrink

A wrap-around, abrasion-resistant, fluid-resistant heat shrink that repairs small wires or cables with diameters of 0.05” to 0.25”.

Drawing Number(s): ZT16-04-016

Shrink-N-Repair® (S) Wrap-Around Heat Shrink
UL Recognized RoHS

Select product options

Please fill in at least one field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Selected Part Number:CSMR-ZT16-04-016-B-X12.0
Get A Quote

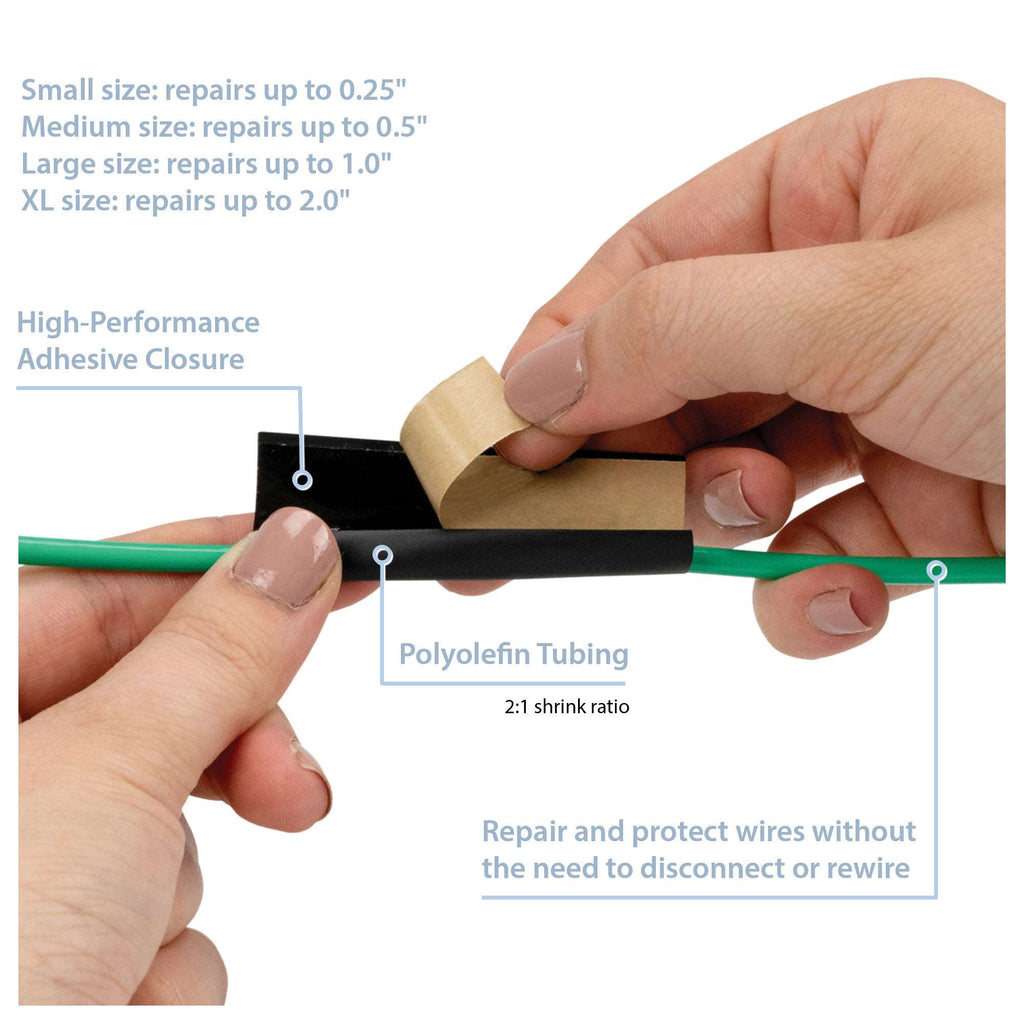

Shrink-N-Repair (S) Infographic
  • Wrap-around heat shrink that allows repair without the need to disconnect or re-wire
  • Polyolefin tubing is abrasion-resistant, fluid-resistant, and fungus-resistant
  • Available in clear, black, and white and in a 1-foot piece or a 3-foot roll

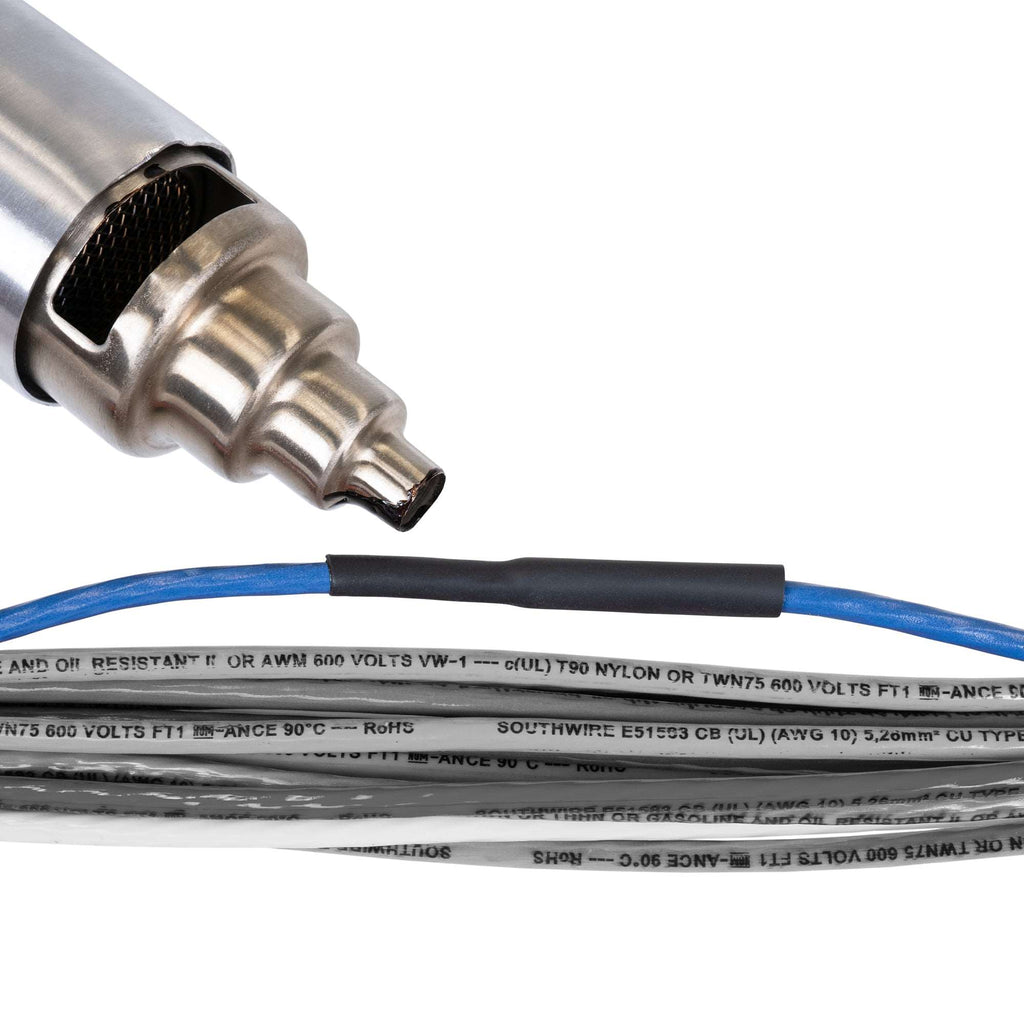

Shrink-N-Repair® (Small) is a wrap-around heat shrink for small diameter wires that are damaged, cracked, or chafed and need a quick repair without downtime or disconnection. Shrink-N-Repair® (Small) also provides a durable, secondary sleeve around equipment cords such as MacBook chargers, tablet chargers, and more. Unlike typical heat shrink, which comes in a sleeve form, Shrink-N-Repair® (Small) wraps around components. Shrink-N-Repair® (Small) can be installed with only a heat gun and a standard pair of scissors. The polyolefin 2:1 heat shrink is abrasion resistant, fluid resistant, and fungus resistant, as well as flame retardant. The clear acrylic-based transfer adhesive tape provides a secure bond that withstands bursts of heat. The adhesive is equipped with a paper release liner for easy application, which also extends the shelf life if there isn’t an immediate need to use the entire stick or roll.

Shrink-N-Repair® (Small) has an operational temperature range of -67°F to 275°F (-55°C to 135°C).

Available in either a 1-foot stick or a 3-foot roll, Shrink-N-Repair® (Small) can be purchased in single units from Amazon or in bulk directly from our website.

If you require a wrap-around heat shrink for diameters up to 0.5”, we have Shrink-N-Repair®, which is also available in a 1-foot stick or a 3-foot roll through Amazon or on the Zippertubing® website. And if you have larger diameters of 0.5” to 1”, we offer Shrink-N-Repair® (L), as well as Shrink-N-Repair® (XL) for diameters as large as 2”. Both are available on Amazon or our website in a 1-foot stick and a 3-foot roll.

If your application requires a more rugged heat shrink, we offer PRT®, our MIL-SPEC, UL-rated, wrap-around heat shrink for diameters up to 1.87”. PRT® also has combinations for applications requiring EMI shielding and/or water blocking, as well as custom combinations and colors available upon request.

Overall Performance

  • Closure: Tape (Specialty Surface)
  • Material: Thin Wall Polyolefin
  • Flammability: UL224, VW-1, Self-extinguishing
  • Heat Shrink Material: Cross-Linked Polyolefin
  • Thickness: 0.080"
  • Maximum Operating Temperature: 275°F
  • Minimum Operating Temperature: -67°F
  • RoHS: RoHS-10
  • Shelf-Life: 24 months
  • Shrink Ratio: 2:1
  • Shrink Temperature: 90°C (194°F)
  • Tensile Strength: 1500 psi. (after shrink)

Thin Wall Polyolefin

  • REACH: Compliant
  • Dielectric Strength: 2500v (after shrink)
  • Elongation: 100% (after shrink)
  • Flammability: UL 224, VW-1
  • Thickness: 0.0059" - 0.0079"
  • Maximum Operating Temperature: 257°F
  • Minimum Operating Temperature: -67°F
  • RoHS: RoHS-10
  • Shelf Life: 60 Months
  • Shrink Ratio: 2:1
  • Tensile Strength: 1500 psi (after shrink)
  • Specific Gravity: 1.35 (max.)

Tape (Specialty Surface)

    Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
    PRT® MIL-SPEC Wrap-Around Heat Shrink Tubing  Shrink-N-Repair® (M) Wrap-Around Heat Shrink  PRT® (ES-135) Water-Blocking Wrap-Around Heat Shrink
    NAME PRT® MIL-SPEC WRAP-AROUND HEAT SHRINK TUBING  SHRINK-N-REPAIR® (M) WRAP-AROUND HEAT SHRINK  PRT® (ES-135) WATER-BLOCKING WRAP-AROUND HEAT SHRINK
    DESCRIPTION A wrap-around heat shrink made from MIL-SPEC tubing that repairs electrical systems and assembled components and is resistant to abrasion and chemicals.  A wrap-around, abrasion-resistant, fluid-resistant heat shrink that repairs wires or cables with diameters up to 0.5”.  A wrap-around, military-grade heat shrink paired with a high-temperature water blocking, hot-melt adhesive that protects against harsh environmental conditions.
    Closure Tape (Specialty Surface)  Tape (Specialty Surface)  Tape (Specialty Surface)
    RoHS RoHS-10  RoHS-10  RoHS-10
    Abrasion Resistance Best  Best  Best
    Installation Type Wrap-Around  Wrap-Around  Wrap-Around
    Purpose Wire Repair  Wire Repair  Water Blocking
    Min Temperature Extreme  Moderate  Extreme
    Minimum Operating Temperature -67°F  -67°F  -67°F
    Max Temperature Moderate  Low  Moderate
    Maximum Operating Temperature 275°F  275°F  275°F
    Flexibility
    View  View  View
    Zippertubing
    Shrink-N-Repair (S) Infographic

    Shrink-N-Repair® (S) Wrap-Around Heat Shrink

    A wrap-around, abrasion-resistant, fluid-resistant heat shrink that repairs small wires or cables with diameters of 0.05” to 0.25”.

    Drawing Number(s): ZT16-04-016

    Selected Part Number: CSMR-ZT16-04-016-B-X12.0

  • Wrap-around heat shrink that allows repair without the need to disconnect or re-wire
  • Polyolefin tubing is abrasion-resistant, fluid-resistant, and fungus-resistant
  • Available in clear, black, and white and in a 1-foot piece or a 3-foot roll
  • Military
    Shrink-N-Repair (S)
    Shrink-N-Repair (S) Wrap Around Heat Shrink Tubing
    Shrink-N-Repair (S) Wrap Around Shrinkable Tubing
    Shrink-N-Repair (S) Wire Harness Repair

    Features

  • Paper release liner allows for clean and easy installation
  • No disconnection or re-wiring of components needed
  • Operational temperature range of -67°F to 275°F (-55°C to 135°C)
  • Benefits

  • Resistant to most oils, fluids, mild acids, and alkalis
  • Quick and easy installation with only a heat gun and a standard pair of scissors
  • Can be cut to any desired length
  • Shrink-N-Repair® (S) Wrap-Around Heat Shrink

    Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
