PVL-10 (UL TESTED) - PVC Coated Woven Polyester - 10 Mil

UL Tested Polyester Fabric

Material Specification: 1125 UL Recognized RoHS Military Grade REACH Compliant

Select product options

Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution.

Overview

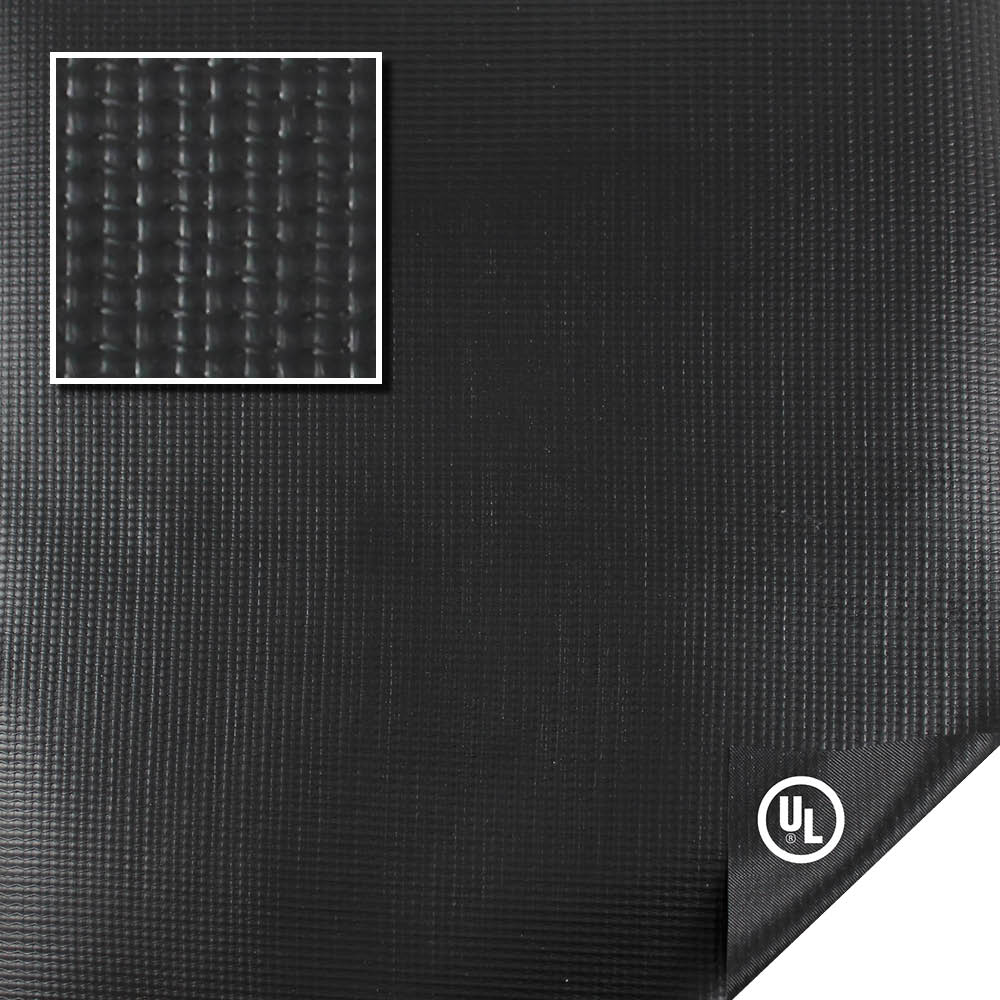

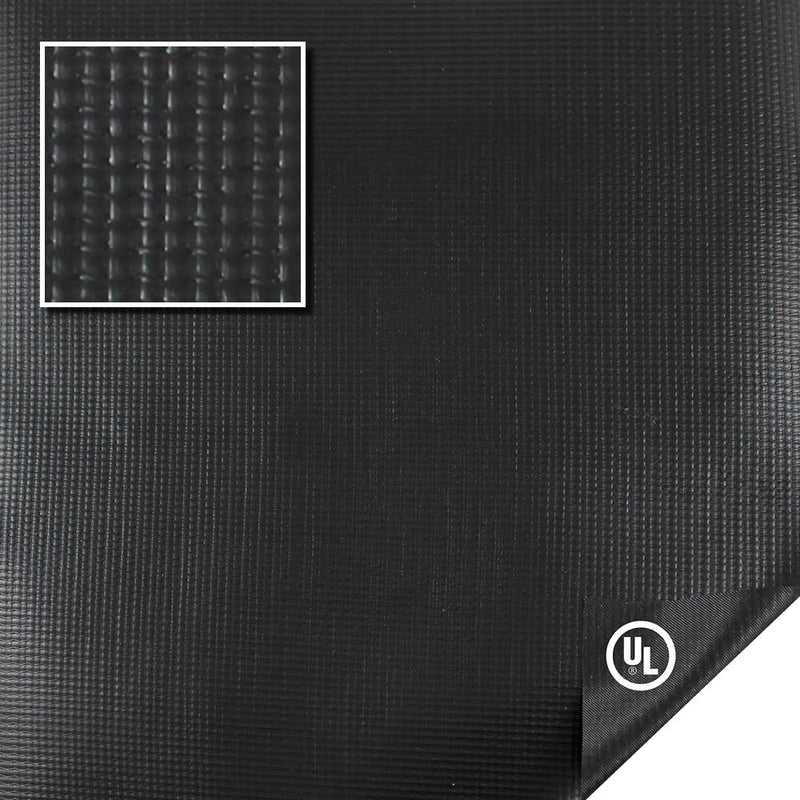

    A lightweight, abrasion resistant, fire retardant Polyester fabric, laminated or extrusion coated with Polyvinylchloride (PVC) on both sides. Material has been tested and meets UL224, VW-1 flammability requirements per UL File E72210 when combined with Zippertubings R-Track or Z-Track closures. Finished material shall meet the intent of Military Specification MIL-C-43006G, Type II, Class 1. The material shall be flame retardant and heat-sealable.

    Specifications

  • Mil-Spec: MIL-C-43006G, Type II, Class 1
  • REACH: Compliant
  • Thickness: 0.010"
  • Thickness Variance: +/- 0.002"
  • Maximum Operating Temperature: 179°F
  • Minimum Operating Temperature: -40°F
  • RoHS: RoHS-10
  • Shelf Life: 36 Months
  • Tensile Strength: 120 lbs/min (Warp); 100 lbs/min (Fill)
  • UL Recognition: UL224, VW-1 under UL file #E72210 w/ R-Track or Z-Track Closure
  • Flexibility: Better
  • Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.

    Similar Materials

    PVL-10 - PVC Coated Woven Polyster Fabric - 10 Mil DVH-20 - PVC Coated Polyester - 20 Mil VNH-23 - PVC Coated Nylon Fabric - 23 Mil
    NAME PVL-10 - PVC COATED WOVEN POLYSTER FABRIC - 10 MIL DVH-20 - PVC COATED POLYESTER - 20 MIL VNH-23 - PVC COATED NYLON FABRIC - 23 MIL
    DESCRIPTION Lightweight PVC Coated Polyester Jacket, 10-Mil General Purpose PVC Coated Polyester Jacket, 20 Mil Mil-Spec PVC Coated Nylon Jacket, 23 Mil
    RoHS RoHS-10 RoHS-10 RoHS-10
    Abrasion Resistance Better Better Better
    Min Temperature Moderate Moderate Extreme
    Minimum Operating Temperature -40°F -30°F -65°F
    Max Temperature Low Low Low
    Maximum Operating Temperature 180°F 185°F 171°F
    Flexibility Better Good Better
    View View View
    ZT-Zippertubing

    PVL-10 (UL TESTED) - PVC Coated Woven Polyester - 10 Mil

    UL Tested Polyester Fabric

    Material Sprcification: 1125

      WARNING: Raw materials are not sold separately, please contact the sales department for any special requirements.

      SPECIFICATIONS

    • Mil-Spec: MIL-C-43006G, Type II, Class 1
    • REACH: Compliant
    • Thickness: 0.010"
    • Thickness Variance: +/- 0.002"
    • Maximum Operating Temperature: 179°F
    • Minimum Operating Temperature: -40°F
    • RoHS: RoHS-10
    • Shelf Life: 36 Months
    • Tensile Strength: 120 lbs/min (Warp); 100 lbs/min (Fill)
    • UL Recognition: UL224, VW-1 under UL file #E72210 w/ R-Track or Z-Track Closure
    • Flexibility: Better
    • DESCRIPTION

      A lightweight, abrasion resistant, fire retardant Polyester fabric, laminated or extrusion coated with Polyvinylchloride (PVC) on both sides. Material has been tested and meets UL224, VW-1 flammability requirements per UL File E72210 when combined with Zippertubings R-Track or Z-Track closures. Finished material shall meet the intent of Military Specification MIL-C-43006G, Type II, Class 1. The material shall be flame retardant and heat-sealable.

      Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
