PVL-10 - PVC Coated Woven Polyster Fabric - 10 Mil

Lightweight PVC Coated Polyester Jacket, 10-Mil

Material Specification: 1101 RoHS Military Grade REACH Compliant

Select product options

Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution. Explore the possibilities below or contact an engineer to start your custom application today!

Overview

  • Abrasion Resistant Mil-Spec Material
  • Outstanding Flexibility
  • Flame Retardant
  • Economical
  • Many Color Options

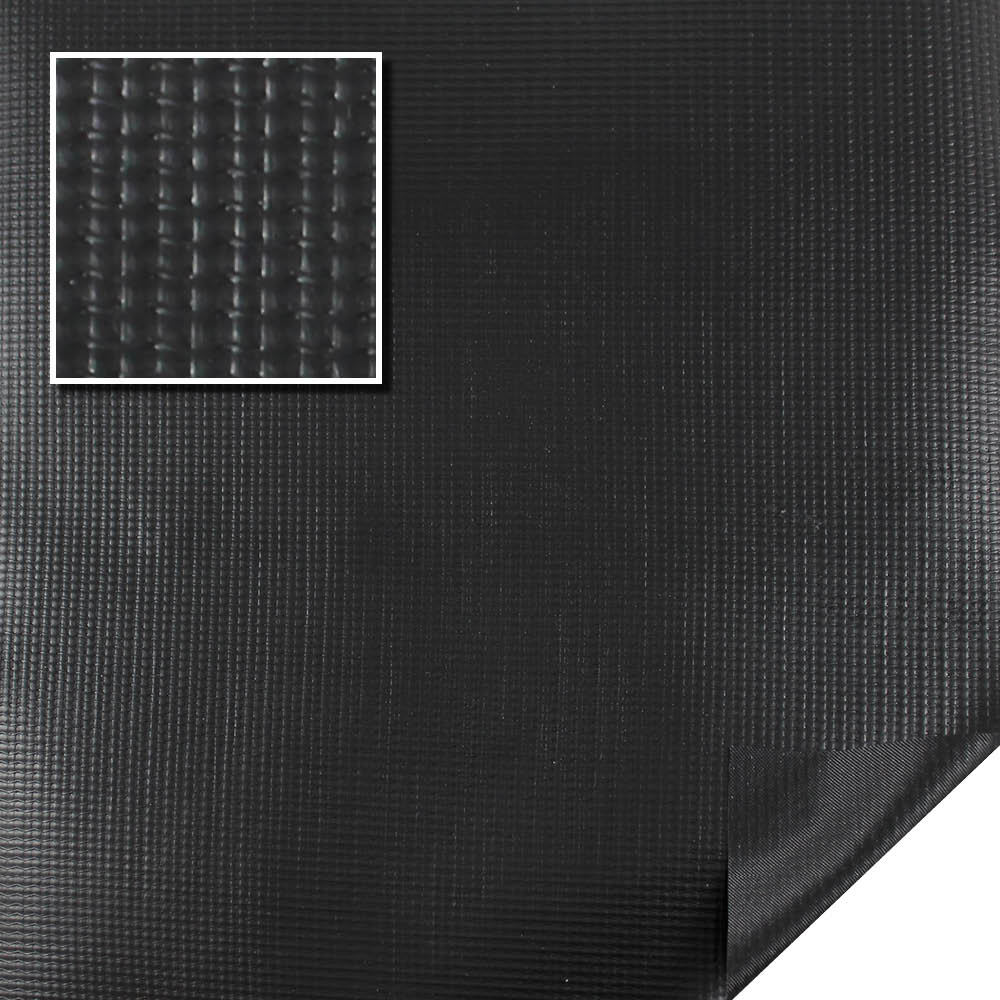

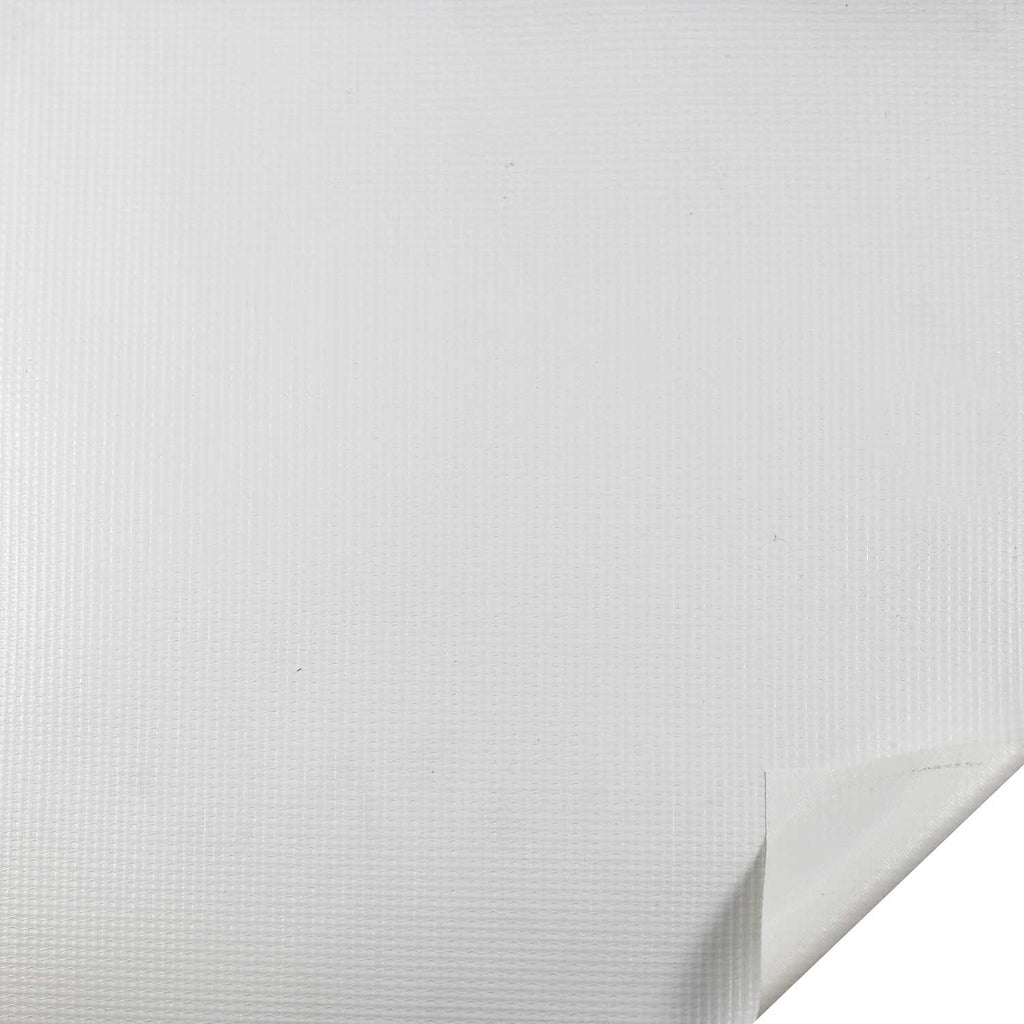

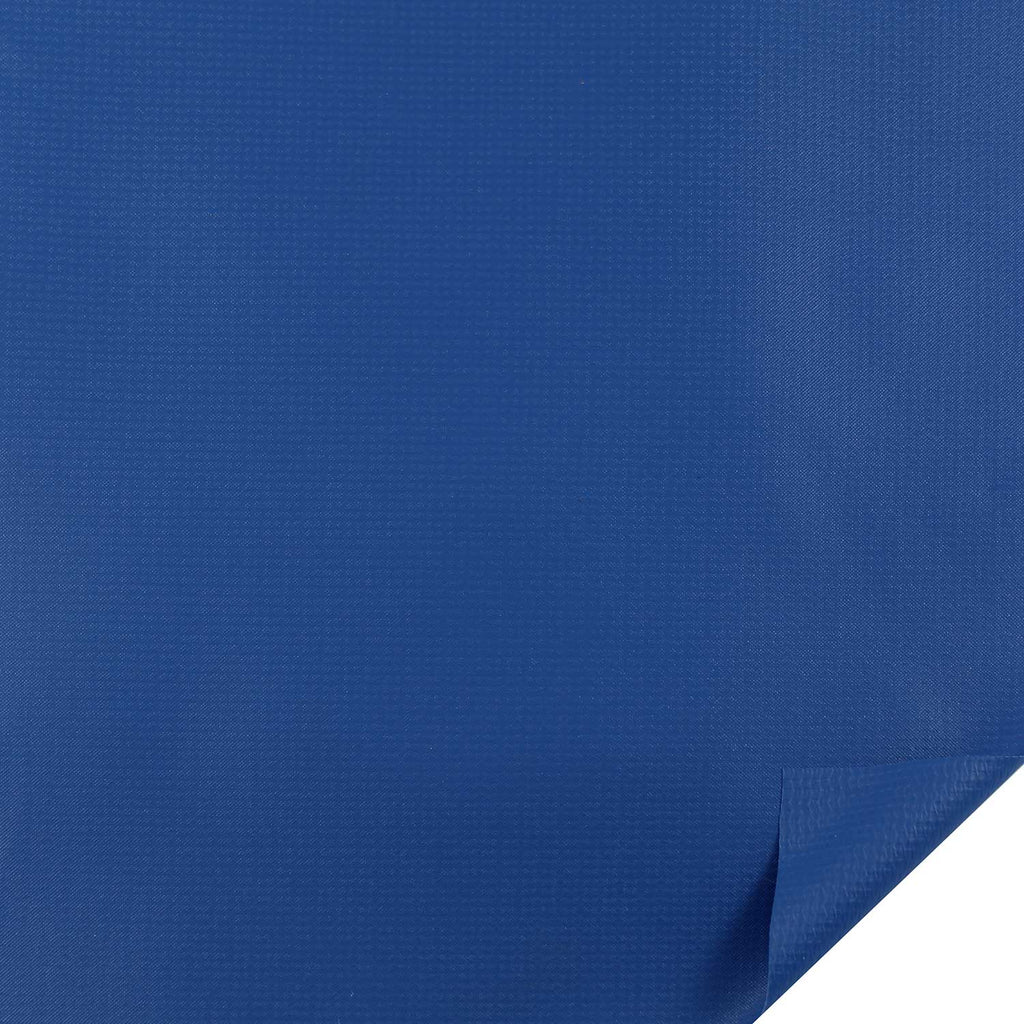

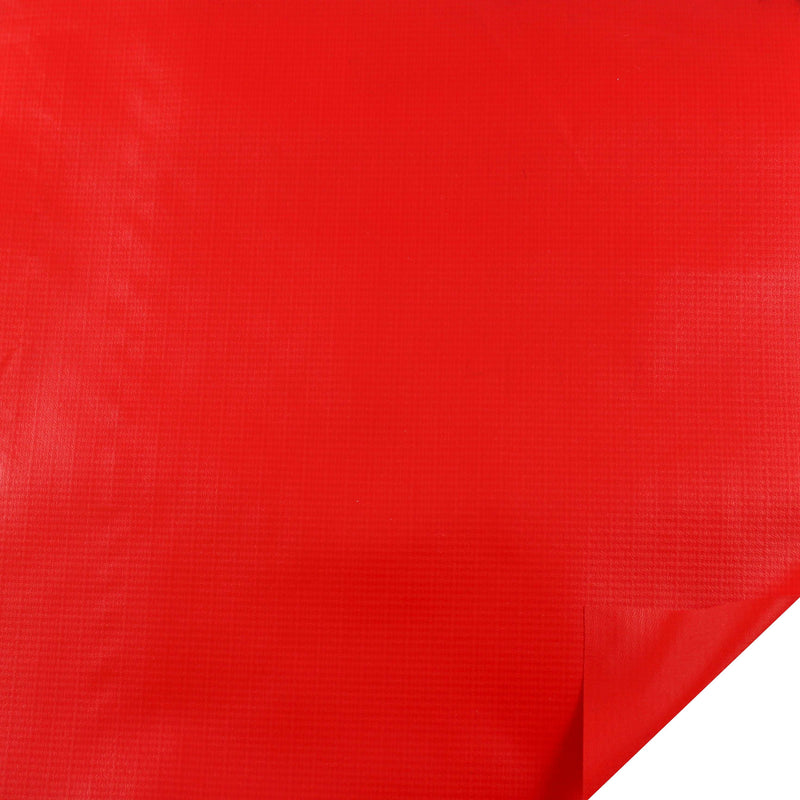

PVL-10 is a flame retardant, PVC coated, woven Polyester fabric that is extremely flexible, lightweight and rugged. The fabric reinforced construction provides good wear resistance combined with high tear strength in an extremely thin and flexible jacket material. It's ideal for discrete wires, wire harnesses, hoses, and other applications where its high flexibility, strength and abrasion protection are needed. PVL-10 conforms to MIL-C-43006E, Type II, Class 1 and is available in six color options: black, white, gray, red, yellow and blue. The materials can be configured for round, flat and rectangular cable configurations and supplied with a large array of closure options. This material is an extremely versatile, cost effective fabric and one of Zippertubing's most popular jackets. The material is flame retardant and has an operational temperature range of -40°C to 82°C.

Specifications

  • Mil-Spec: MIL-C-43006G, Type II, Class 1
  • REACH: Compliant
  • Flame Retardant: FED-STD-191 Method 5903
  • Thickness: 0.010"
  • Material: PVC-Coated Polyester
  • Maximum Operating Temperature: 180°F
  • Minimum Operating Temperature: -40°F
  • RoHS: RoHS-10
  • Shelf Life: 36 Months
  • Tensile Strength: 120 lbs/min (warp); 100 lbs/min (fill)
  • Flexibility: Better
  • Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
    ZT-Zippertubing

    PVL-10 - PVC Coated Woven Polyster Fabric - 10 Mil

    Lightweight PVC Coated Polyester Jacket, 10-Mil

    Material Sprcification: 1101

    • Abrasion Resistant Mil-Spec Material
    • Outstanding Flexibility
    • Flame Retardant
    • Economical
    • Many Color Options
    WARNING: Raw materials are not sold separately, please contact the sales department for any special requirements.

    SPECIFICATIONS

  • Mil-Spec: MIL-C-43006G, Type II, Class 1
  • REACH: Compliant
  • Flame Retardant: FED-STD-191 Method 5903
  • Thickness: 0.010"
  • Material: PVC-Coated Polyester
  • Maximum Operating Temperature: 180°F
  • Minimum Operating Temperature: -40°F
  • RoHS: RoHS-10
  • Shelf Life: 36 Months
  • Tensile Strength: 120 lbs/min (warp); 100 lbs/min (fill)
  • Flexibility: Better
  • DESCRIPTION

    PVL-10 is a flame retardant, PVC coated, woven Polyester fabric that is extremely flexible, lightweight and rugged. The fabric reinforced construction provides good wear resistance combined with high tear strength in an extremely thin and flexible jacket material. It's ideal for discrete wires, wire harnesses, hoses, and other applications where its high flexibility, strength and abrasion protection are needed. PVL-10 conforms to MIL-C-43006E, Type II, Class 1 and is available in six color options: black, white, gray, red, yellow and blue. The materials can be configured for round, flat and rectangular cable configurations and supplied with a large array of closure options. This material is an extremely versatile, cost effective fabric and one of Zippertubing's most popular jackets. The material is flame retardant and has an operational temperature range of -40°C to 82°C.

    Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
