PRT® (Transition) Wrap-Around Heat Shrink

A wrap-around, heat shrink solution that provides protection and strain relief from connector backshells

Drawing Number(s): ZT05-04-003

PRT® (Transition) Wrap-Around Heat Shrink
RoHS Military Grade

Select product options

Please fill in at least one field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Selected Part Number:ZT05-04-003-01-B-X6.0
Get A Quote
WARNING: Cancer and Reproductive Harm | www.P65Warnings.ca.gov
PRT (Transition) Infographic

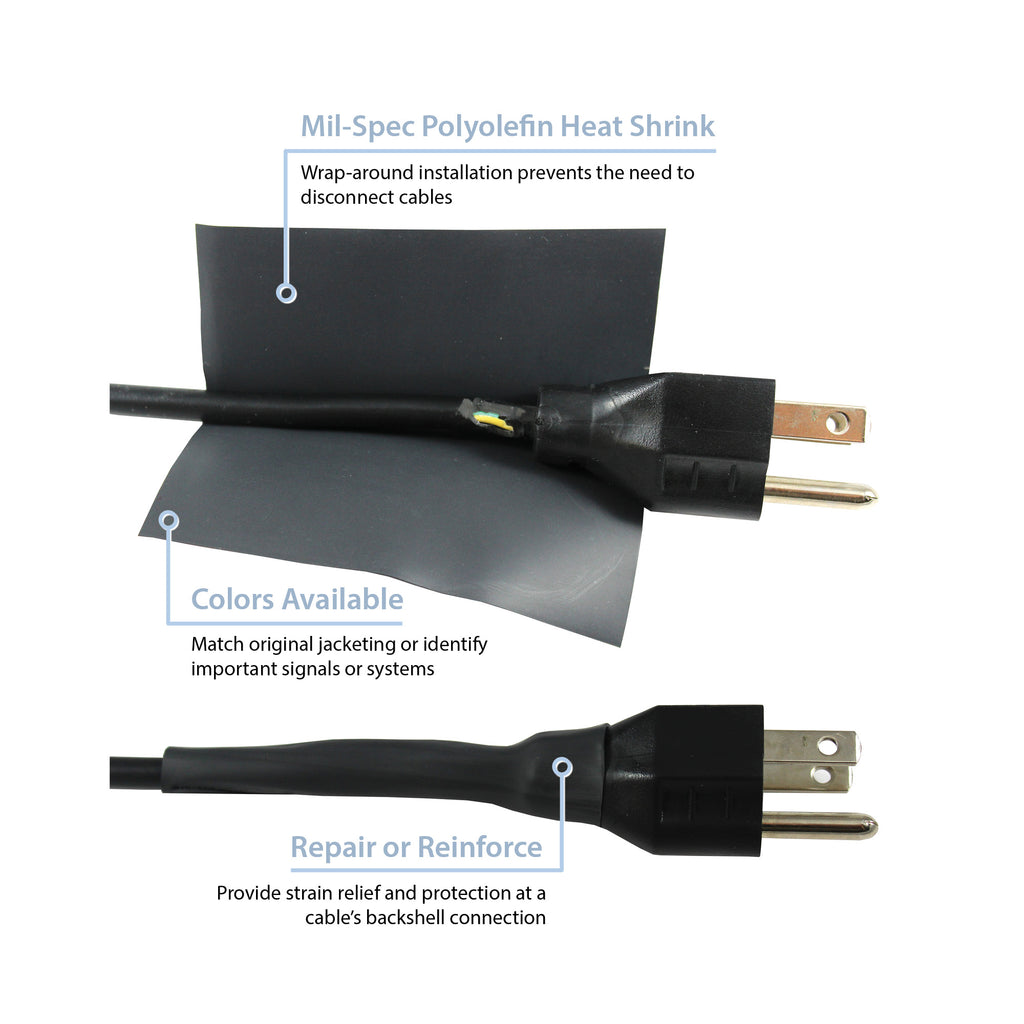

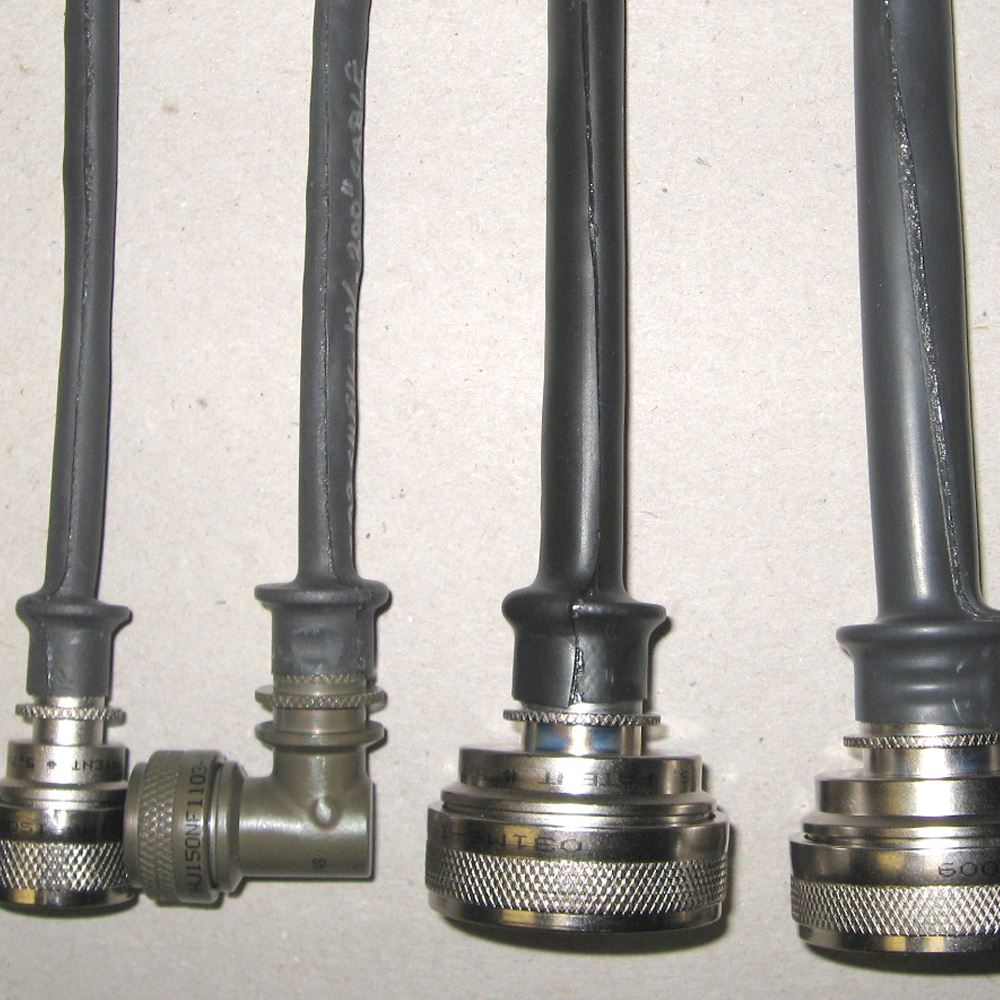

  • PRT® (Transition) is a wrap-around solution engineered for connector backshells and other forms of transitions.
  • This is the perfect product for applications that are fitted with non-removable electrical connectors.
  • PRT® (Transition) boots’ excellent anti-abrasive, environmental, chemical, and electrical properties are resistant to most oils and fluids, mild acids, and alkalis.

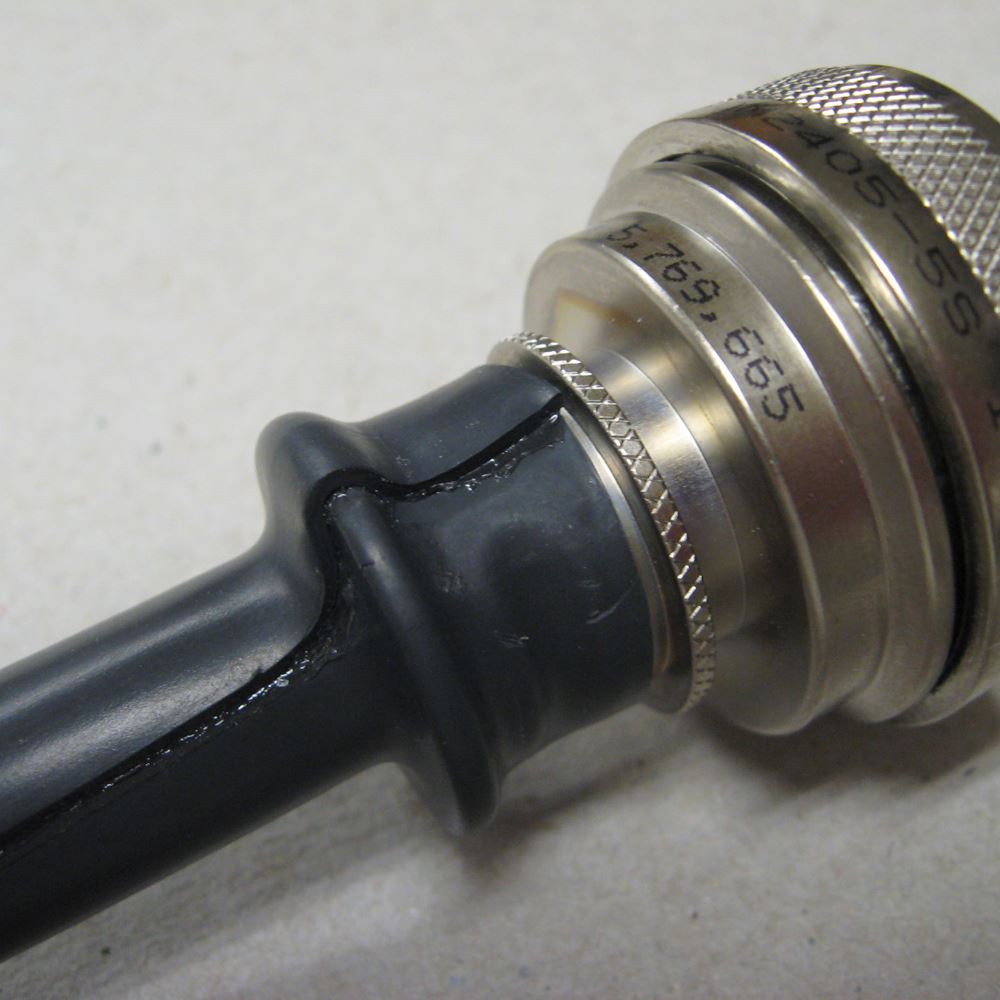

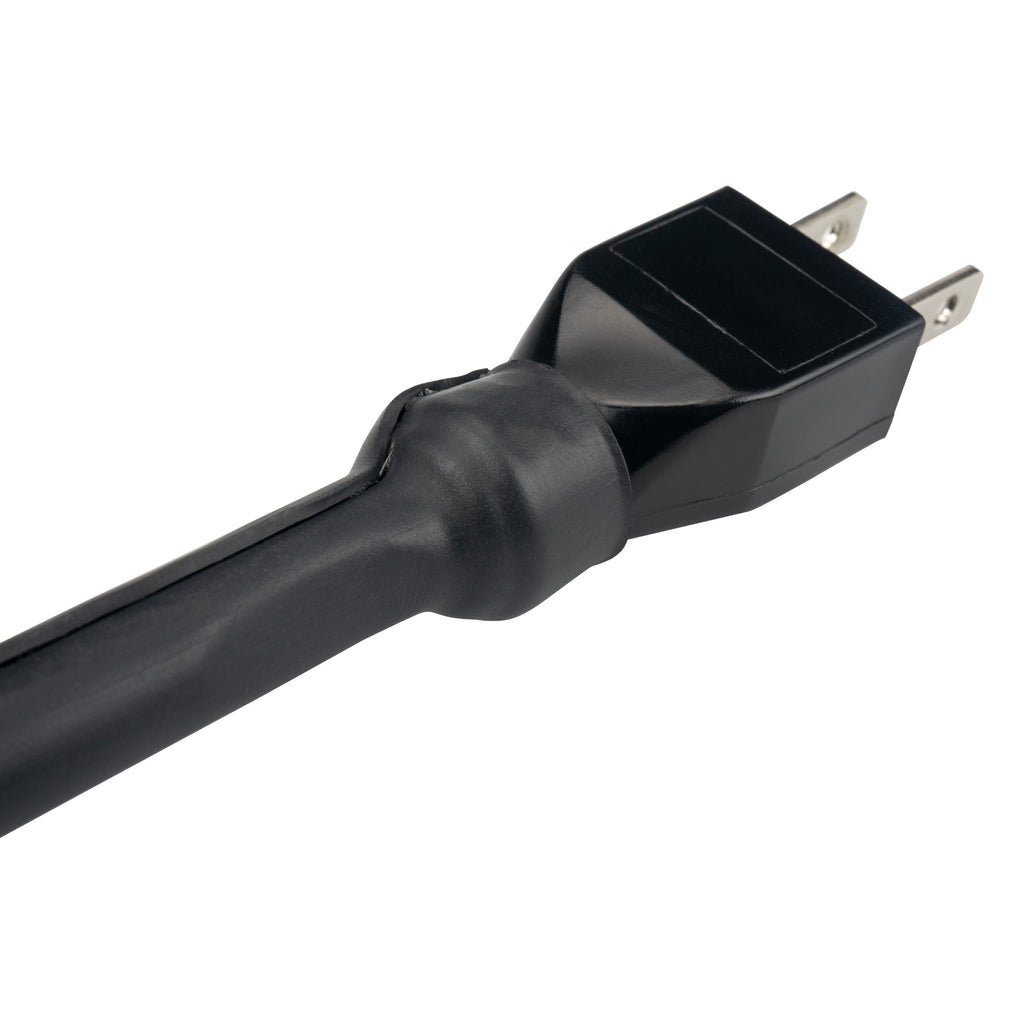

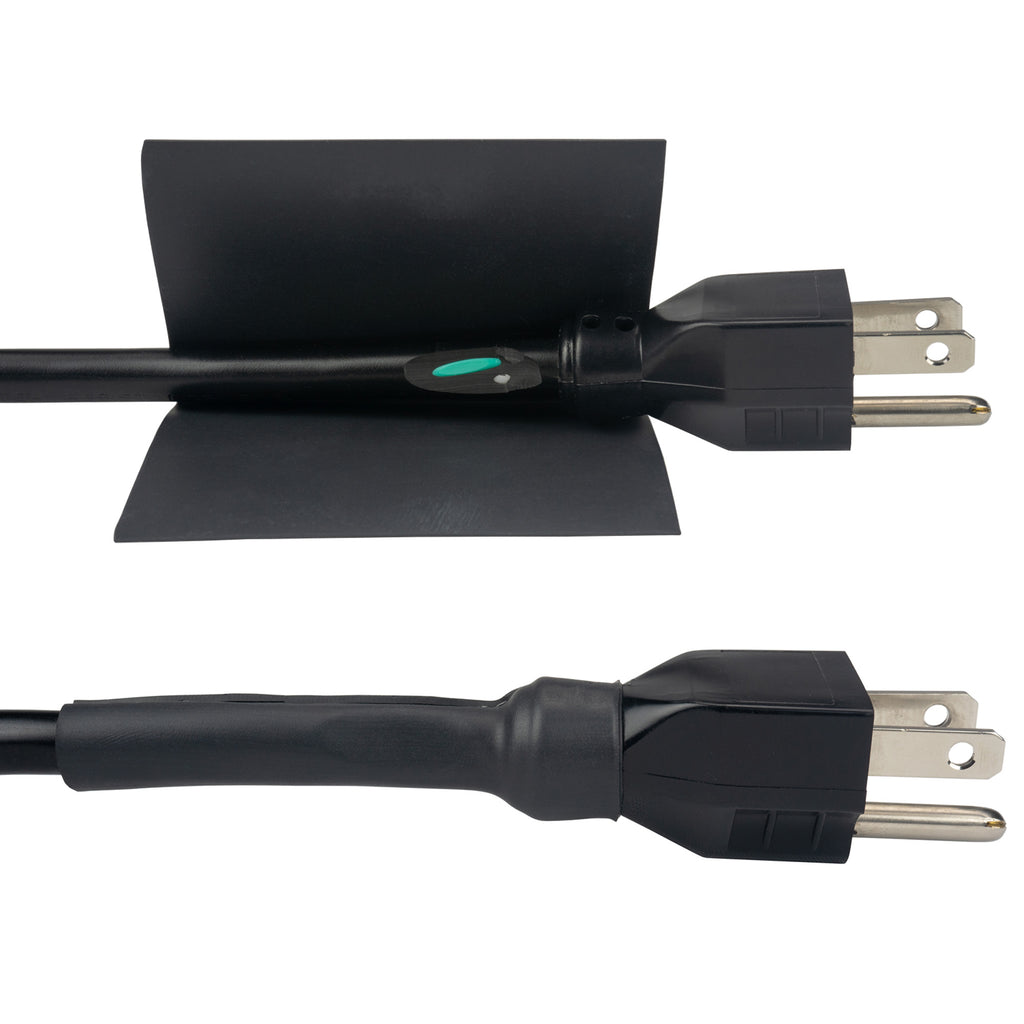

PRT® (Transition) boots are wrap-around, heat shrink boots that provide a protective cover from a connector backshell to the primary wire bundle. These products also offer strain relief to your connectors to ensure they remain in proper working order. The heat shrink material is made from MIL-SPEC (M23053/5) polyolefin heat shrink tubing.

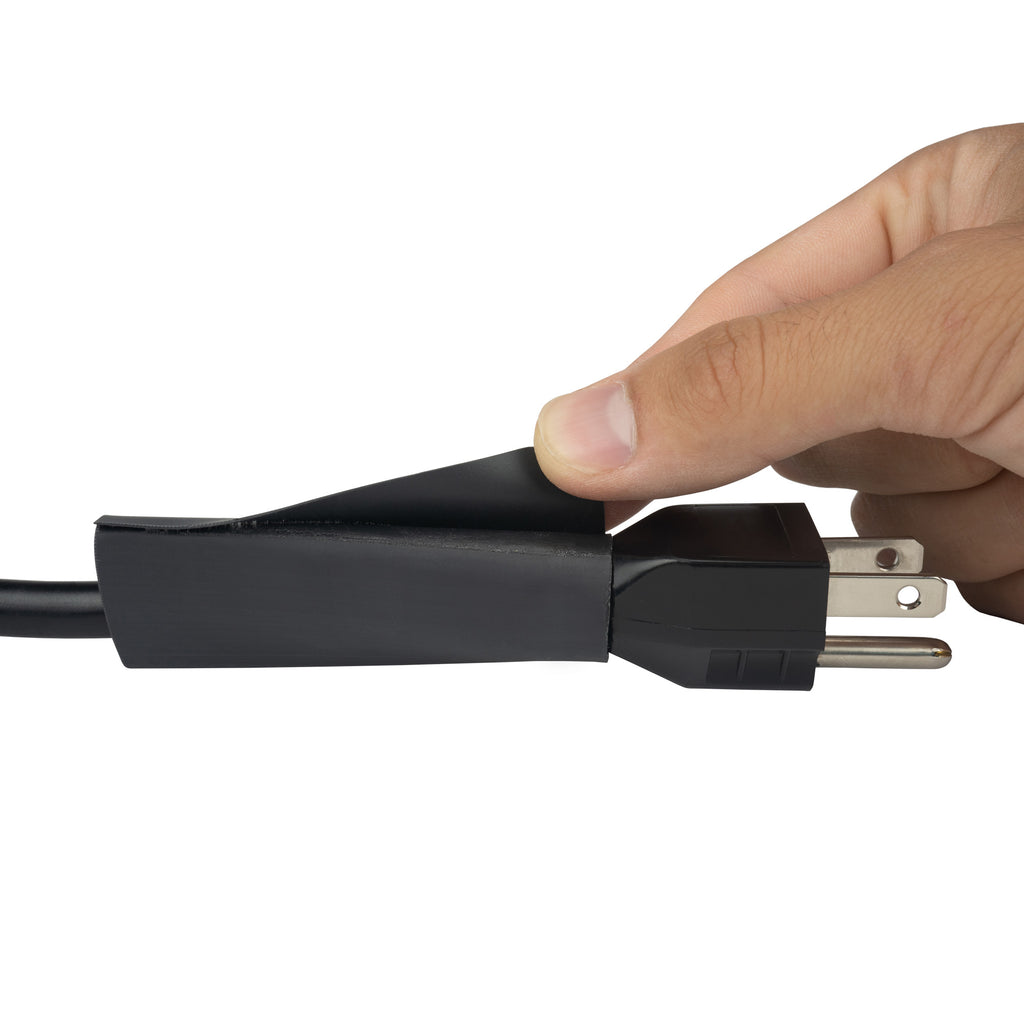

The transitions are ideal for in-service electrical system modifications as they eliminate the need to remove or disassemble the associated connectors and hardware. They can also eliminate the need for expensive, specialty molded boots, and in some cases minimize the heavy-wall thickness that results when using high-expansion ratio tubing.

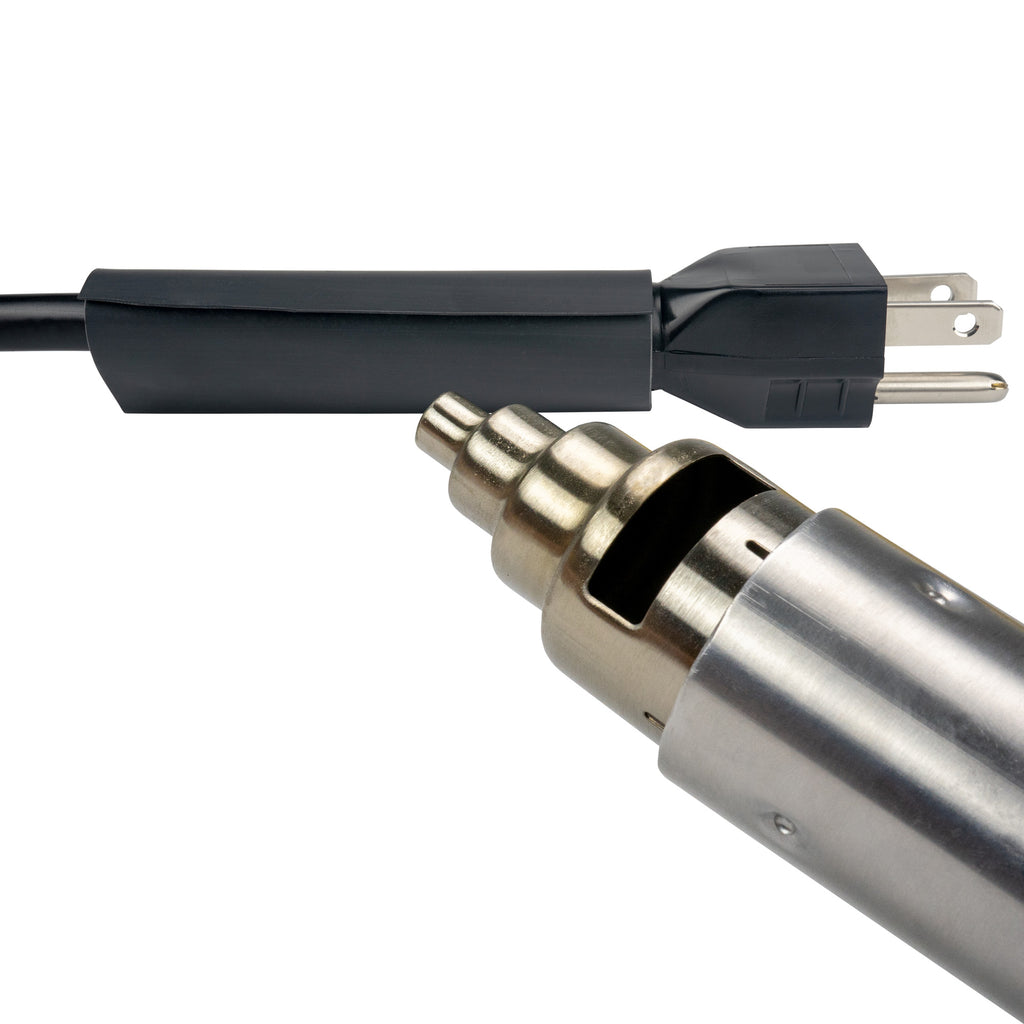

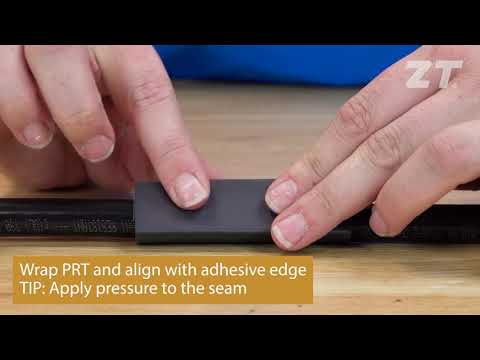

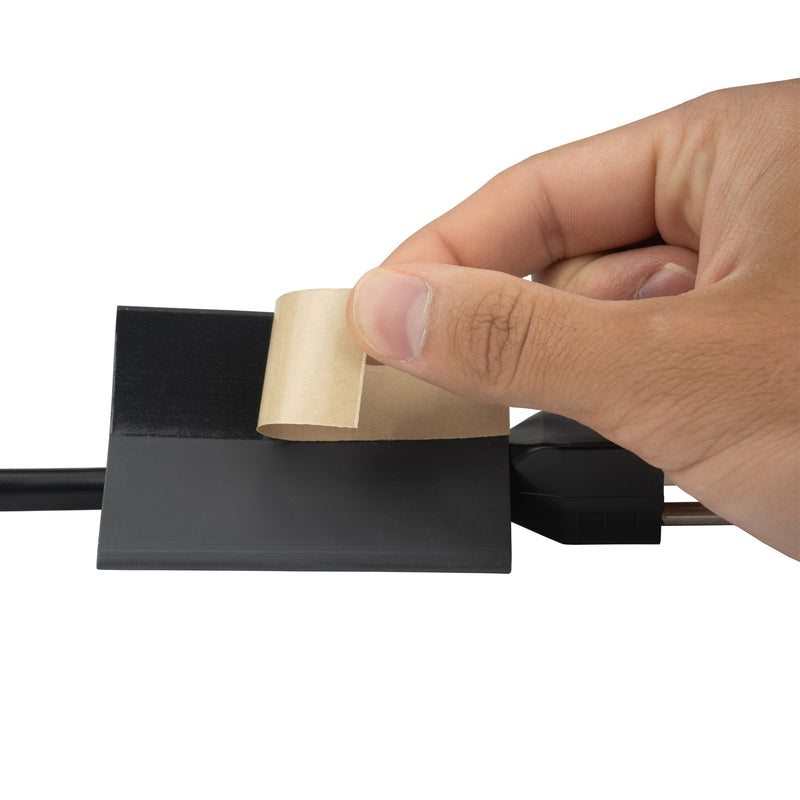

Installation is easy: Simply use a hot air heat gun. The heat gun is used to recover the boots in the same manor as standard, non-split, heat shrink tubing or molded boots.

Wrap-a-round transition boots are ideal for assemblies with non-removable electrical connectors. This material has an operational temperature range of -55°C to 135°C.

The product is offered in many different diameters, in 6” pieces. Custom solutions are also available that may also include additional EMI shielding.

If you need to protect your connector backshells from the environment, try Zippertubing’s Z-Block®. The addition of Z-Block® to your installation is the best way to water-block your wires!

Backshell Diameter
0.375" - 0.5" (#01) 0.875" - 1.0" (#09)
0.5" - 0.625" (#03) 1.0" - 1.125" (#11)
0.625" - 0.75" (#05) 1.125" - 1.25" (#13)
0.75" - 0.875" (#07) 1.25" - 1.5" (#15)

Overall Performance

  • Cable Diameter After Shrinkage: 0.375" - 0.5" (#01)
  • Closure: Tape (Specialty Surface)
  • Material: Polyolefin
  • Heat Shrink Material: Cross-Linked Polyolefin
  • Maximum Operating Temperature: 275°F
  • Minimum Operating Temperature: -67°F
  • RoHS: RoHS-10
  • Shelf-Life: 24 months
  • Shrink Ratio: 2:1

Polyolefin

  • Mil-Spec: SAE-AMS-DTL-23053/5
  • REACH: Compliant
  • Dielectric Strength: 500 volt/mil
  • Elongation: 200% (after shrink)
  • Flammability: UL224, VW-1, Self-extinguishing
  • Fungicide: No Growth
  • Longitudinal Shrinkage: +/-5% (after heat recovery)
  • Material: Cross-linked Polyolefin
  • Thickness: 0.035" - 0.055"
  • Maximum Operating Temperature: 275°F
  • Minimum Operating Temperature: -67°F
  • RoHS: RoHS-10
  • Shelf Life: 60 Months
  • Shrink Ratio: 2:1, 3:1 or 4:1
  • Tensile Strength: 1500 psi. (after shrink)
  • Specific Gravity: 1.35
  • Outgasssing (%TML): Min 0.2 | Max 0.93%
  • Outgassing (%CVCM): Min 0.02 | Max 0.13%
  • Outgassing (%WVR): Min 0.01 | Max 0.16%

Tape (Specialty Surface)
